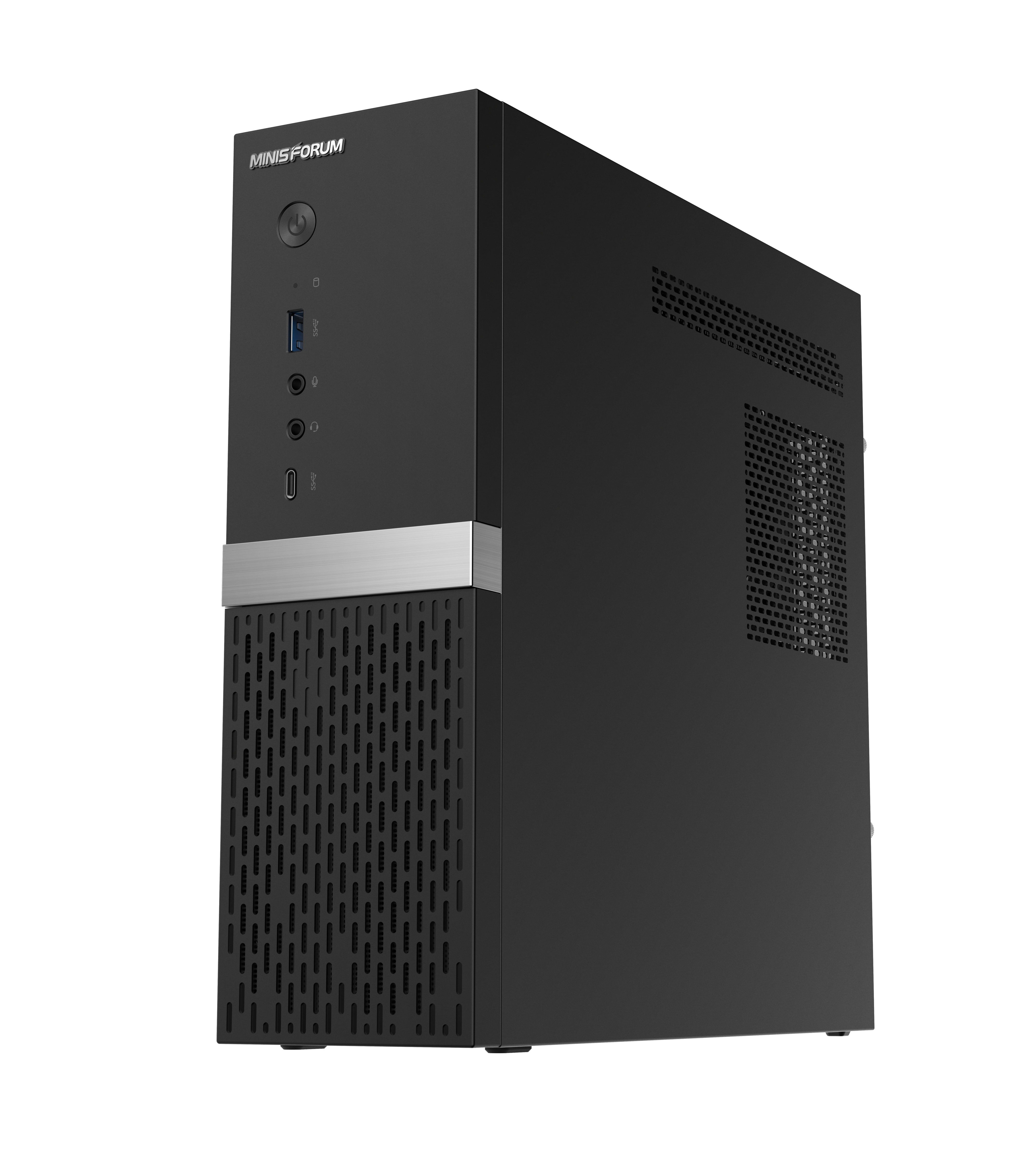

Minisforum 139D7 Mini ITX
Shipping calculated at checkout.
- Intel Core ™ i9-13900HX,24C/32T
- 1 × PCIe 5.0 x16 Slot | Pre-installed Intel® UHD Graphics
- Dual DDR5-5200MT/s | Up to 96GB
- 2 × M.2 2280 NVMe SSD Slot | Total Up to 8TB
- 2.5G RJ45 Port | WIFI7 & BT5.4

MORE ROOM TO GROW
Want a compact PC that doesn’t lock you into a fixed configuration? 139D7 is built to scale. Upgrade memory, expand storage, and keep your system ready for larger games, creator projects, and heavier workloads.
Dual DDR5
SO-DIMM Slots
Up to 96GB
DDR5 Memory
5600 MT/s
Max Speed Support

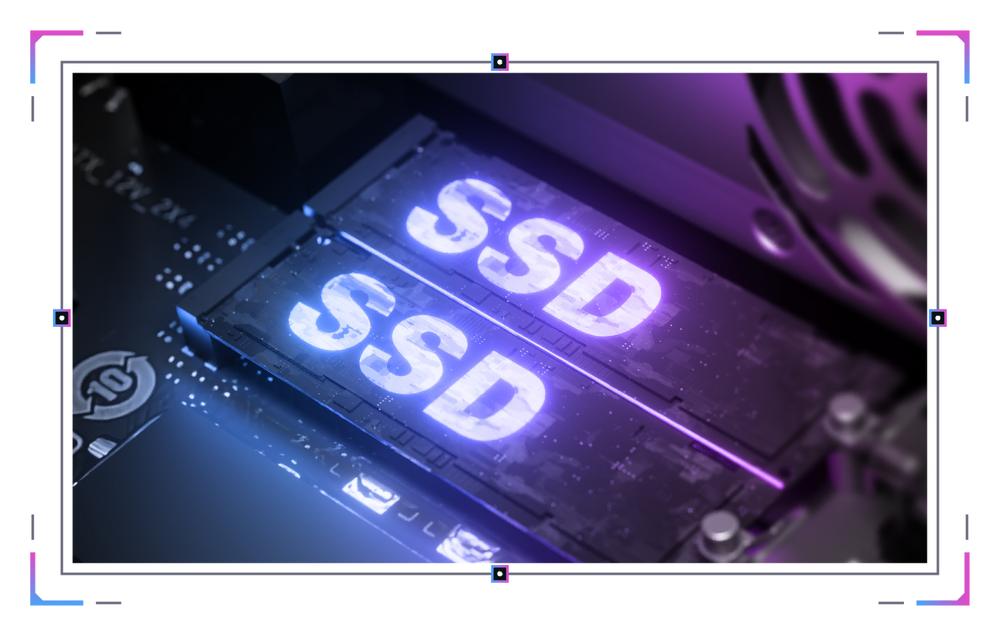

2 × M.2 2280
NVMe SSD Slots
PCIe 4.0 ×4
Storage Interface
Up to 8TB
Total SSD Storage

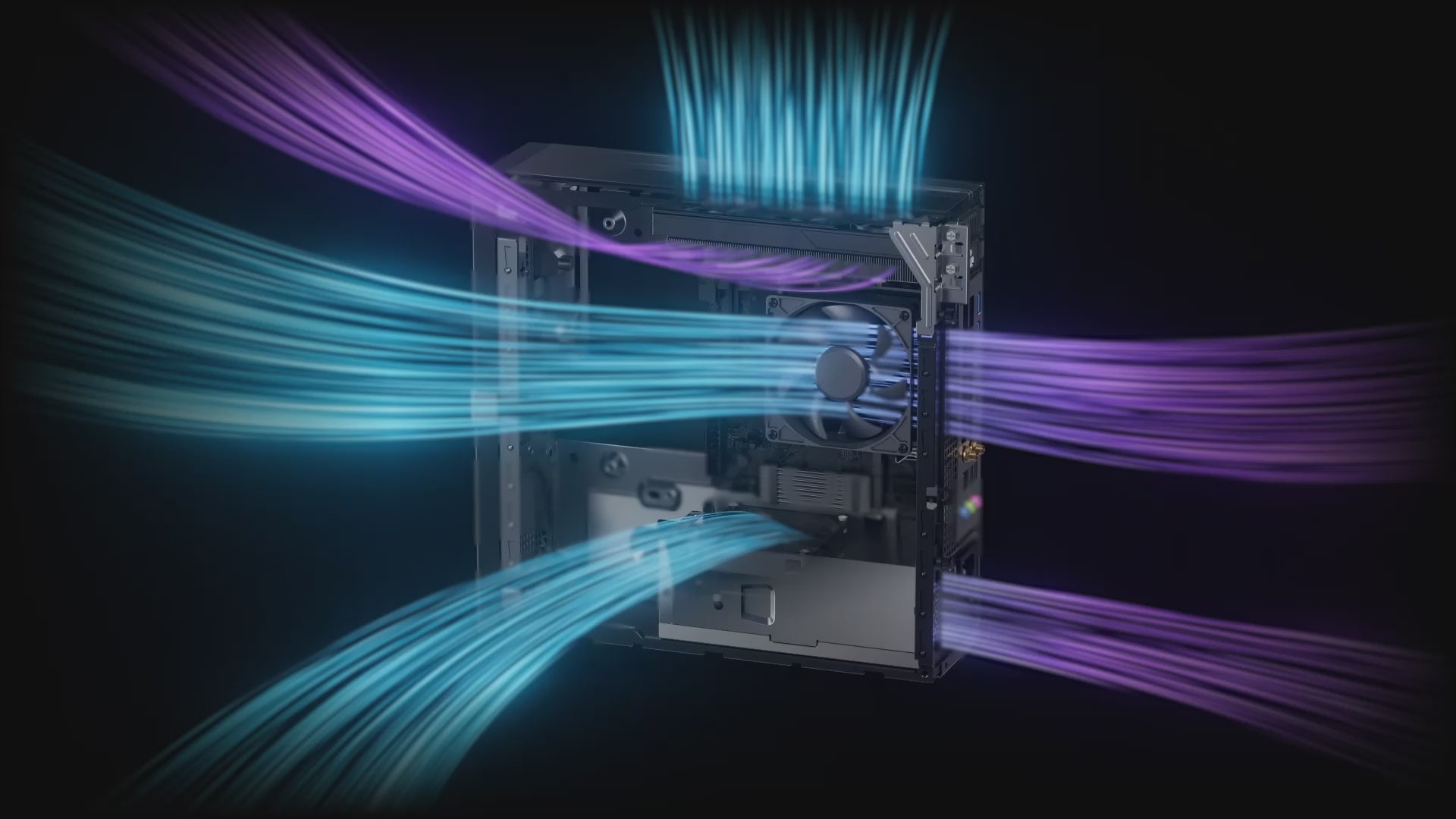

STABLE THERMALS UNDER REAL LOAD
Uses multi-side airflow, dedicated fan headers, and targeted cooling design to support sustained CPU, GPU, system, and SSD loads inside a compact chassis.
In Balance Mode, its measured acoustics reach 26.4dB at idle and 44.1dB under load.
PACKING LIST
139D7
Power Cord
Wi-Fi Antenna

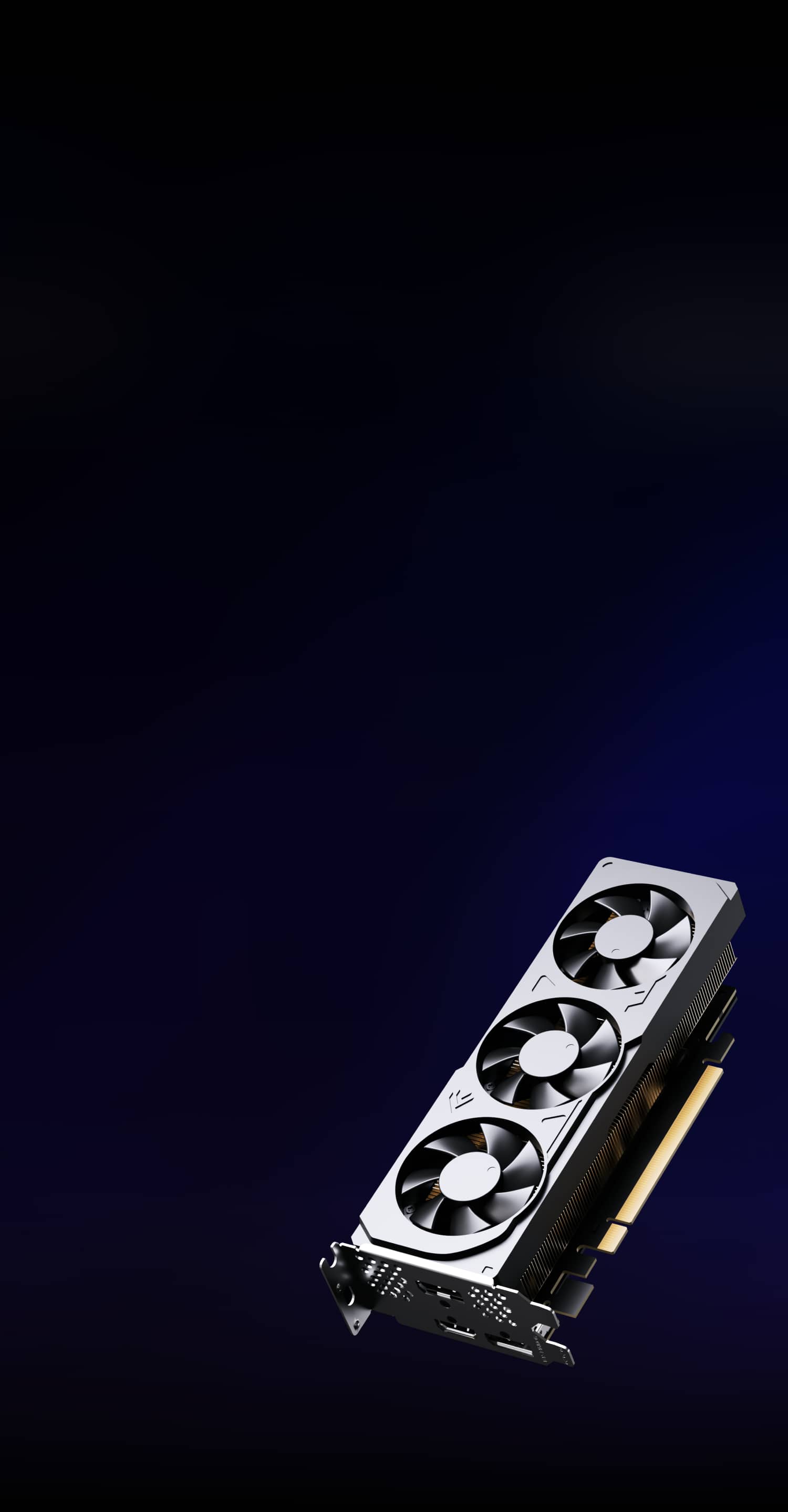

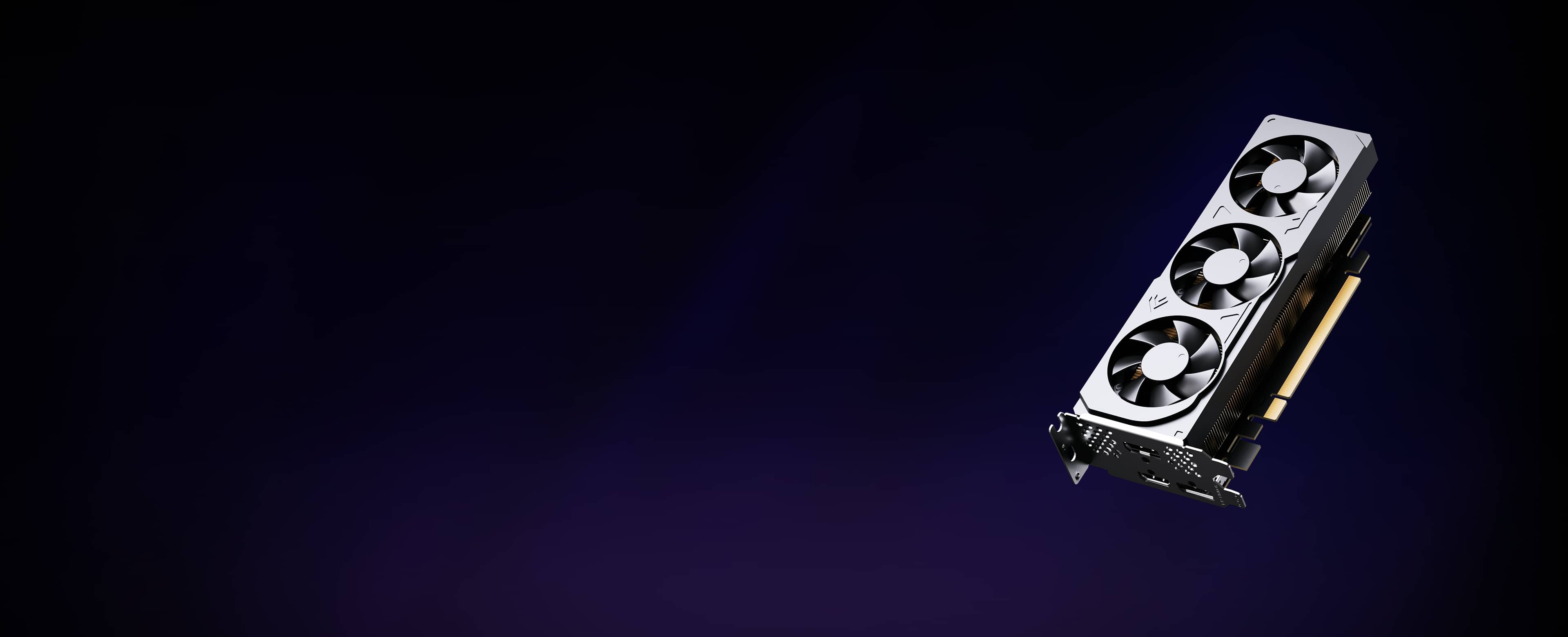

Graphics Card
Air-Sealing Foam

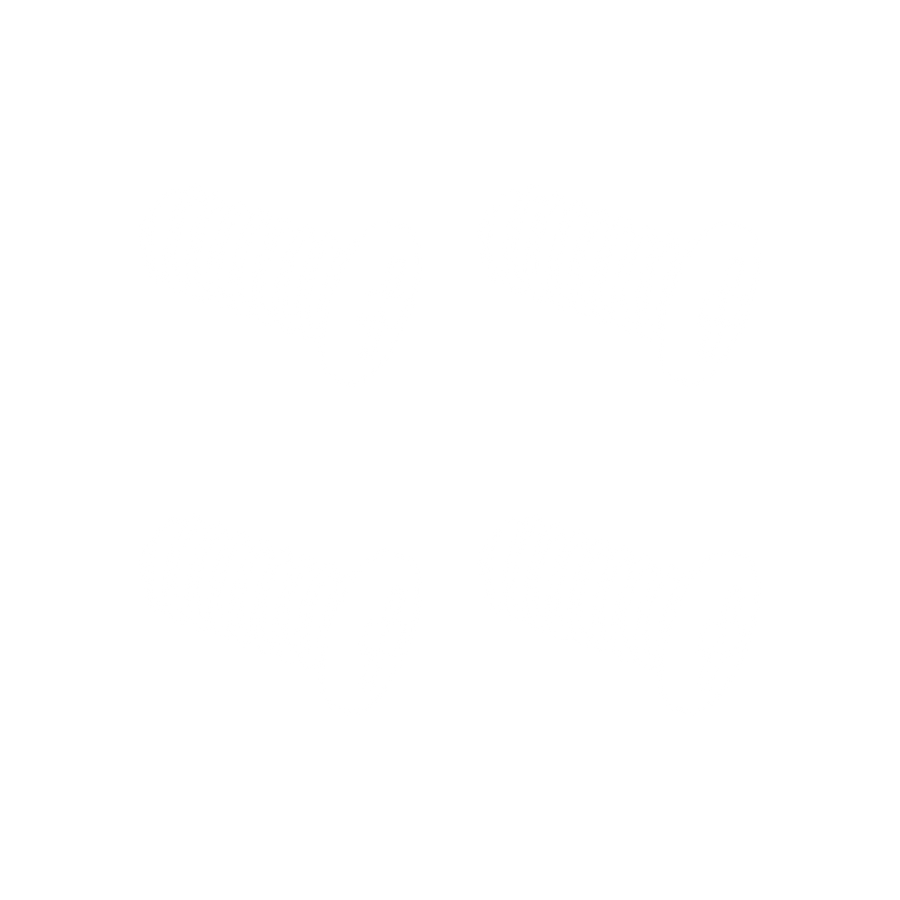

Mounting Screw Set
User Manual
Specification
Minisforum 139D7
139D7-IGPU
Intel Core ™ i9-13900HX,24C/32T
Max Turbo Frequency 5.4 GHz
Intel® UHD Graphics for 13th Gen Intel®
N/A
DDR5 Up to 5600 MT/s (dual-channel)
Optional SKU DDR Capacity: 0 / 16 / 32 / 48 / 64 / 96 GB
Max Memory Capacity 96GB
2 × M.2 2280 NVMe SSD Slot
(up to 4TB) (PCIe 4.0 x4)
Optional SKU SSD Capacity: 0/512 GB/1 TB
Phase Change Material (PCM)
CPU Fan Type: Blower Fan
CPU Fan Speed: 4-pin/3500 RPM/12 V
Wi-Fi 7 & Bluetooth® 5.4
M.2 2230 E-Key Wi-Fi / Bluetooth Combo Module (PCIe Only)
2.5GbE LAN (RJ45)
1 × RJ45 (Module: Realtek RTL8125)
- 1 × HDMI 2.0
- 1 × DP 1.4
- 1 × USB Type-C
- (up to 4K@60Hz)
- (up to 4K@120Hz)
- (up to 4K@120Hz)
- 1 × HDMI 2.0
- 1 × DP 1.4
- 1 × Audio Out Port
- 1 × Line Out Port
- 1 × Line In Port
- 2 × Mic In Port

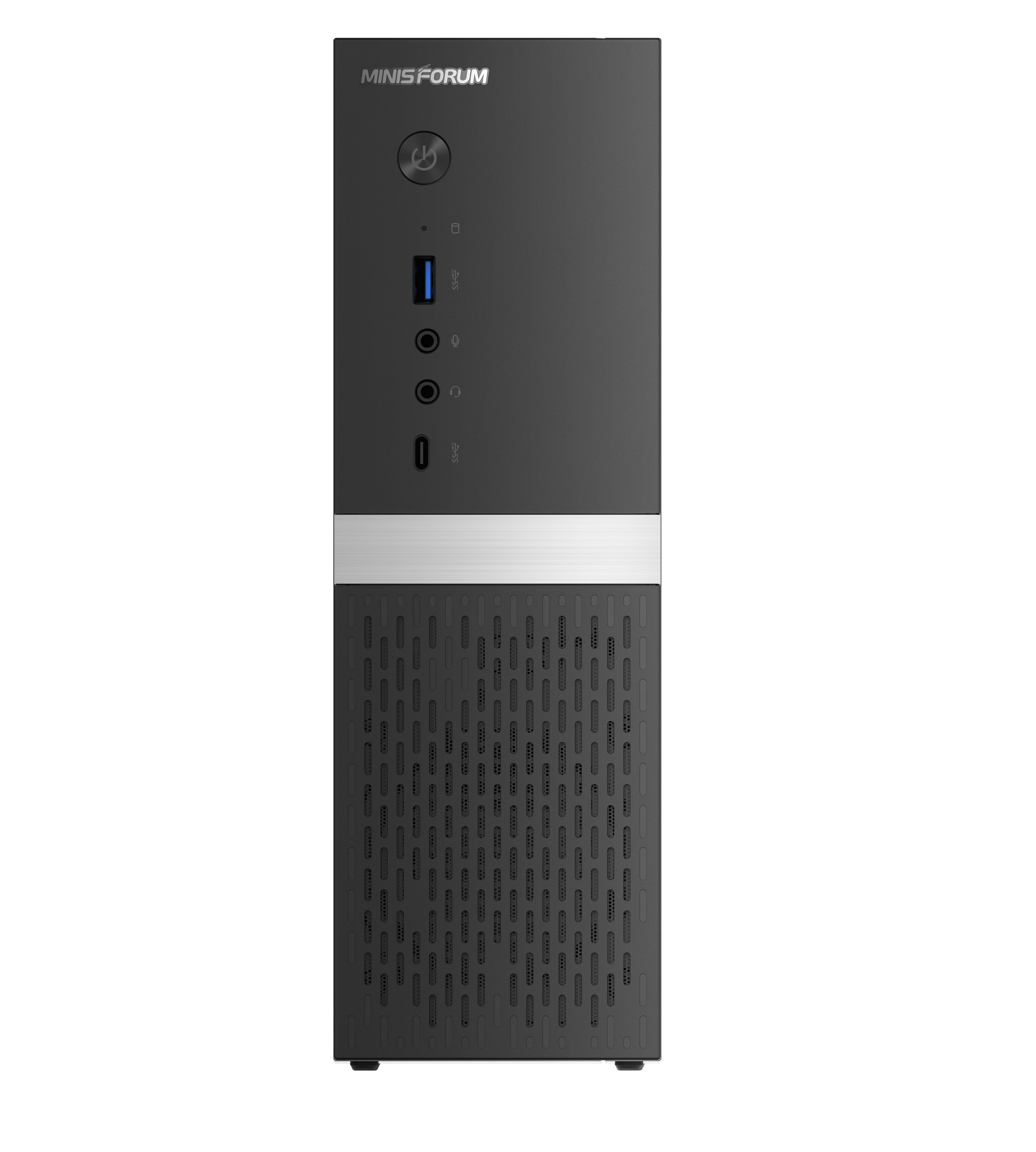

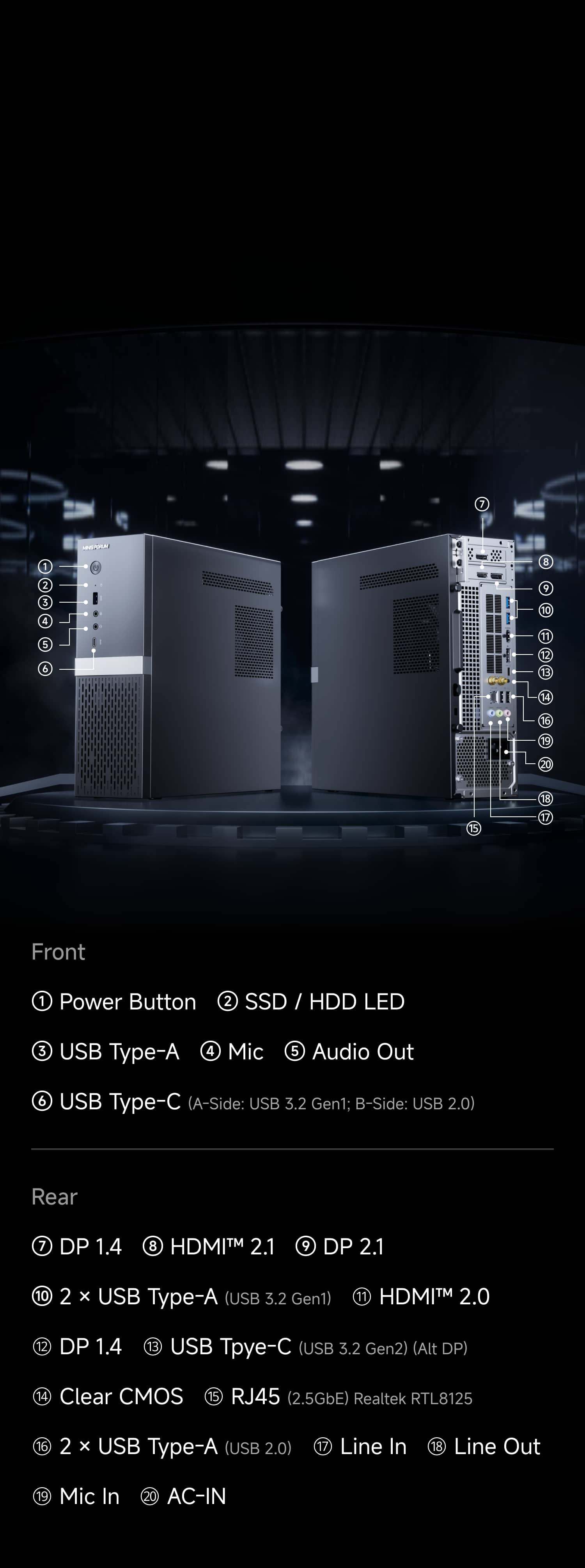

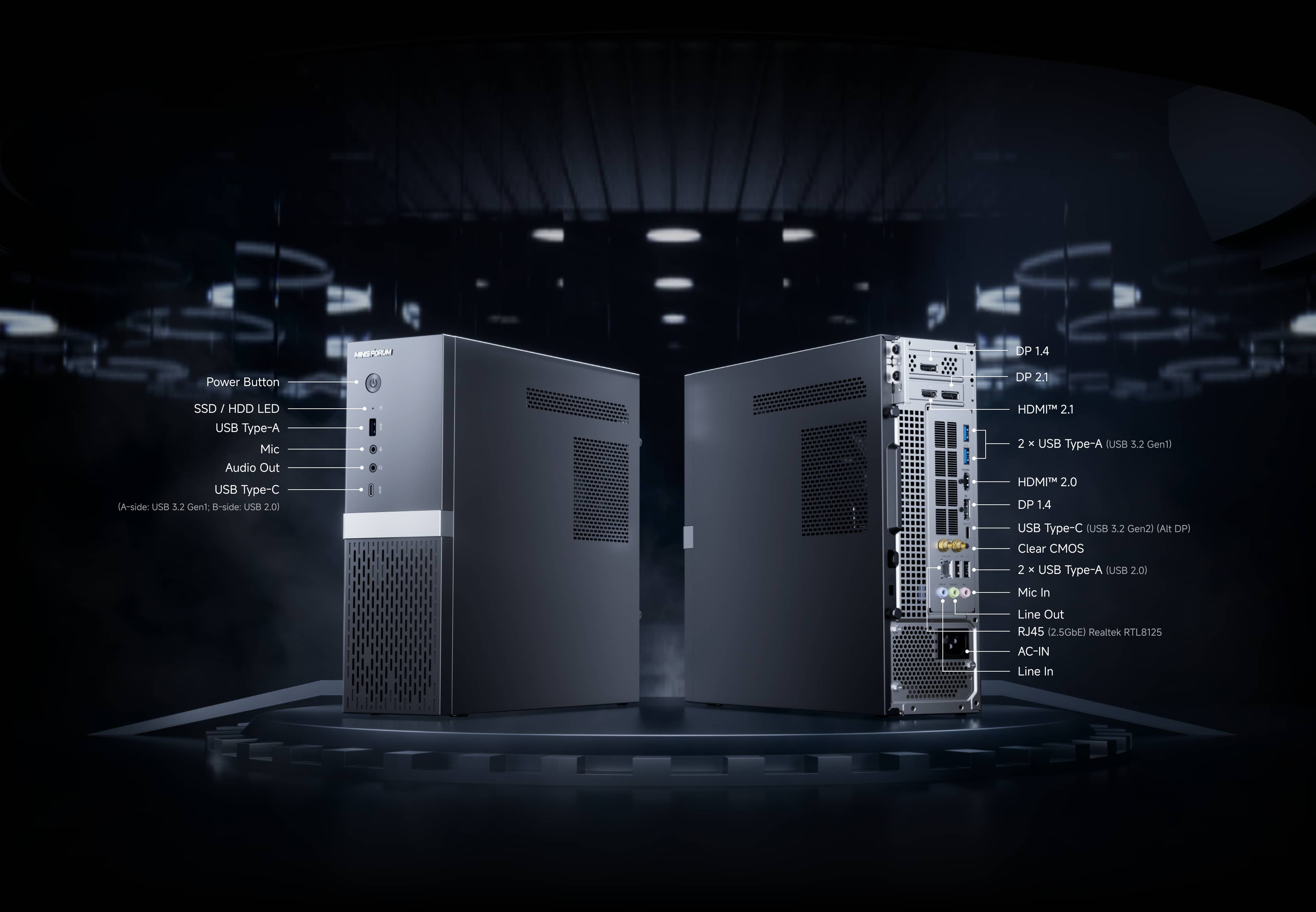

Front:
- 1 × Audio Out
- 1 × Power Button
- 1 × Mic In
- 1 × USB Type-A (USB 3.2 Gen1)
- 1 × USB Type-C (A-side: USB 3.2 Gen1; B-side: USB 2.0)

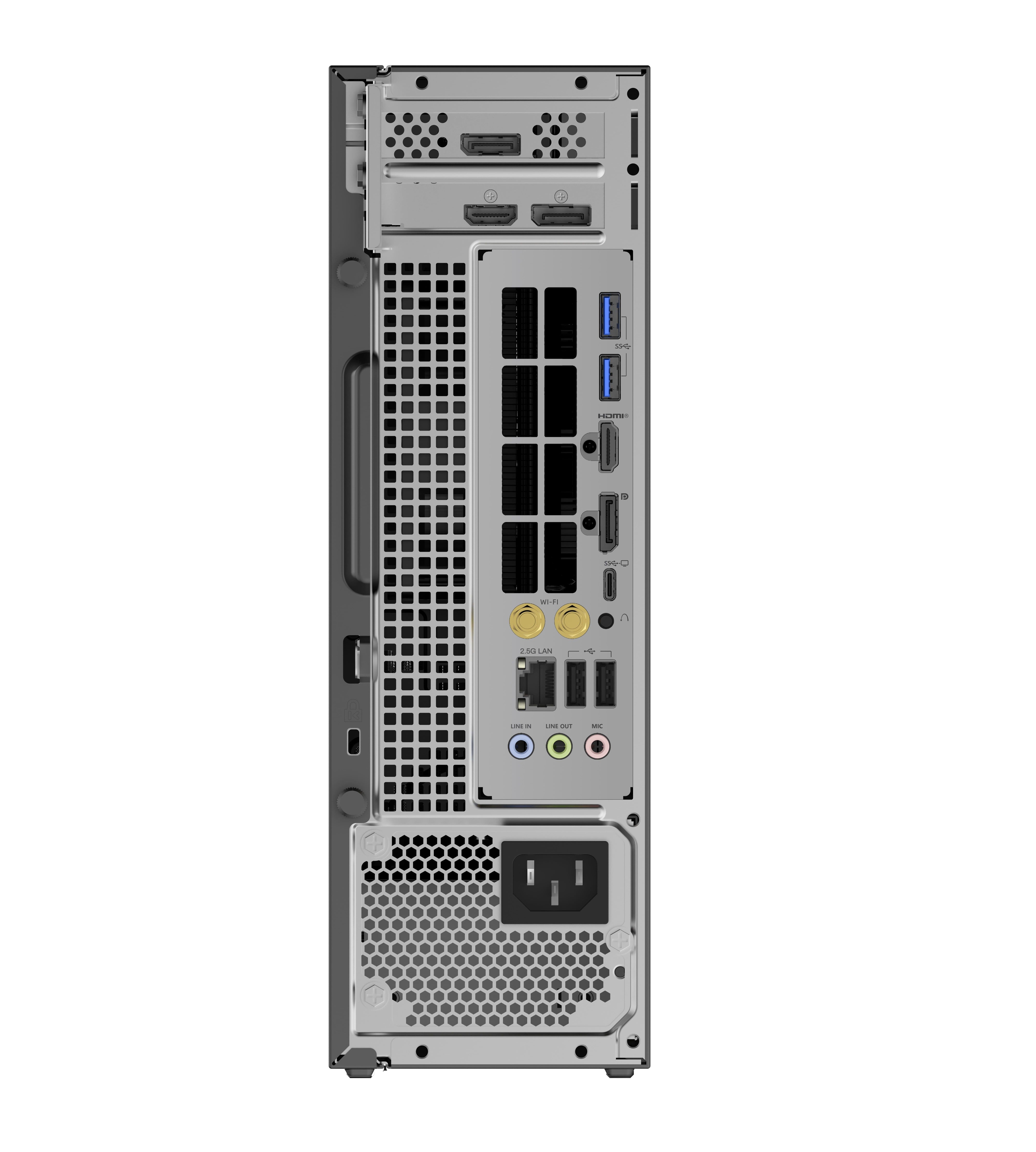

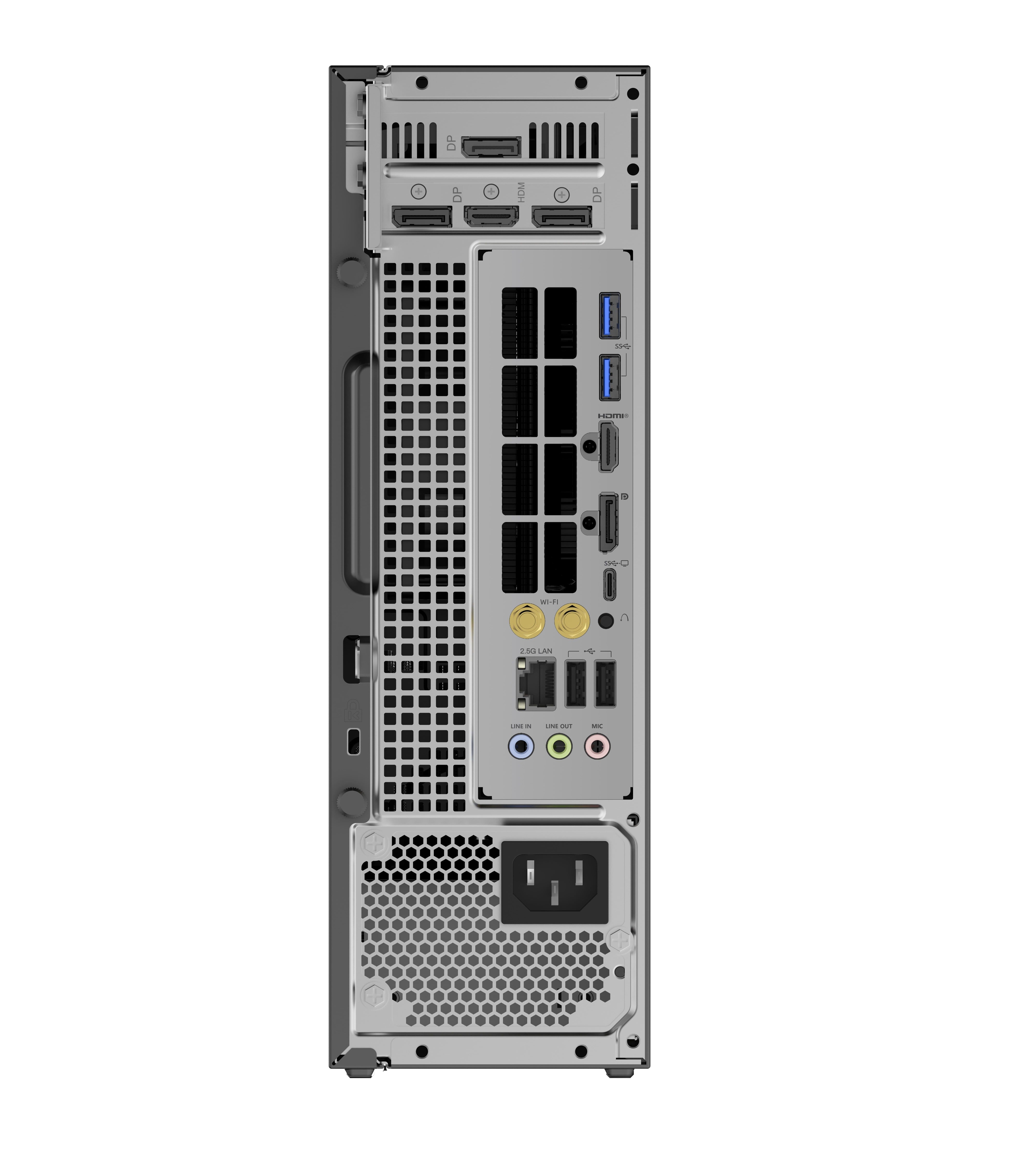

Rear:
- 1 × DP 1.4
- 1 × HDMI 2.0
- 1 × RJ45 (2.5GbE) Realtek RTL8125
- 2 × USB Type-A (USB 3.2 Gen1)
- 2 × USB Type-A (USB 2.0)
- 1 × USB Type-C (USB 3.2 Gen2) (Alt DP)
- 1 × Line In
- 1 × Line Out
- 1 × Mic In
Internal:

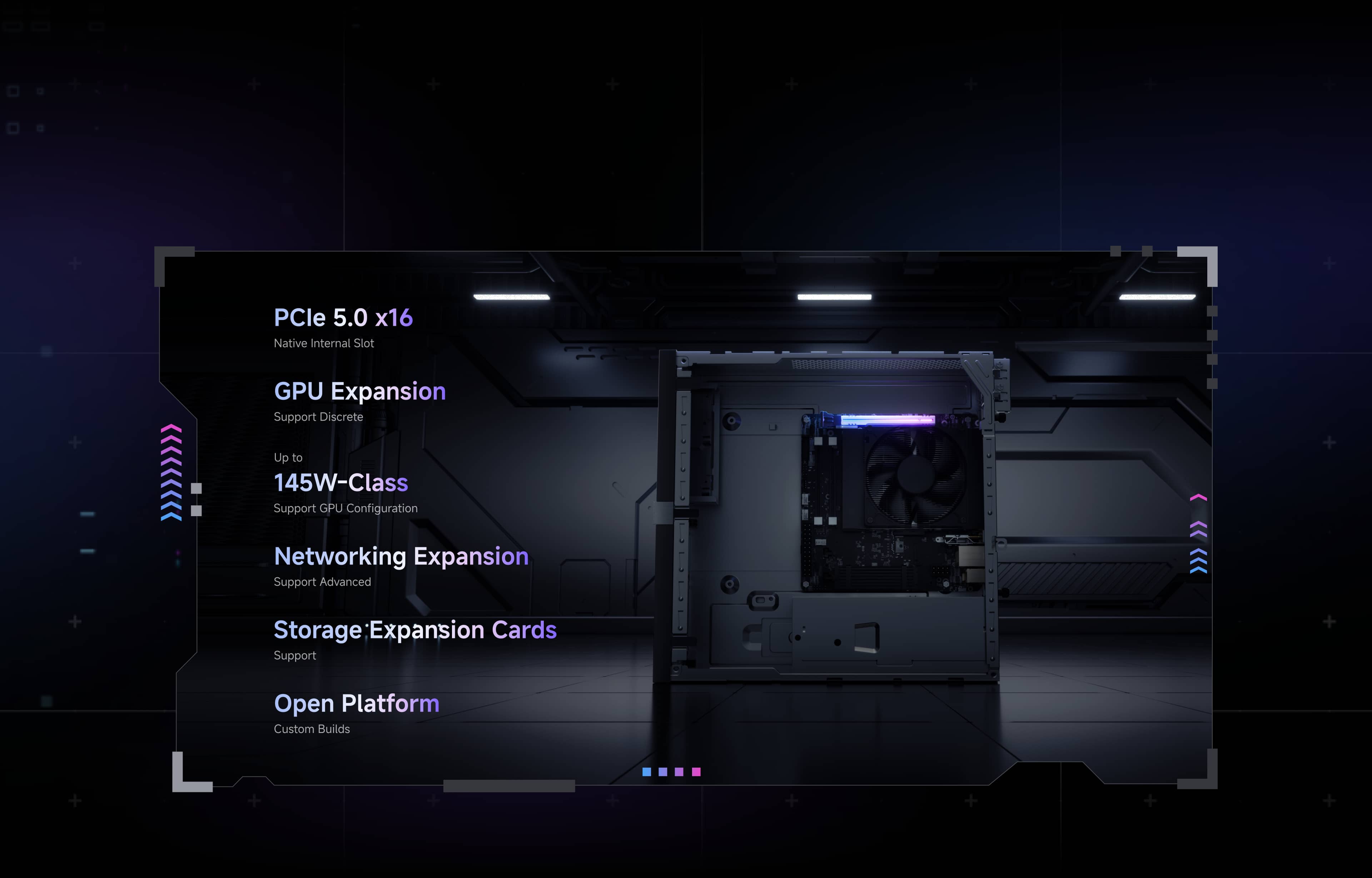

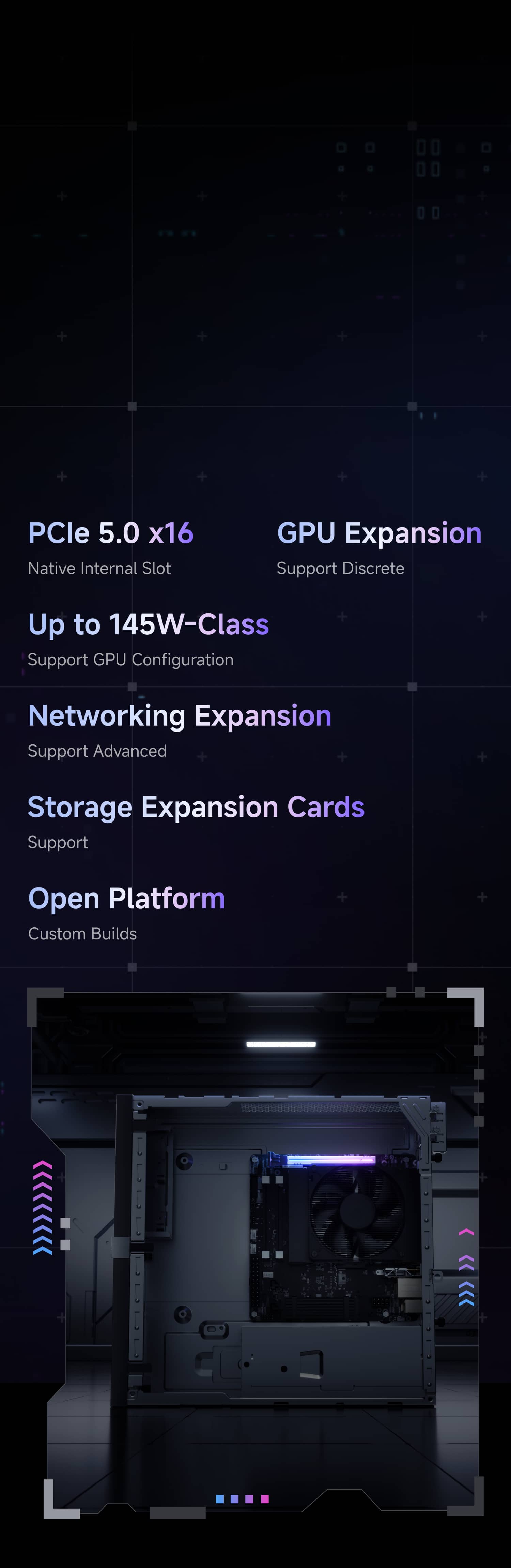

- 1 × PCIe 5.0 x16 Slot
- 2 × System Fan Header (12 V)
- 1 × 8-pin(150W)
- 1 × Power Button
- 1 × Clear CMOS (Pinhole)
AC-IN, 100–240 V, Max 400 W
Windows 11

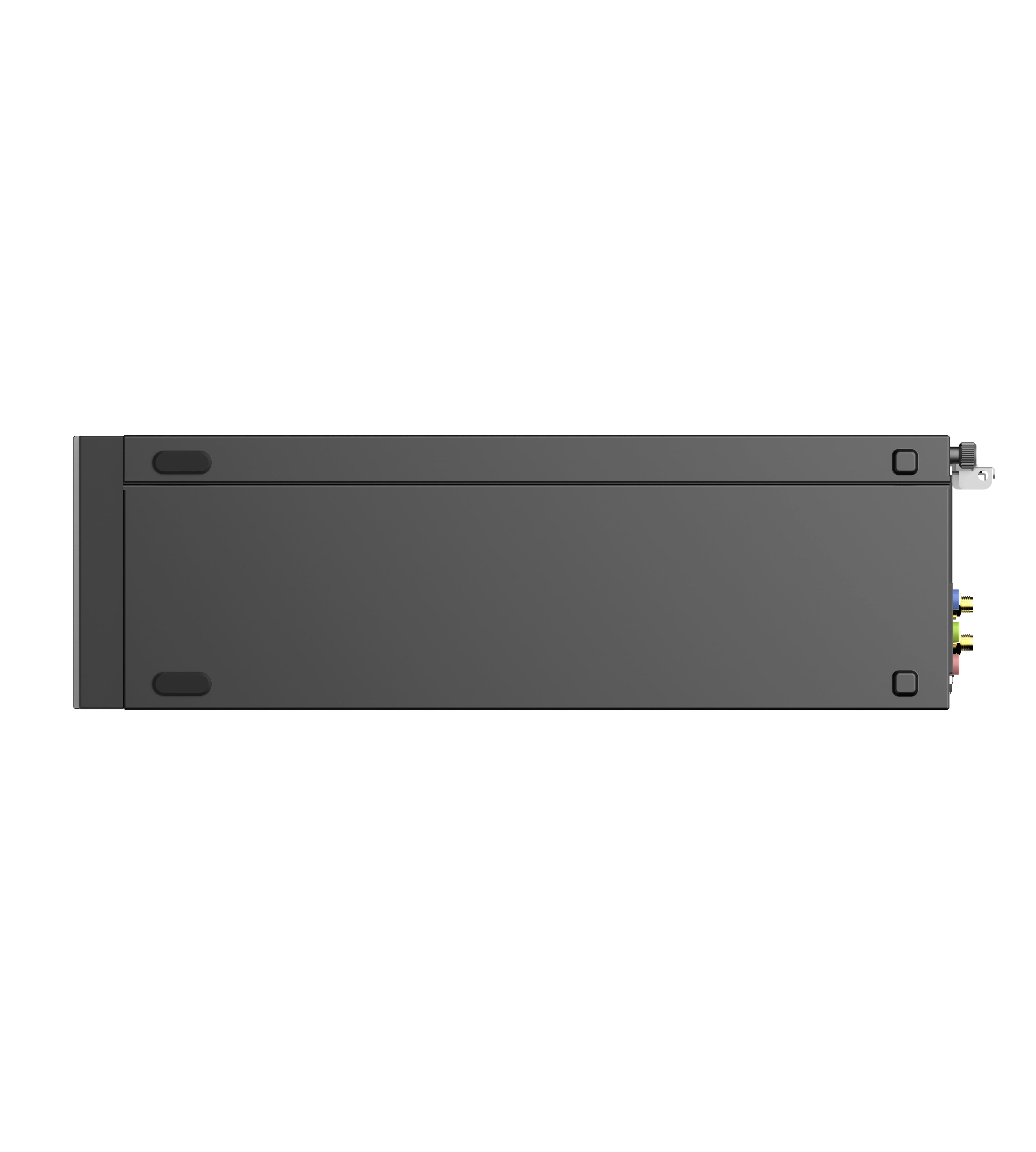

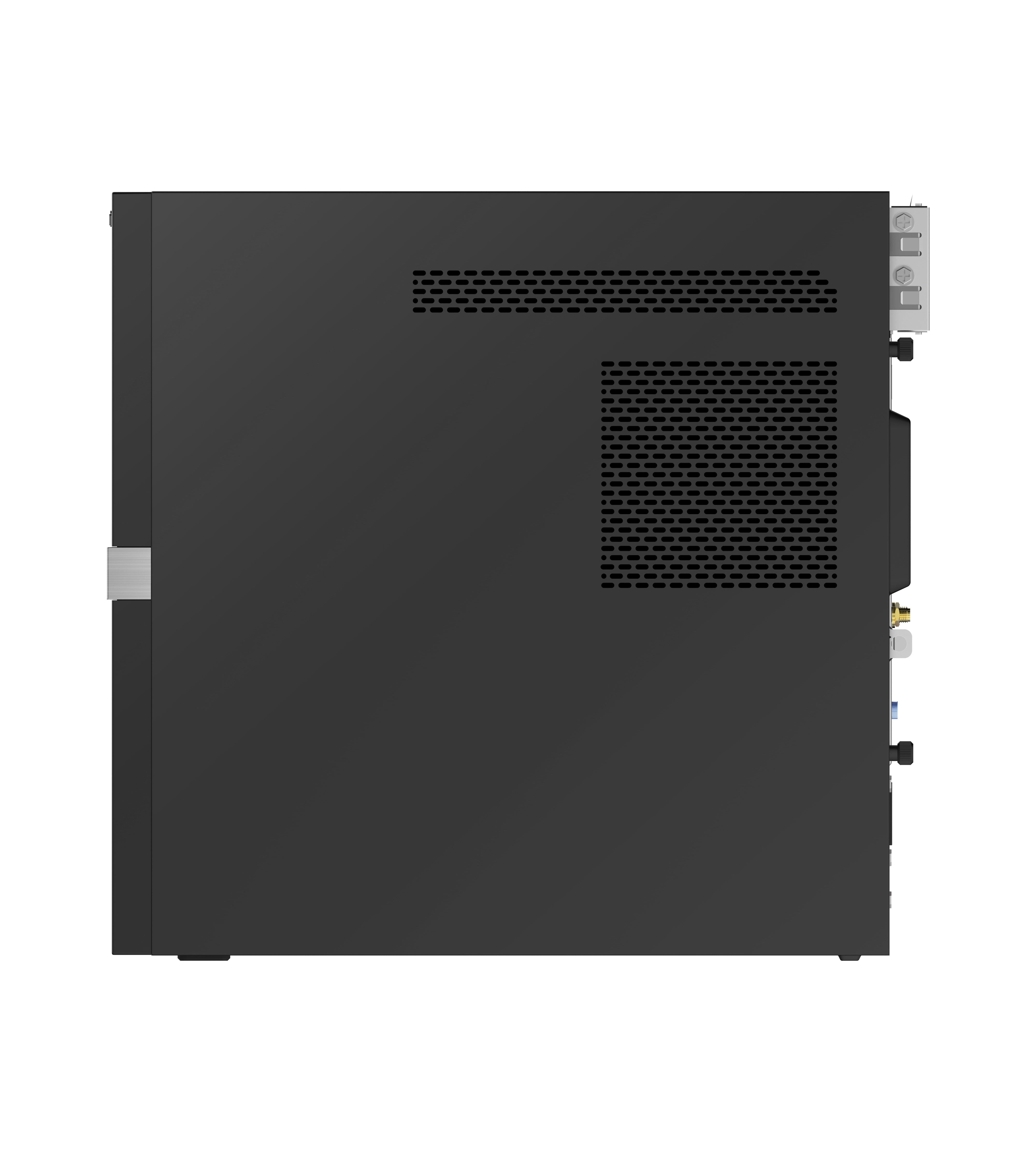

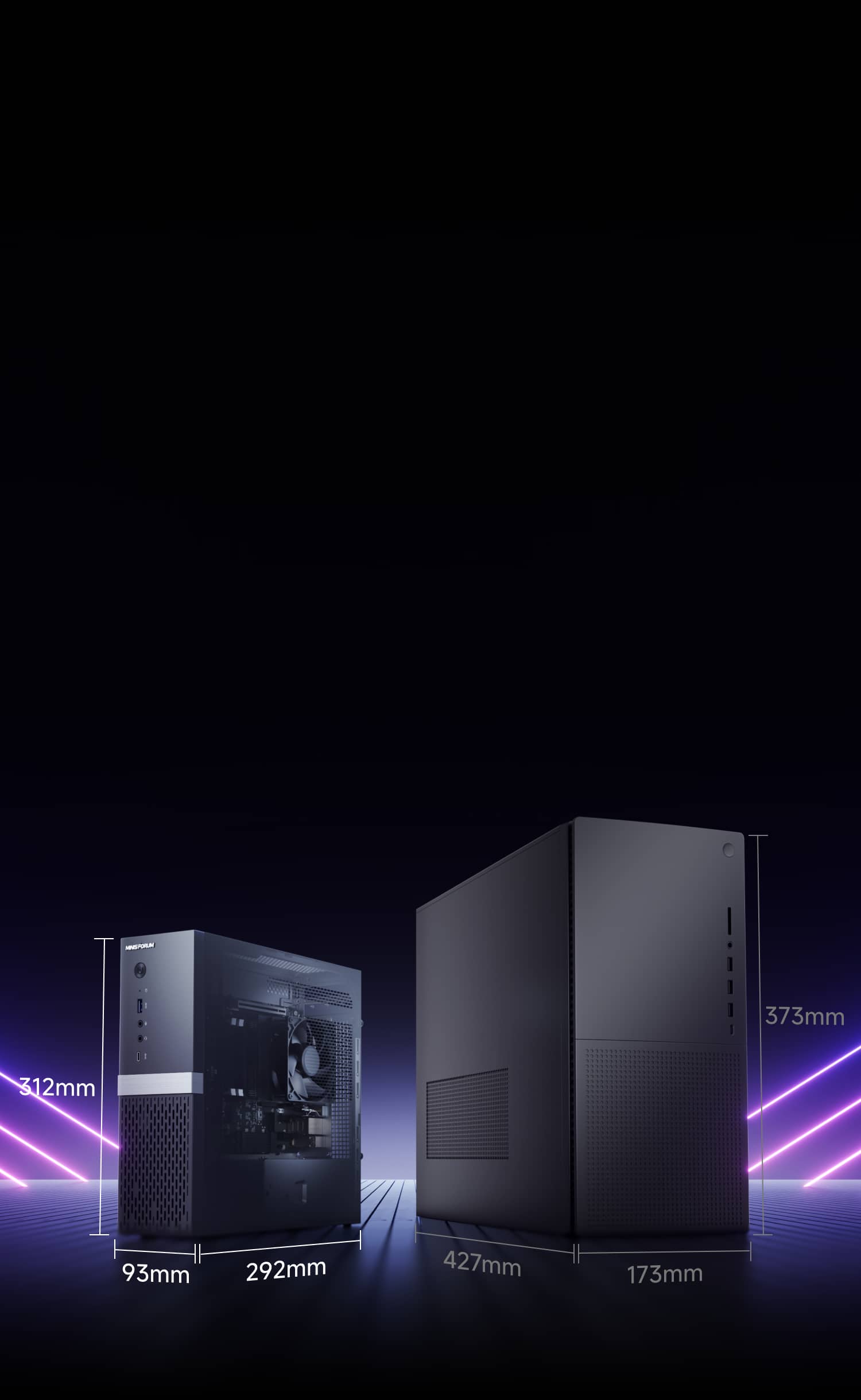

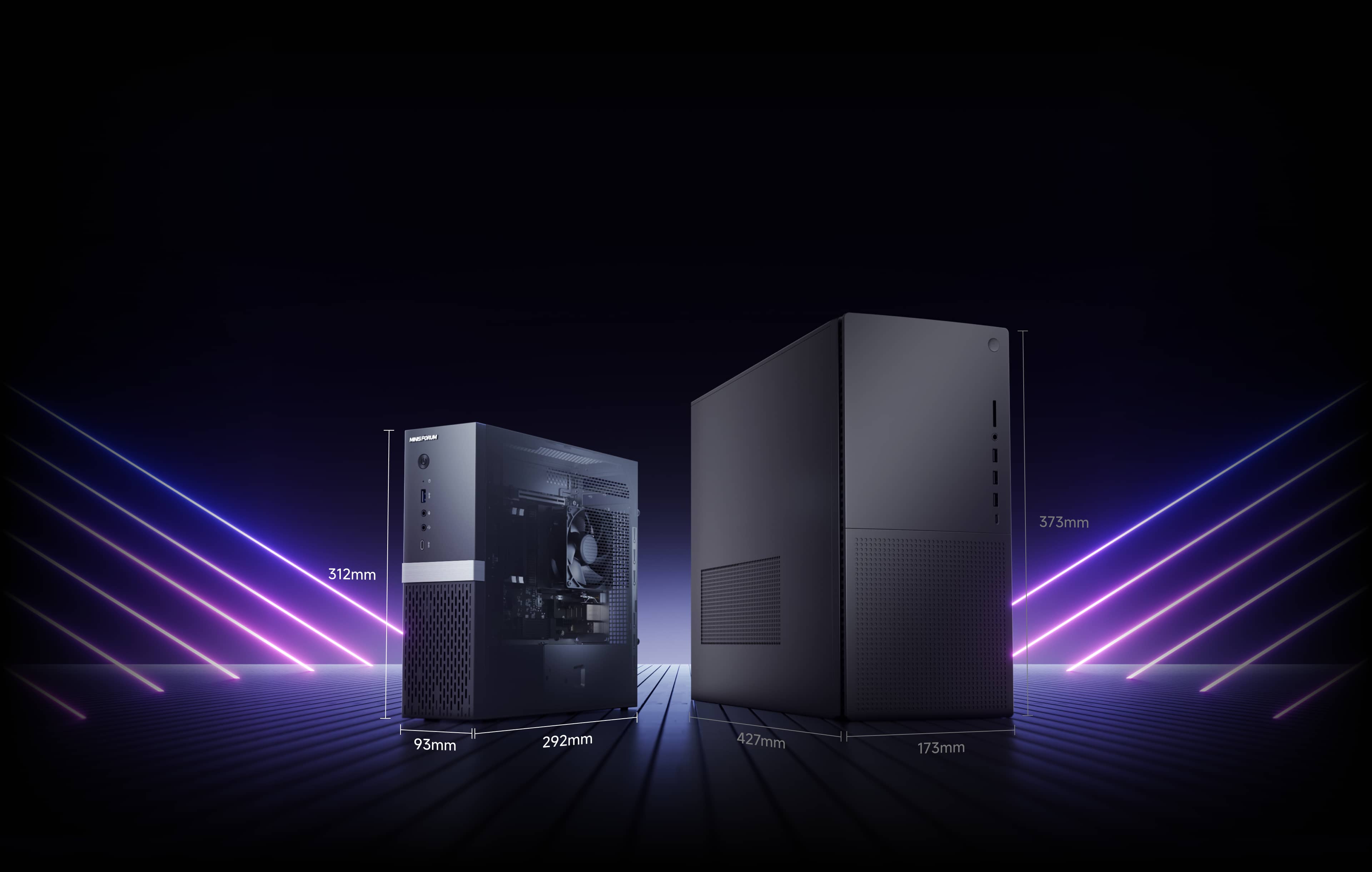

312 × 93 × 292 mm
8.47 L
3.44 KG
