Minisforum UK
Minisforum BD895i SE / BD775i SE Motherboard
Sale price
£389.00
Regular price
£489.00
Save £100.00
For Bulk Discount, please contact: uk@minisforum.com
- AMD Ryzen™ 9 8945HX,16C/32T
- Dual DDR5-5200Mhz | Up to 96GB
- Dual M.2 2280 PCle4.0×4 SSD Slots
- PCle5.0 × 16 Expansion Slot
- Support Triple-screen Display | 8K@60Hz
Specification
Product
- BD895i SE
- BD775i SE
CPU
- Processor: AMD Ryzen™ 9 8945HX
- Total Cores: 16
- Total Threads: 32
- Frequency: 2.5 GHz
- Max Turbo Frequency: 5.4 GHz
- TDP: 100W, 120W Max Turbo
- CPU Cooler height: 37mm(12cm fan not included)
- Processor: AMD Ryzen™ 7 7745HX
- Total Cores: 8
- Total Threads: 16
- Frequency: 3.6 GHz
- Max Turbo Frequency: 5.1 GHz
- TDP: 100W
GPU
Graphics Cards: AMD Radeon™ 610M
Graphics Cards: AMD Radeon™ 610M
PCIe Expansion
1×PCle 5.0×16 Connector
1×PCle 5.0×16 Connector
Memory
- Memory Type: DDR5 (SO-DIMM x 2)
- Max Speed Support: 5200MHz
- Max Capacity Support: 96GB
- Memory Type: DDR5 (SO-DIMM x 2)
- Max Speed Support: 5200MHz
- Max Capacity Support: 96GB
Storage
- Storage Type: 2xM.2 2280 NVME SSD Slot (up to 4TB)(PCle4.0x4)
- Optional SKU SSD Capacity: N/A
- Storage Type: 2xM.2 2280 NVME SSD Slot (up to 4TB)(PCle4.0x4)
- Optional SKU SSD Capacity: N/A
Wireless Connectivity
- M.2 2230 E-Key(PCle Only)
- M.2 2230 (Key E) WiFi Slot, Module not included
Headers & Connectors
- 1×24-pin Main Power connector
- 1x8-pin +12V CPU Power connector
- 1x4-pin CPU Fan header
- 2 x 4-pin SYS Fan header
- 1×System Panel header
- 1xFront Panel Audio header (F_AUDIO)
- 1×USB 3.2 Gen1 header
- 1×24-pin Main Power connector
- 1x8-pin CPU Power connector
- 1x4-pin CPU Fan header
- 2 x 4-pin SYS Fan header
- 1×System Panel header
- 1xFront Panel Audio header (F_AUDIO)
- 1×USB 3.2 Gen1 header
Video Output
- HDMI™ 2.1 FRL x 1 (Up to
- 8K@60Hz/4K@120Hz)
- DP 1.4 x 1 (Up to 8K@60Hz/4K@120Hz)
- 1 x USB-C (Up to 8K@60Hz/4K@120Hz)
- HDMI™ 2.1 FRL x 1 (Up to
- 8K@60Hz/4K@120Hz)
- DP 1.4 x 1 (Up to 8K@60Hz/4K@120Hz)
- 1 x USB-C (Up to 8K@60Hz/4K@120Hz)
Audio Output
- HDMI™ x1
- Line Out x1
- HDMI™ x1
- Line Out x1
Audio Input
- Line in x1
- Mic x1
- Line in x1
- Mic x1

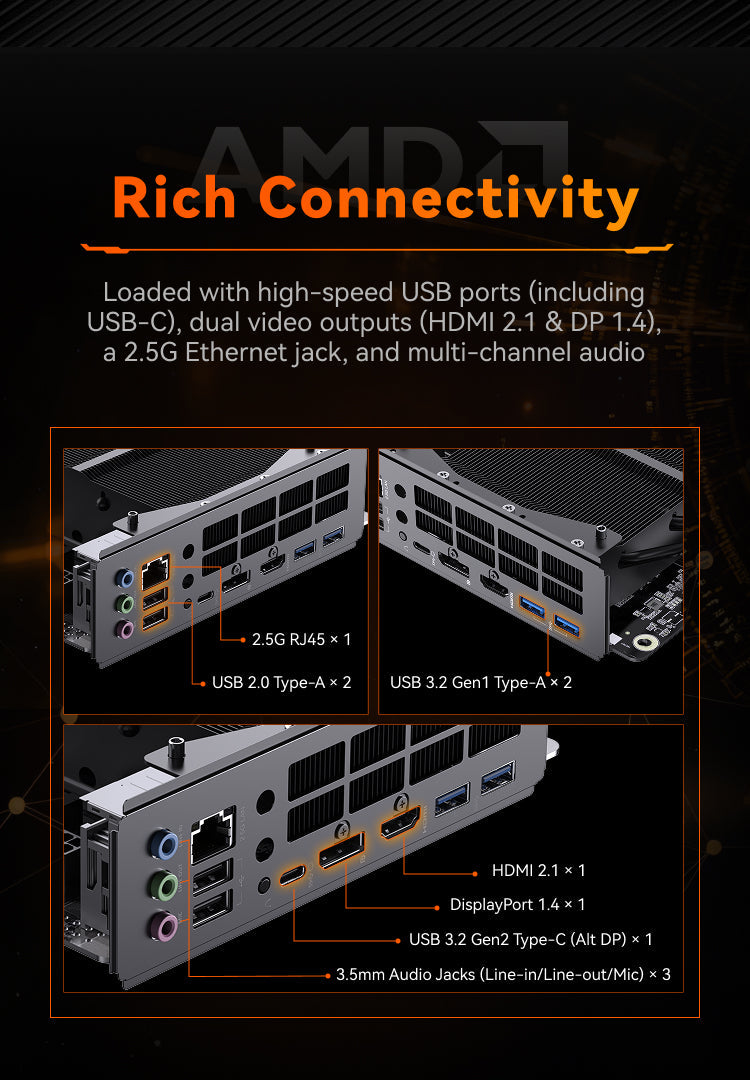

I/O Ports
- 2.5Gigabit LAN(RJ45) x1
- USB Type A(USB2.0) x2
- USB Type A(USB3.2 Gen1) x2
- USB Type C (USB3.2 Gen2)(Alt DP) x1
- HDMI2.1 x1
- DP1.4 x1
- Line in x1
- Line Out x1
- Mic x1
- CLR COMS x1
- 2.5Gigabit LAN(RJ45) x1
- USB Type A(USB2.0) x2
- USB Type A(USB3.2 Gen1) x2
- USB Type C (USB3.2 Gen2)(Alt DP) x1
- HDMI2.1 x1
- DP1.4 x1
- Line in x1
- Line Out x1
- Mic x1
- CLR COMS x1
Power
ATX Power(>200W)
ATX Power(>200W)
OS Support
Windows 11
Windows 11
Dimensions
170x170x1.6mm(LWH)
170x170x1.6mm(LWH)
