Minisforum MS-A2

Name: Minisforum MS-A2
Brand: Minisforum UK
SKU: MS-A200UK
Price: 759.0 GBP
Availability: InStock

£759.00

£949.00

Save £190.00

Shipping calculated at checkout.

AMD Ryzen™ 9 9955HX,16C/32T
Dual DDR5-5600Mhz,up to 96GB
M.2 PCIe 4.0 SSD slot*3 | Support U.2 NVMe/M.2 22110
Dual 10Gbps SFP+ Lan & 2.5G RJ45 Lan Ports | WIFI 6E & BT 5.3
Built-in PCle x16 Slot (support split)

CPU:

AMD Ryzen™ 9 9955HX | Ships on 20th May

AMD Ryzen™ 9 9955HX | Ships on 20th May AMD Ryzen™ 7 7945HX | Ships on 20th May

Type:

Barebone (Not include os license)

Barebone (Not include os license) 64GB RAM + 1TB SSD 32GB RAM + 1TB SSD

Variant

Quantity:

Pay With Ease

Services and benefits

Free Shipping

2-years Warranty

30-Days Refund&Return

Lifetime Technical Support

Minisforum UK Minisforum MS-A2

£759.00

£949.00

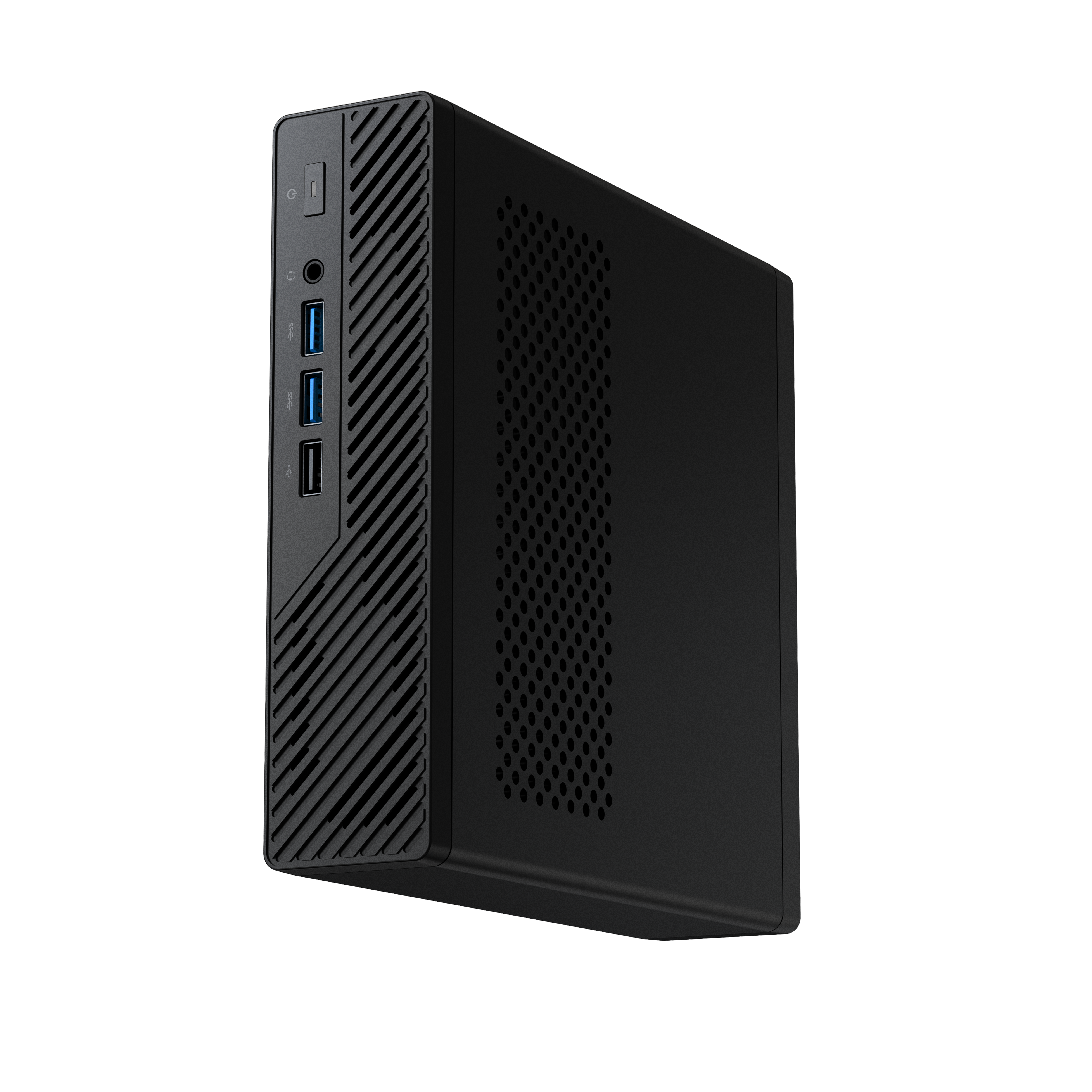

Minisforum Mini Workstation MS-A2

Description
Spec
Reviews

Core Unleashed & Built to Dominate

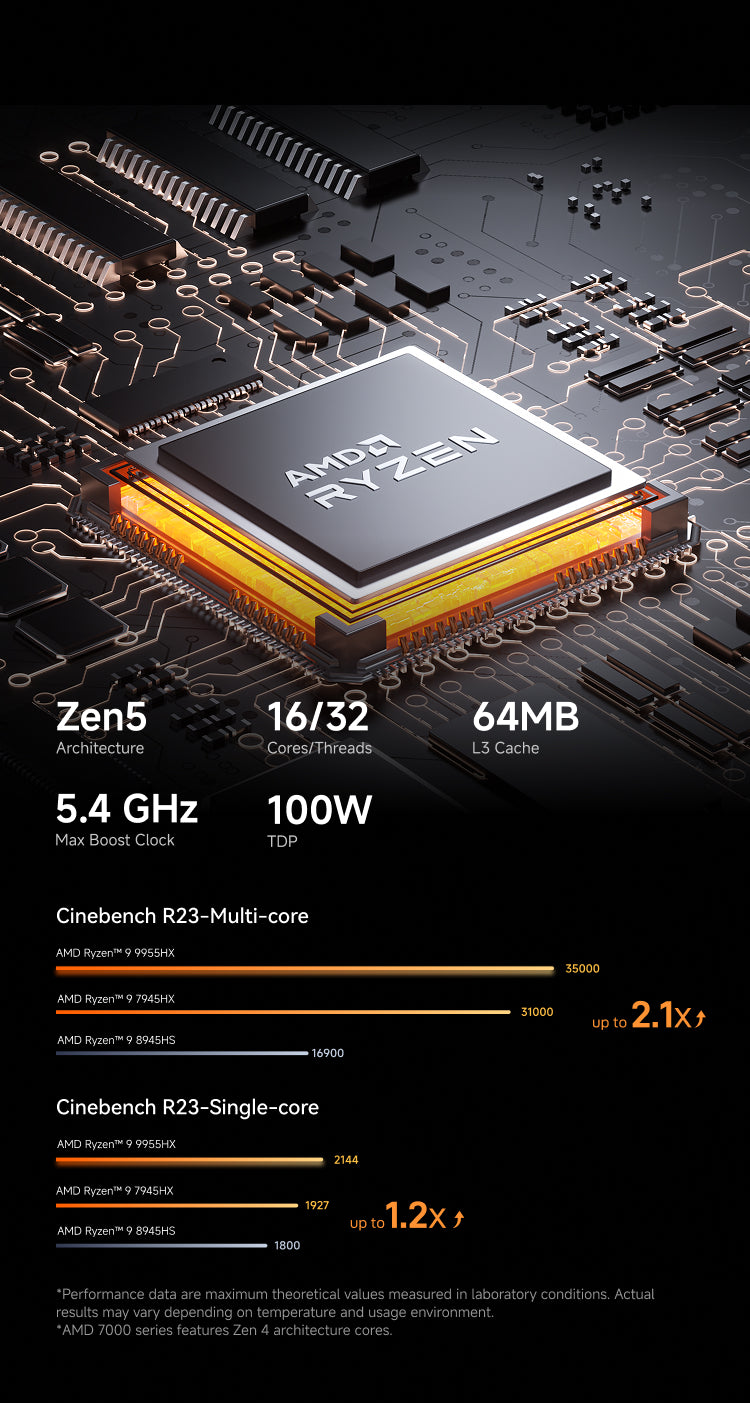

AMD Ryzen™ 9 9955HX

MS-A2 features AMD Ryzen™ 9 9955HX or AMD Ryzen™ 7 7945HX processors, boasting 16 cores and 32 threads, with turbo boosts of up to 5.4GHz and a TDP of up to 100W.

This robust processing power efficiently handles complex multitasking and meets the demands of intensive scenarios like professional rendering and AI training.
Equipped with AMD Radeon™ 610M integrated GPU, 2200 MHz graphics frequency, eliminating the need for a separate GPU for general use.

Ultra-Fast Networking

Dual 10G SFP+ ports and dual 2.5G RJ45 ports aggregate for rapid data throughput, unlocking professional productivity.

Built-in PCIe x16 Slot

Physical PCIe x16, bandwidth PCIe 4.0 x8, supports split into 2*PCIe 4.0 x4 for graphics cards or network cards.

Expansion

Massive storage & greater stability

Up to 23TB Capacity, PCIe 4.0 Speed, and RAID-Ready Reliability – Tailored for Creative Pros.

3 x M.2 PCIe 4.0 NVMe SSD slots

3 x M.2 PCIe 4.0 NVMe SSD slots support consumer grade SSDs, enabling up to 12TB storage to meet the needs of creative and film professionals.

Data Transfer Speeds up to 7000MB/s

*The two slots are set to PCIe 3.0 x4 by default and can be manually changed to PCIe 4.0 x4 in the BIOS.

U.2 NVMe/M.2 22110 SSD

Supports U.2 NVMe/M.2 22110 enterprise SSDs, with up to 15TB per drive, max storage capacity up to 23TB, offering greater capacity and stability.

U.2 Enterprise SSD | Up to 15TB Single-Drive Capacity

RAID 0 & RAID 1

Supports RAID 0 and RAID 1 for optimized storage performance and data management.

RAID 0: Boosts transfer speeds up to 13,000MB/s.

RAID 1: Enhances reliability and ensures data security.

Triple the Capacity

Dual DDR5 5600 Memory

MS-A2 supports up to 96GB DDR5-5600 memory. Compared to 32GB DDR4-3200, this triples capacity, enabling smooth operation of over 20 VMs or heavy duty design software.

Its 89.6GB/s bandwidth (vs. DDR4-3200 dual-channel 51.2GB/s) represents a 75% boost in data throughput, enhancing multitasking efficiency.

Memory latency is reduced to 80ns (from DDR4's ~100ns), App loading speed improved by 20%.

Ultra slim 1.78L volume

At just 1.78L in volume (196×189×48mm) and weighing only 1.4 kg, MS-A2 features a lightweight metal structure with non - slip pads on the bottom, can be stably placed on desktops, in cabinets, and various other scenarios, saving space and facilitating deployment.

Dual Engines, Zero Noise | Unleash Extreme Performance

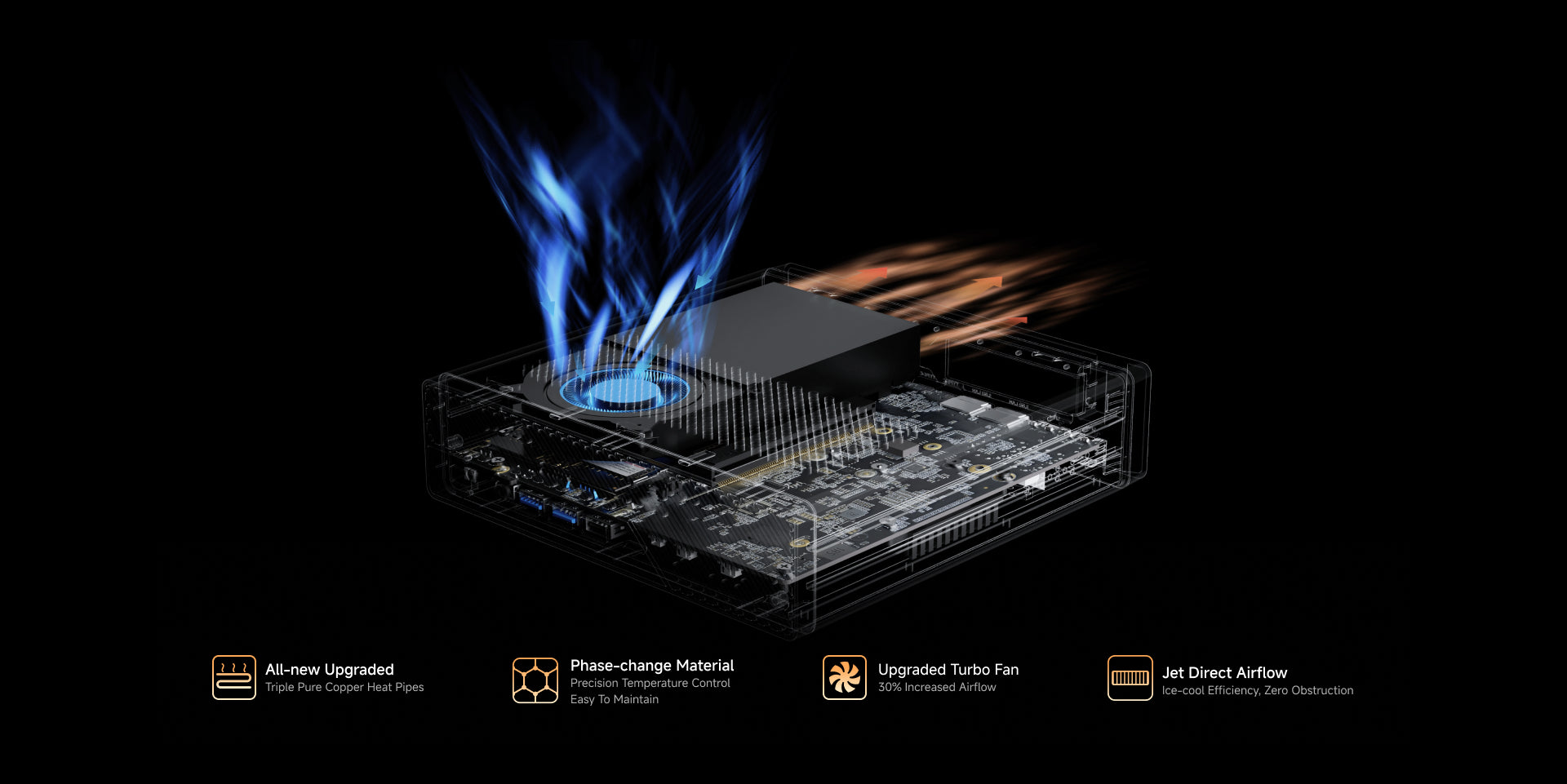

Efficient Cooling System

The three heat pipe pure copper thermal architecture reforms heat conduction paths. Innovative turbine fans with aerodynamic vortex grooves boost system airflow by 30%. Advanced phase-change material temperature control technology redefines the performance space of the ultra slim 1.78L body.
