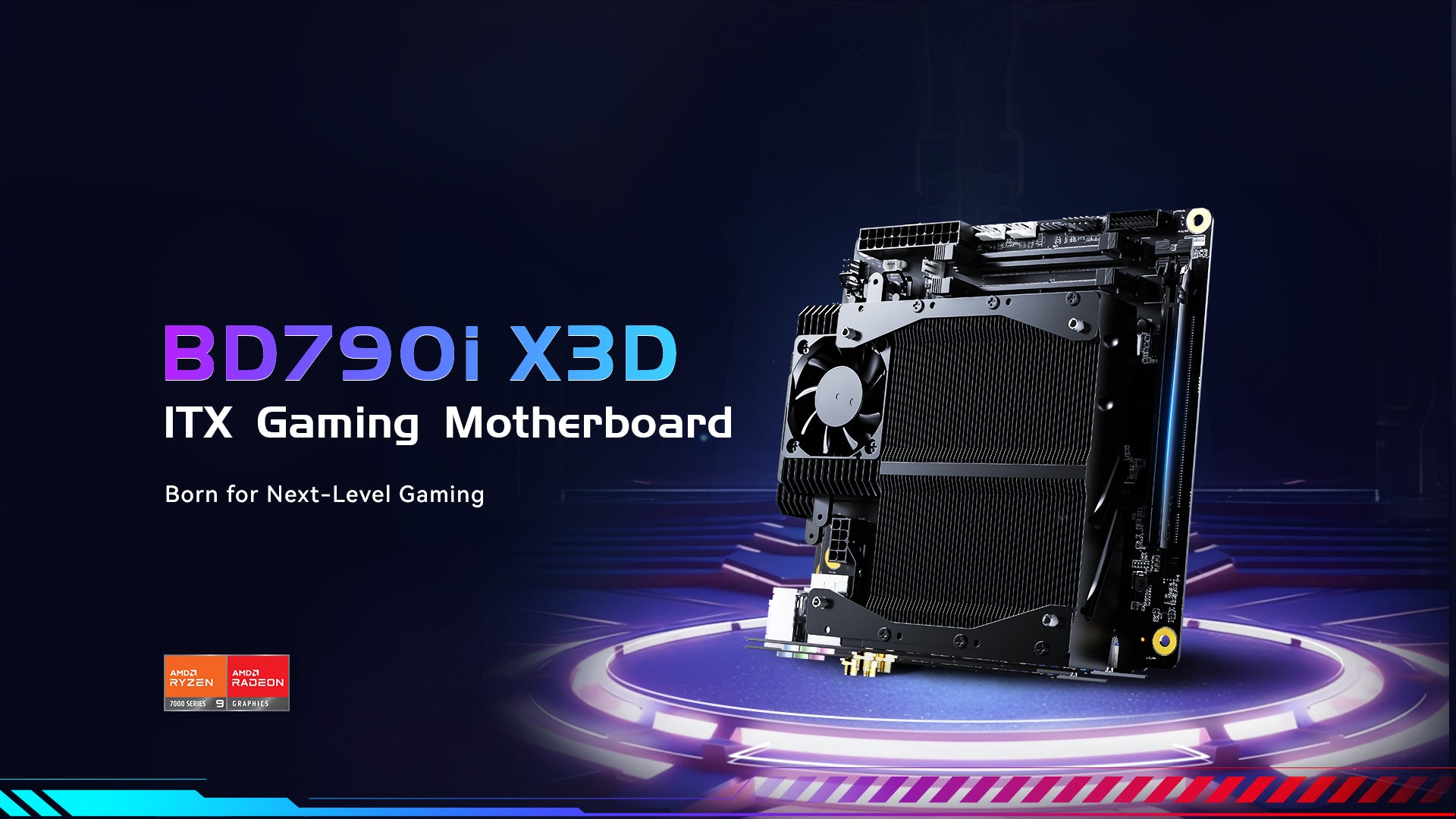

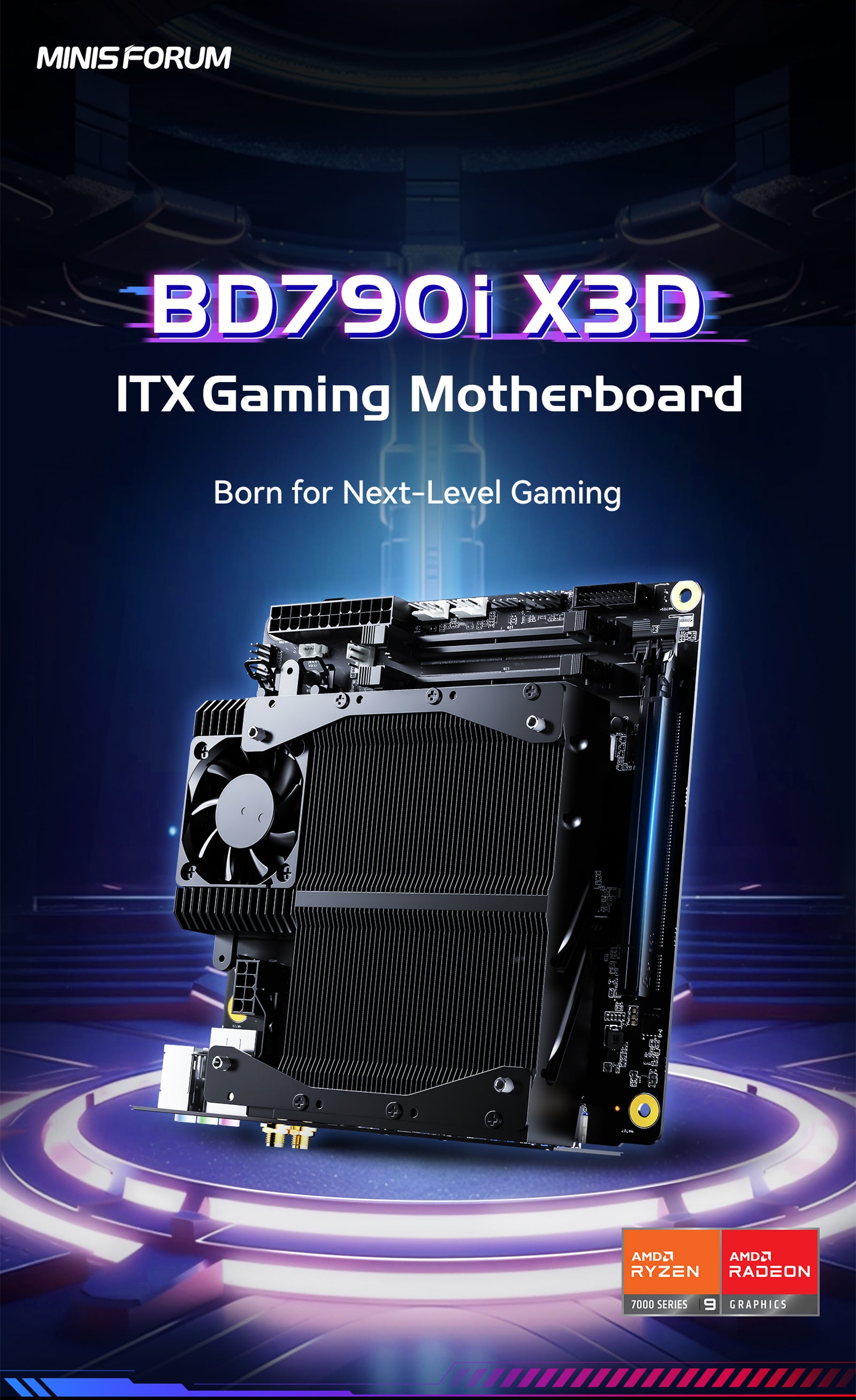

Minisforum BD790i X3D Motherboard
Shipping calculated at checkout.
- AMD Ryzen 9 7945HX3D,16C/32T
- PCIe 5.0 X16 connector
- M.2 2280 PCIe5.0 NVME SSD Slot*2
- Dual DDR5 SODIMM Slot*2
Deliverable Areas
30-Day Free Return
Duty-Free for UK
Delivery Timeliness
Benefits enjoyed by MINISFORUM customers
Deliverable Areas
›
Can be delivered for free to: United Kingdom and Ireland.
30-Day Free Return
›
Return to UK local warehouse.
Our products come with a two-year warranty from delivery.
Duty-Free for UK
›
Tax/duty included for eligible regions.
Delivery Timeliness
›
- HK Warehouse: Dispatches in 2–3 days · Delivery in 7–10 days
- UK Warehouse: Dispatches in 1–2 days · Delivery in 3–4 days
- Refurbished Devices: Dispatches in 1–2 days · Delivery in 3–4 days
- Pre-sale Products: Please refer to the estimated dispatch time on the product page.
Pay With Ease
Trusted Delivery
Top-Tier Mobile Gaming Processor
AMD Ryzen™ 9 7945HX3D
The BD790i X3D is based on the Zen 4 architecture. With 16 cores and 32 threads, it offers exceptional multitasking capabilities and outstanding computing performance.
Extreme Frame Rates, Conquer Every Battle
AMD 3D V-Cache
Powered by AMD 3D V-Cache technology, the BD790i X3D ensures a stable increase in frame rates for both hardware-demanding AAA titles and competitive online games.
Master Multithreaded Workloads
With advanced multi-core and multi-threading technology, it effortlessly handles the simultaneous operation of multiple large professional software applications.
Desktop-Level
Ultimate Performance
With a full-speed 144MB cache, the BD790i X3D minimises data and instruction latency during gameplay, significantly improving average frame rates and 1% low FPS, providing players with an enhanced gaming experience.

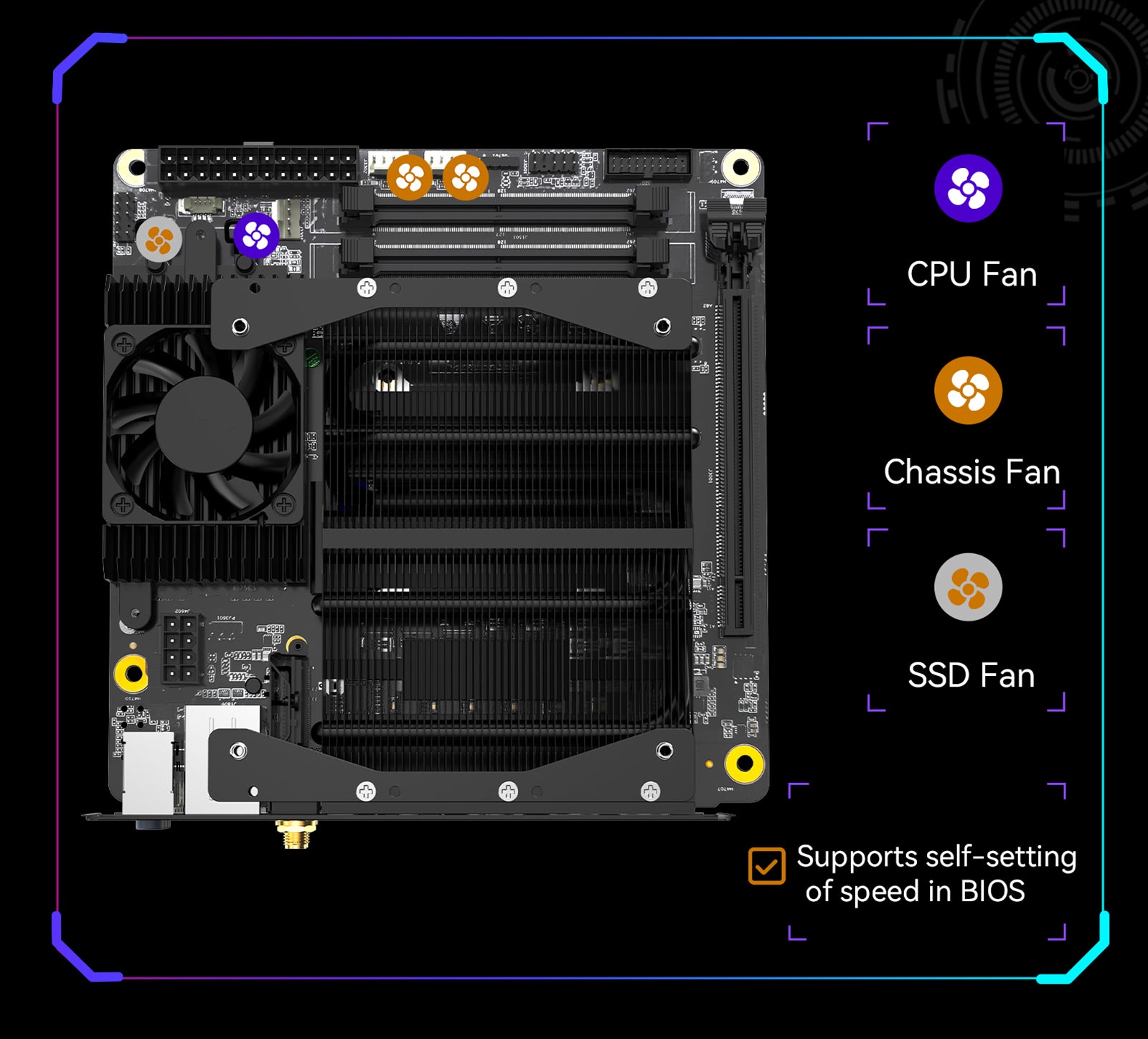

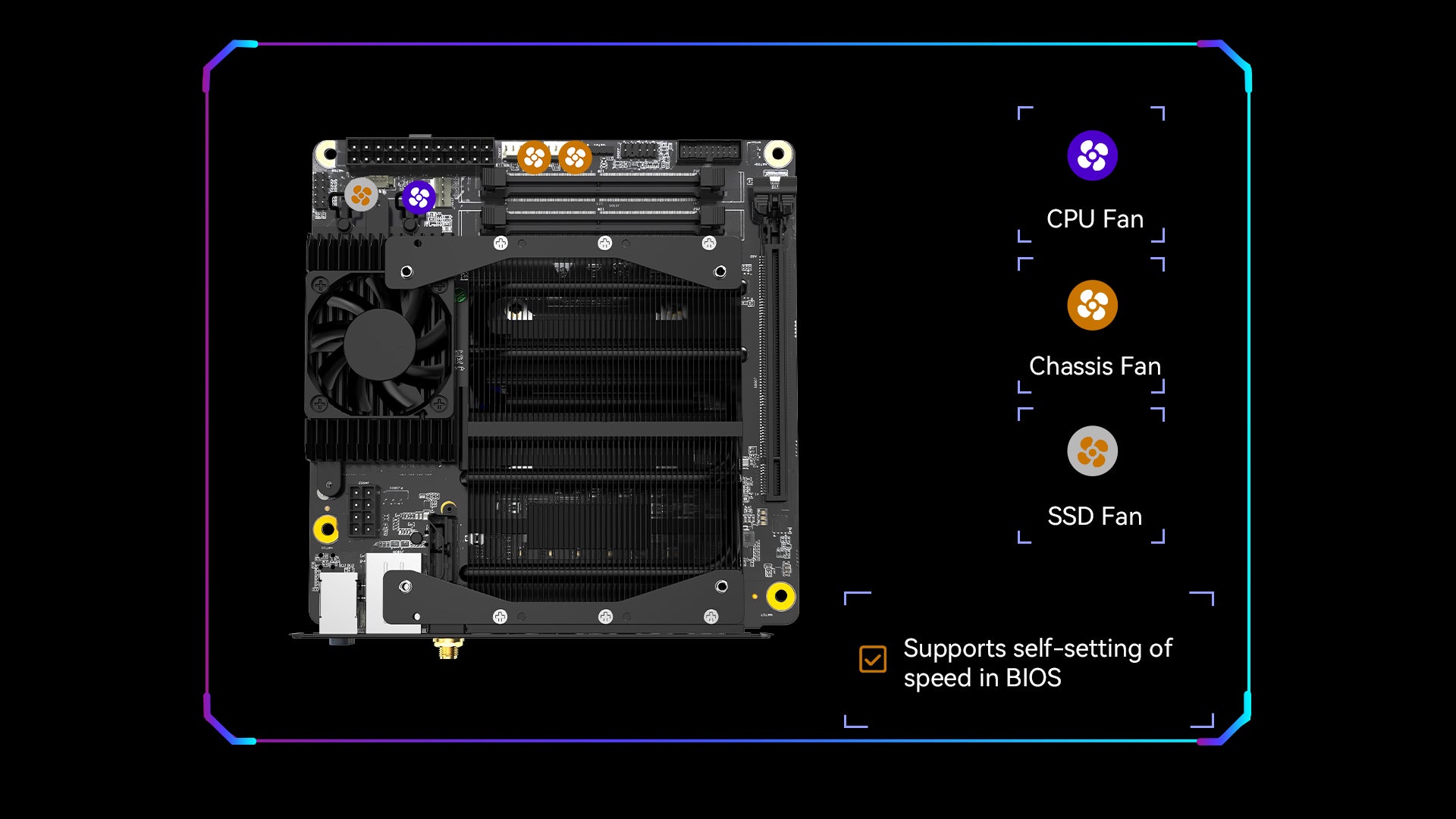

Stay Cool, Play Hard
Efficient Cooling System
The meticulously designed CPU cooling module, combined with a large heat sink that covers 80% of the motherboard's surface area, ensures that the motherboard remains cool and stable under heavy loads, maintaining optimal performance.
It also features an active SSD cooler to ensure PCIe 5.0 is always running at full speed.

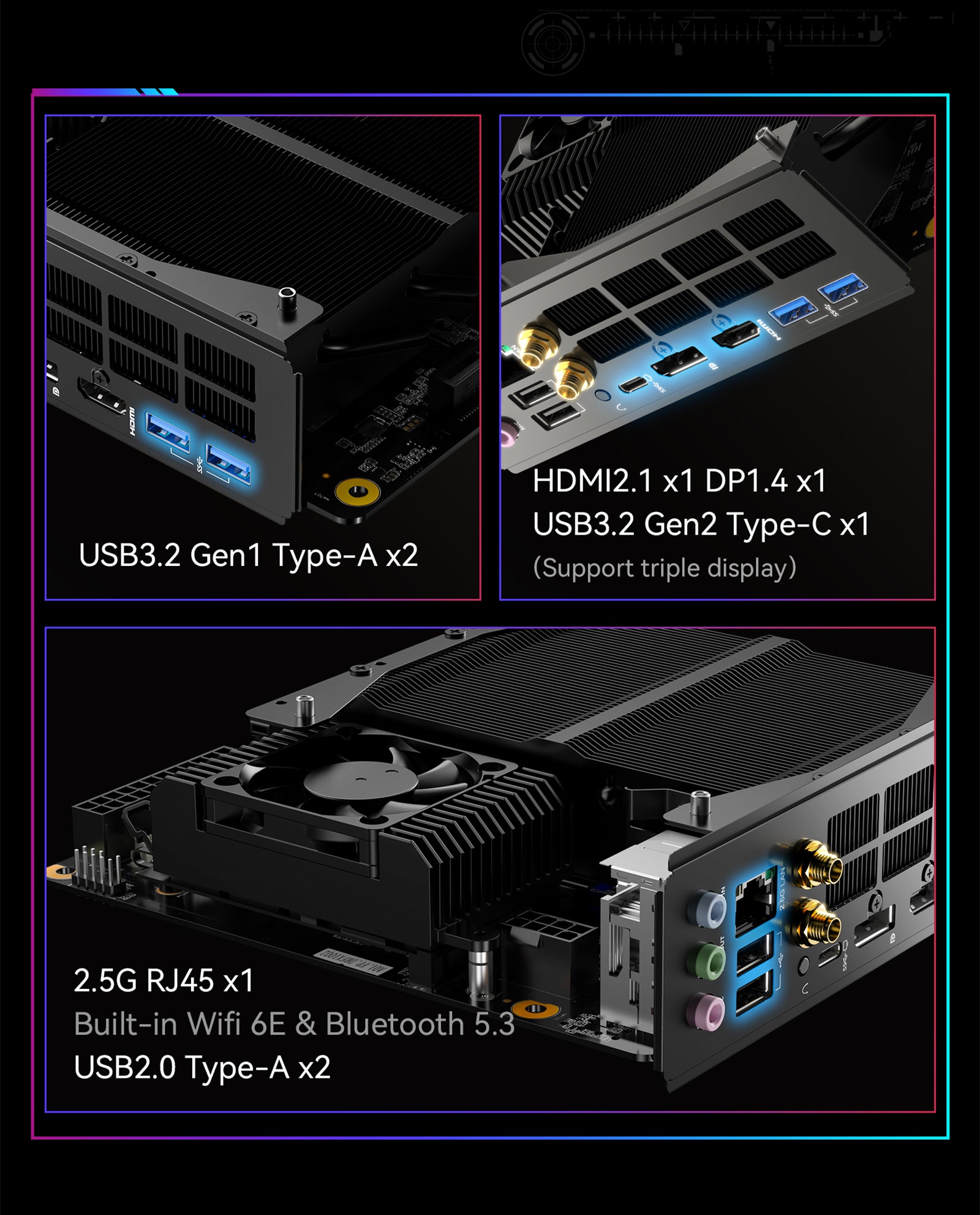

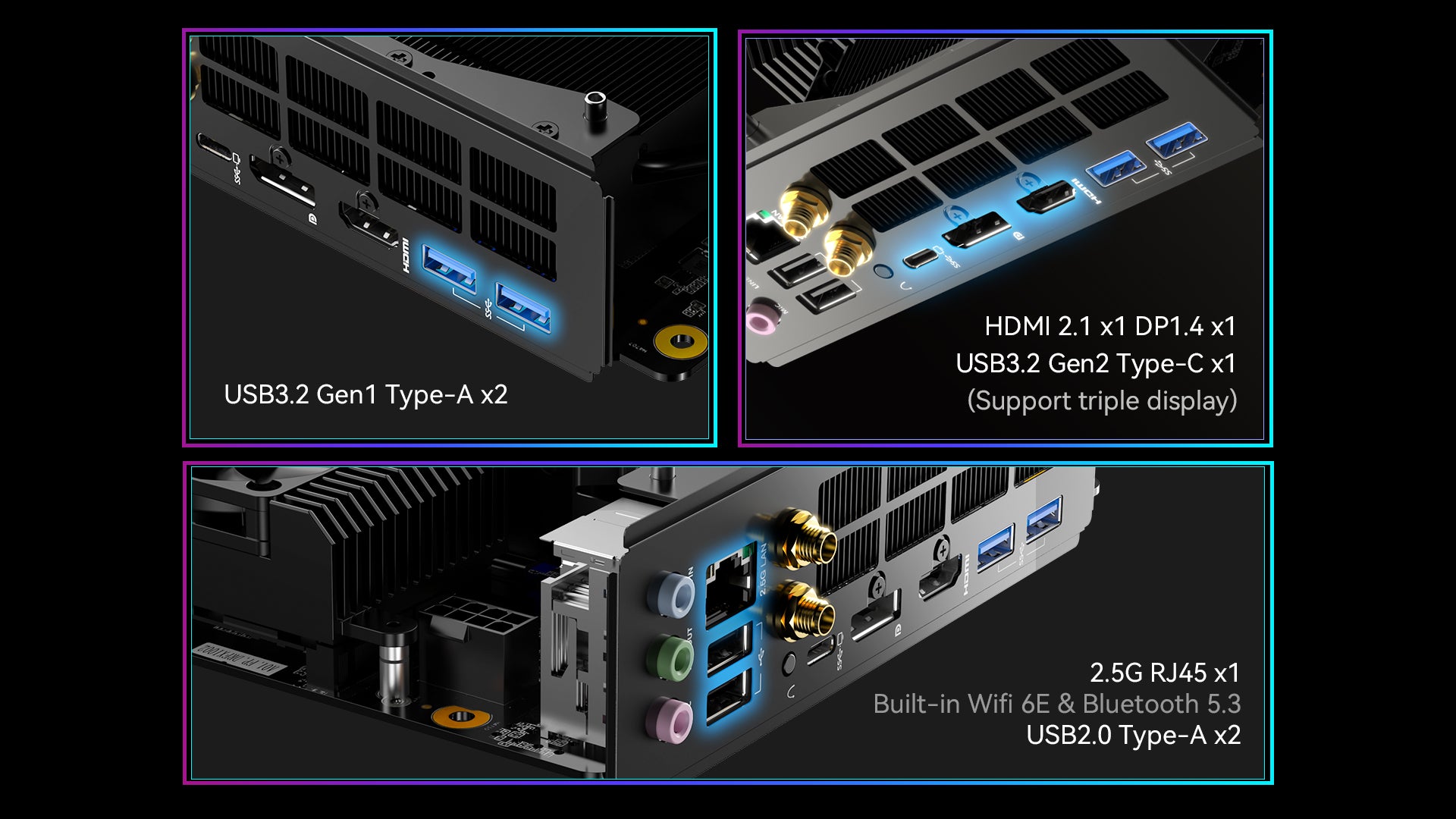

Diverse Interfaces, Expand Without Limits
Package Content
Specification
Minisforum BD790i X3D
AMD Ryzen™ 9 7945HX3D
16 Cores/ 32 Threads
(128M Cache, up to 5.4 GHz)
100W
AMD Radeon™ 610M
DDR5 Dual channel
SODIMM Slots×2,
Up to 5200MT/s, Max 96GB
2×M.2 2280 NVME SSD Slot
Up to 4 TB , PCIe5.0 x4
WiFi 6E & BT5.3
- 1 x 24-Pin Main Power connector
- 1 x 8-Pin +12V CPU Power connector
- 1 x 4-Pin CPU Fan header
- 2 x 4-Pin SYS Fan header
- 1 x System Panel header
- 1 x Front Panel Audio header (F_AUDIO)
- 1 x USB 3.2 Gen1 header
- HDMI 2.1 FRL x 1
- DP 1.4 x 1
(Up to 8K@60Hz/4K@120Hz)
(Up to 8K@60Hz/4K@120Hz)
- HDMI х 1
- Line Out х 1
- Line in х 1
- Mic in х 1
- 2.5 Gigabit LAN(RJ45) х 1
- USB Type A(USB 2.0) х 2
- USB Type A(USB 3.2 Gen1) х 2
- USB Type C (USB 3.2 Gen2)(Alt DP) х 1
- HDMI 2.1 х 1
- DP 1.4 х 1
- Line in х 1
- Line Out х 1
- Mic in х 1
- CLR COMS х 1
ATX Power(>200W)
Windows 11
