AtomMan G7 PT
Shipping calculated at checkout.
AtomMan
G7 PT MiniPC
The world's First AMD Advantage Certified A+A Mini PC
A+A High Performance
AMD Ryzen™9 7945HX
The G7 PT features AMD's top of the line Ryzen™ 9 7945HX processor with Zen 4 architecture, 16 cores and 32 threads. With a max boost clock frequency of up to 5.4GHz,it further enhances the processor's performance and stability and is designed for high-performance gaming enthusiasts and intensive content creators.
GPU
AMD Radeon™ RX 7600M XT
The AMD Radeon™ RX 7600M XT discrete graphics card, leading the average frame rate in gaming benchmarks by 26% compared to the previous generation.
AMD Smart Access Memory delivers exceptional graphics performance and AMD SmartShift assists in boosting efficiency. Whether it's video editing, 3D rendering, AI computation, animation production, or 3A gaming, it handles them all effortlessly.
World's First AMD Advantage Certified Mini PC
The AMD Advantage platform empowers the creation of outstanding products centred around gamers. High-performance AMD CPUs, GPUs, a range of innovative smart technologies, and carefully curated hardware are excellently integrated to deliver a groundbreaking gaming experience for players.
*About AMD Advantage Premium
System
Cold Wave Ultra Cooling
The exclusive patented technology of the Cold Wave Ultra cooling architecture achieves max of 205W overall cooling capacity, enabling sustained high-load operation for extended periods with 3A games, graphics processing, and AI applications.
CPU 85W + GPU 120W
Performance mode
CPU 65W + GPU 120W
Balanced mode
Super
Large Storage
The G7 Pt features dual-channel DDR5 SODIMM slots and is also the world's first PCIe 5.0 NVMe SSD Mini PC. Its data transfer speed and bandwidth are twice that of PCIe 4.0, offering enhanced security and availability of personal data, with lower latency and improved energy efficiency.
Dual DDR5 SODIMM
Supports up to 96GB of DDR5 5200Mhz high-frequency memory.
M.2 PCIE5.0&4.0
With 2*SSD slots, it supports RAID0 and RAID1,accommodating up to 4TB of SSD storage.
Data comparison
PCIe 5.0 and PCle 4.0 data comparison, which has twice the data transfer speed and bandwidth of PCIe 4.0.
Triple-Screen Display
With HDMI 2.1, DP 2.0 and USB-C display outputs, the G7 PT can connect up to three 4K displays at once, dramatically increasing the efficiency of your work and creative tasks.
Ultra High-Speed Network
The new generation of WiFi 7 offers higher network transmission speeds and lower latency, supporting bandwidth-intensive applications like 8K video to significantly enhance gaming and creative experiences.
LINE OUT
LINE OUT can be used with high-power headphones or standalone speakers, offering top-quality audio output with minimal distortion, low noise, and high fidelity. It provides superior transmission performance and versatility for professional use, making it an ideal option for devices and settings needing high-quality audio output.

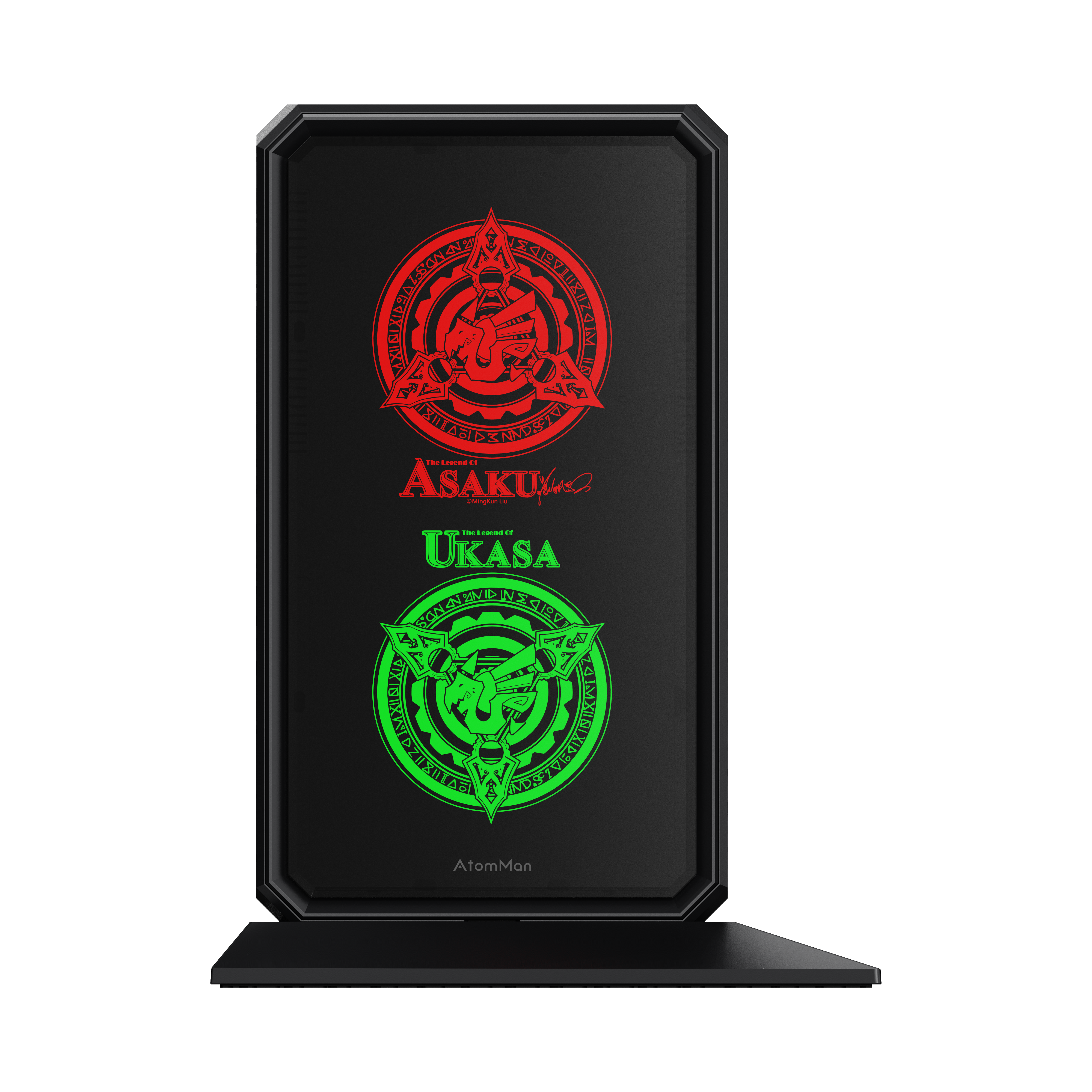

Dual RGB Backlight Patterns
The new design features dual RGB backlighting panels, a collaboration with a renowned comic artist for a well-known IP design, showcasing individuality. Additionally, the magnetic suction base and concealed power cord design help save desktop space, providing a sleek and organized setup.
Triple-Screen Display
With HDMI 2.1, DP 2.0 and USB-C display outputs, the G7 PT can connect up to three 4K displays at once, dramatically increasing the efficiency of your work and creative tasks.
Ultra High-Speed Network
The new generation of WiFi 7 offers higher network transmission speeds and lower latency, supporting bandwidth-intensive applications like 8K video to significantly enhance gaming and creative experiences.
LINE OUT
LINE OUT can be used with high-power headphones or standalone speakers, offering top-quality audio output with minimal distortion, low noise, and high fidelity. It provides superior transmission performance and versatility for professional use, making it an ideal option for devices and settings needing high-quality audio output.
Dual RGB Backlight Patterns
The new design features dual RGB backlighting panels, a collaboration with a renowned comic artist for a well-known IP design, showcasing individuality. Additionally, the magnetic suction base and concealed power cord design help save desktop space, providing a sleek and organized setup.
Specification
AtomMan G7 PT
AMD Ryzen™9 7945HX Processor
16 Cores/32 Threads
(64M Cache, up to 5.4 GHz)
AMD Radeon™ RX 7600M XT
(GDDR6 8G)
DDR5 Dual channel
(SODIMM Slots×2, Up to 5200MHz, Max 96GB)
M.2 2280 PCIe5.0 SSD ×1
M.2 2280 PCIe4.0 SSD ×1
M.2 2230 WIFI Support
(Wi-Fi 7,BlueTooth5.4 )
HDMI2.1 ×1;DisplayPort 2.0 ×1;USB-C ×1
HDMI2.1 ×1;DisplayPort 2.0 ×1;3.5mm Combo Jack ×1;LINE OUT ×1
RJ45 2.5G Ethernet Port×1
USB 3.2 Gen2 Type-A Port ×1(In Front)
USB 3.2 Gen2 Type-A Port ×3(In Back)
USB 3.2 Gen2 Type-C Port ×1(In Front, Data Only)
USB 3.2 Gen2 Type-C Port ×1(In Back, Alt Data and DP)
HDMI ×1
DisplayPort ×1
3.5mm Combo Jack ×1
LINE OUT ×1
MIC IN ×1
Clear CMOS ×1
DC 19V (Adapter Included)
Windows 11
11.2*6*2.4 inch
2.95kg
FAQ
If there are any other questions, feel free to contact us.
Does the barebone come with an OS license?
The barebone does not come with memory, SSD, or OS license.
OS download data is available on our support page.
When shipping information is not displayed on the Shipping Status Inquiry page.
This is because the shipment is undergoing customs clearance procedures in Hong Kong. The tracking information will be updated after the procedure is completed.
How are the performance modes set for G7PT?
In Balanced mode, CPU is set at 65W and GPU at 120W, indicated by blue lighting; In Performance mode, CPU is set at 85W and GPU at 120W, indicated by red lighting.
Is it dedicated graphics card direct connect?
All video output ports are driven by the dedicated graphics for a direct connection throughout.
Can the lighting effects be controlled?
No, it only supports turning the lighting on/off; adjustments to lighting effects are not possible.
Can memory overclocking (AMD EXPO) be enabled?
Memory overclocking (AMD EXPO) is not supported at the moment.
