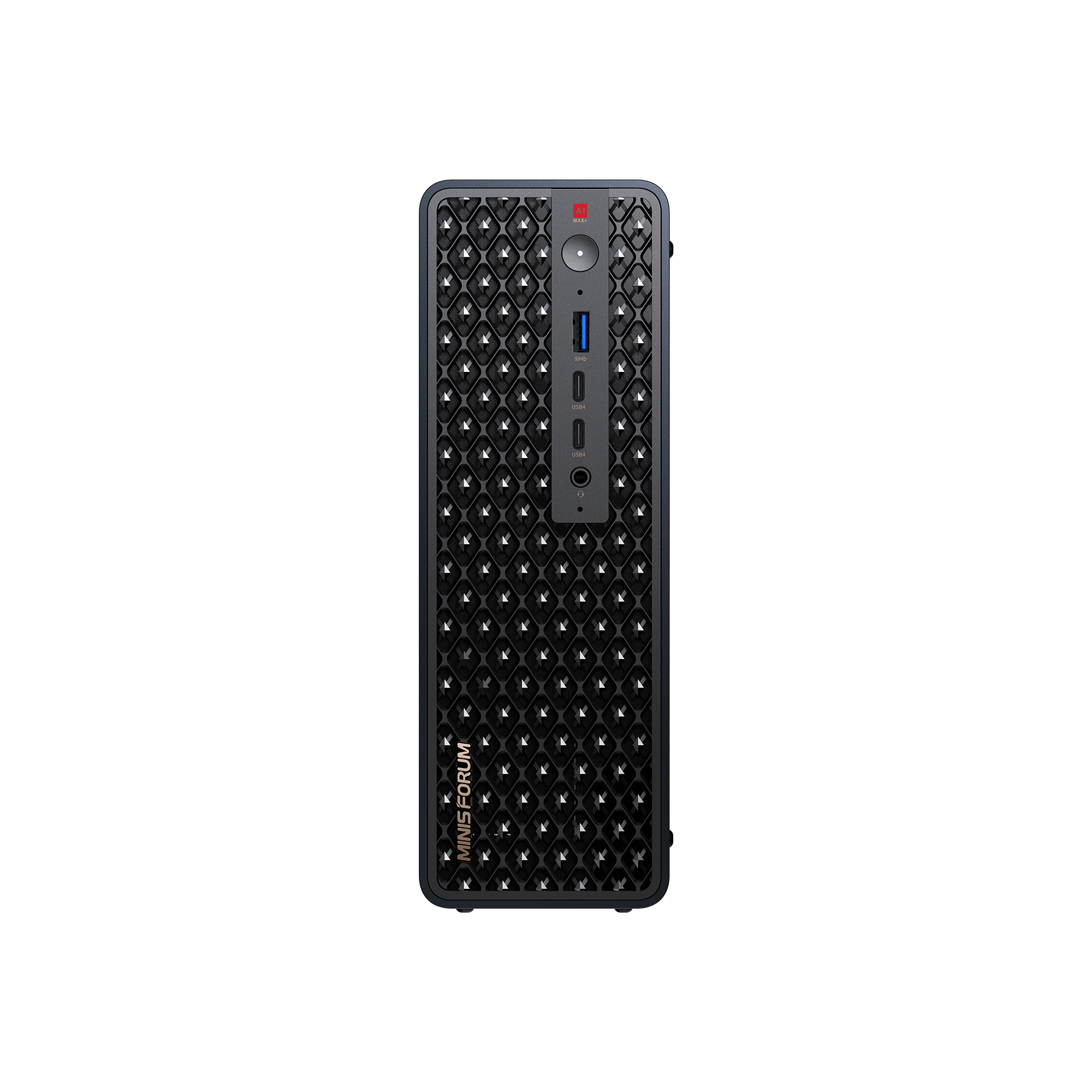

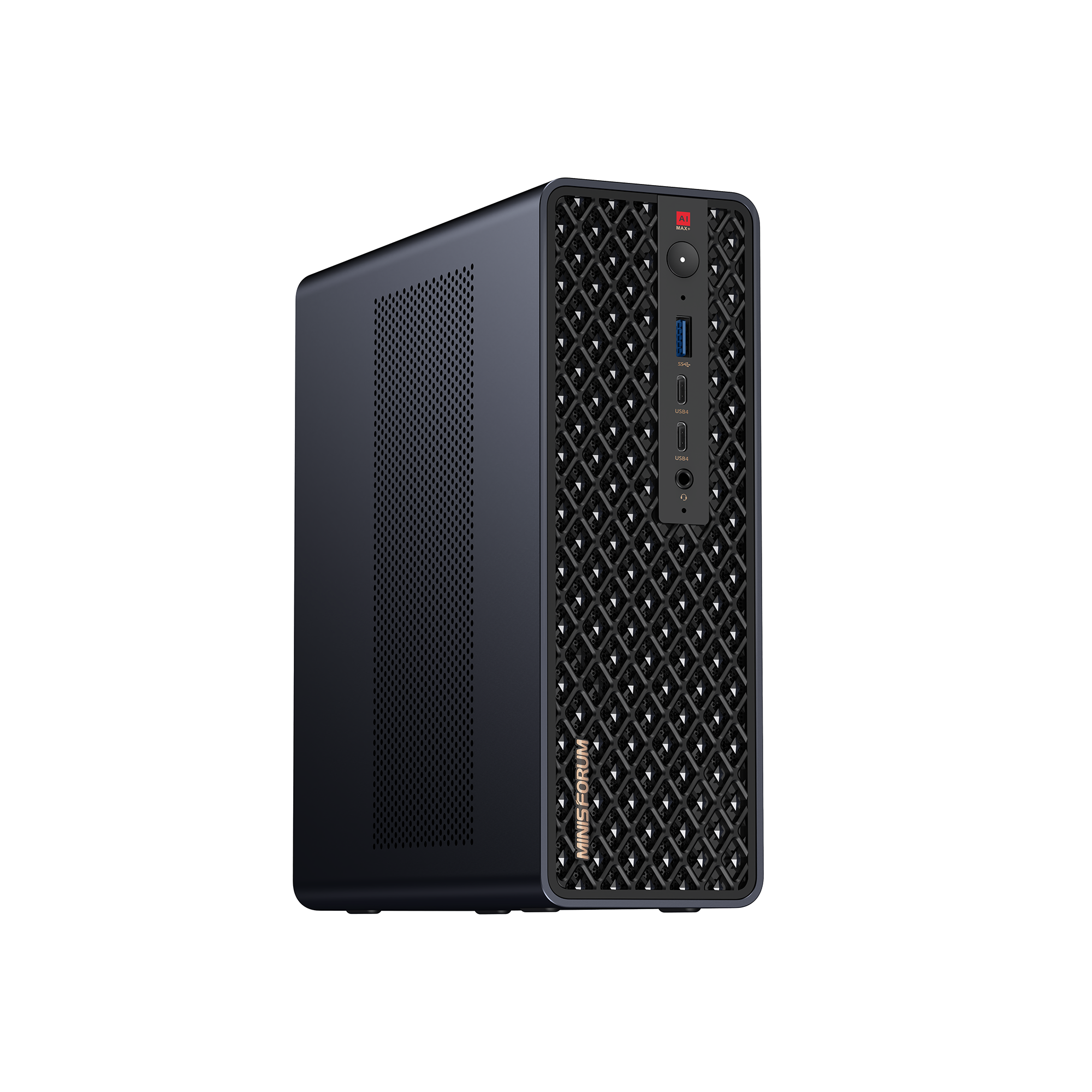

Minisforum MS-S1 MAX
Shipping calculated at checkout.
For Bulk Discount, please contact: uk@minisforum.com
- Equipped with AMD Ryzen™ AI Max+ 395
- AI Performance · Up to 126 TOPS
- LPDDR5x-8000MT/s | Up To 128GB
- USB4 V2 & Dual 10GbE & WIFI 7
- PCIE x16 Expansion | Support 2U Rack
Pay With Ease
Services and benefits
Free Shipping
2-years Warranty
30-Days Refund&Return
Lifetime Technical Support
Enabling Future Possibilities
AMD Radeon 8060S Graphics
Run 128B+ LLMs Locally
Eliminates VRAM Bottlenecks, Low-Latency Speed
Dual Fans & Phase-Change Cooling
160W Peak, 130W Sustaine
Your Best Computing Partner
AI Enthusiasts
MS-S1 MAX empowers AI enthusiasts to run large language models locally, build AI applications, and experience real-time, low-latency inference.
*Third-party trademarks are property of their owners.
Software compatibility is not supported by Minisforum.
Geeks & Power Users
MS-S1 MAX enables geeks and power users to test cutting-edge AI frameworks, deploy multimodal models, and harness massive memory and compute power.
*Third-party trademarks are property of their owners.
Software compatibility is not supported by Minisforum.
Creative Professionals
MS-S1 MAX is designed for creative professionals, accelerating video editing, 3D rendering, AI art, and audio production through 128GB UMA memory and multi-display output.
*Third-party trademarks are property of their owners.
Software compatibility is not supported by Minisforum.
Ultimate Computing for
Next-Gen AI

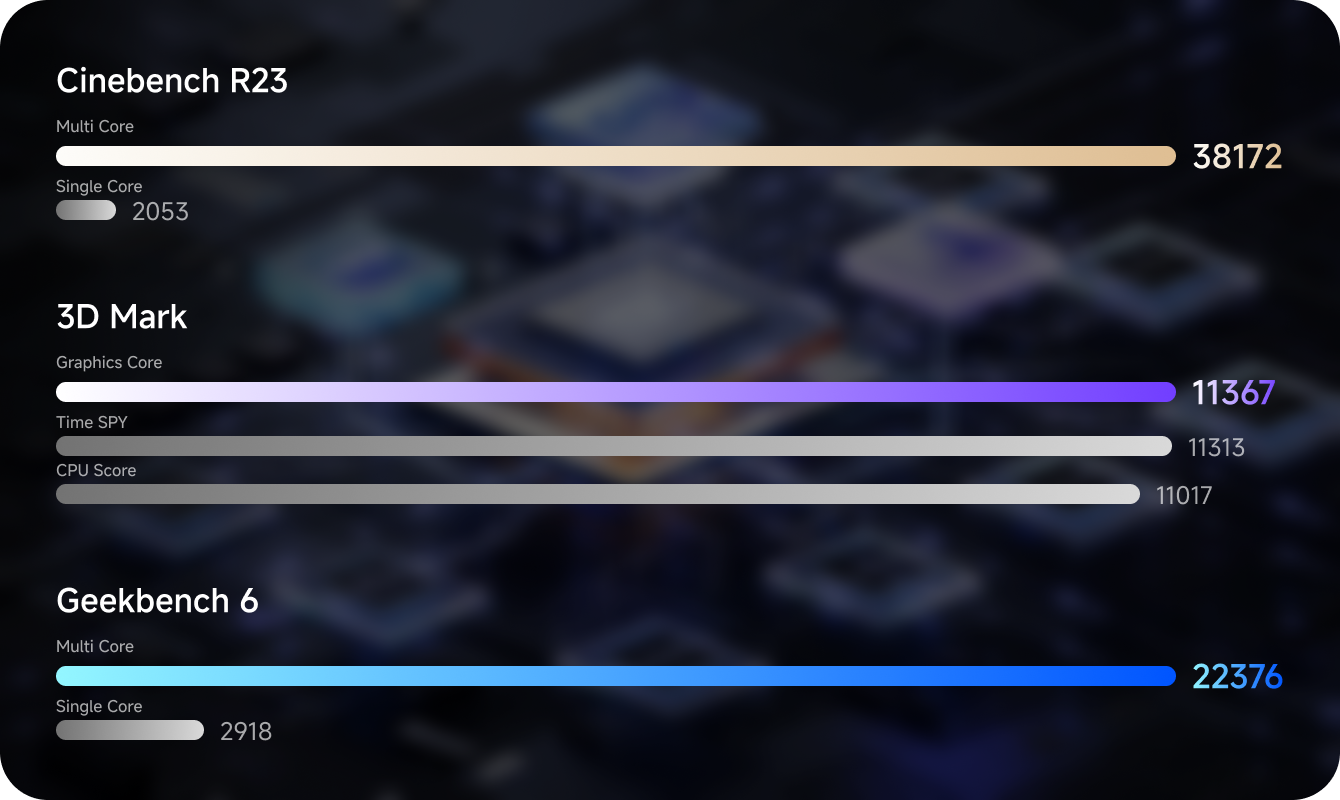

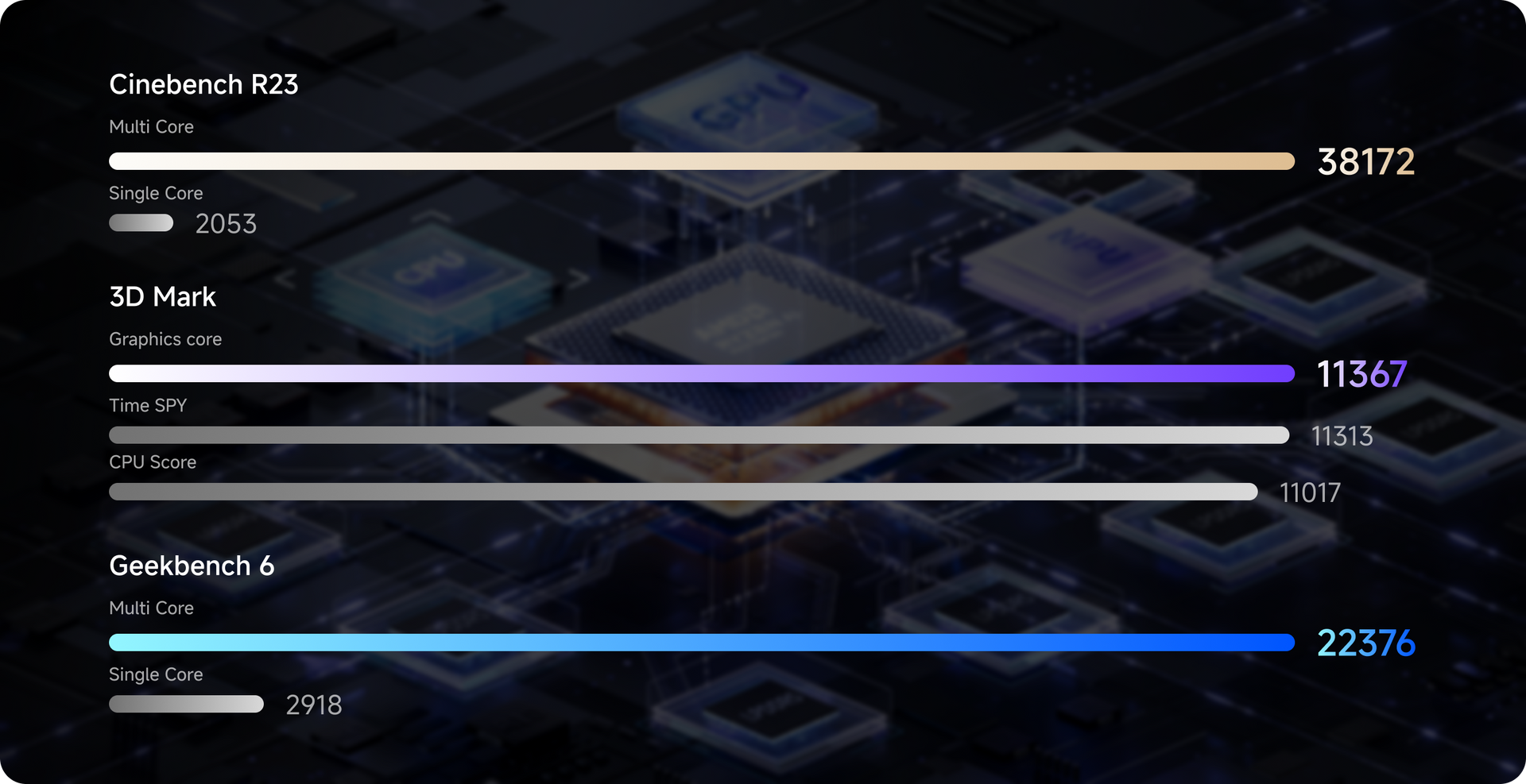

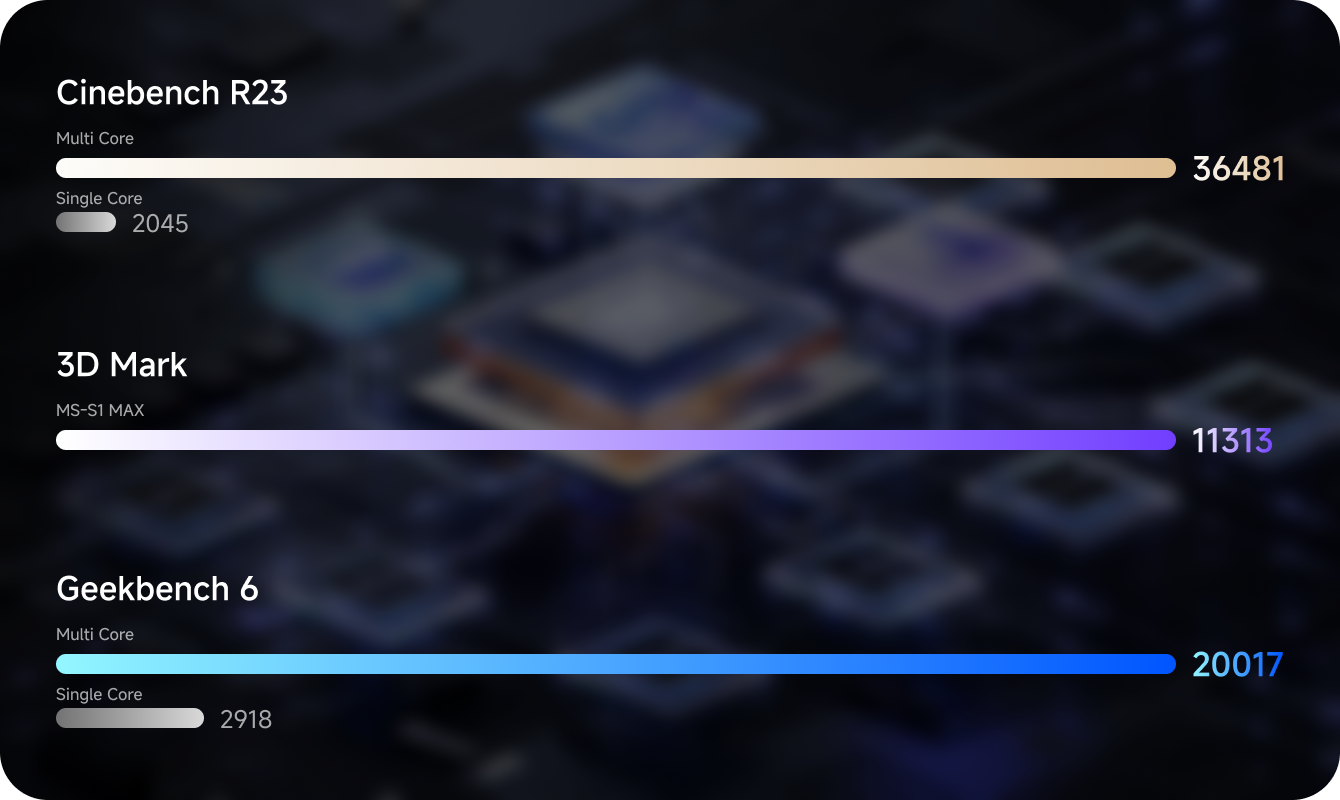

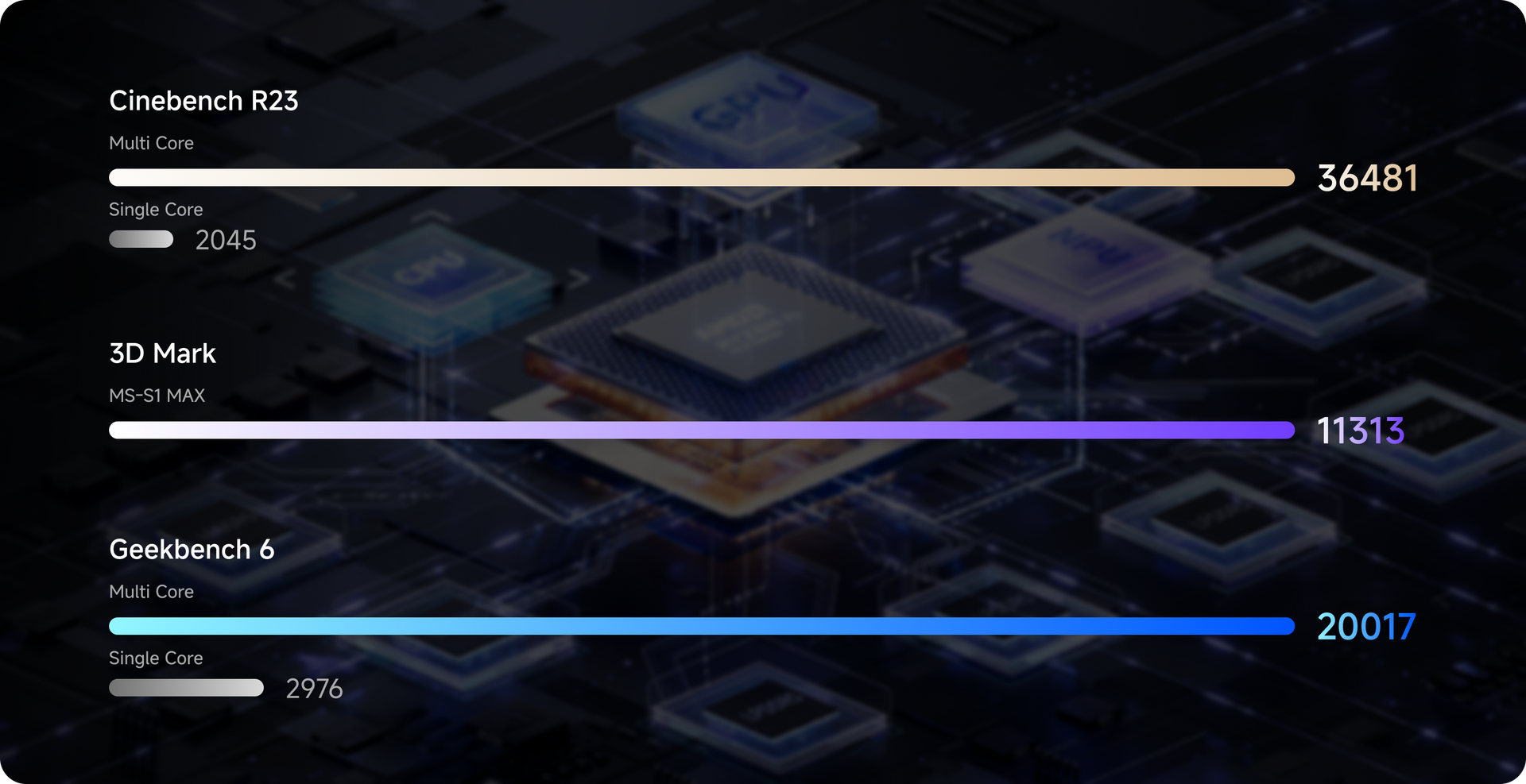

Powered by AMD Ryzen™ AI Max+ 395, integrating Zen5 CPU, RDNA 3.5 GPU, and a next-gen NPU.
With 16 cores and 32 threads delivering
RTX 4070 Laptop-level GPU performance plus 50 TOPS NPU acceleration, it achieves more efficient AI inference.

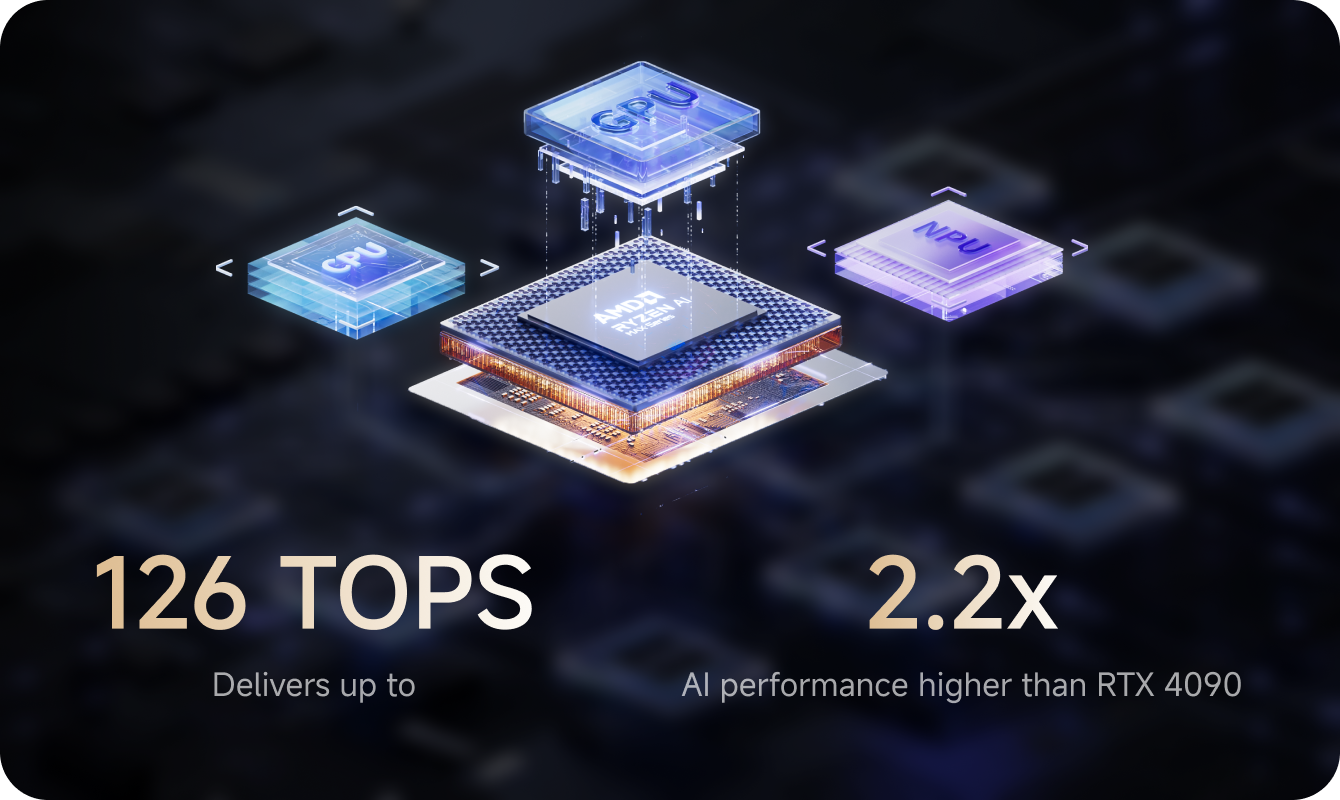

Delivers up to 126 TOPS, with AI performance tested at 2.2× that of RTX 4090, effortlessly handling
everything from LLMs to multimodal generation.
Supports up to 128GB LPDDR5x-8000MT/s quad-channel memory, eliminating traditional VRAM
bottlenecks for low-latency, high-speed data transfer.
160W peak power, 130W sustained load, ensuring long-term high-intensity compute stability.

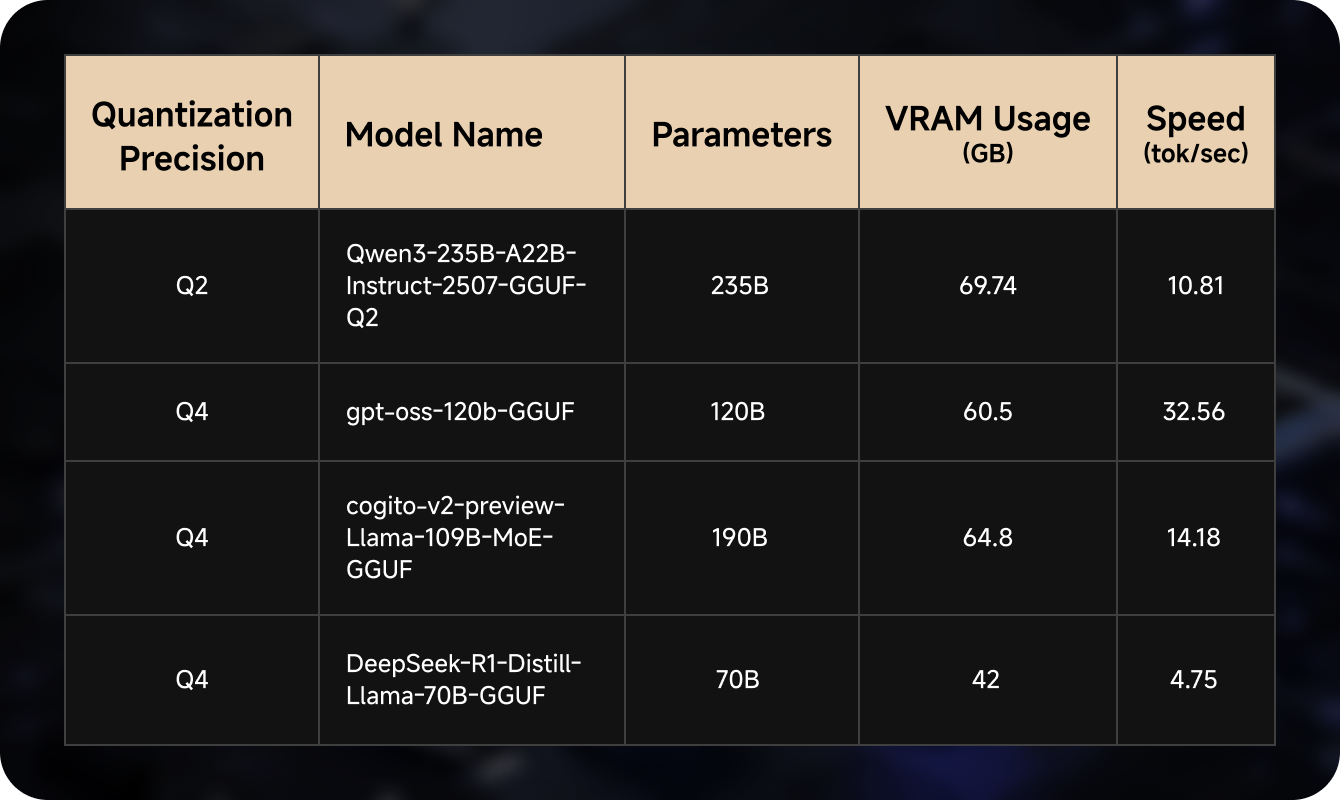

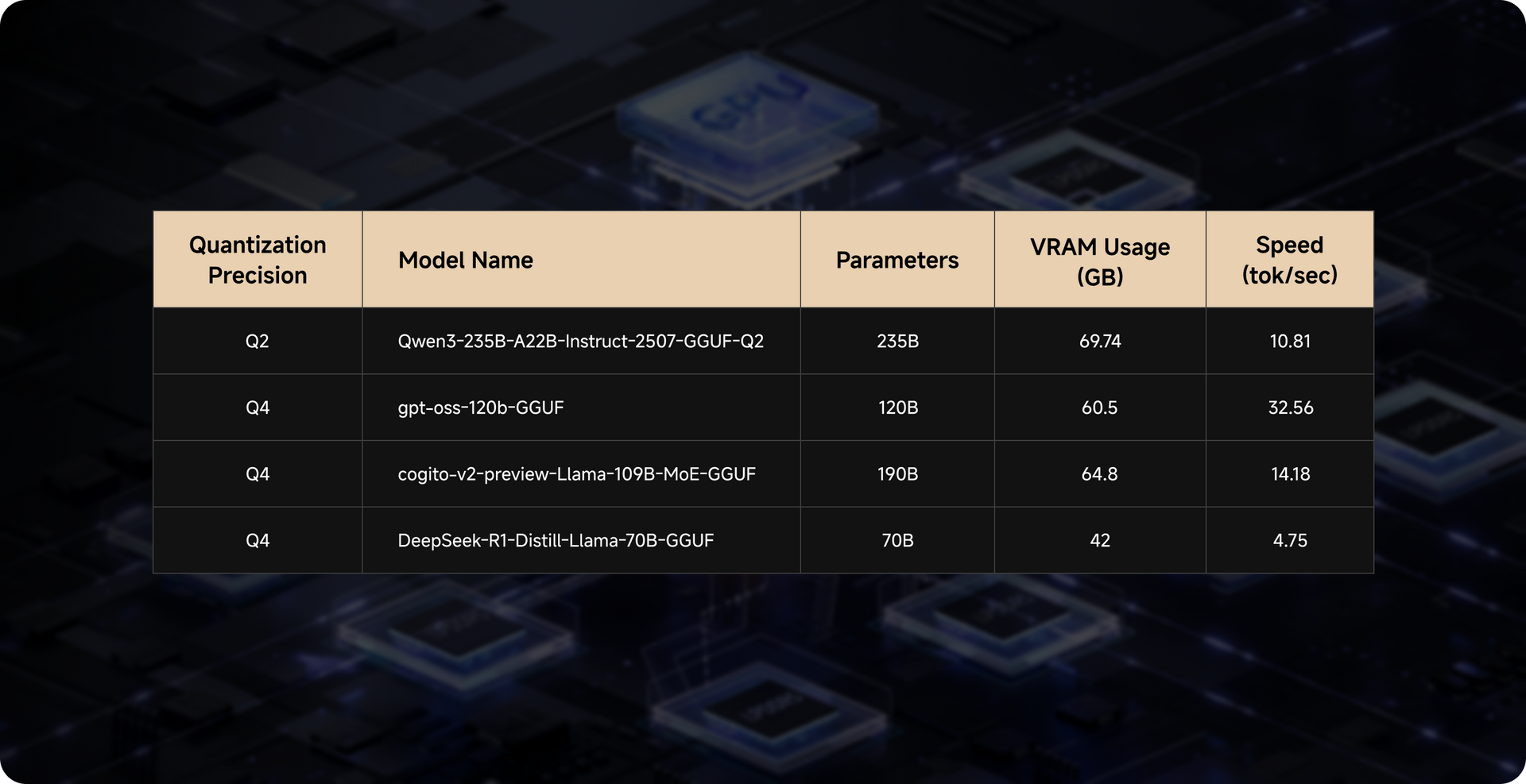

Compatible with diverse large models and precision levels, delivering fast and stable output.
From Desktop to Rack
Building an Efficient Computing Hub
Two MS-S1 MAX units can be easily clustered together, flexibly scaling computing power for personal research or small studio workloads.
In real-world tests, a dual-unit cluster runs the 235B Q4 large model locally, delivering an output speed of 10.87 tok/sec.

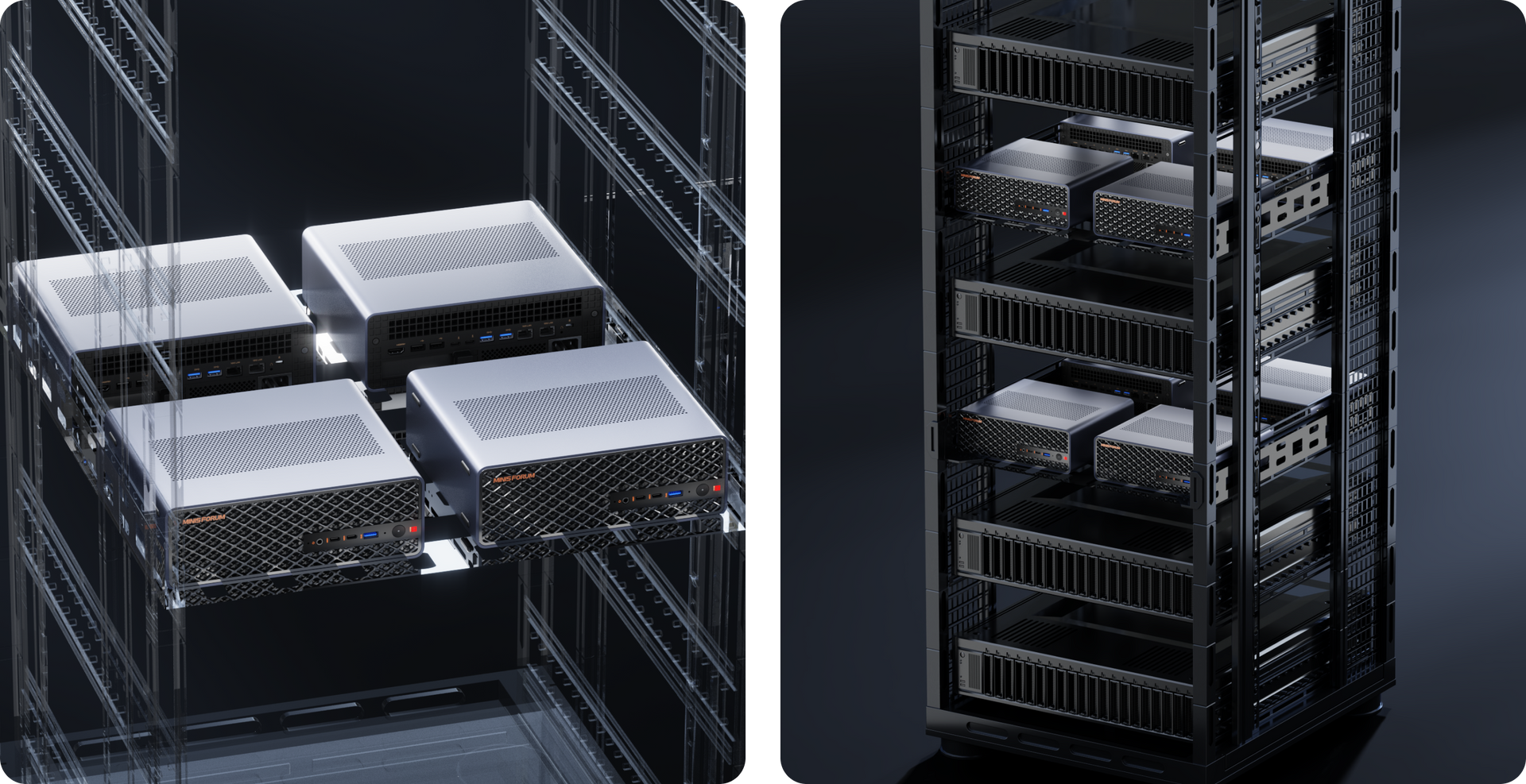

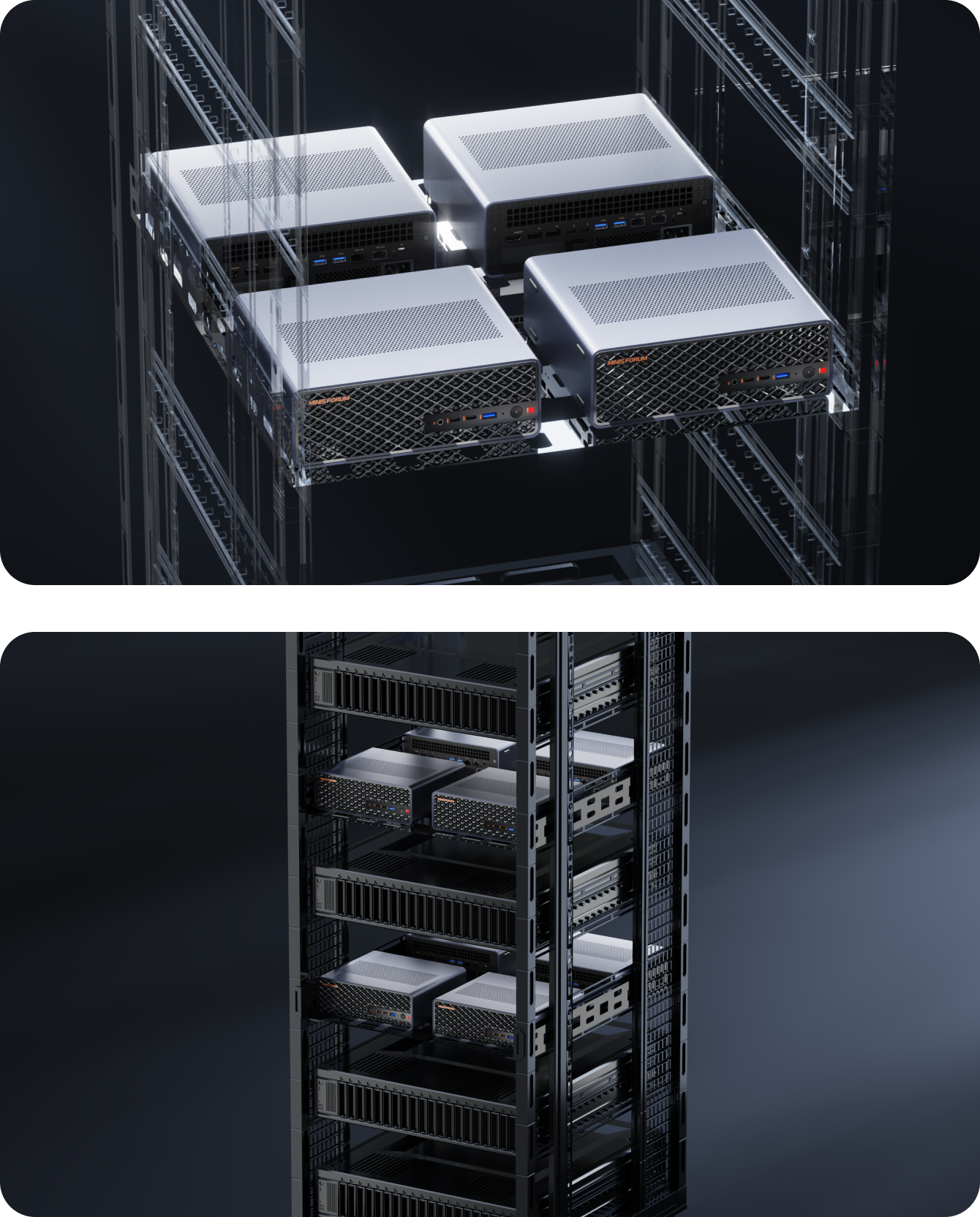

Supports 2U rack deployment, where multiple units can be cascaded into a distributed cluster,
creating an efficient AI computing hub for enterprises and research teams.

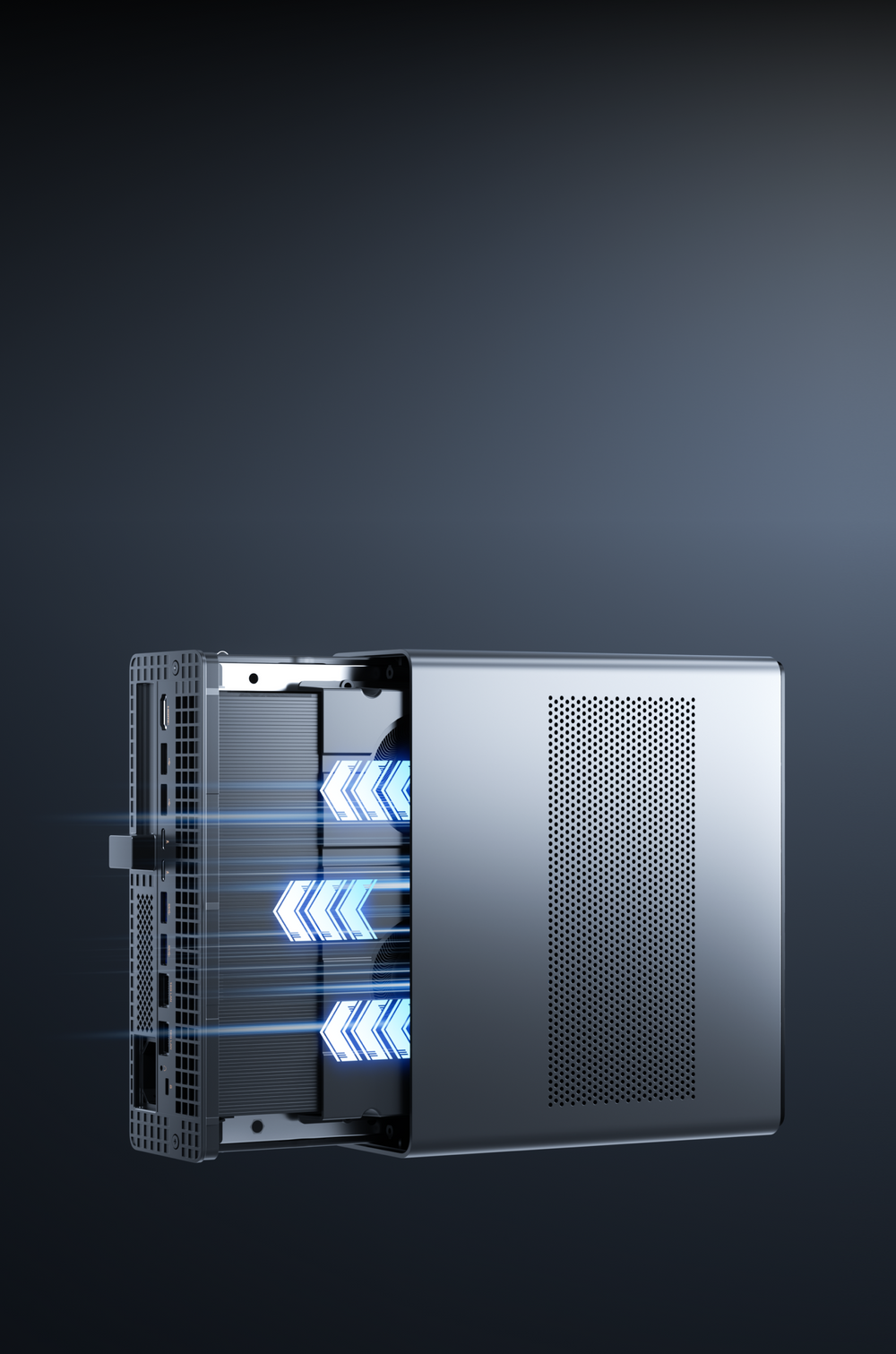

Top-tier Thermal Solution for
Stable Compute Power

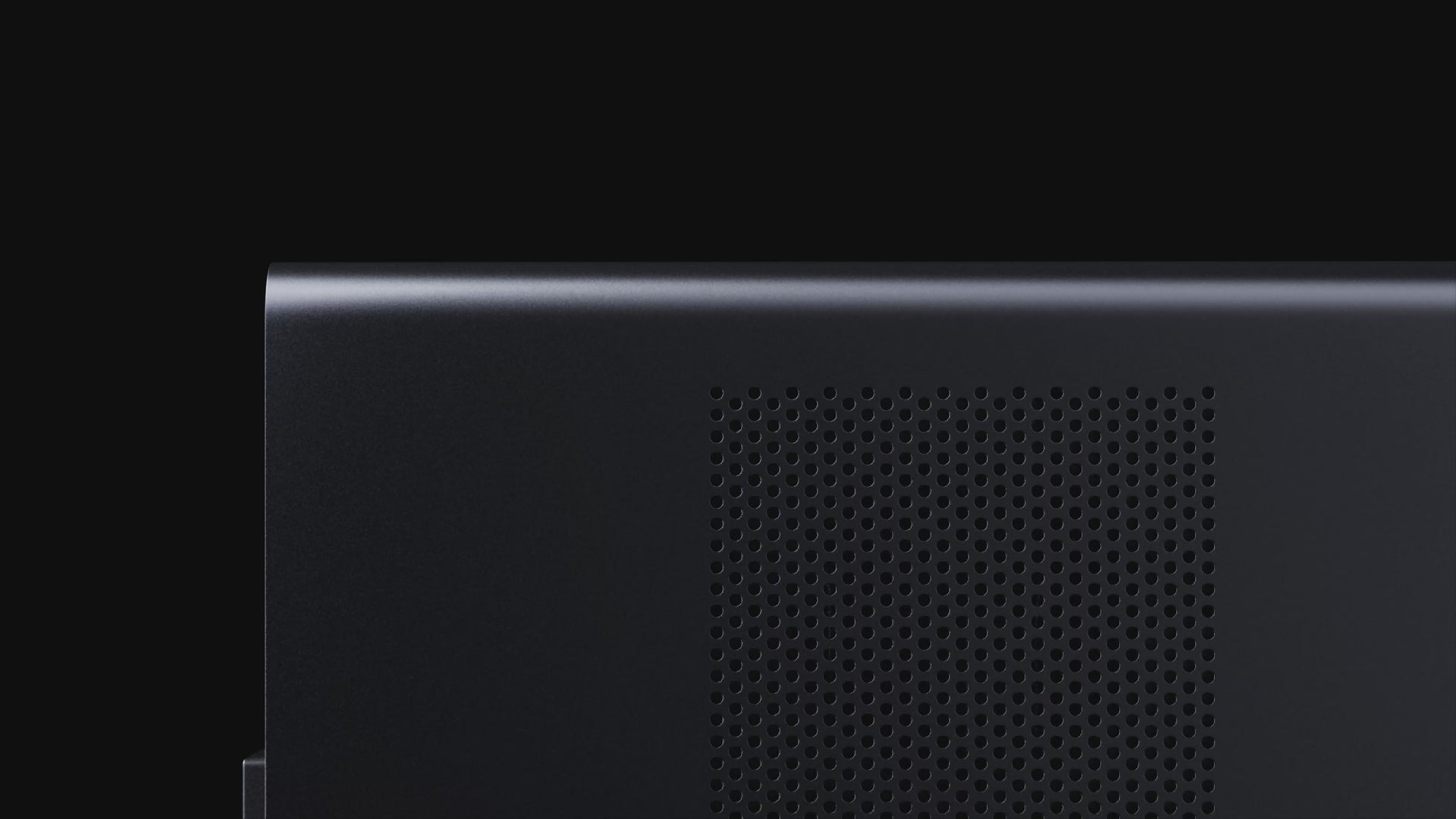

Aerospace-Grade Aluminum Chassis
Aluminum chassis integrates a diamond-matrix grill for robust durability and efficient airflow, achieving a perfect synergy of superior cooling and tech-inspired aesthetics.

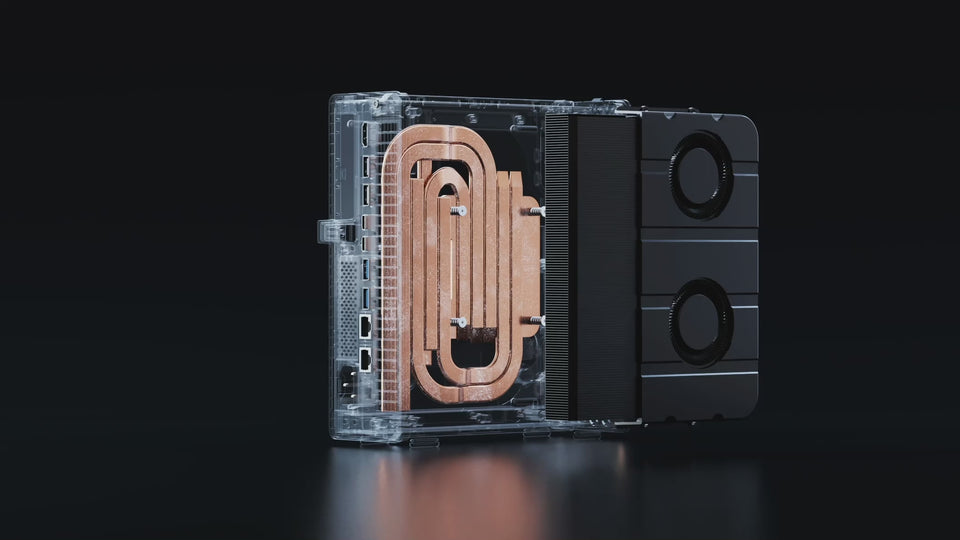

Copper Base & 6 Heat-Pipe Array
The pure copper heat spreader instantly captures CPU heat, which is then efficiently distributed and dissipated by the six high-performance heat pipes for dramatically lower temperatures.
Powerful Dual Turbine Fans
They generate a powerful, focused airflow to efficiently exhaust heat to prevent heat buildup.

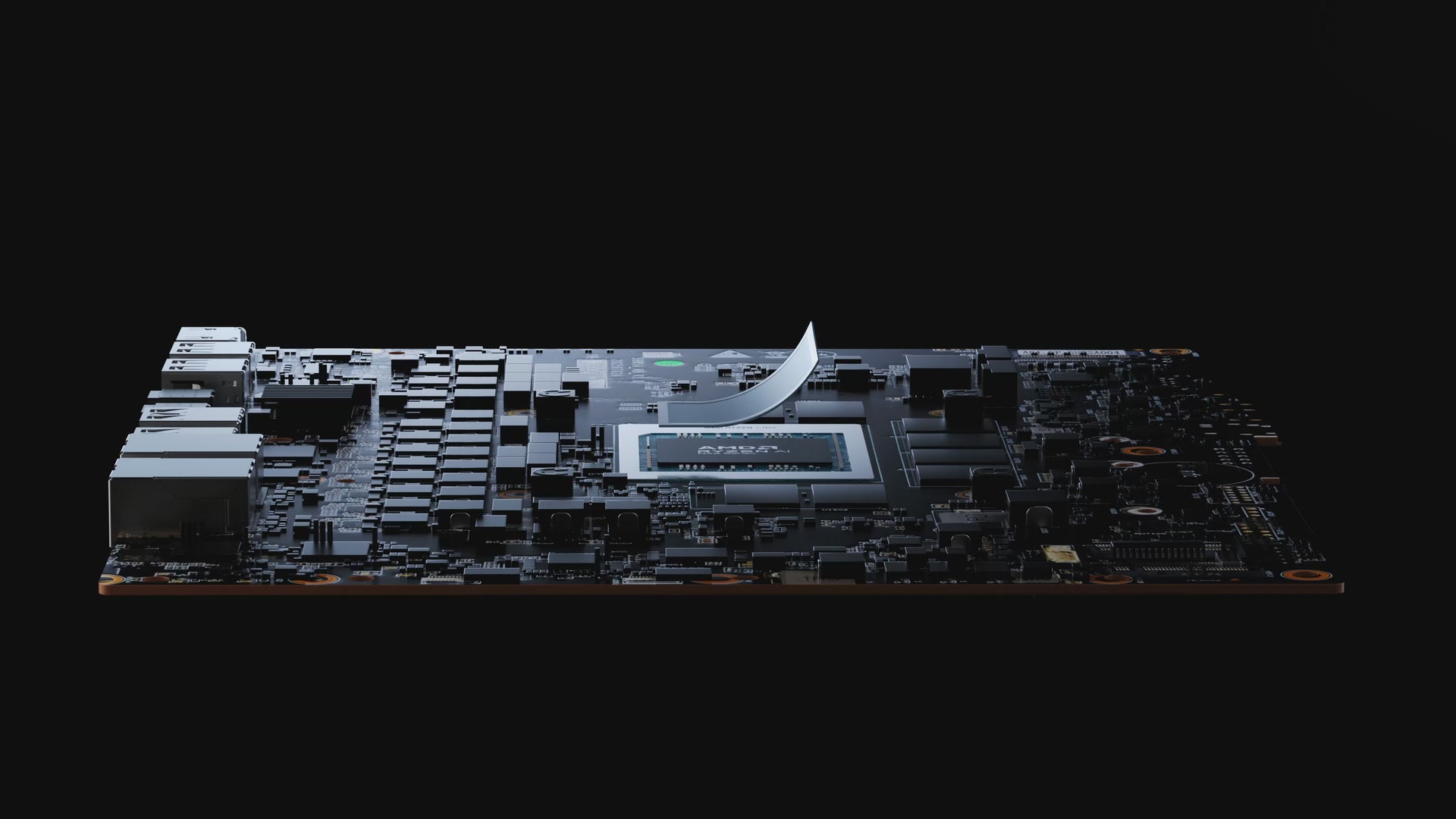

Advanced Phase Change Material
It liquefies under heat to perfectly fill microscopic imperfections between the chip and cooler, resulting in superior thermal transfer compared to standard pastes.

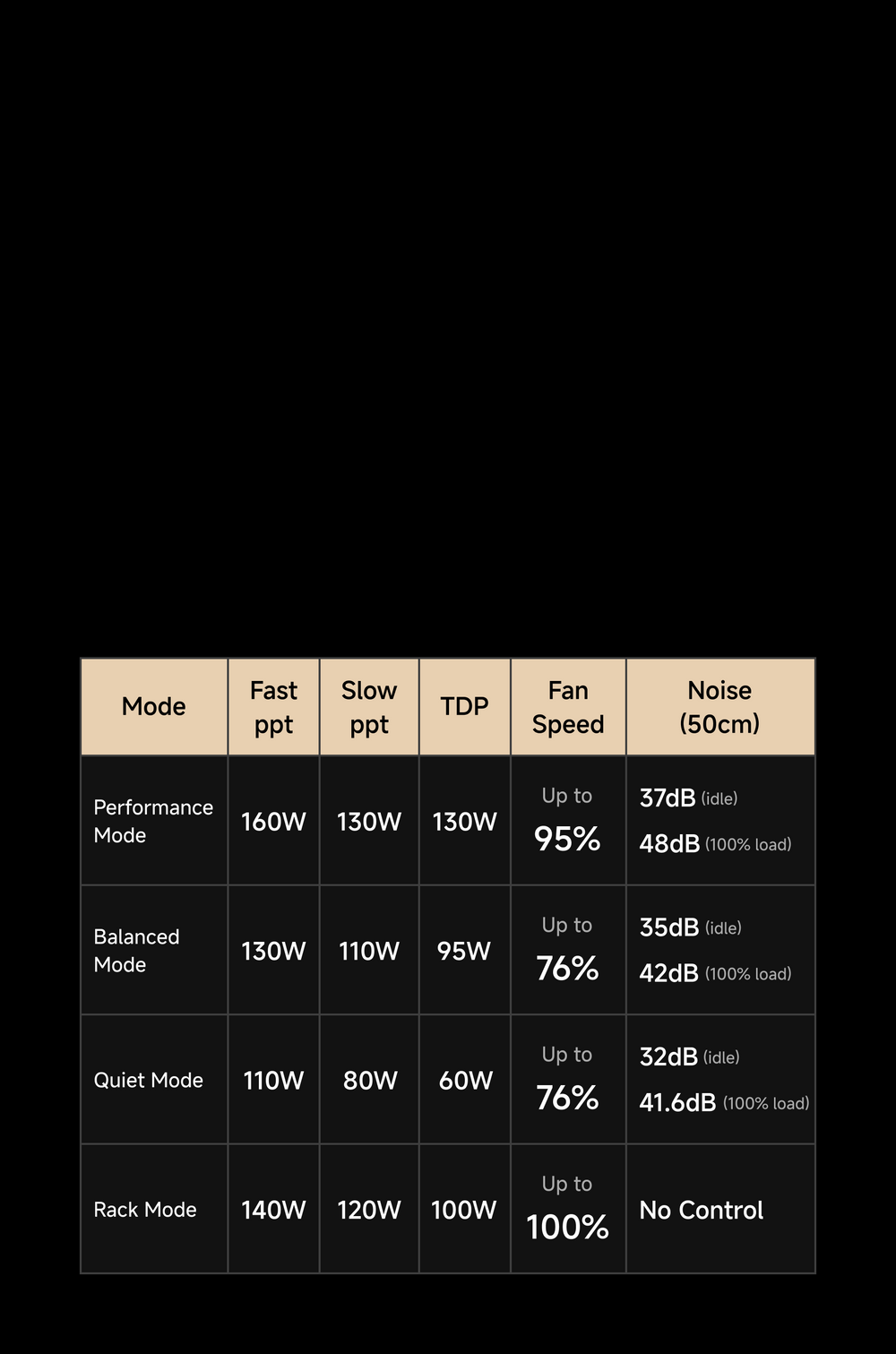

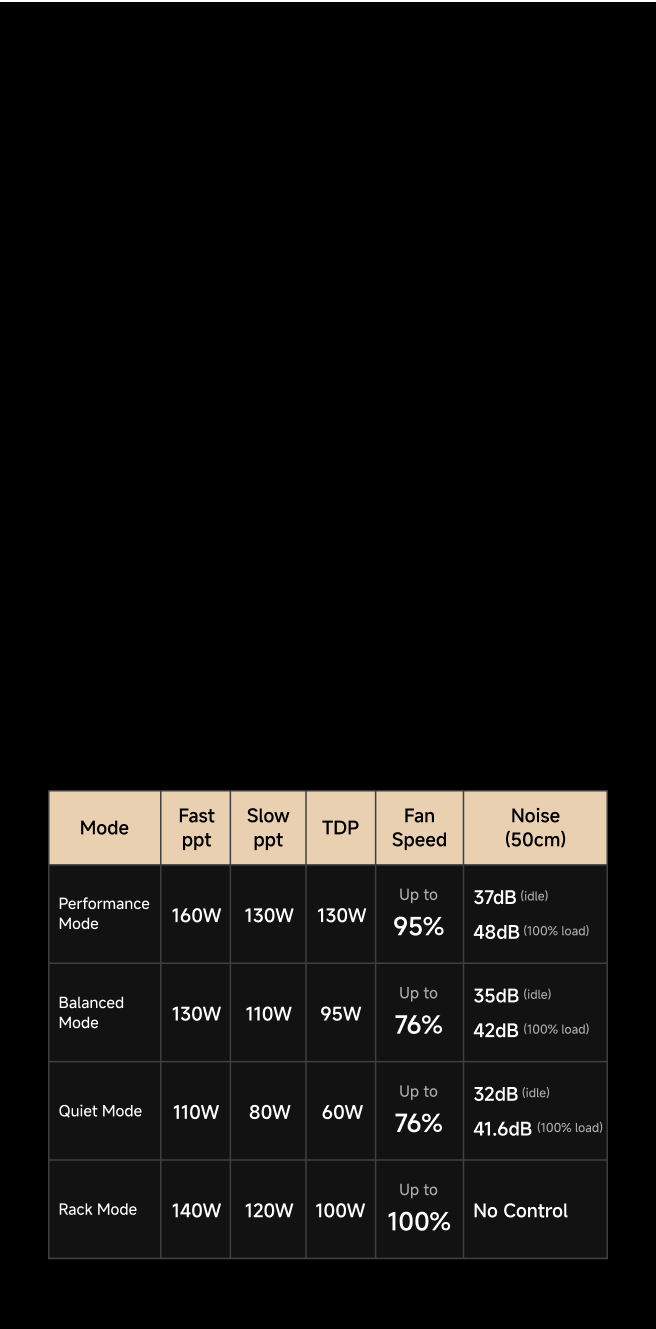

130W Stable / 160W Peak PPT
With a robust 130W Stable PPT and 160W Fast PPT, our cooling system confidently handles intense workloads, translating extreme power into unwavering performance, not thermal throttling.
Global-Certificatied Safe and
Efficient Power
Built-in 320W high-efficiency PSU with CCC, FCC, UL, CE, UKCA and more global certifications, ensuring stable and reliable power delivery.

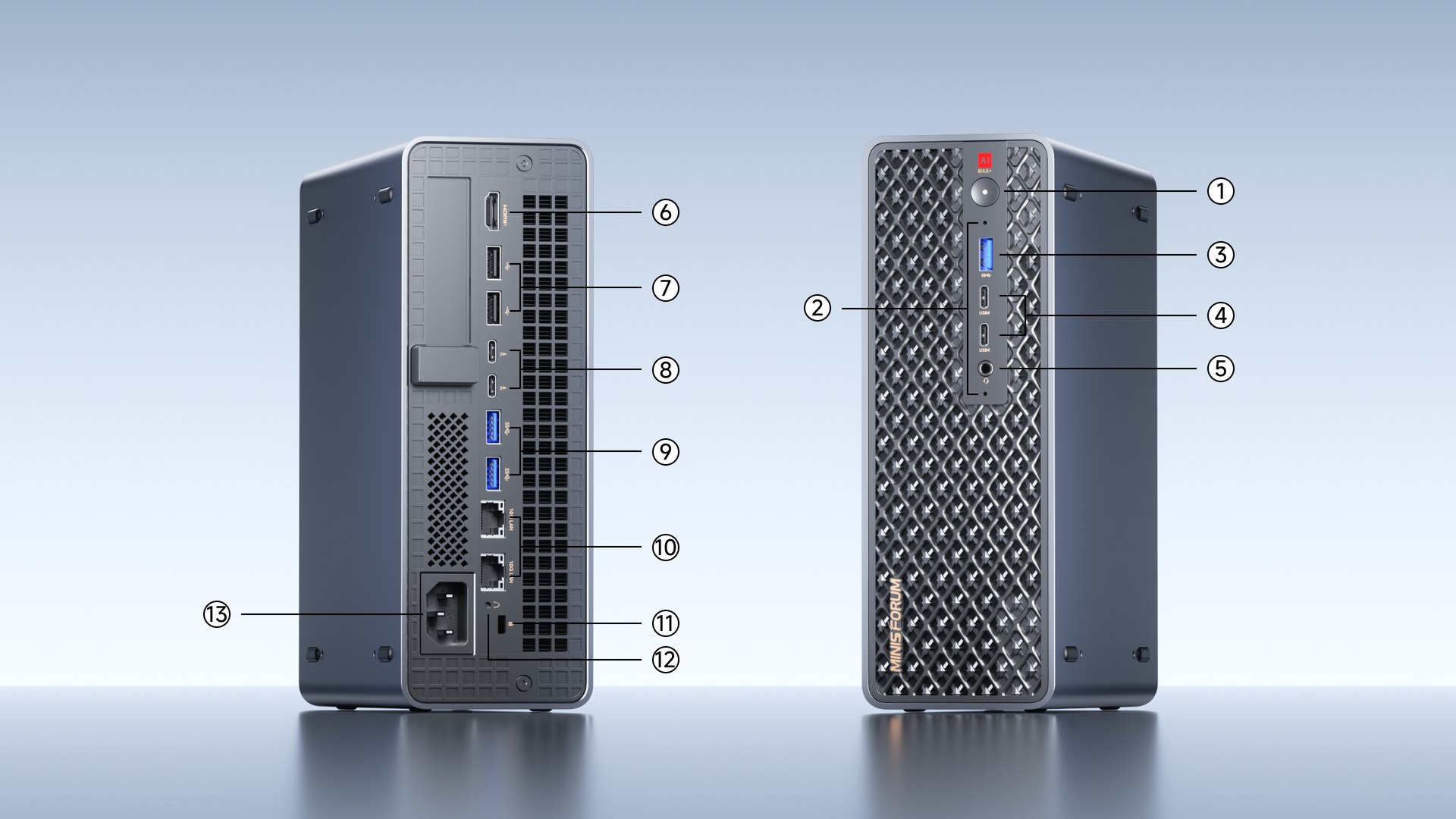

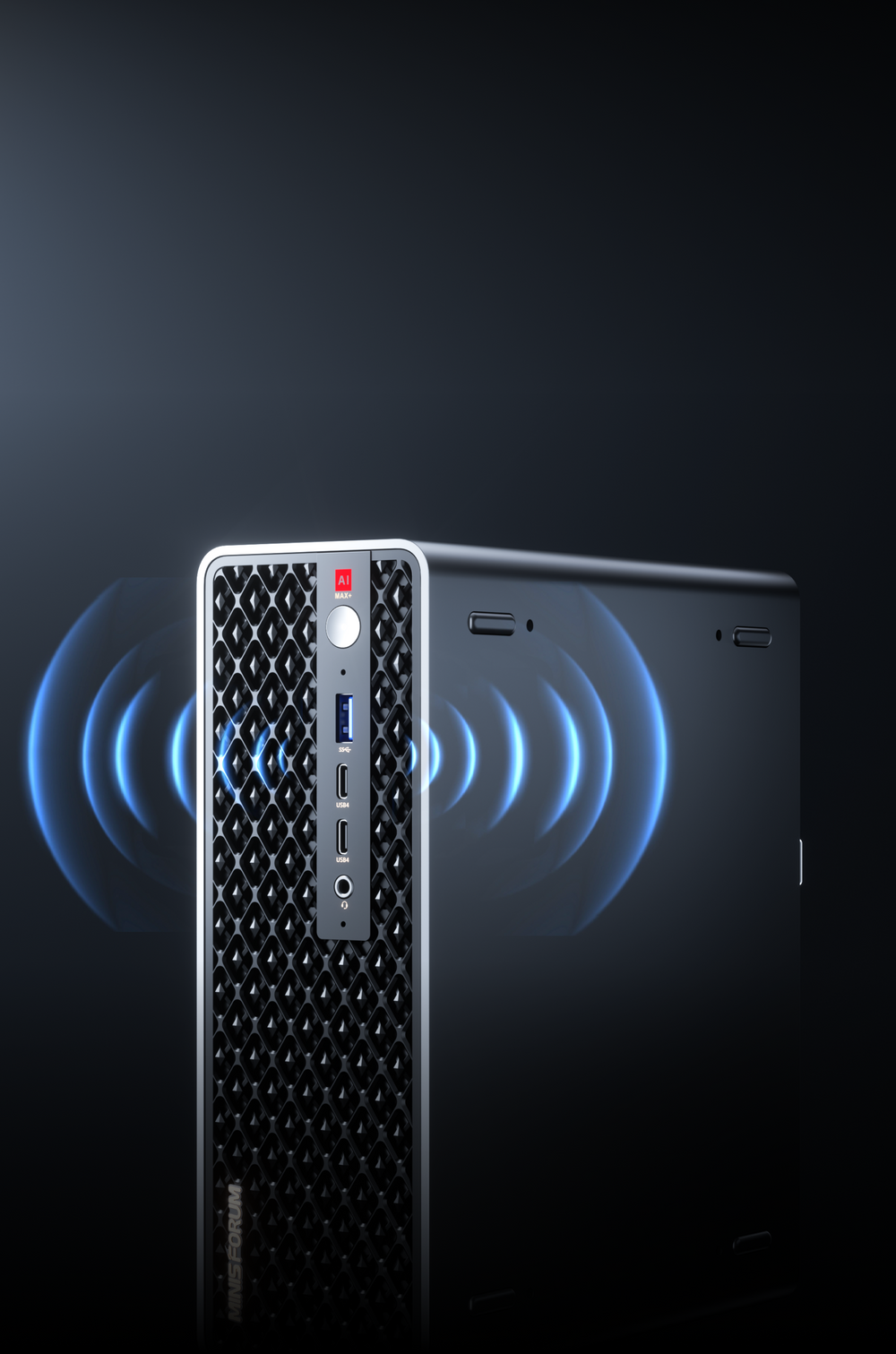

Full Connectivity and Expansion

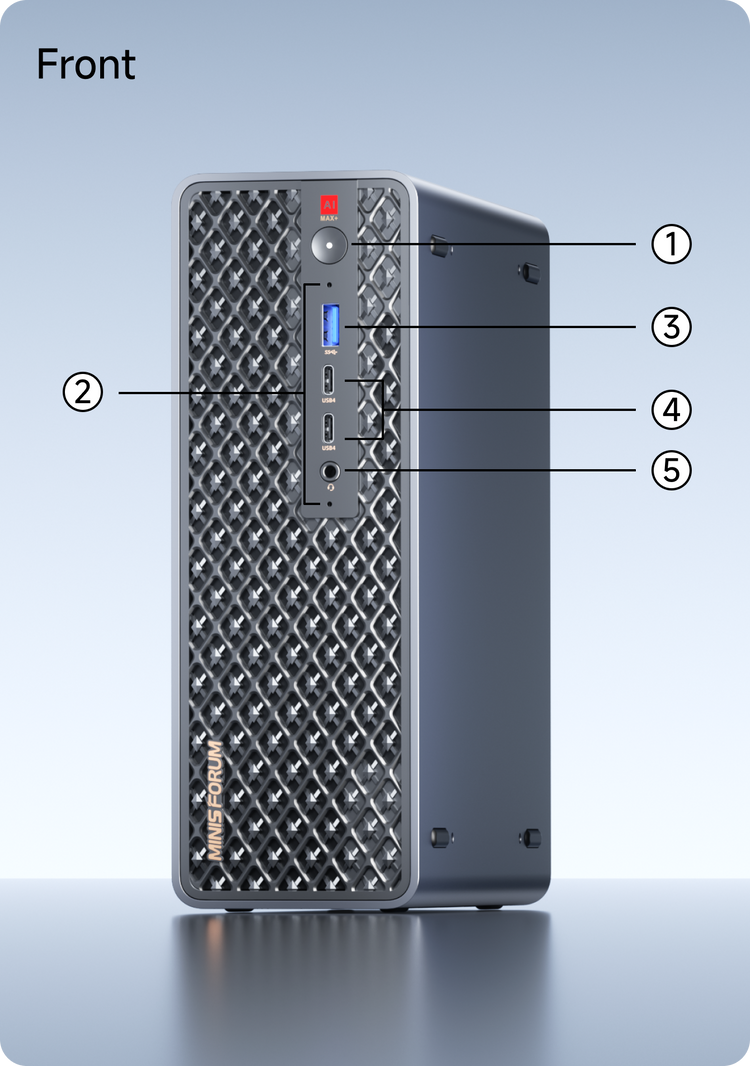

Front

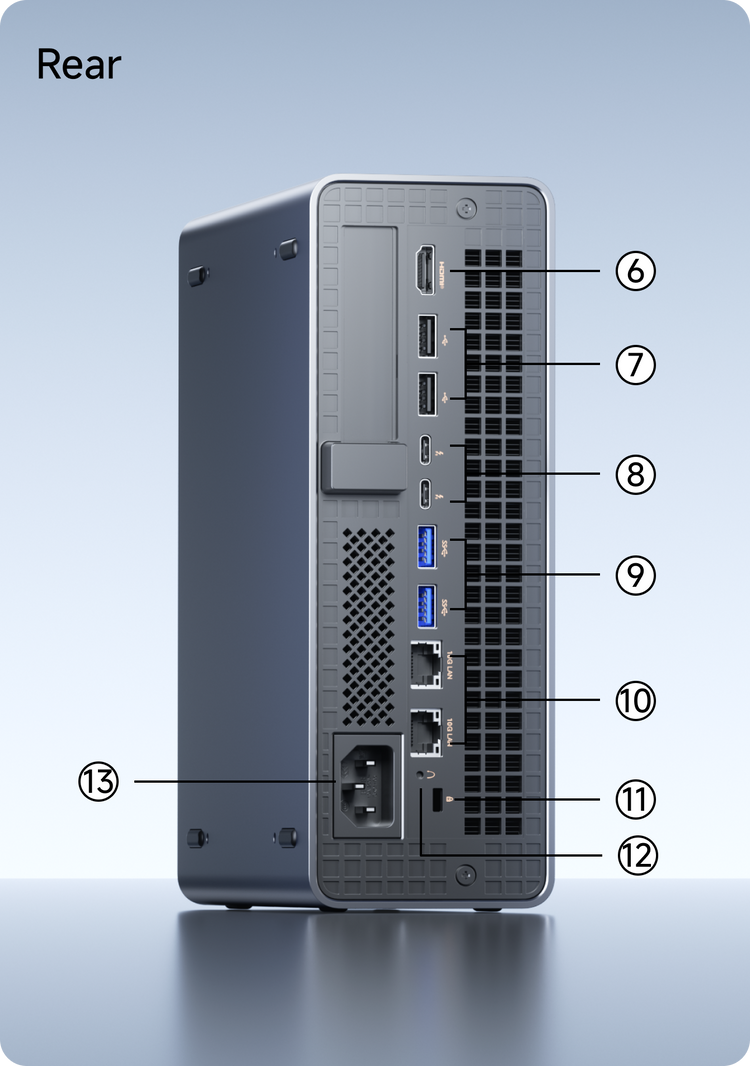

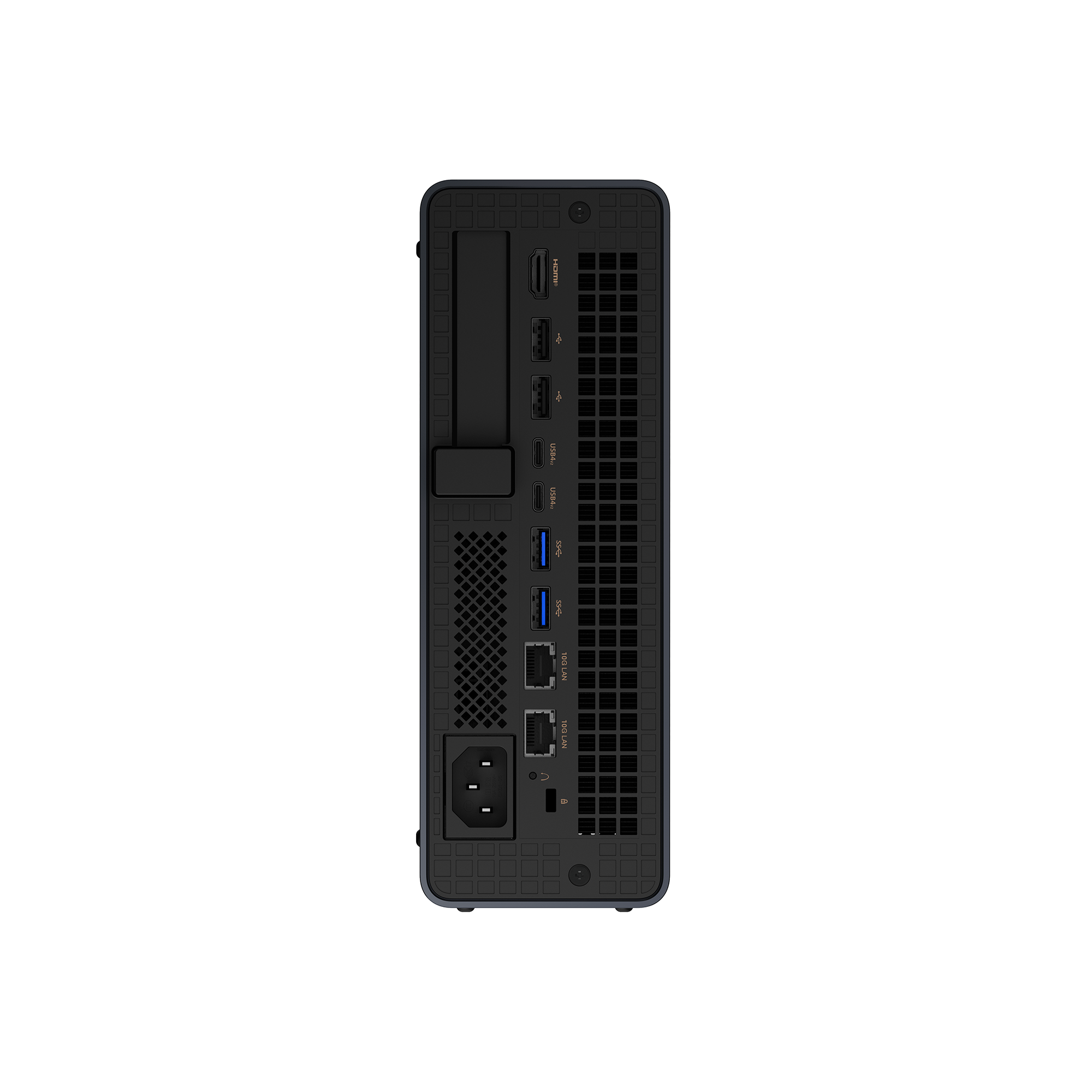

Rear
1. Power Button
2. DMIC ×2
3. USB 3.2 Gen2 (10Gbps)
4. USB4 ×2 (40Gbps, Alt DP2.0, PD out 15W)
5. 3.5mm Audio Combo Jack
6. HDMI 2.1 FRL (Up to 8K@60Hz/4K@120Hz)
7. USB 2.0 ×2
8. USB4 V2 ×2 (80Gbps, Alt DP2.0, PD out 15W)
9. USB 3.2 Gen2 (10Gbps)
10. 10GbE LAN x2 (RJ45, Realtek RTL8127)
11. Anti-Theft Lock Hole
12. Reset Hole (Clear CMOS)
13. AC INPUT
1. Power Button
2. DMIC ×2
3. USB 3.2 Gen2 (10Gbps)
4. USB4 ×2 (40Gbps, Alt DP2.0, PD out 15W)
5. 3.5mm Audio Combo Jack
6. HDMI 2.1 FRL (Up to 8K@60Hz/4K@120Hz)
7. USB 2.0 ×2
8. USB4 V2 ×2 (80Gbps, Alt DP2.0, PD out 15W)
9. USB 3.2 Gen2 (10Gbps)
10. 10GbE LAN x2 (RJ45, Realtek RTL8127)
11. Anti-Theft Lock Hole
12. Reset Hole (Clear CMOS)
13. AC INPUT

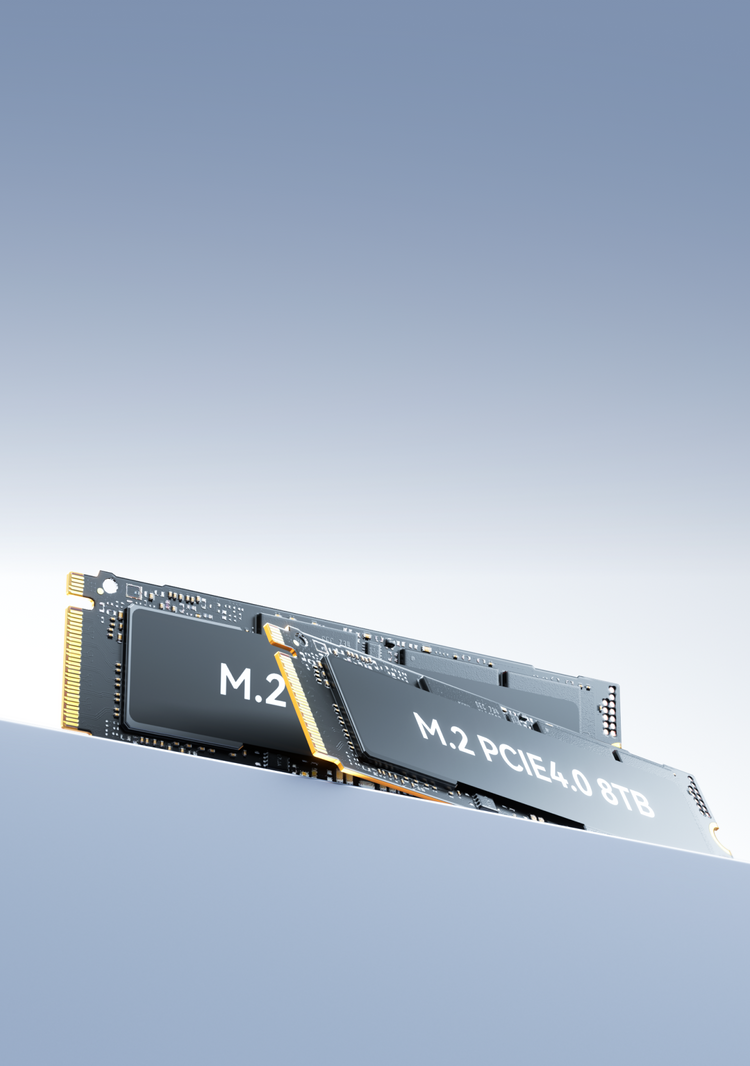

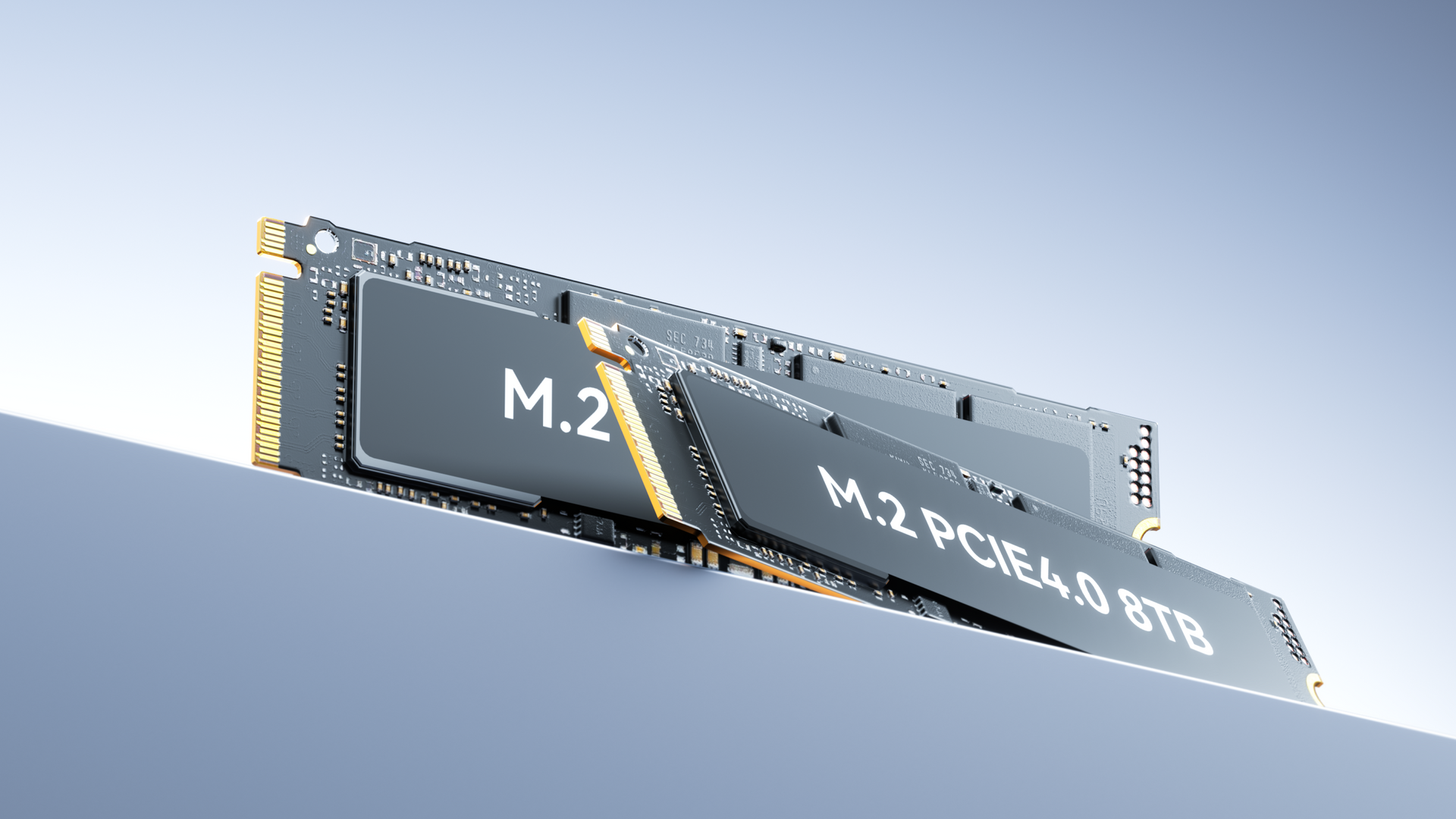

Storage & Expansion

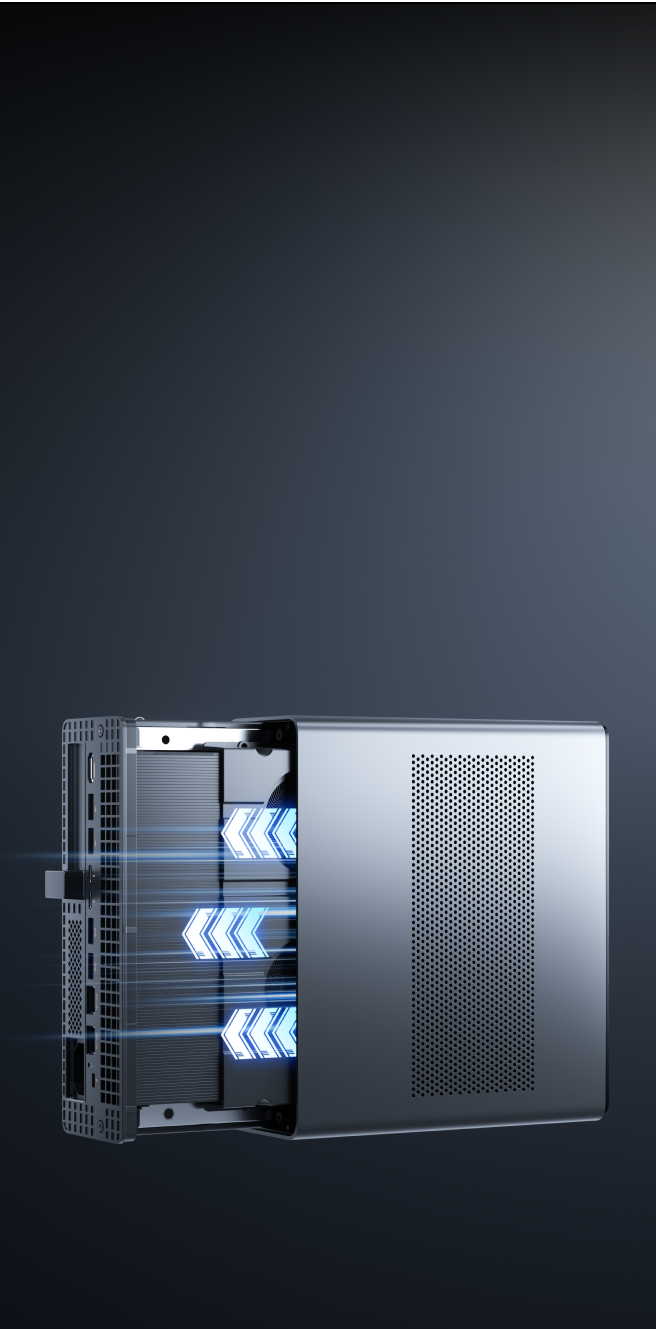

Easy Upgrade
Dual M.2 slots (PCIe 4.0 x4 + x1) support up to 8TB
with RAID0/1, integrated slide-out board design
enables effortless upgrades and maintenance.
8TB
Per Slot Maximum SSD Capacity
RAID 0/1
Flexible RAID Support
Storage & Expansion
Easy Upgrade
Dual M.2 slots (PCIe 4.0 x4 + x1) support up to 8TB
with RAID0/1, integrated slide-out board design
enables effortless upgrades and maintenance.
8TB
Per Slot Maximum SSD Capacity
RAID 0/1
Flexible RAID Support

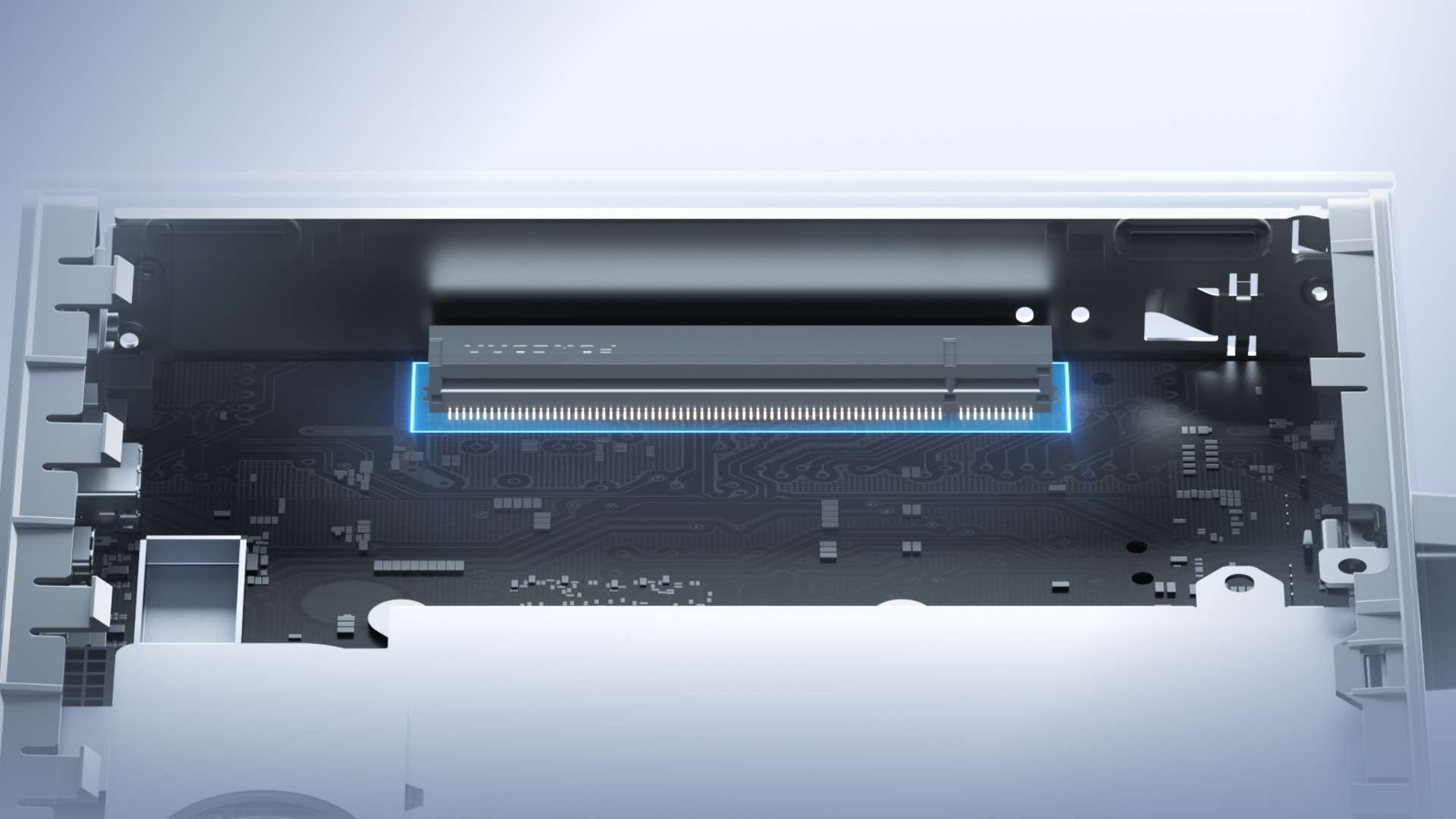

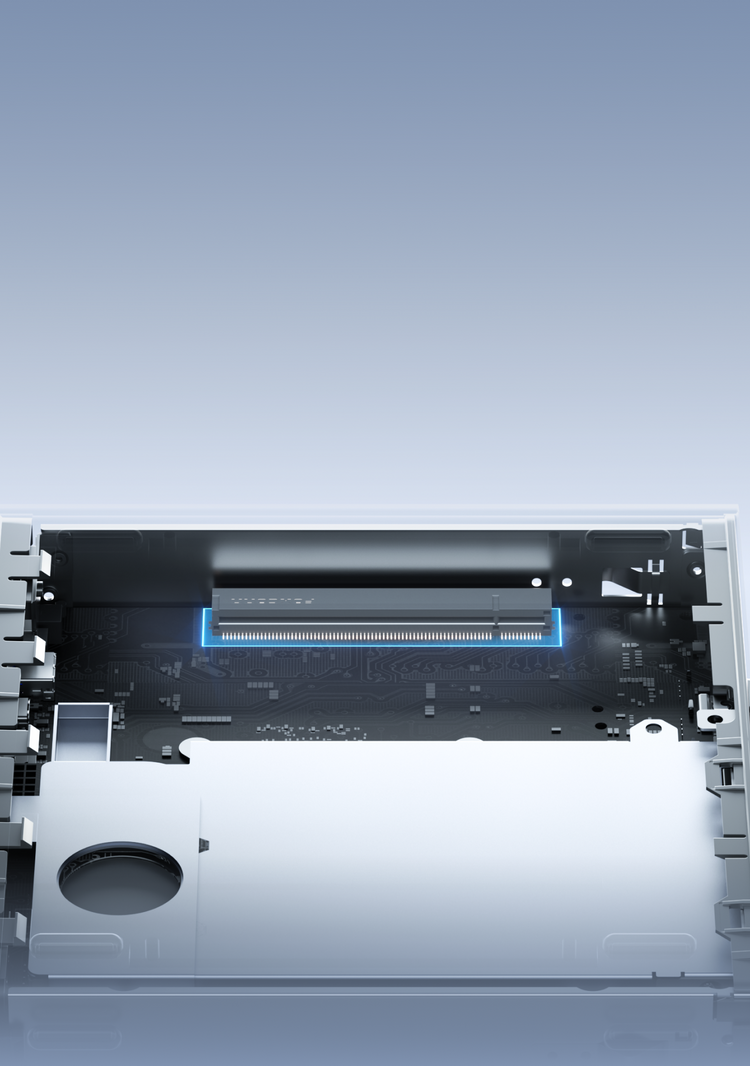

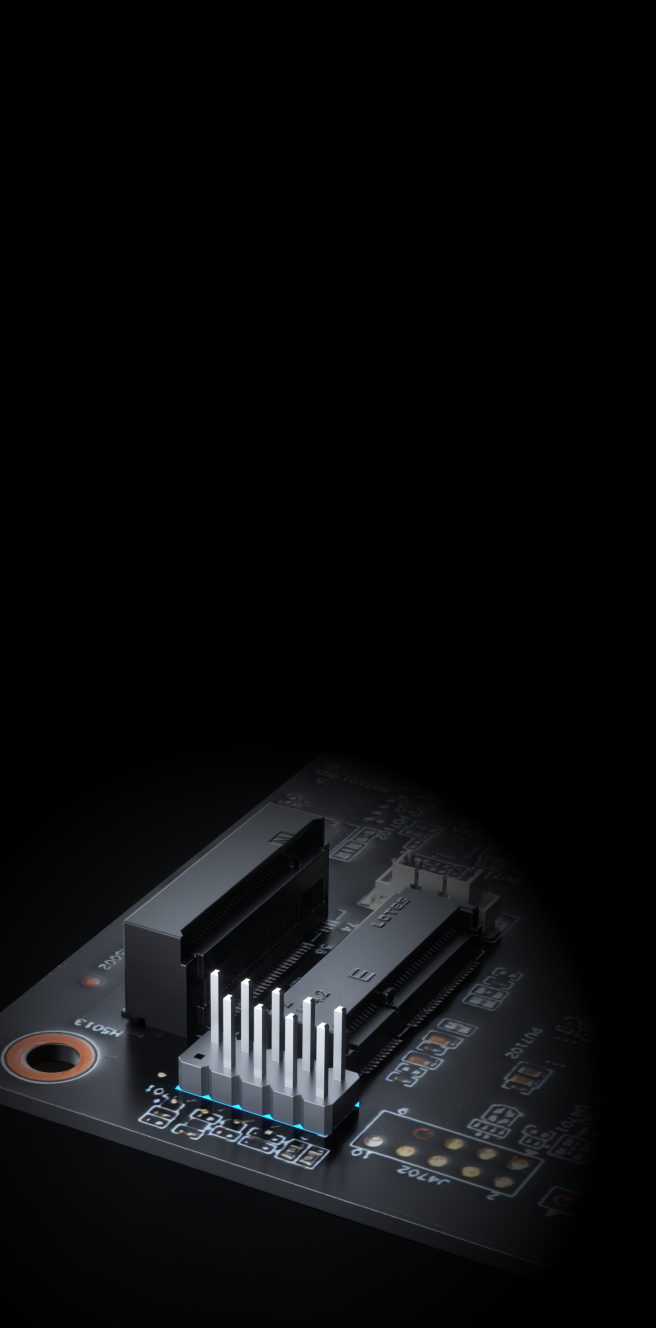

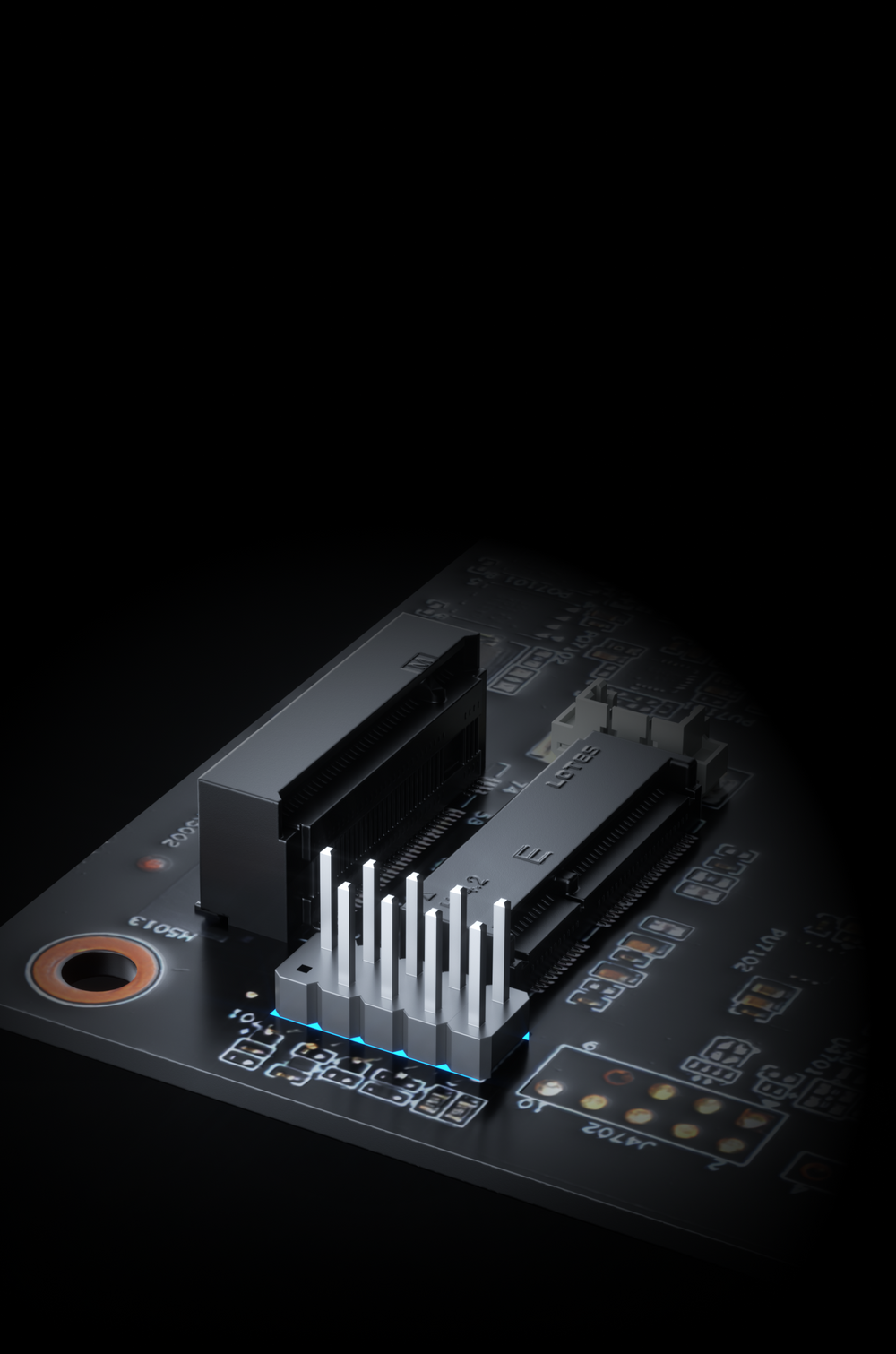

Flexible Customization
Full-Length Expansion
Full-length PCIe x16 slot supports industry-specific expansion needs.
PCIe x16
Supports Full-length Cards
PCIe 4.0 x4
High-speed Expansion
Flexible Customization
Full-Length Expansion
Full-length PCIe x16 slot supports industry-specific expansion needs.
PCIe x16
Supports Full-length Cards
PCIe 4.0 x4
High-speed Expansion
Specification
MiniWorkstation MS-S1 MAX
AMD Ryzen™ Al Max+ 395
16C/32T,Max.Turbo Frequency 5.1GHz
AMD Radeon 8060S Graphics(Internal)
AMD Ryzen™ AI
- Up to 50 TOPS(NPU TOPS)
- Up to 126 TOPS(Overall TOPS)
LPDDR5x-8000MT/s
Up to 128GB
- 1 х M.2 2280 NVME SSD Slot (up to 8TB,PCIe 4.0 x4)
- 1 х M.2 2280 NVME SSD Slot (up to 8TB,PCIe 4.0 x1)
Optional SKU SSD Capacity : 0/1TB/2TB

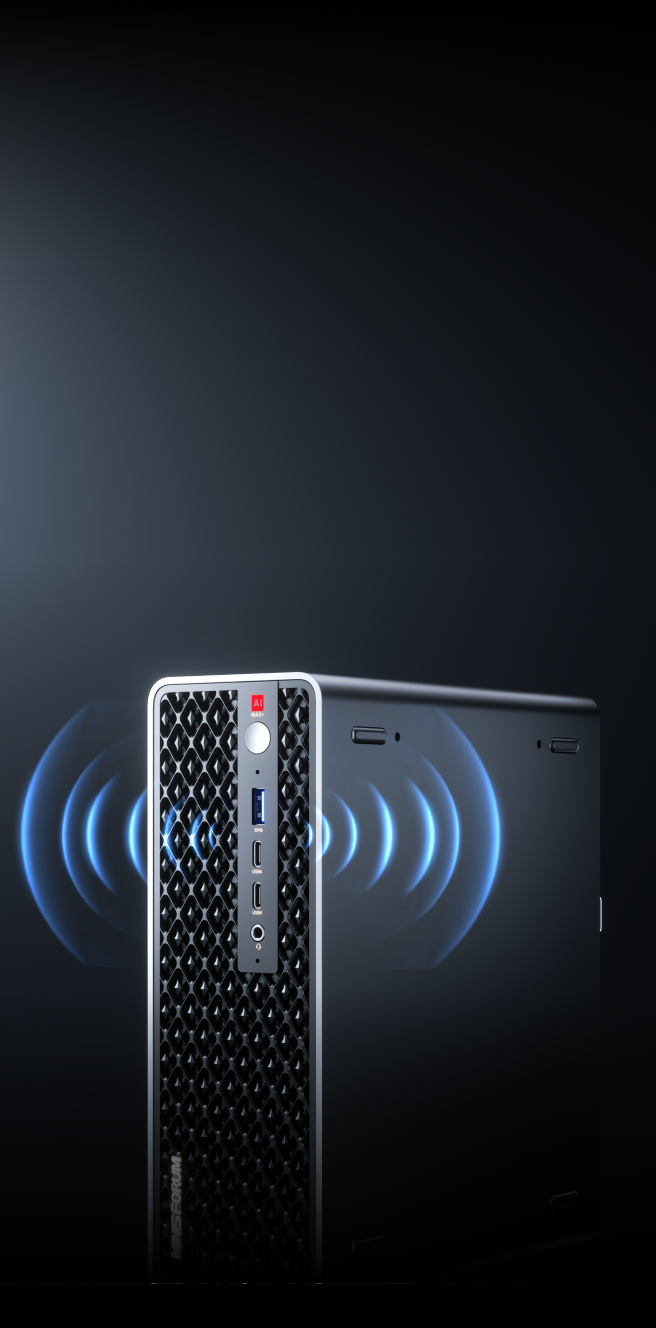

WIFI 7 & Bluetooth 5.4
2 х 10GbE LAN (RJ45)
Module: Realtek RTL8127
- 1 х HDMI
- 2 х USB4
- 2 х USB4 V2
- (Up to 8K@60Hz/4K@120Hz)
- (Up to 8K@60Hz/4K@120Hz)
- (Up to 8K@60Hz/4K@120Hz)
- HDMI х 1
- 3.5mm Combo Jack(TRRS) х 1
- DMIC х 2
- 3.5mm Combo Jack（TRRS） х 1
- 1 х 10GbE LAN（RJ45，Realtek RTL8127）
- 1 х 10GbE LAN（RJ45，Realtek RTL8127）
- 2 х USB 3.2 Gen2（10Gbps）
- 2 х USB 2.0
- 2 х USB4（40Gbps，Alt DP2.0，PD out 15W）
- 1 х HDMI 2.1 FRL（Up to 8K@60Hz/4K@120Hz）
- 2 х USB4 V2（80Gbps，Alt DP2.0，PD out 15W）
- 1 х USB 3.2 Gen2（10Gbps）
- 1 х 3.5mm Audio Combo Jack（TRRS）
- 2 х DMIC
- Inside : PCIe x16 Slot（PCIe 4.0 x4)
- Power Button х 1
- Reset Hole (Clear CMOS) х 1
100-178.5mm
AC INPUT
(100-240V ~6A 50-60Hz,Internel-DC 12V/26.7A,320W MAX)
Windows 11 Pro
222 x 206 x 77 mm (LWH)
2.8 kg
