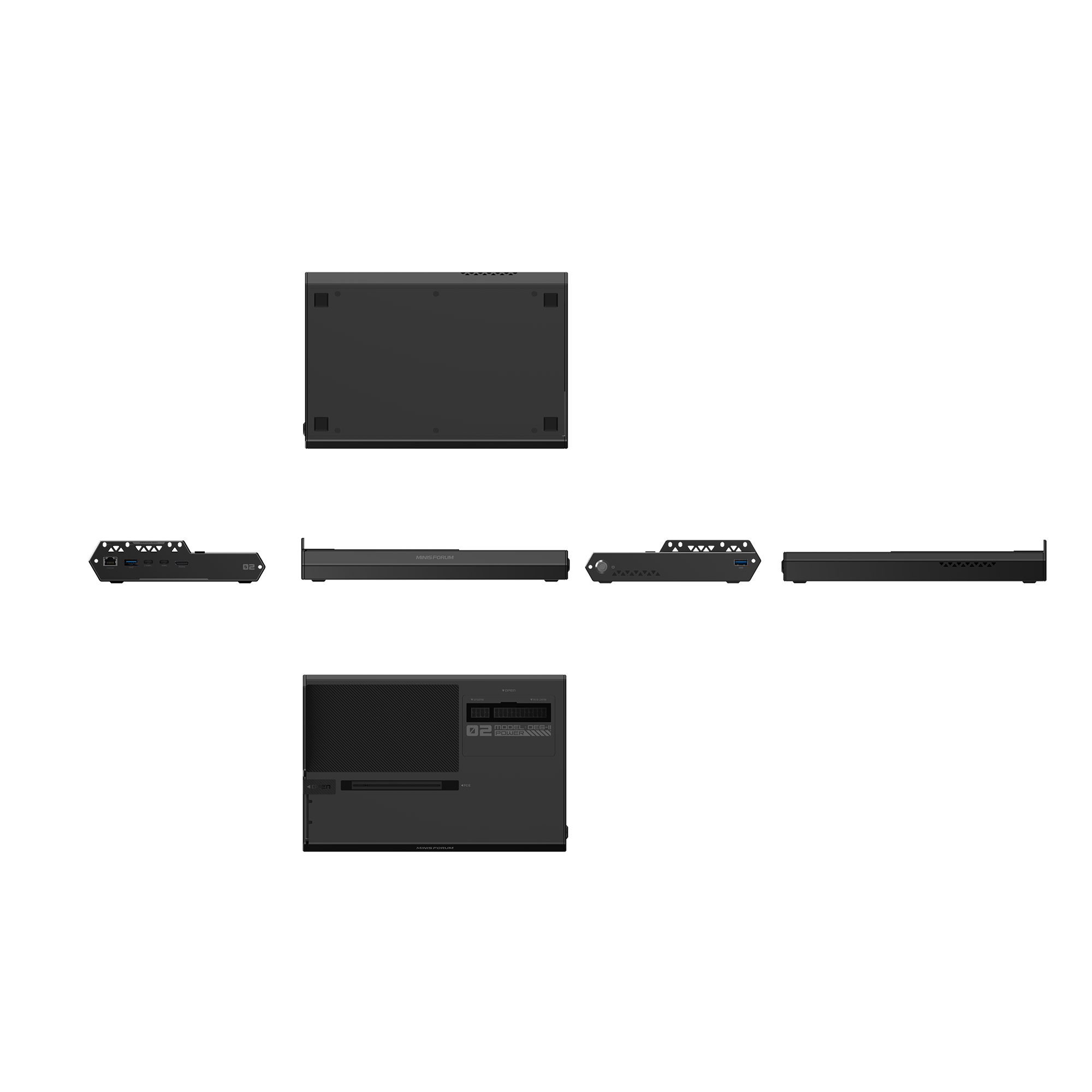

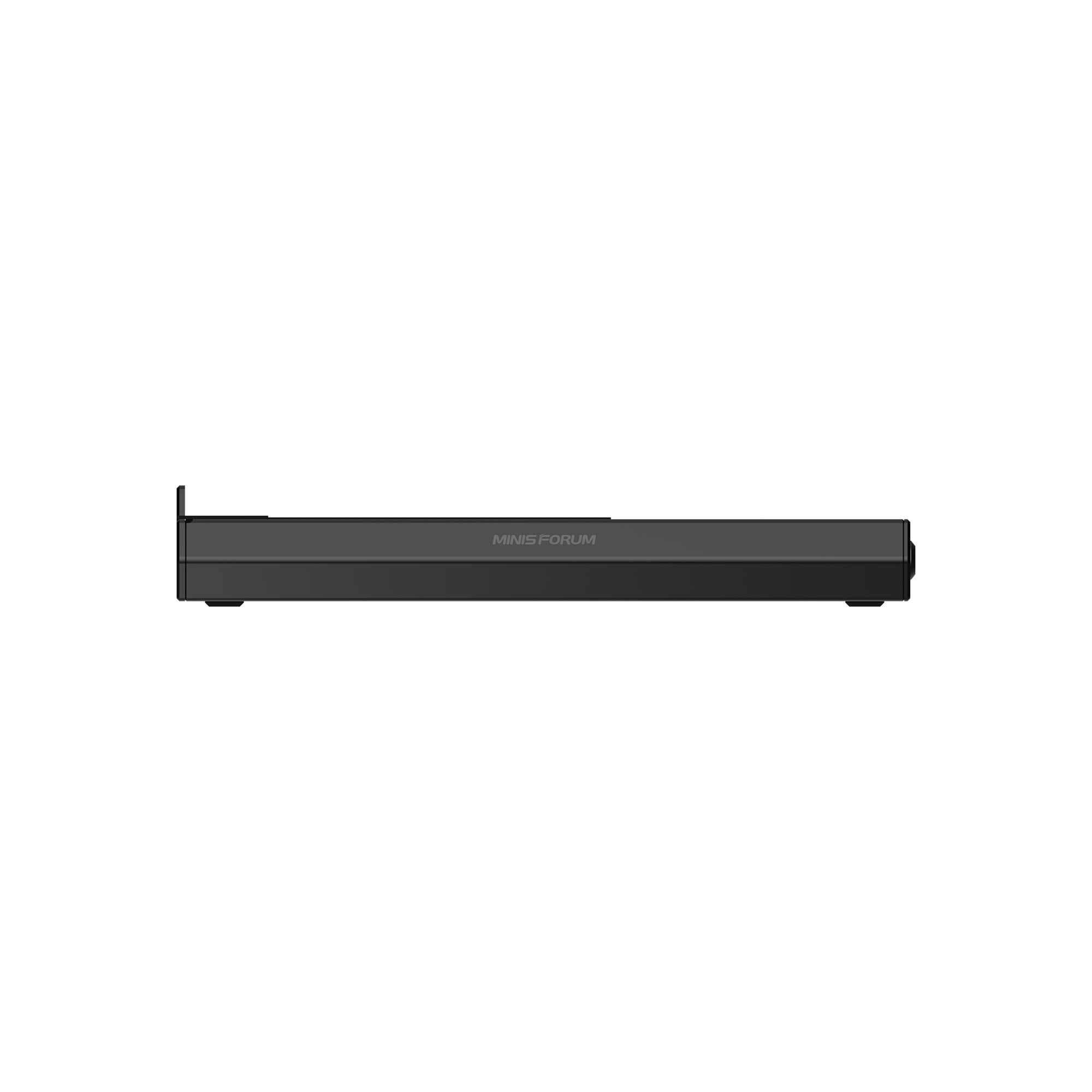

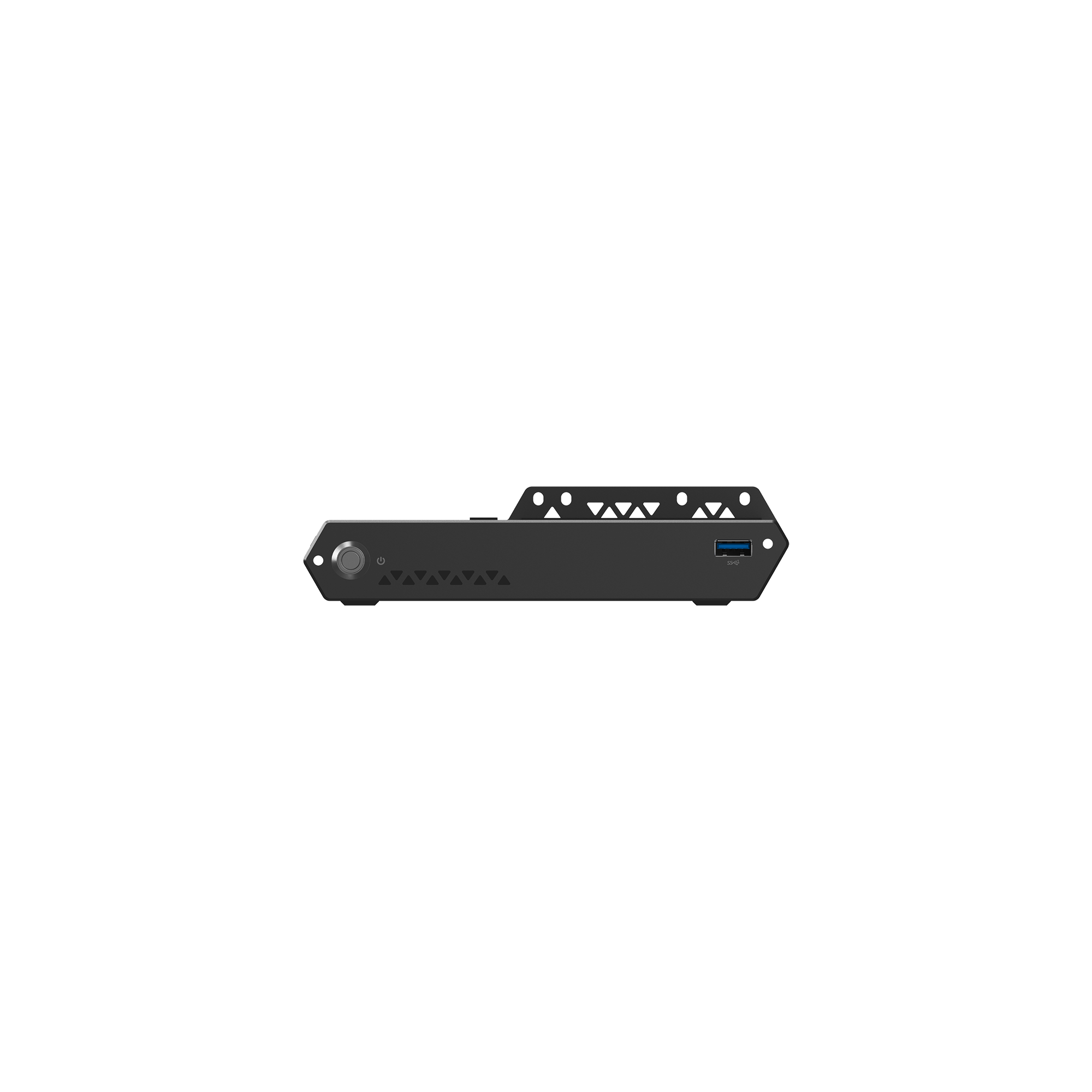

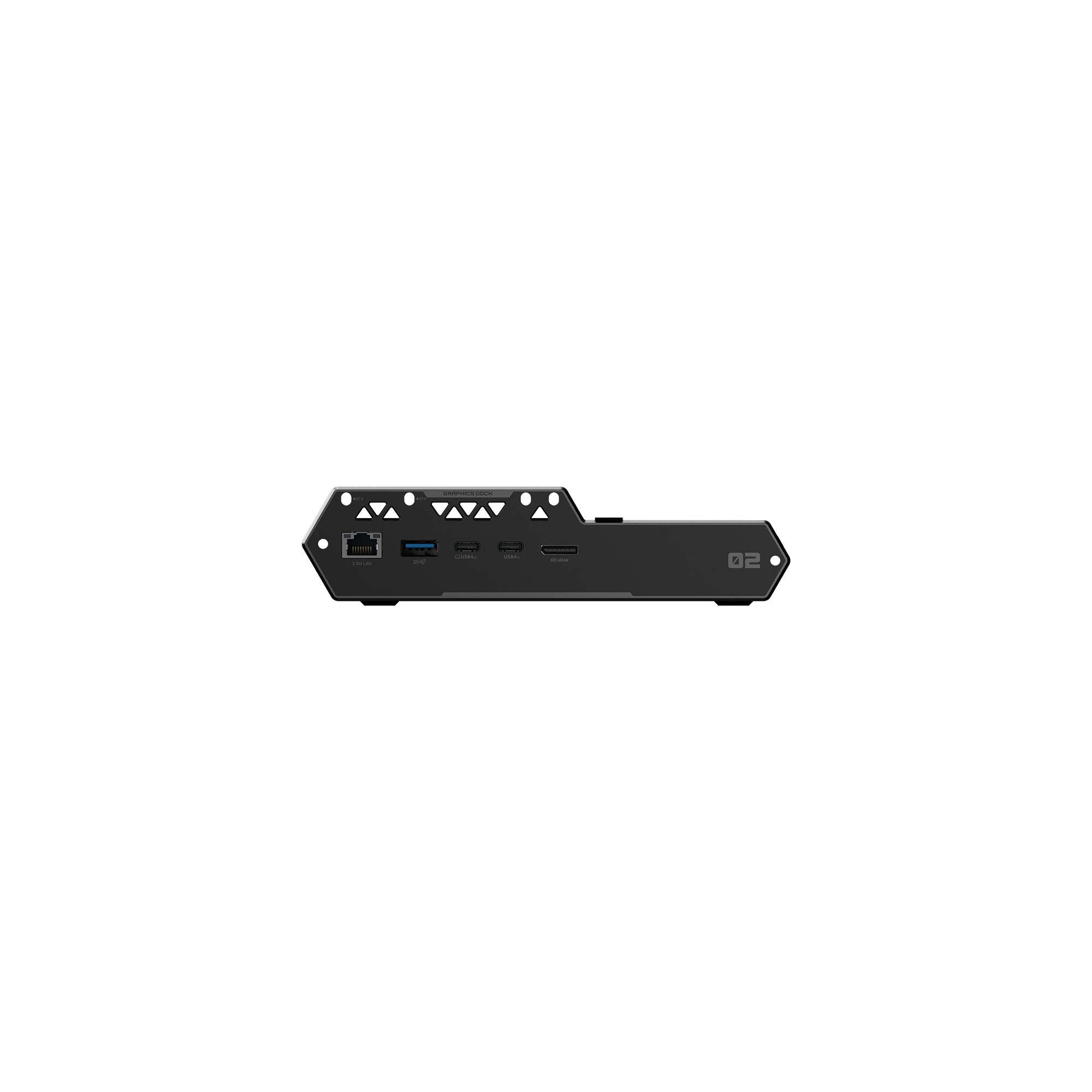

Minisforum DEG2 eGPU Dock Station
Shipping calculated at checkout.

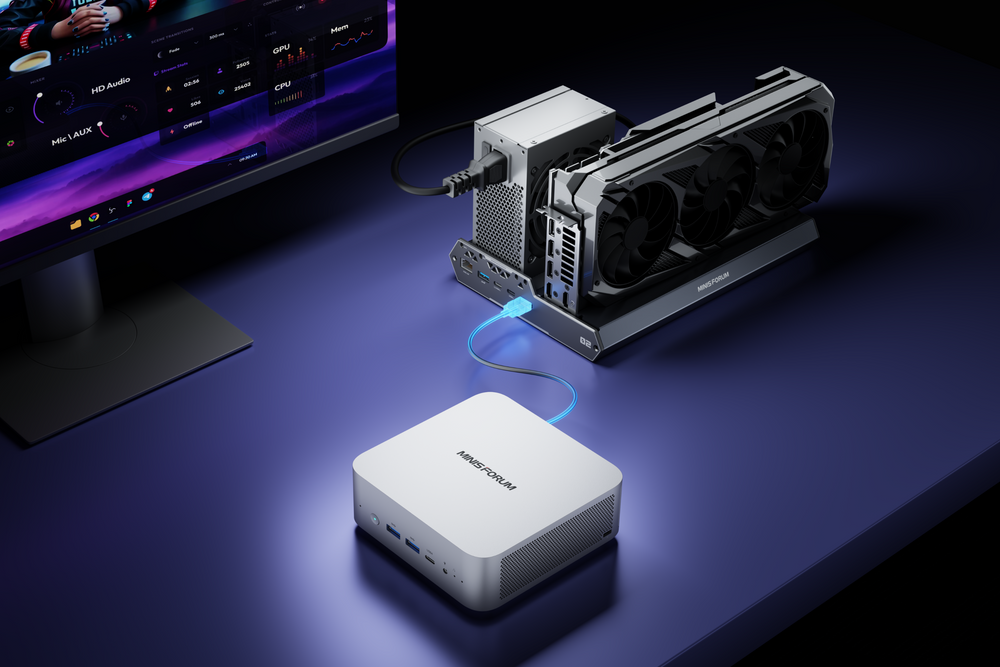

- OCuLink (PCIe 4.0 ×4) | Up to 64Gps
- Thunderbolt 5 Port | Up to 80Gps
- Built-in M.2 2280 SSD
- Compatible with ATX / SFX power supplies
- TB5 one cable for data | Up to 140W

Total Freedom for GPU and Power Choice
Compatible with ATX and SFX PSUs
Use the ATX or SFX power supplies you already own. Upgrade capacity at any time to match your next GPU.

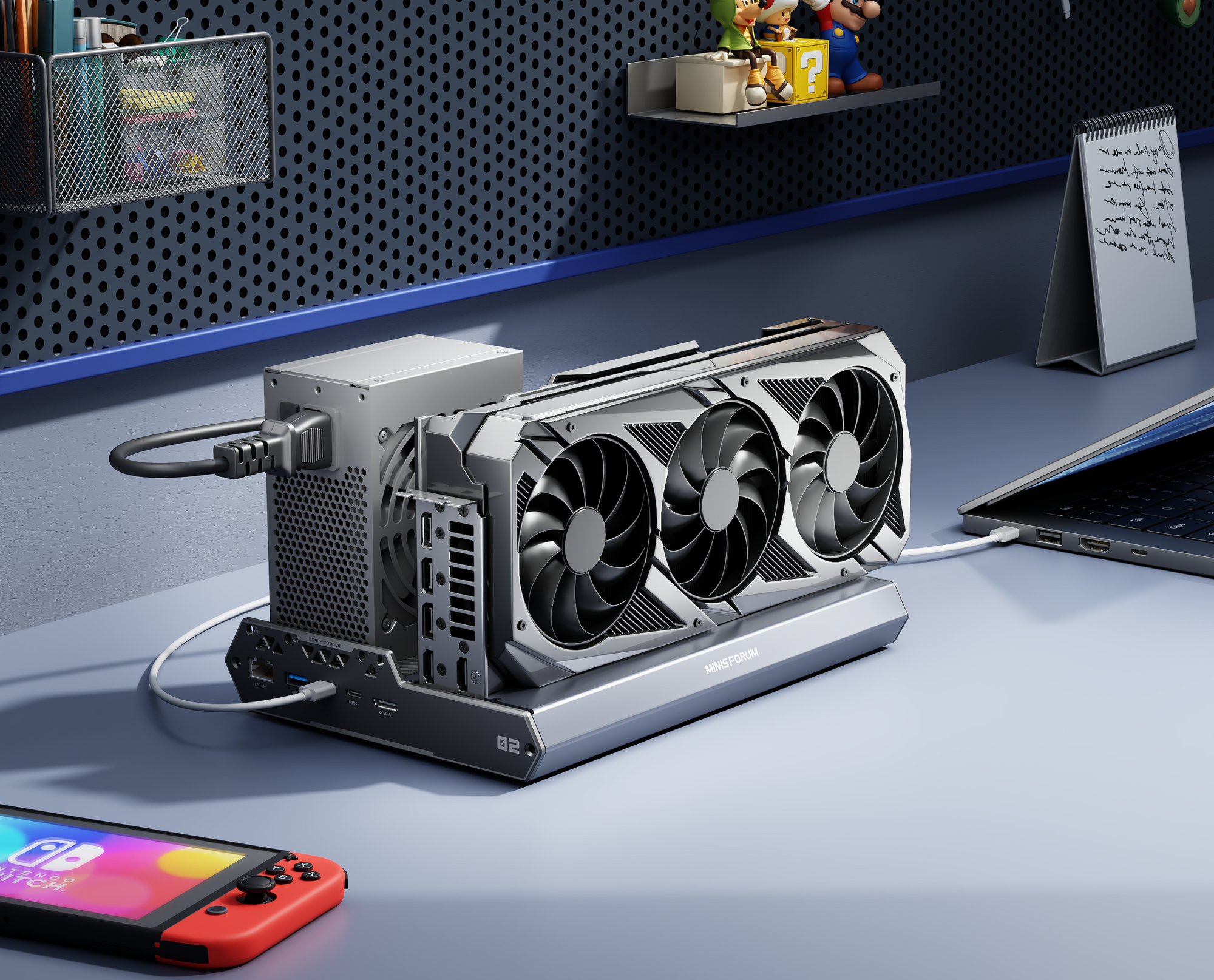

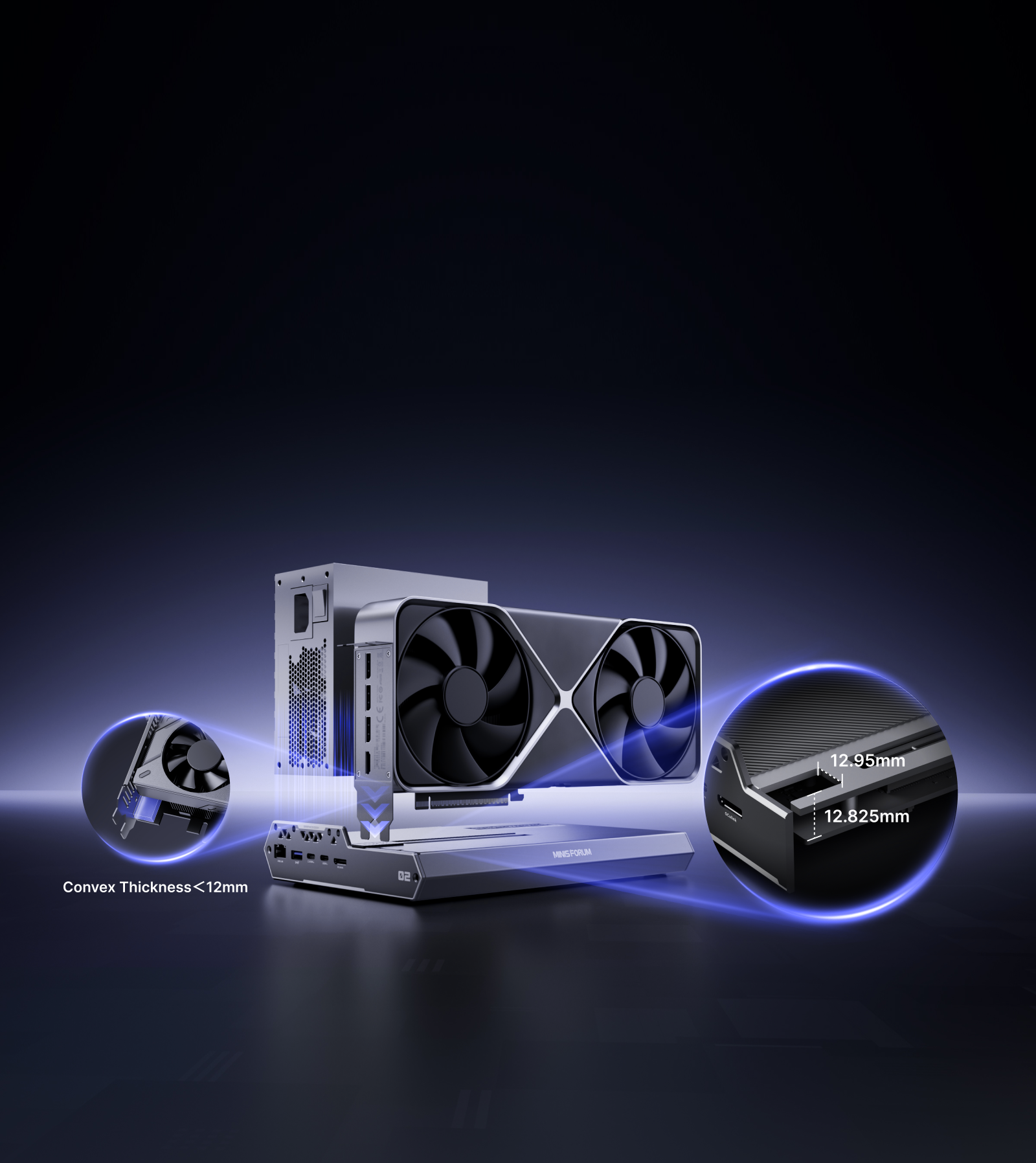

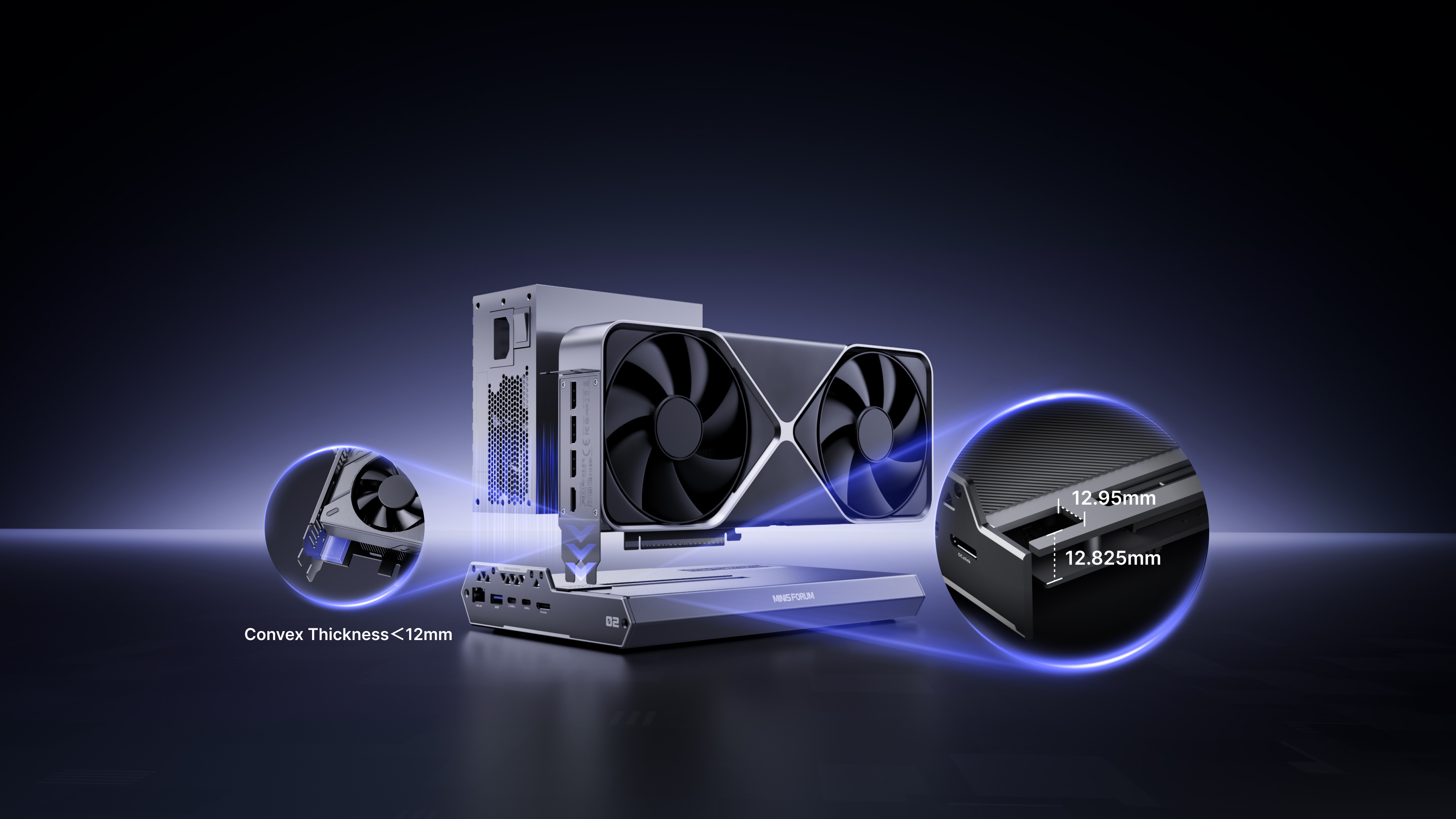

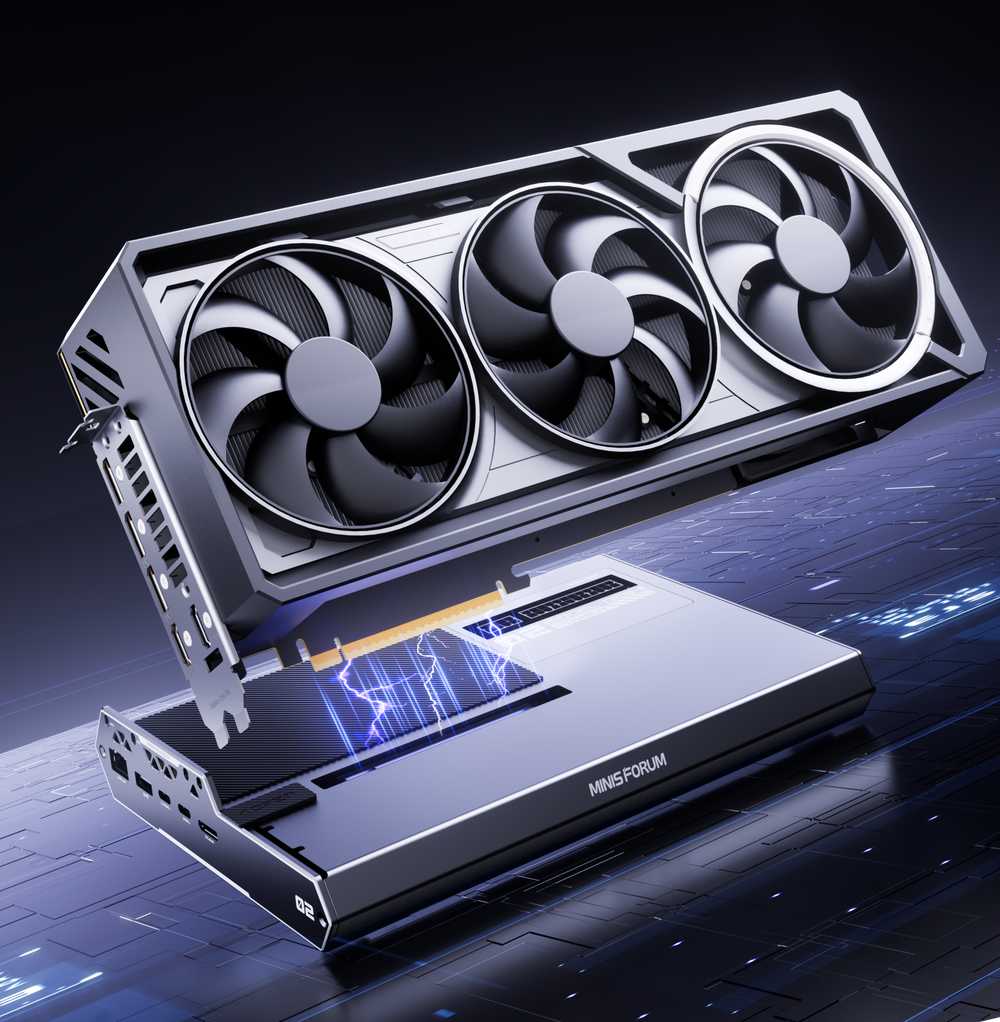

Supports Full-Length, High-TDP GPUs
Install the GPU you actually want to use.
Full length and high TDP desktop cards fit without the usual small form factor limitations.
Designed for Future GPU Upgrades
Swap GPUs, expand power, and add storage as needed. DEG2 is built to grow with your hardware instead of locking you in.
Signal-Optimized for Better Compatibility
A signal optimized design helps improve compatibility across different cables, GPUs, and host devices, reducing drops, glitches, and connection issues.
Auto Power-On with the Host
DEG2 powers on alongside your system, delivering a seamless, desktop like experience every time you sit down to work or play.

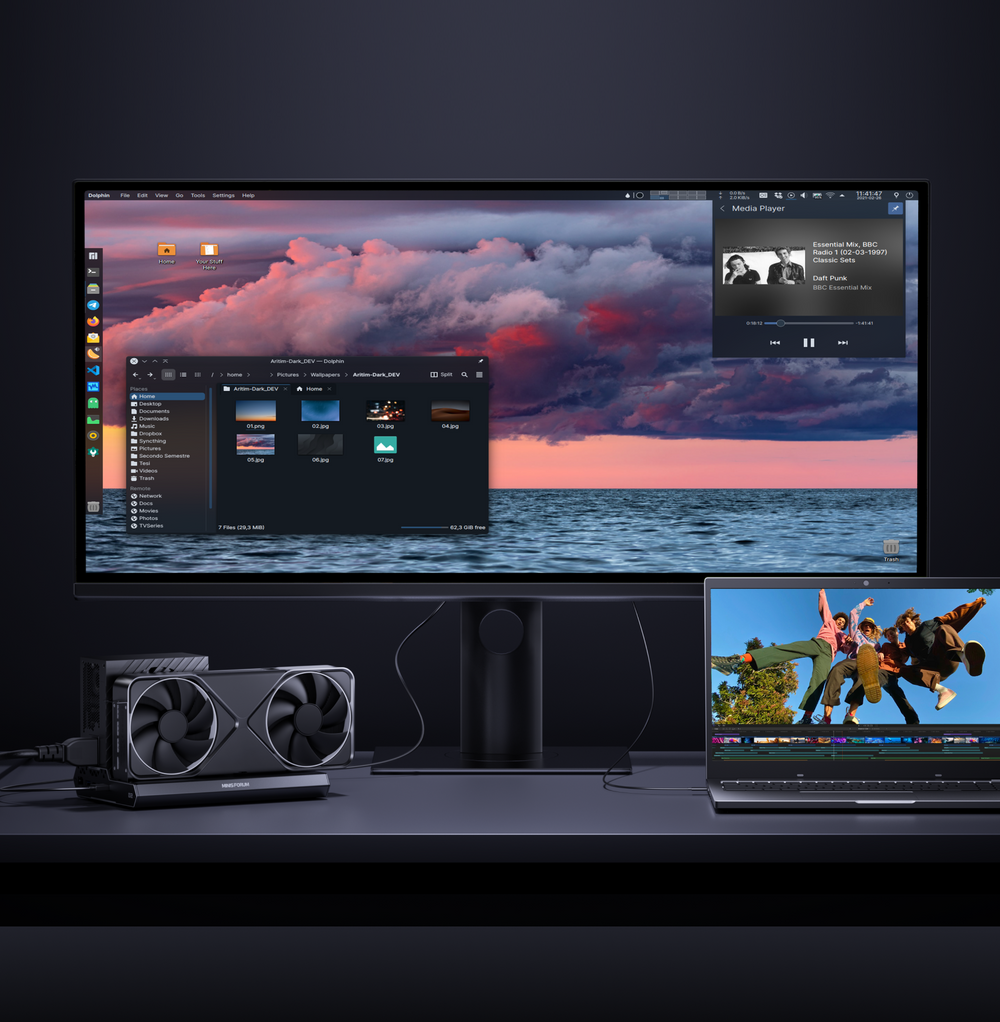

Auto Power-On, One-Cable Ready
DEG2 powers on automatically with your host, so there’s no extra switch to press and the experience feels like a desktop tower. With Thunderbolt 5 reverse power and full dock expansion over the same TB5 link, you just plug in once and your entire desk setup is ready for work or play.
Package Contents

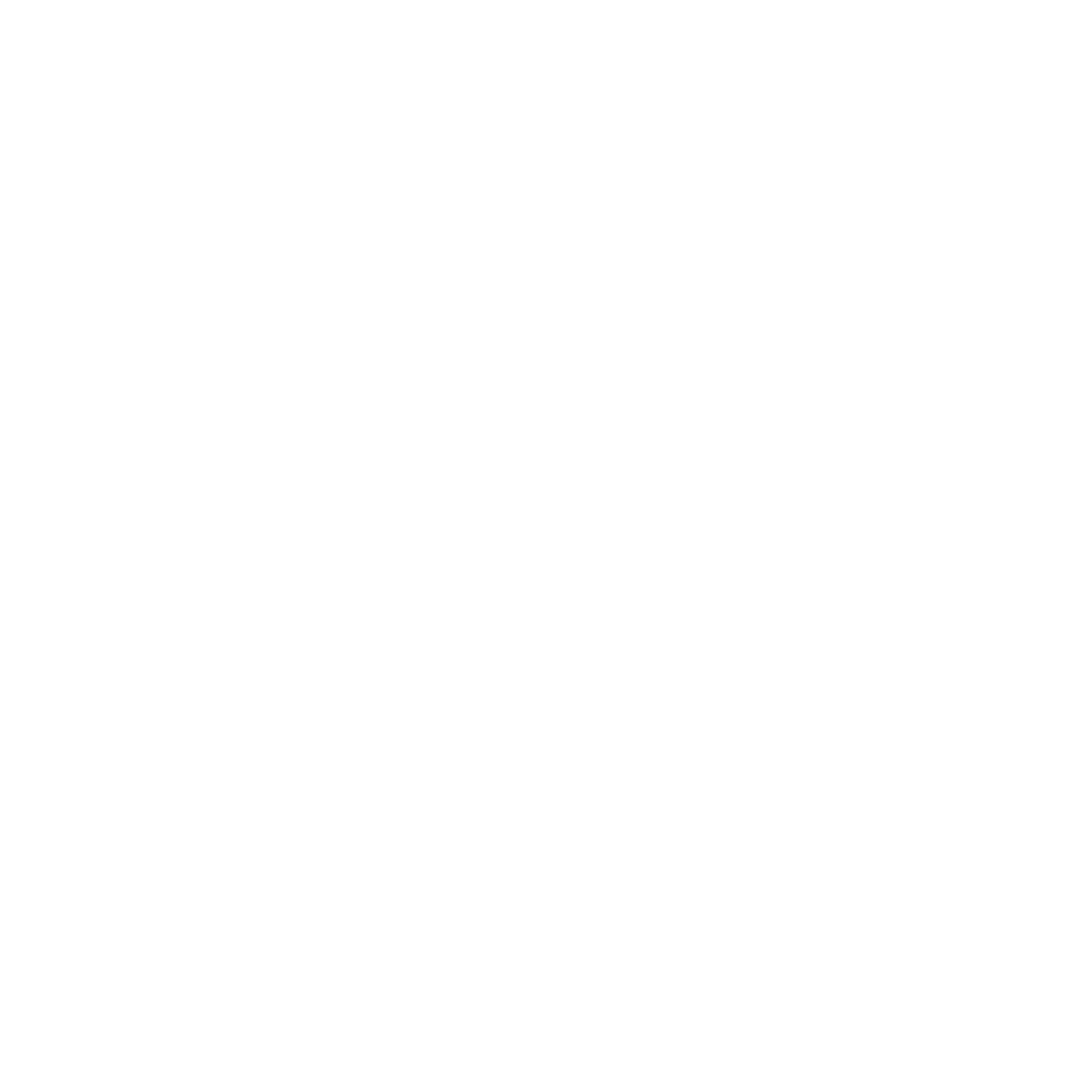

DEG2

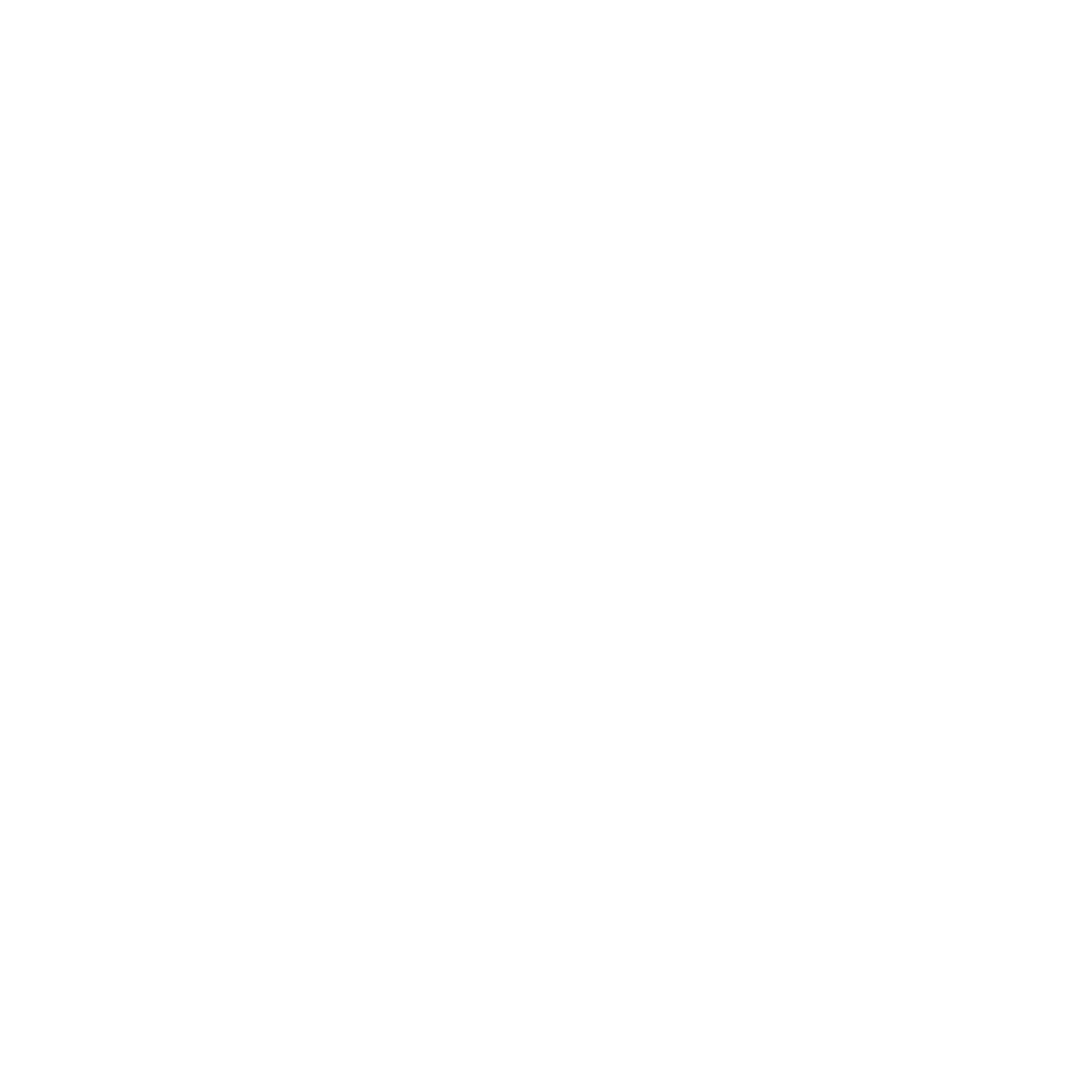

OCuLink Cable

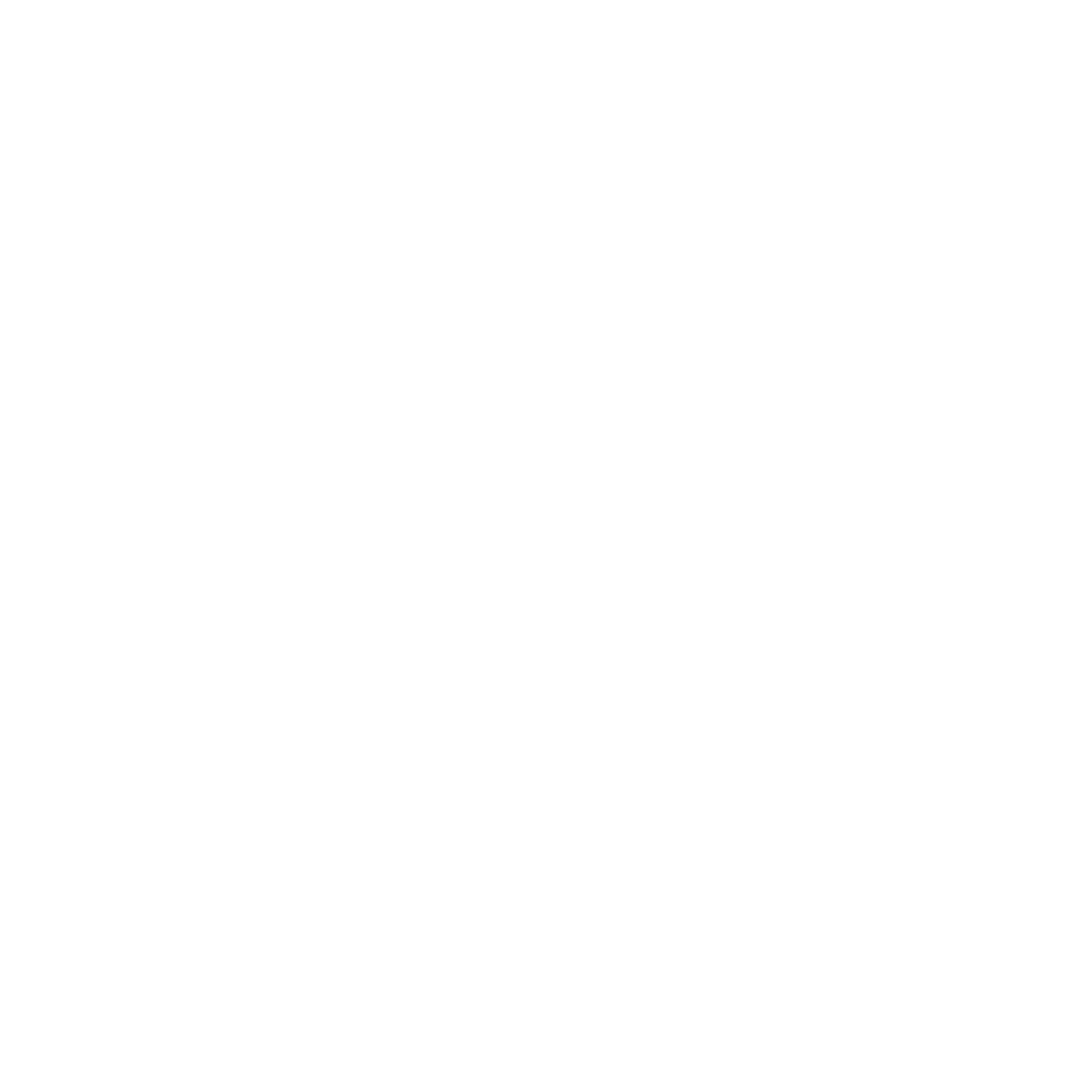

Type-C Cable

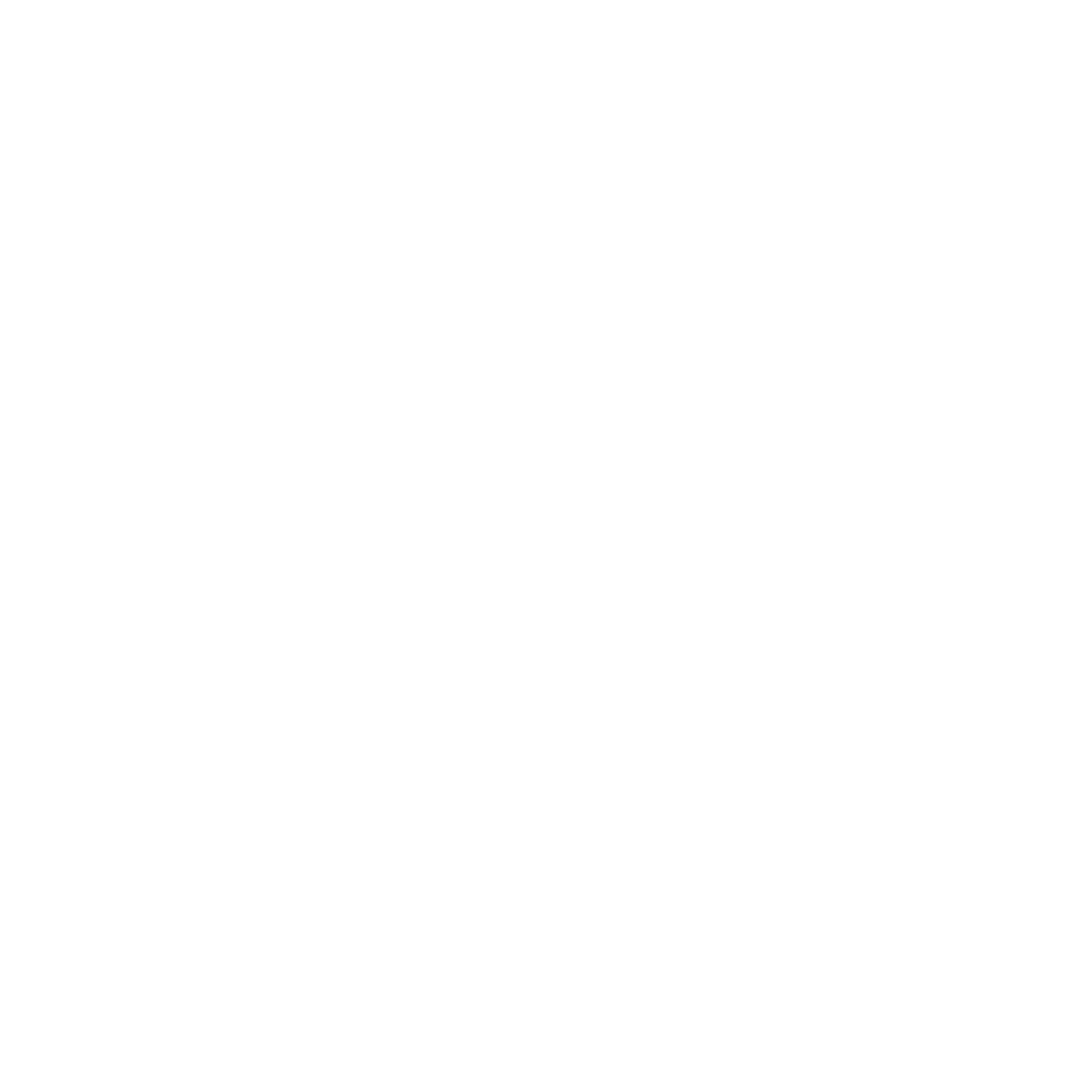

SSD Heatsink

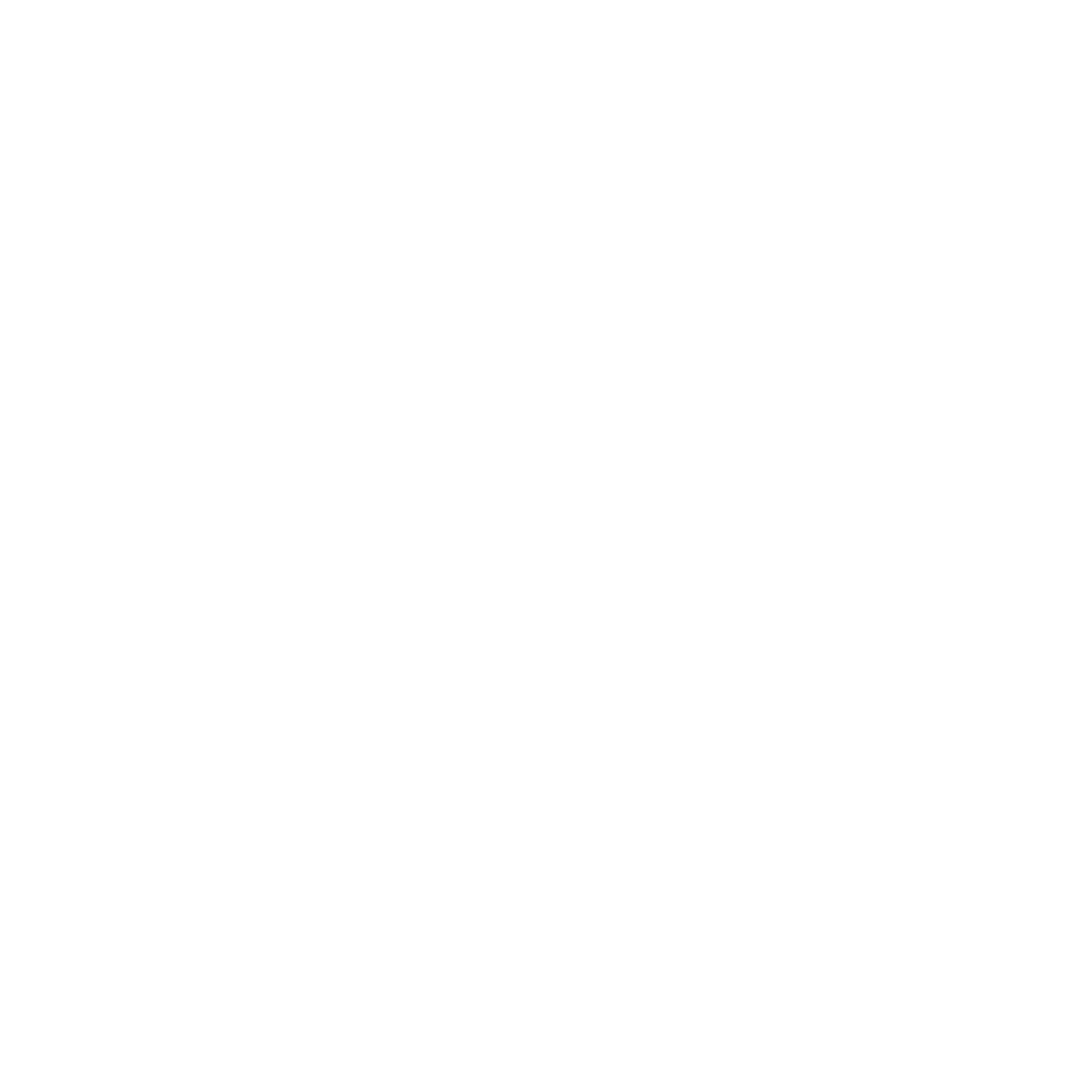

Graphics Card Holder

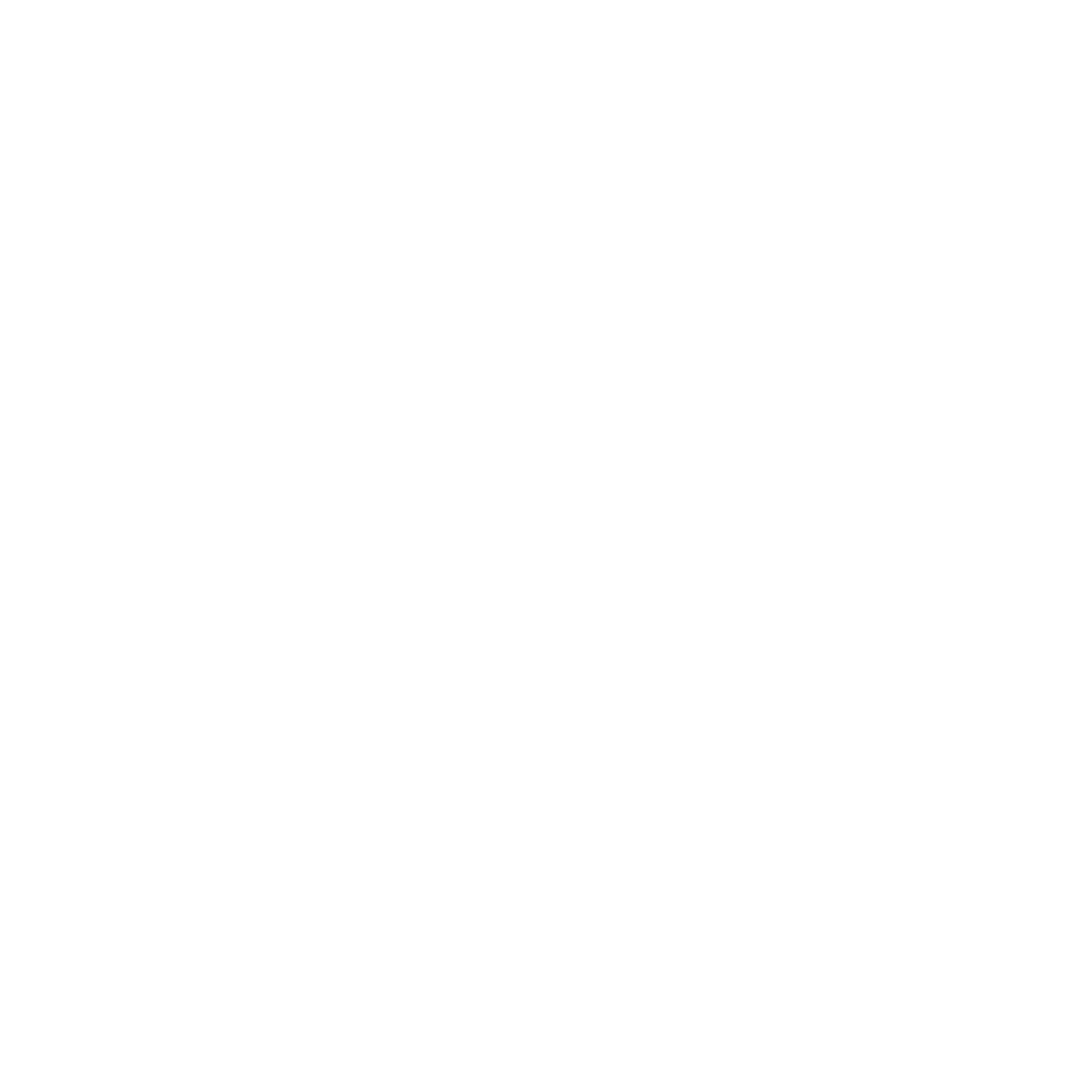

Installation Screw Set

User Manual

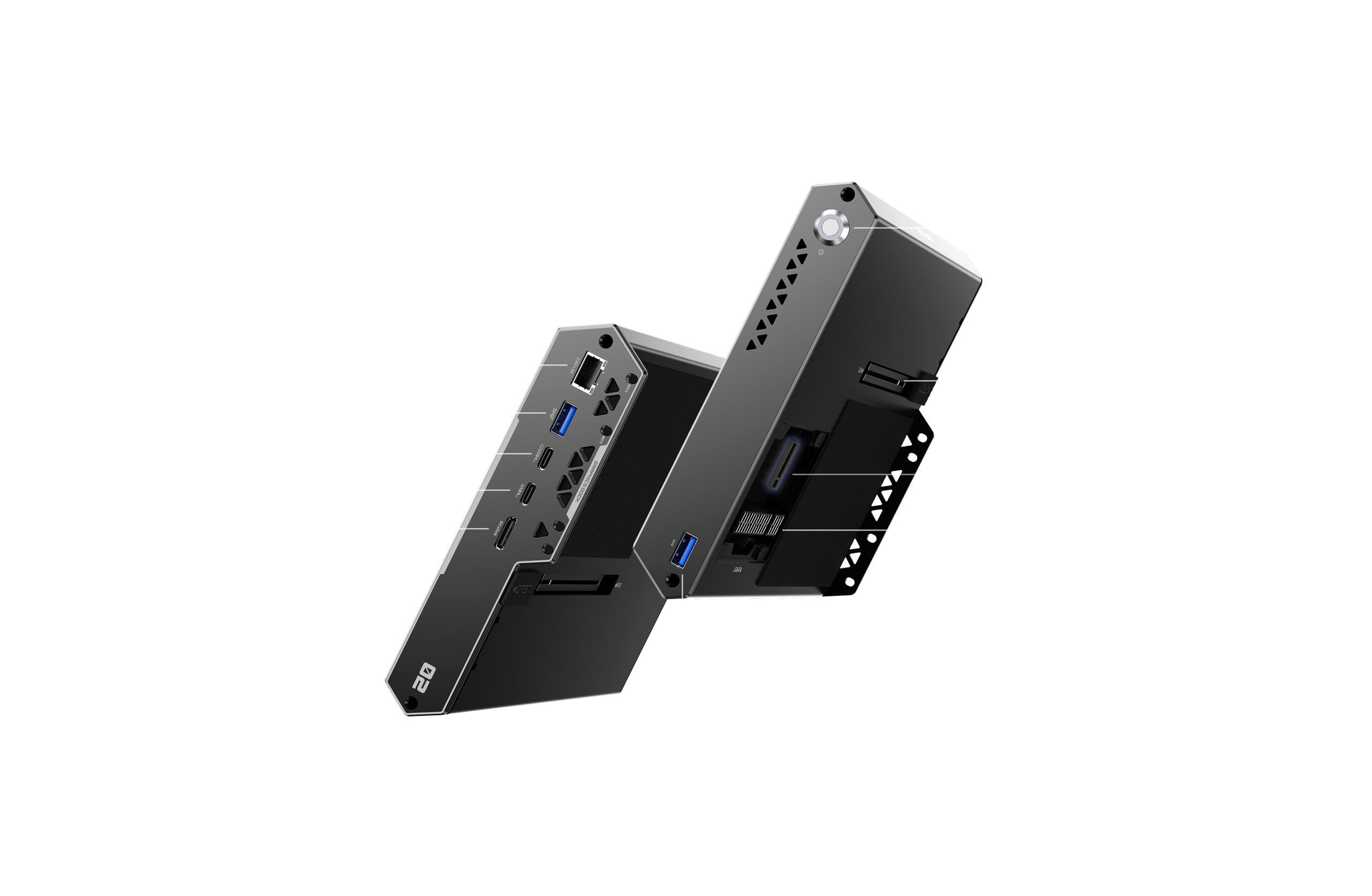

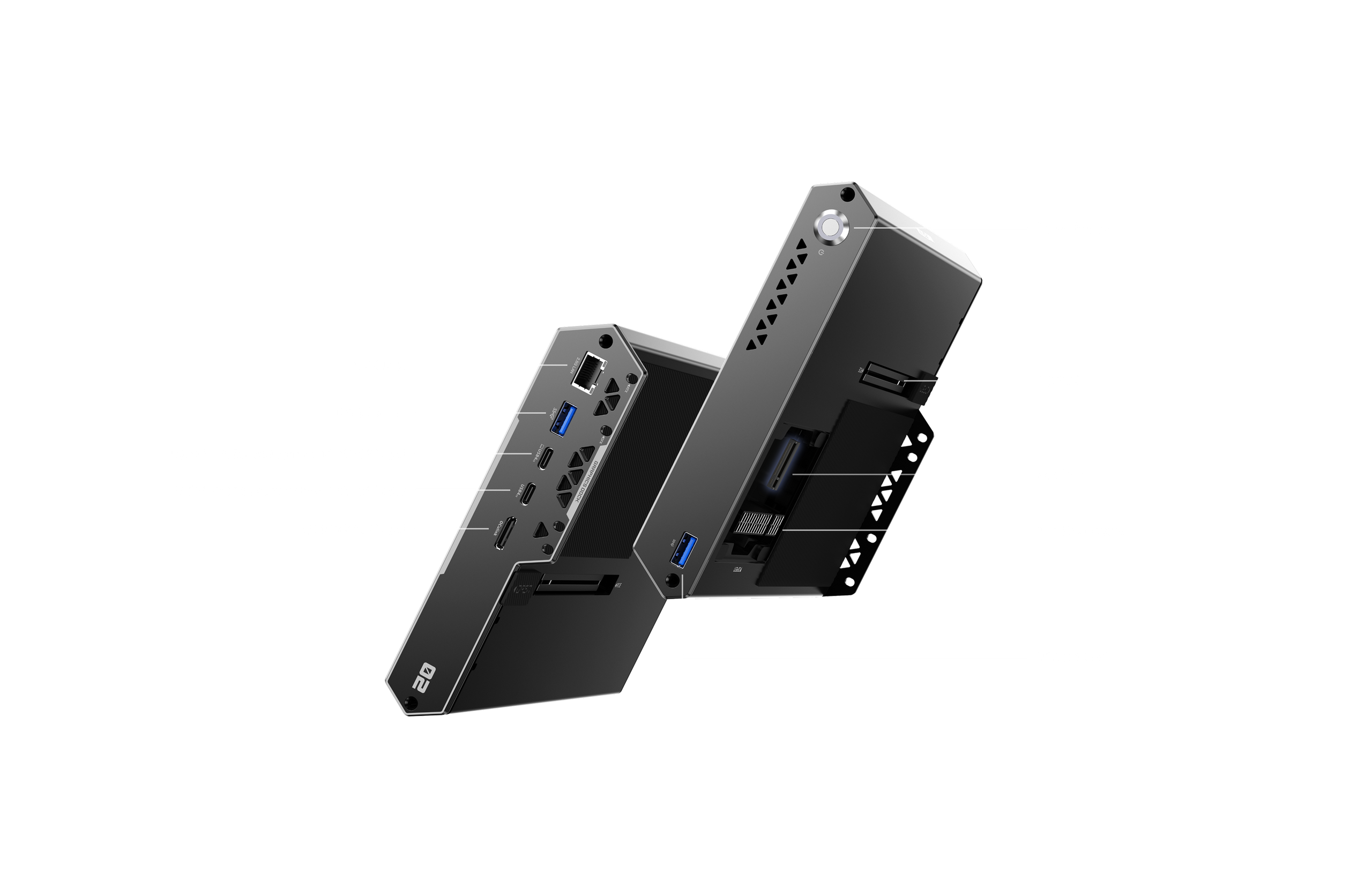

Specification
Minisforum DEG2
Intel JHL9480
- Oculink x 1 (PCIE4.0x4)
- Thunderbolt 5 Upstream 140W
- Thunderbolt 5 Downstream 30W
- USB-A x 1 USB 3.2 (10Gbps)
- USB-A x 1 USB 3.2 (5Gbps)
- M.2 2280 x 1
- 2.5G LAN x 1
- PCIEx16 x 1
- Power (MB) x 1 ATX 24pin+8pin
x 1
Power on status
- TGX Switch x 1
- Fllow Start UP Switch x 1
- RESET DEBUG x 1
258.9*174.17*42.75 mm (LWH)
