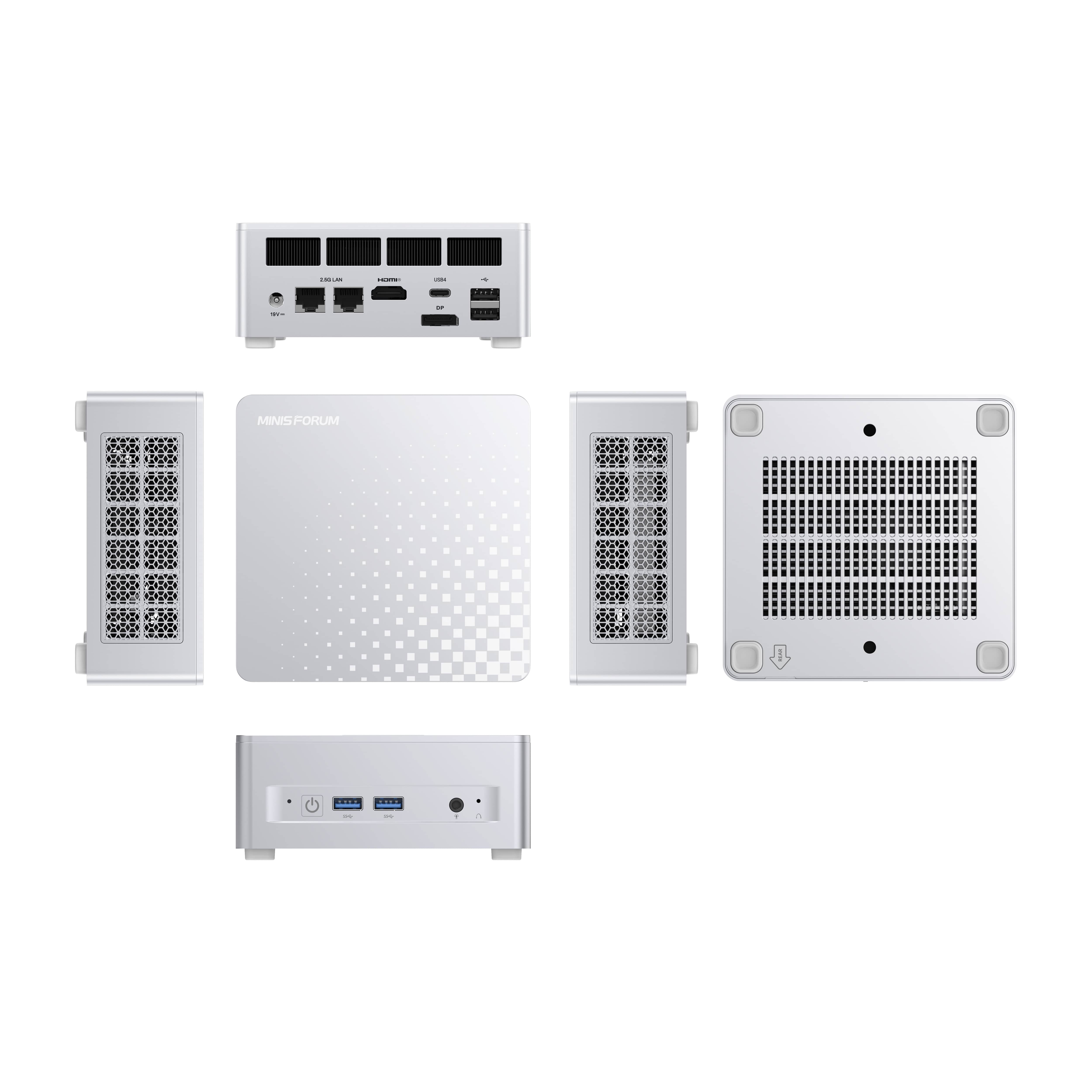

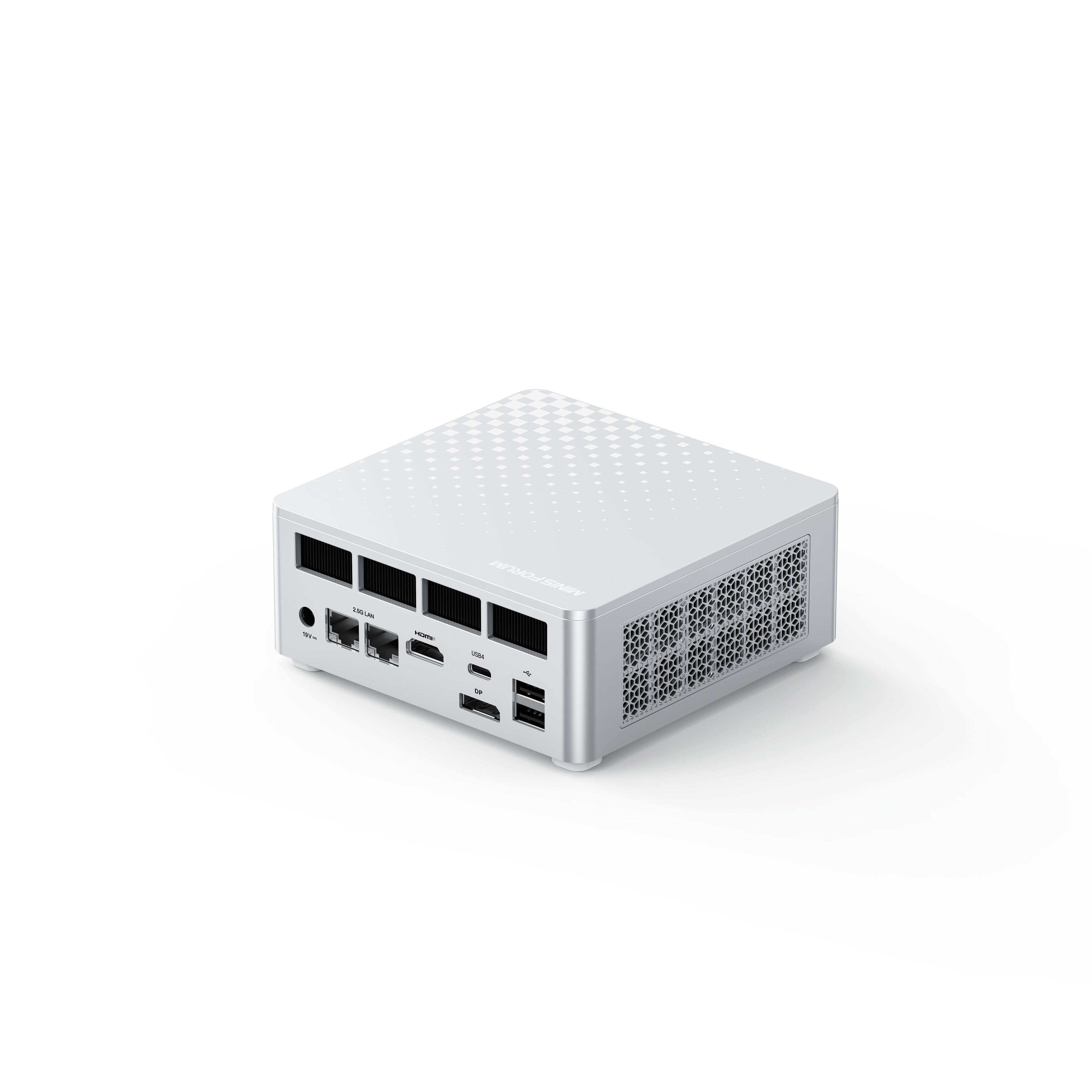

Minisforum M1 Plus-126H
Shipping calculated at checkout.
- Intel Core i5-12600H,12C/16T
- Dual DDR5-4800Mhz | Up to 96GB
- USB4 40Gbps | PD In/Out
- Dual 2.5GbE Ports | WIFI 6E & BT5.2
- Support Triple 4K Display
Pay With Ease
Services and benefits
Free Shipping
2-years Warranty
30-Days Refund&Return
Lifetime Technical Support

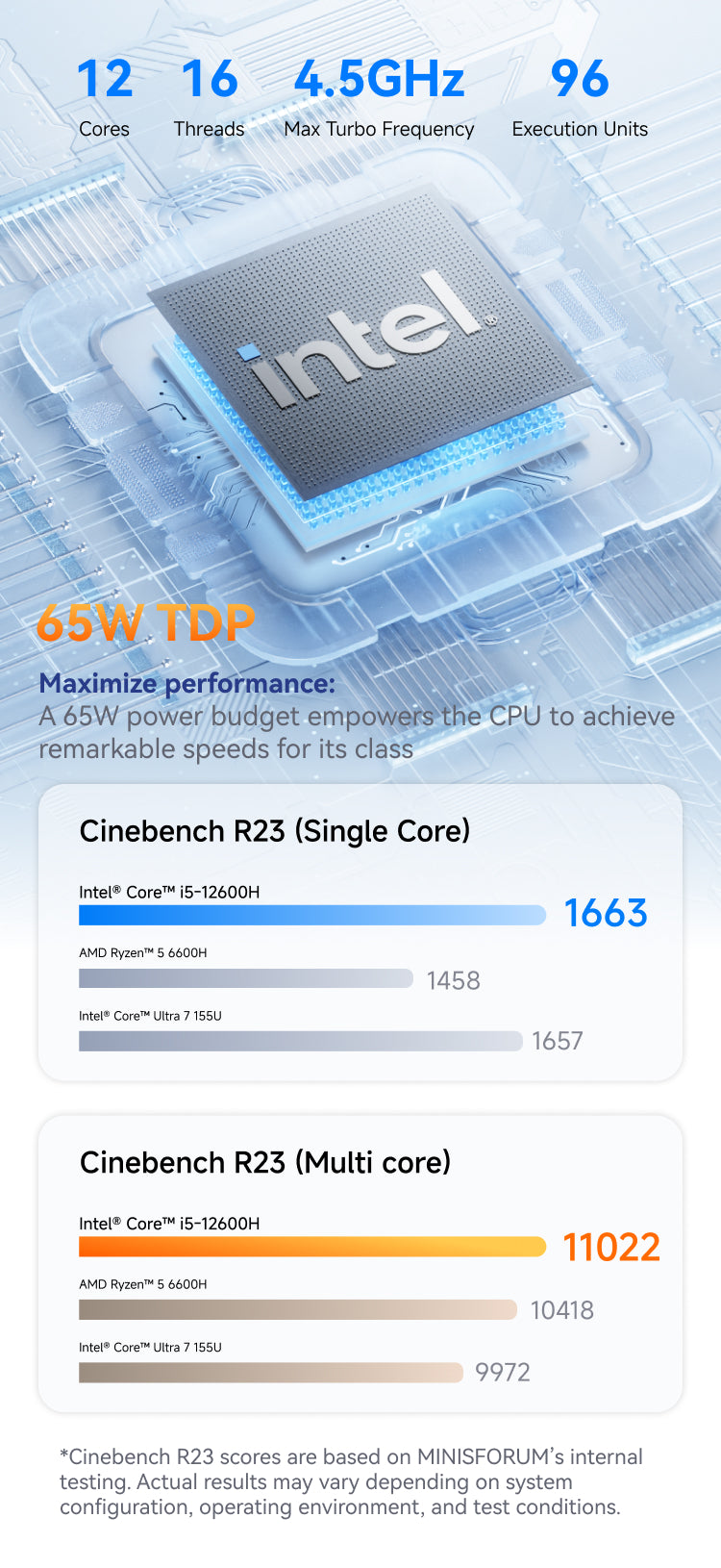

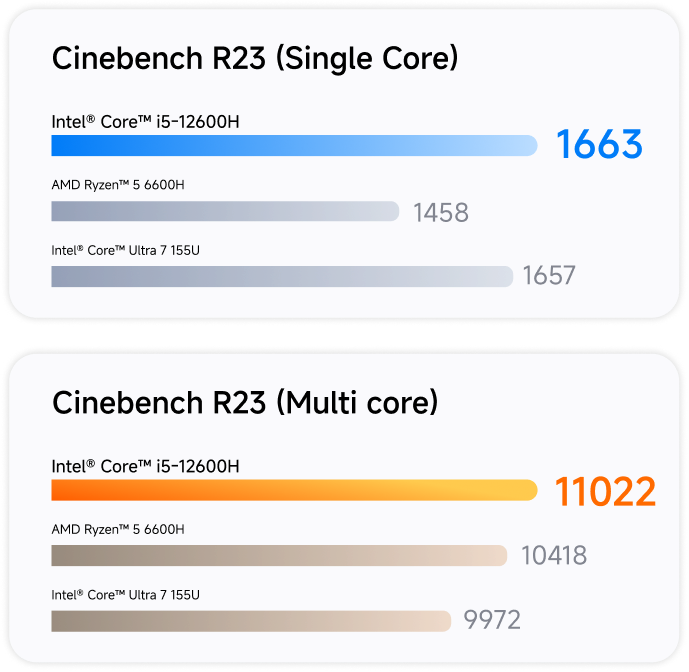

Supreme Performance
Intel® Core™ i5-12600H
Compact in size yet uncompromising in performance, it runs on the
Intel® Core™ i5-12600H with a full-power 96-EU iGPU, keeping everyday use consistently smooth and responsive.

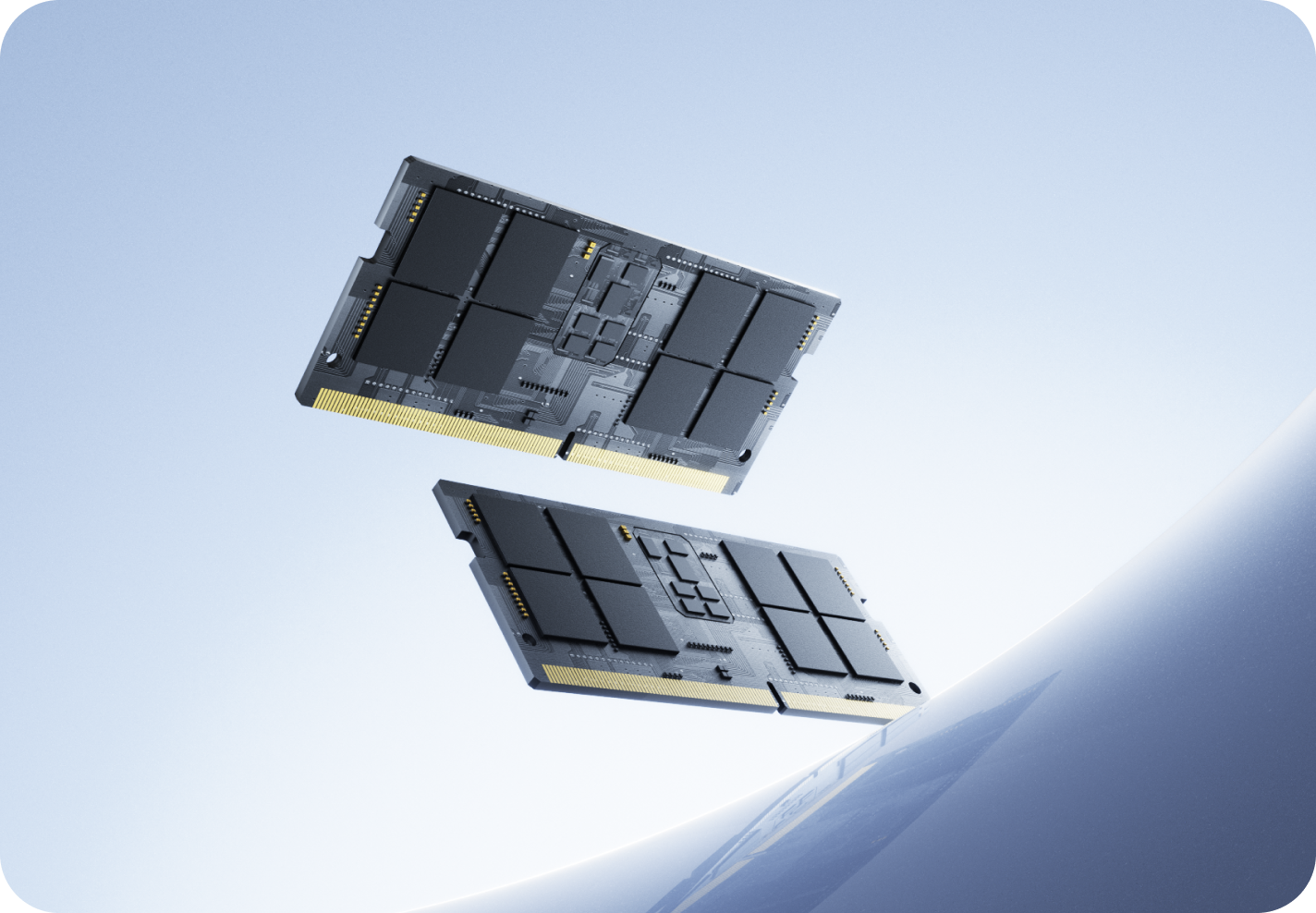

High-speed Memory
Ultra-fast DDR5-4800 memory avoids bandwidth bottlenecks, ensuring a smooth and dependable multitasking experience.
Up to 96GB | Max.Frequency 5200MHz
Designed for Efficiency

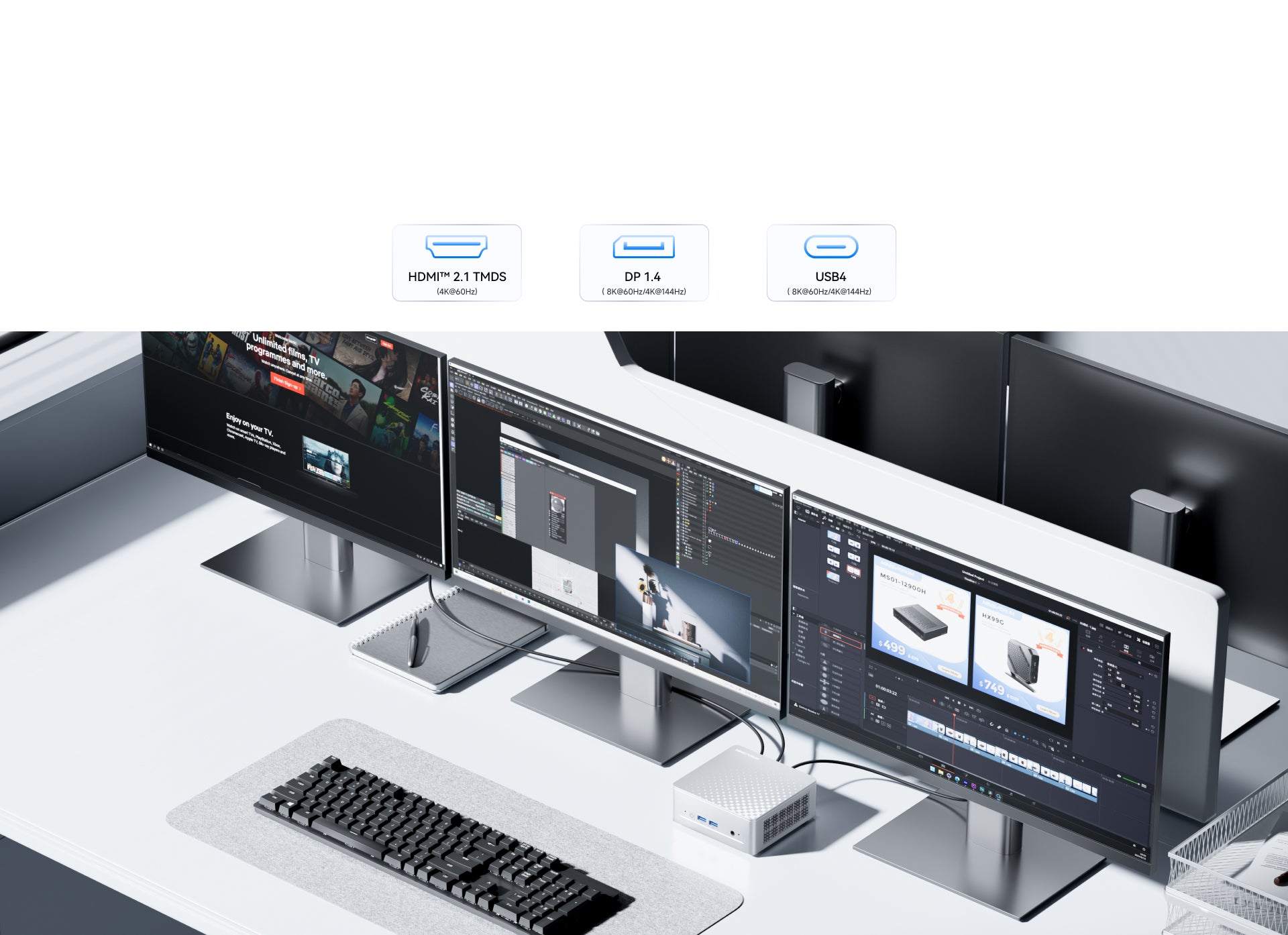

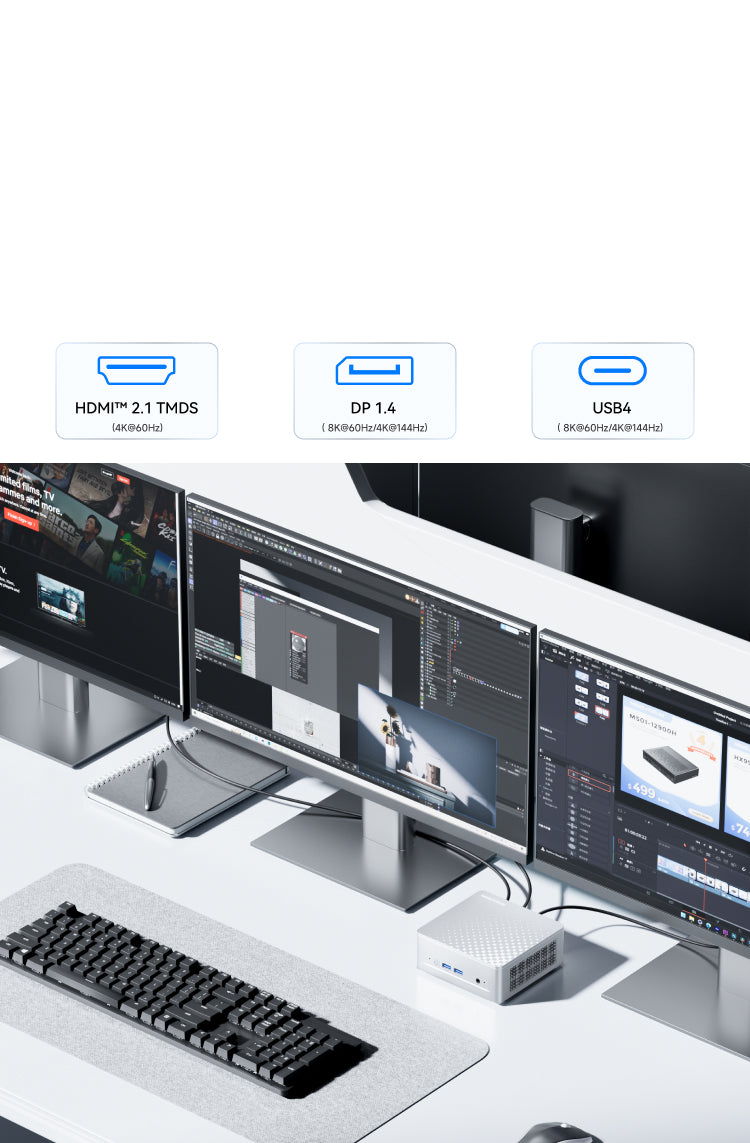

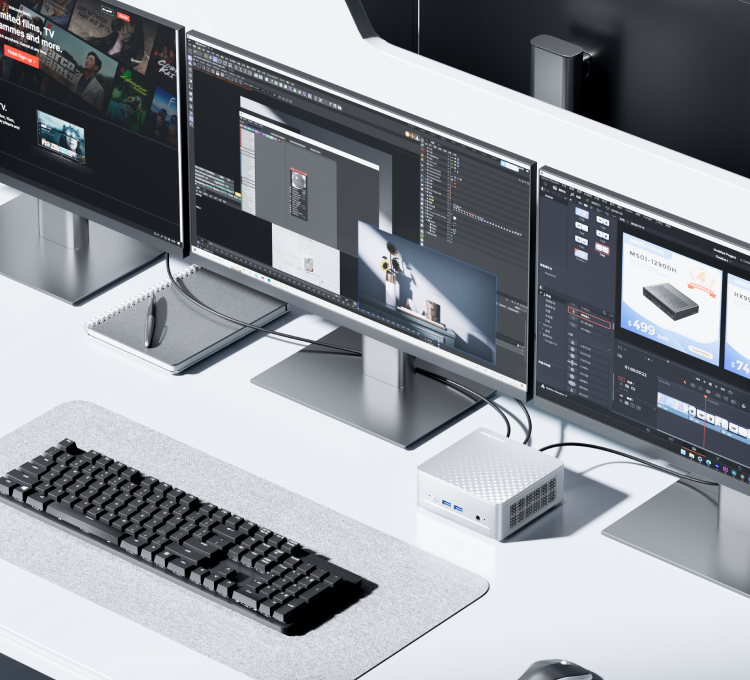

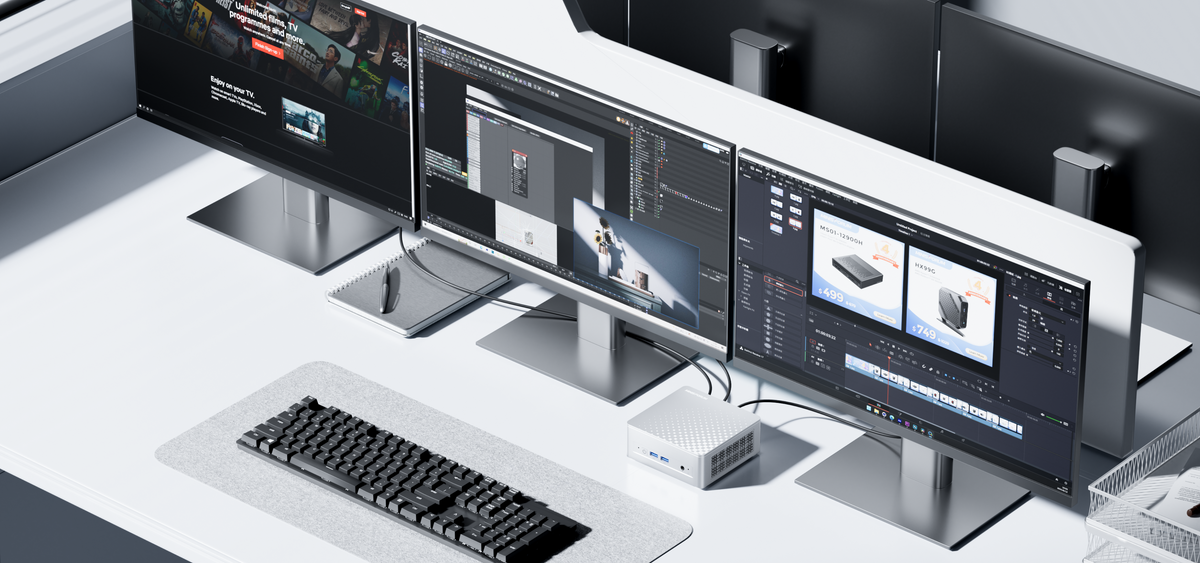

Run three independent 4K displays and unlock a visibly higher level of productivity.

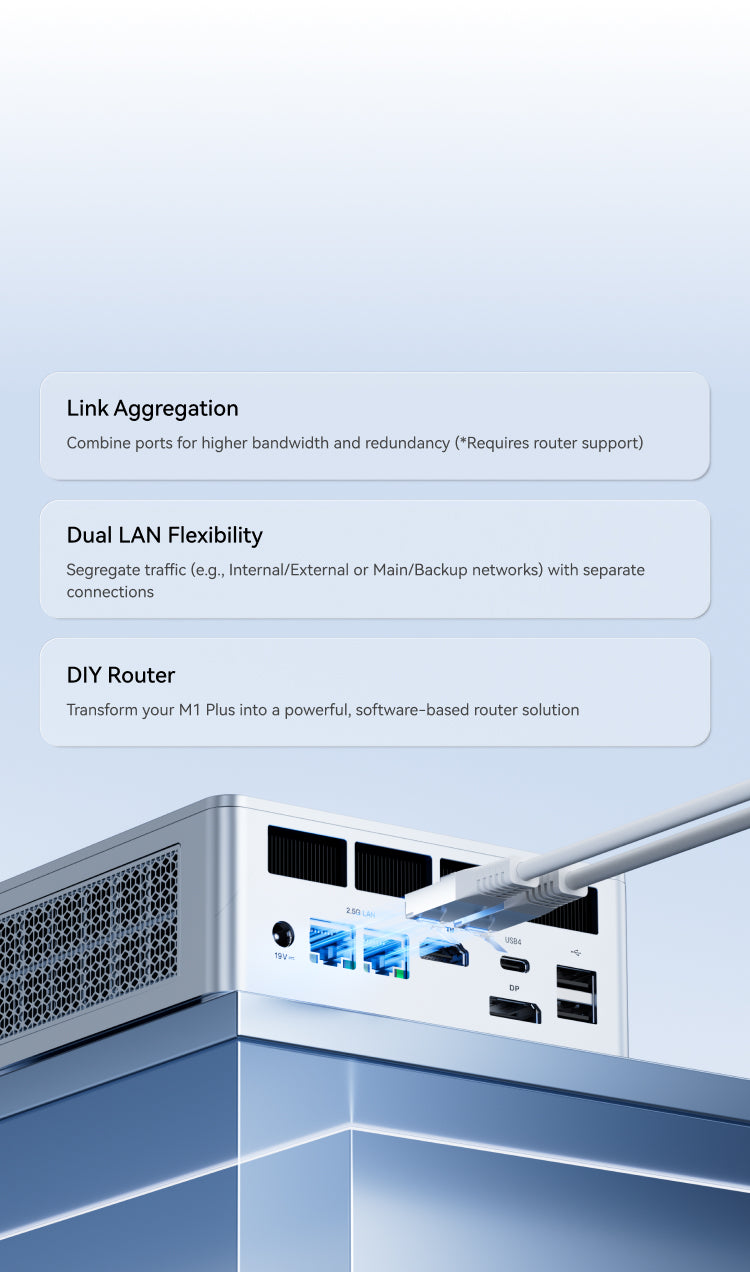

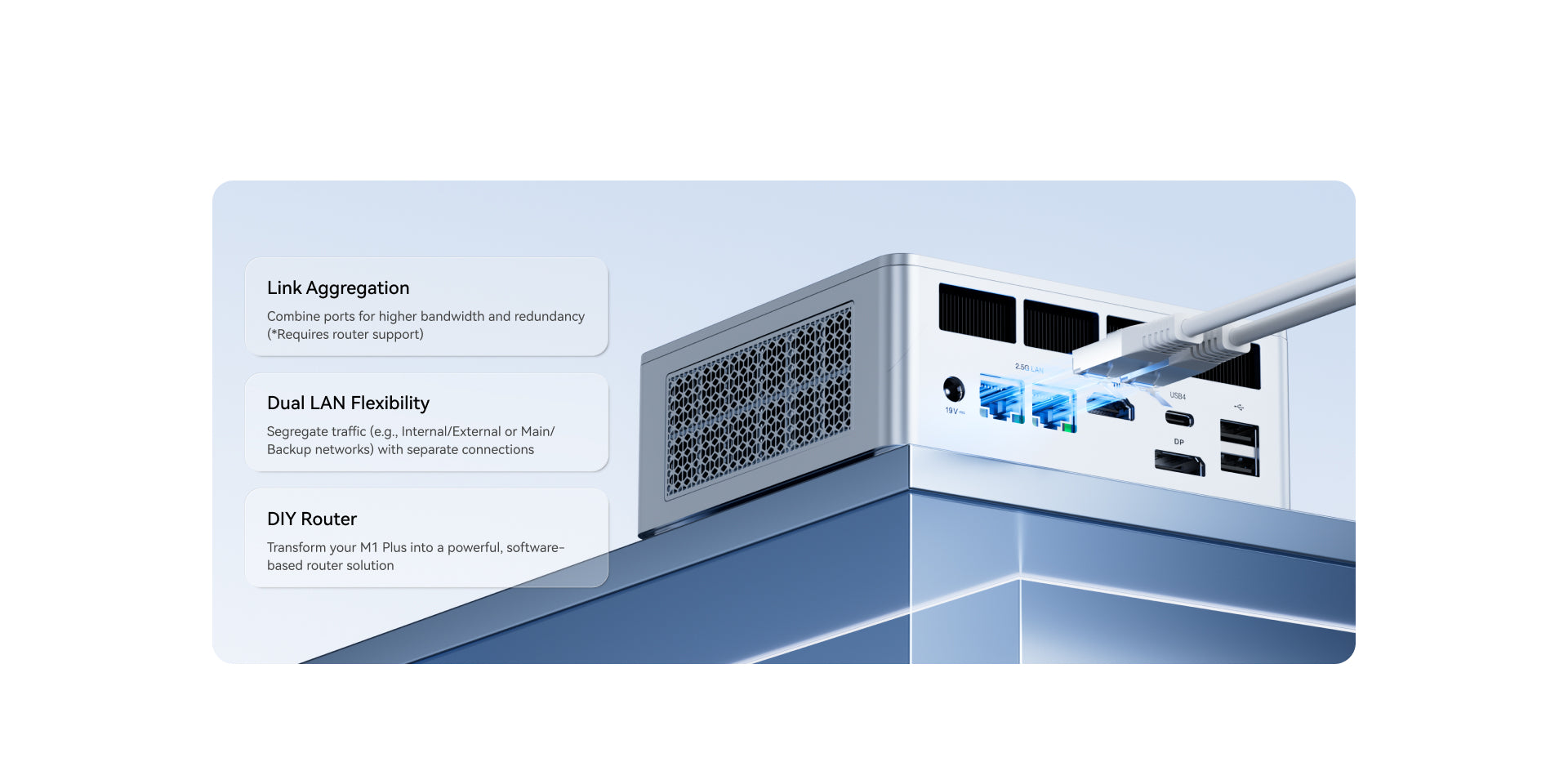

Dual 2.5GbE ports unlock faster connectivity for the modern workplace and beyond.

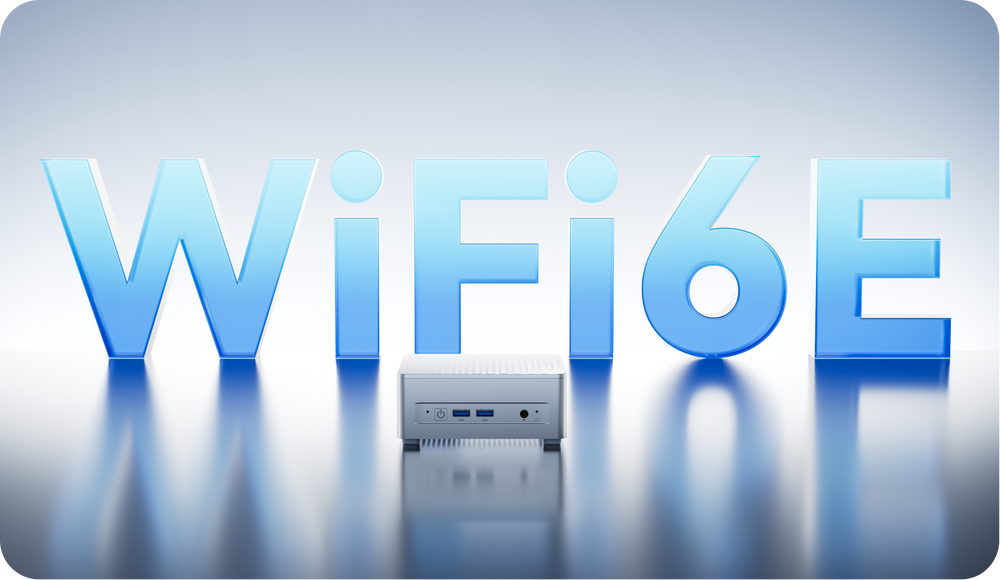

Hyper-speed Wireless
WiFi 6E and Bluetooth 5.2 deliver hyper-speed wireless connectivity for every task.

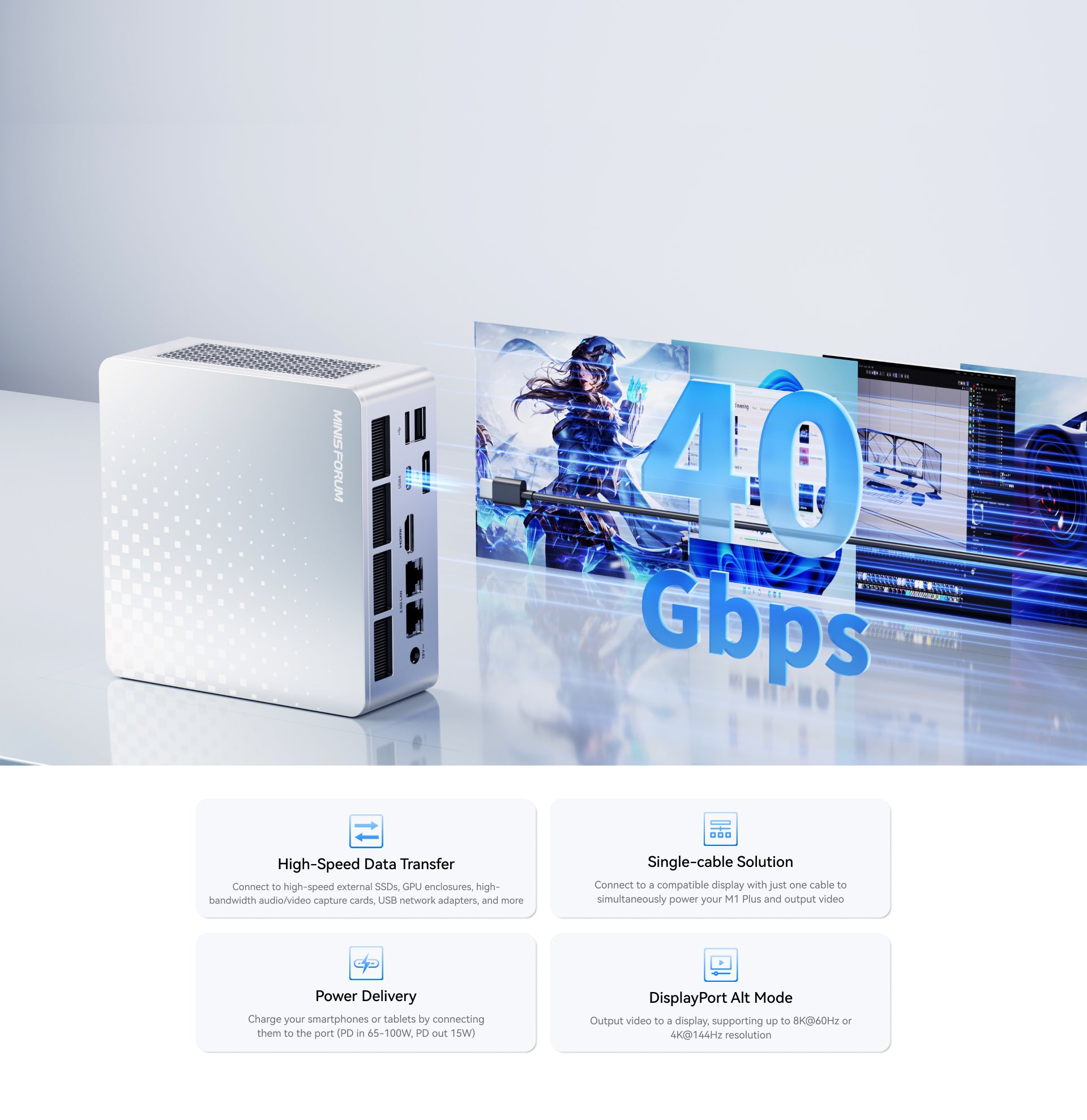

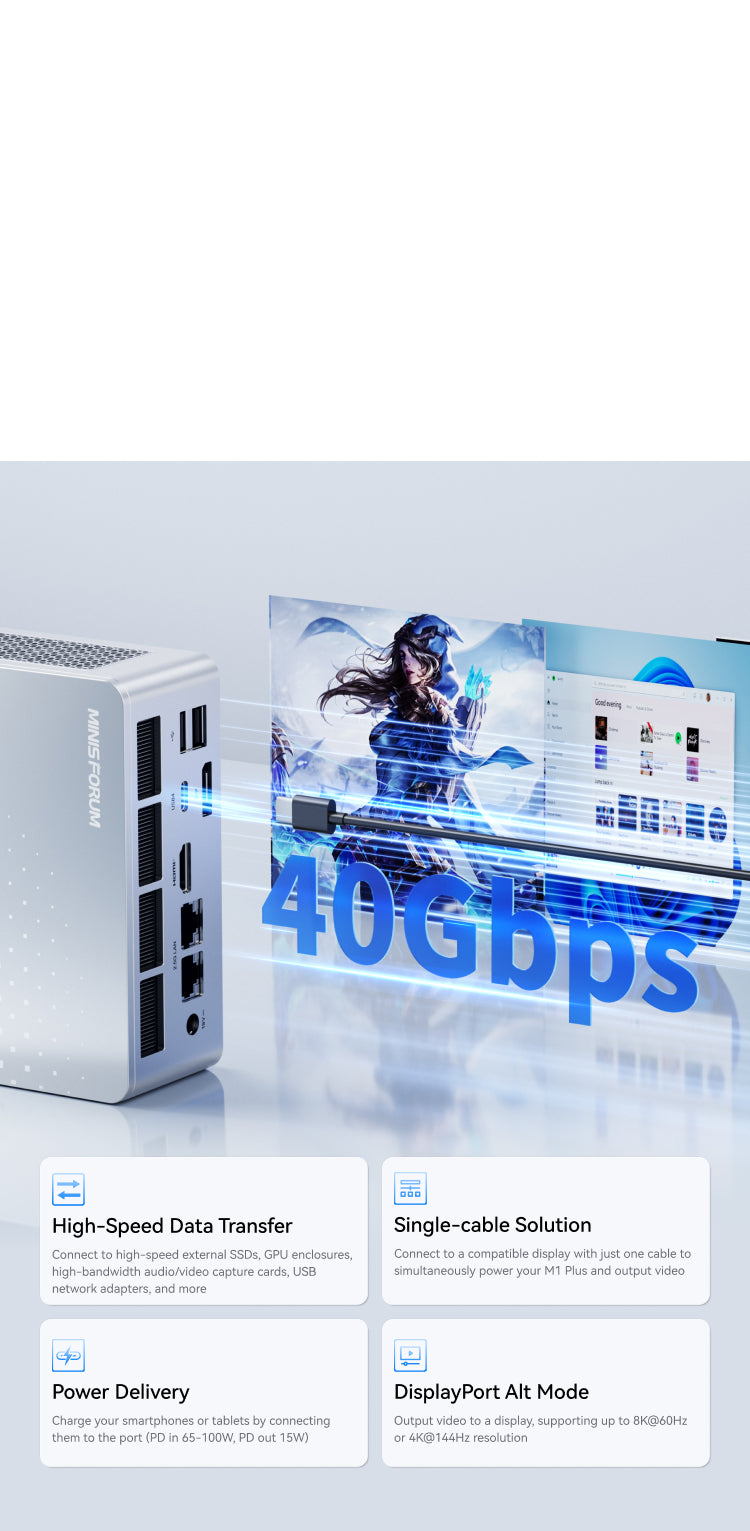

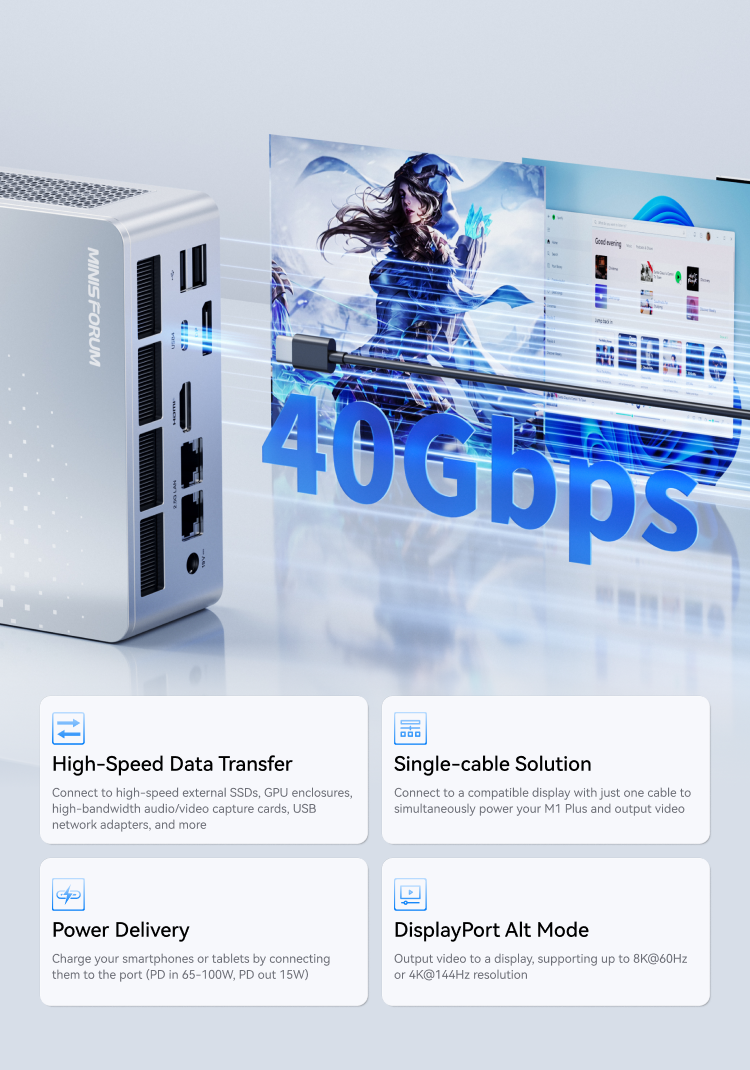

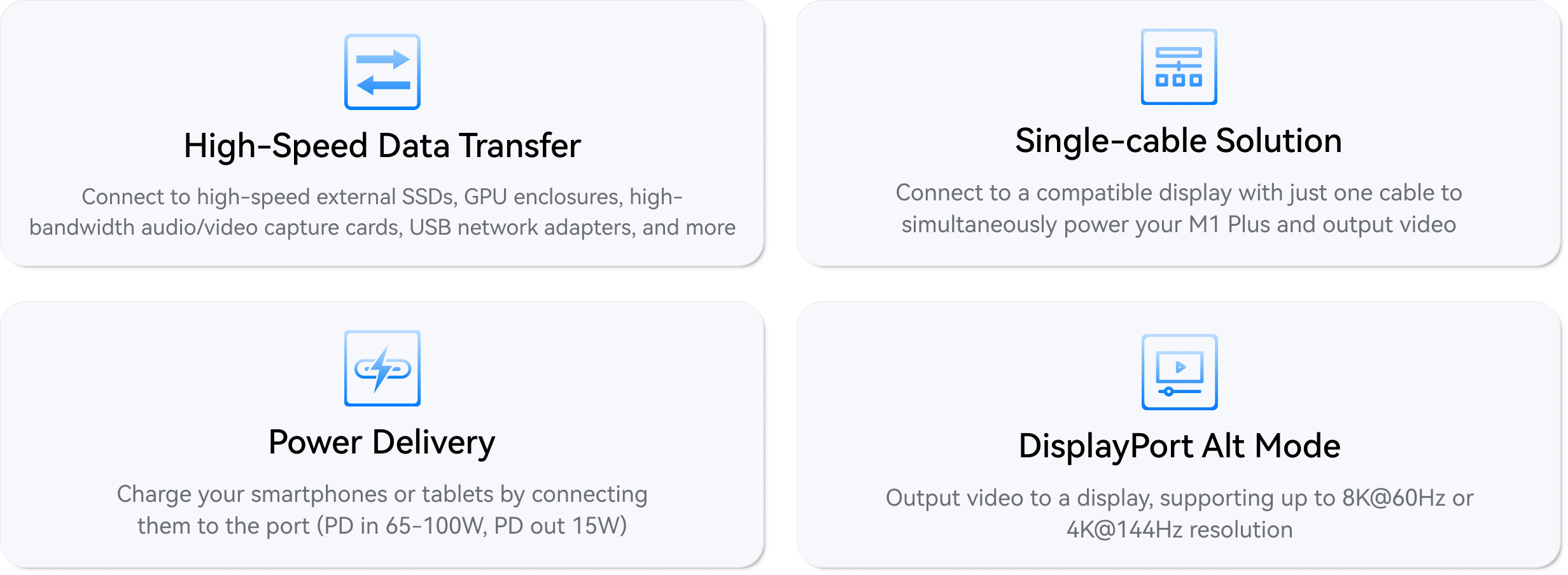

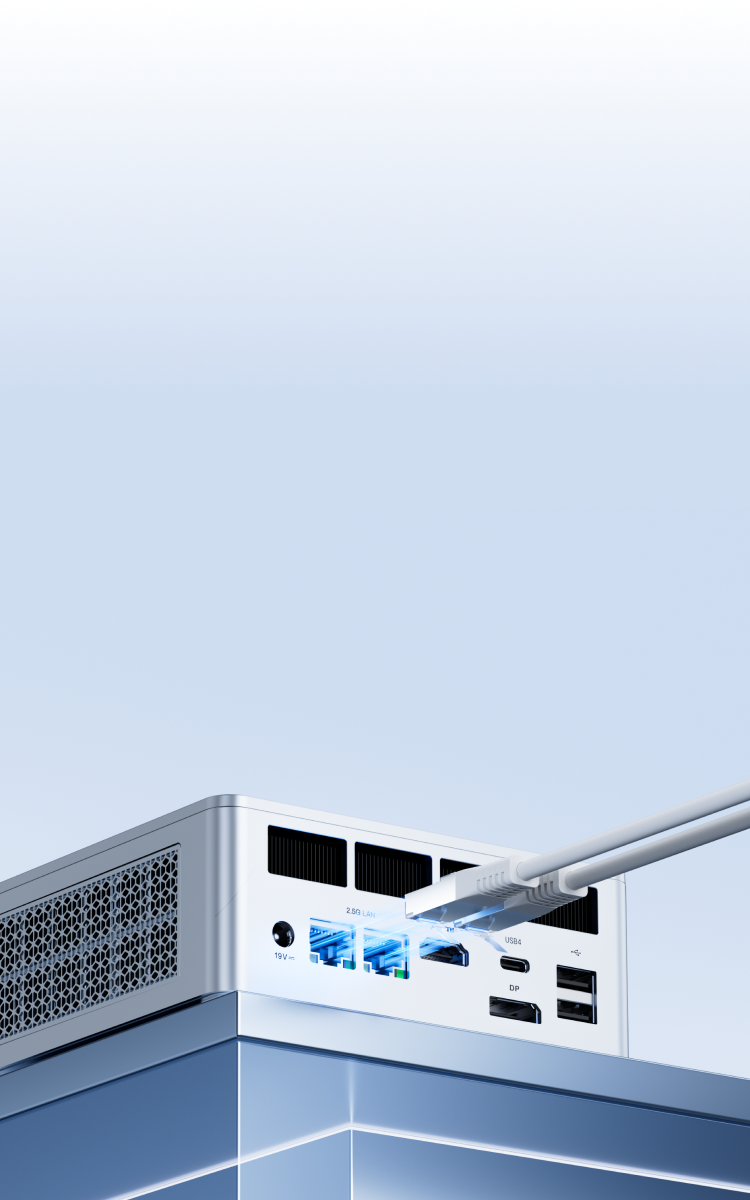

A Hub of Possibilities
It combines 40Gbps data transfer, PD power delivery, and Alt DP display output to seamlessly connect all your peripherals at high speed.

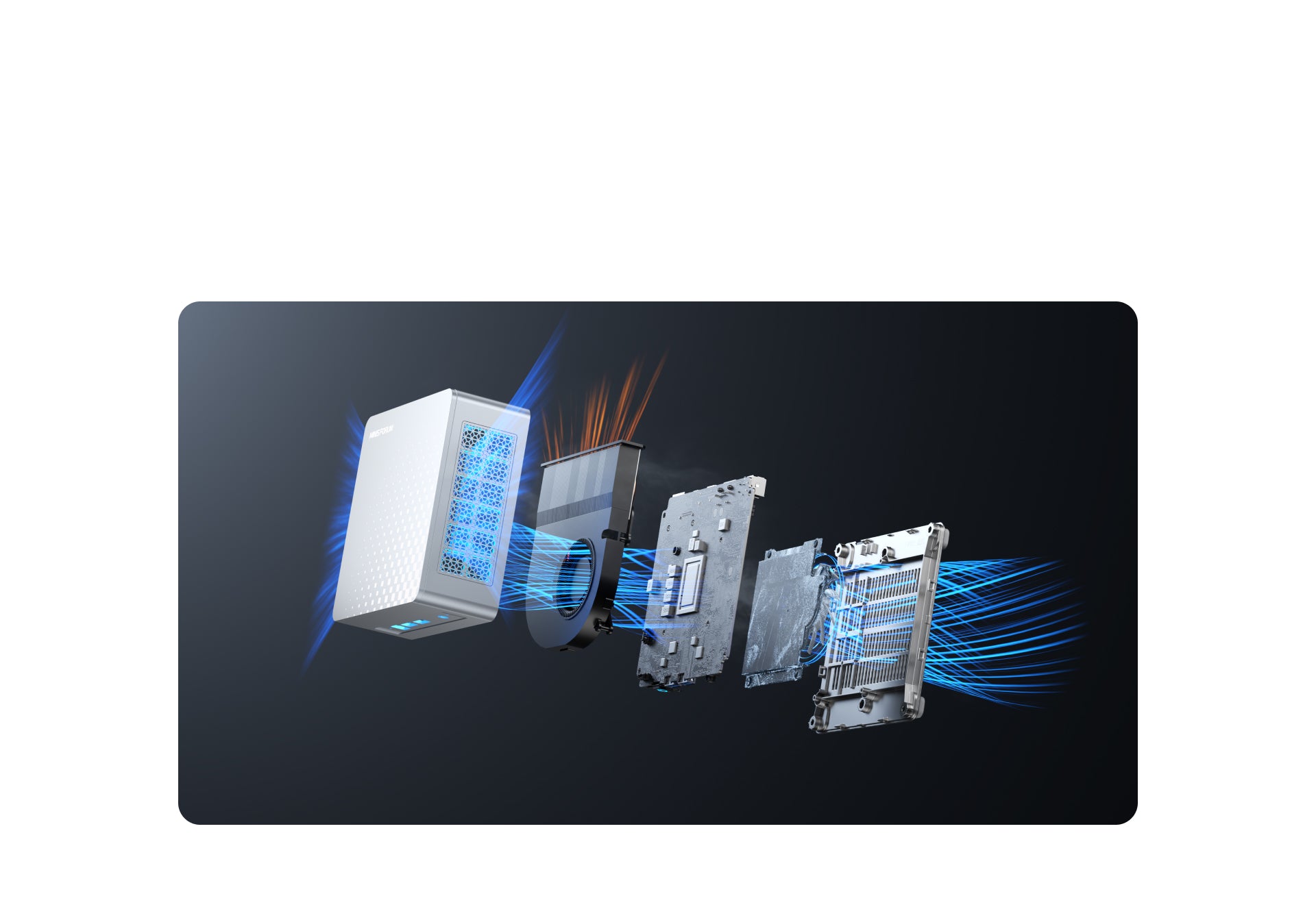

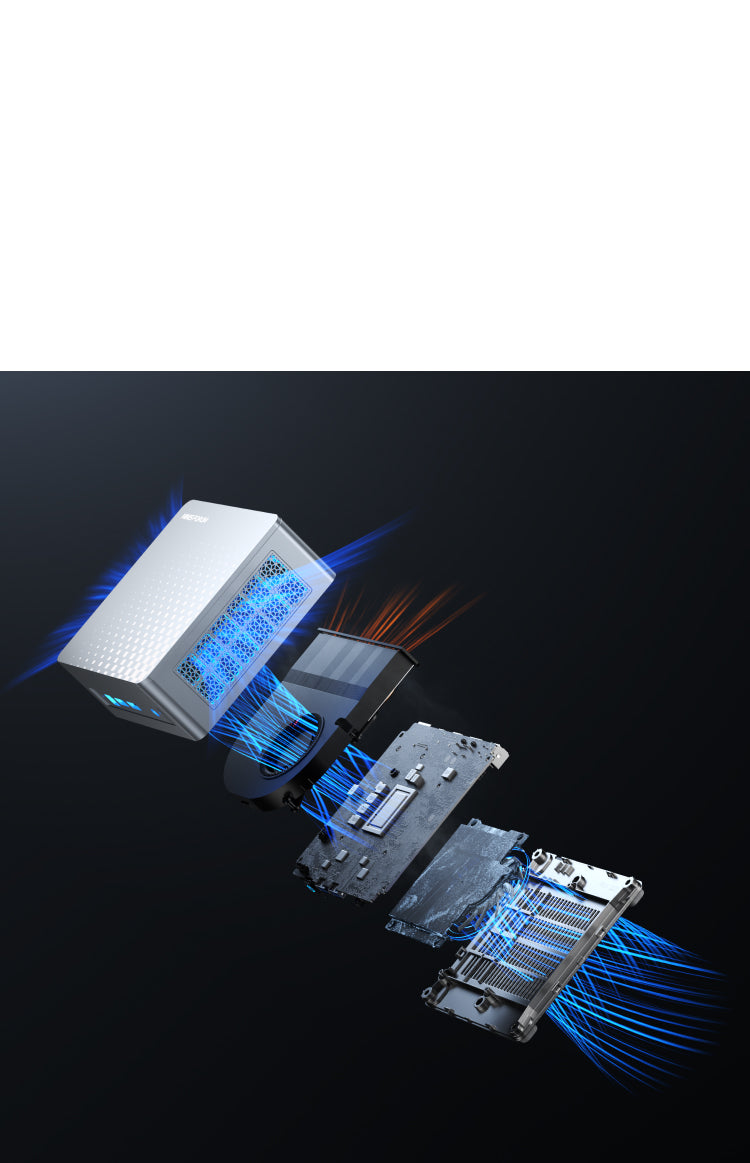

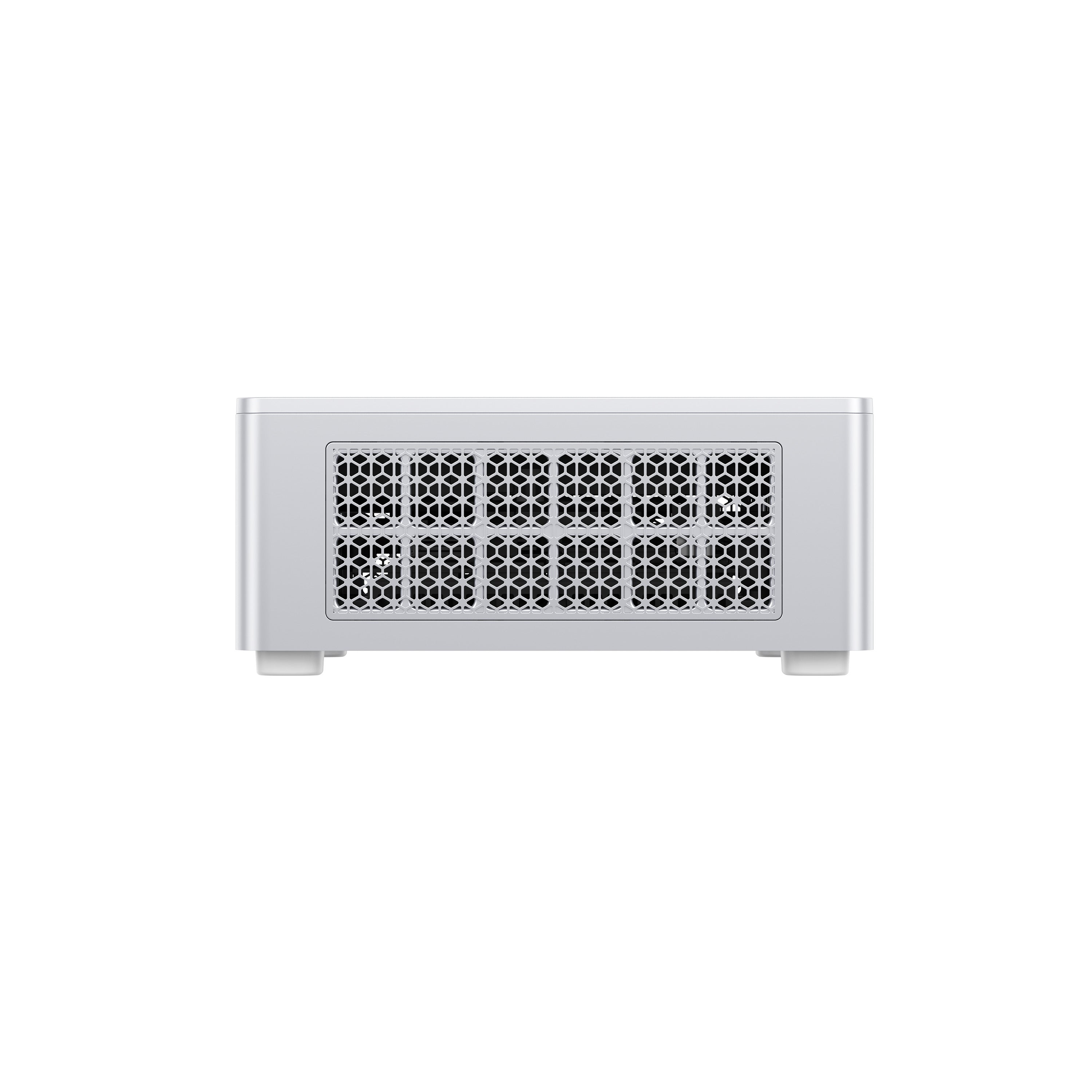

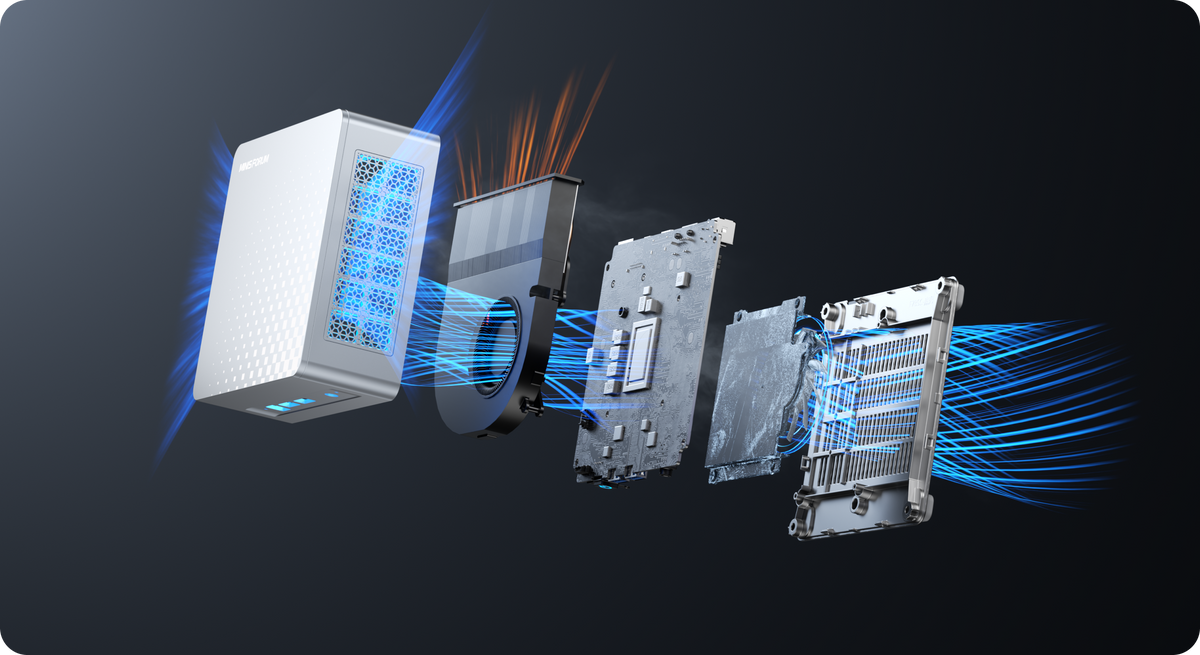

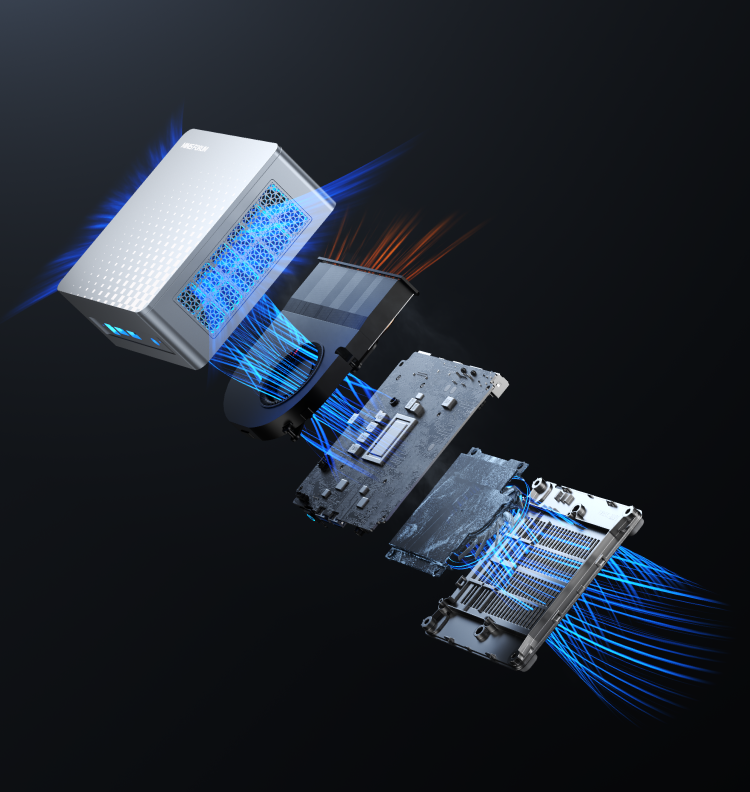

Active Cooling, Minimal Noise
A dedicated active cooling fan directly targets the DDR and SSD modules, effectively dissipating heat from these critical components to ensure unwavering system stability.

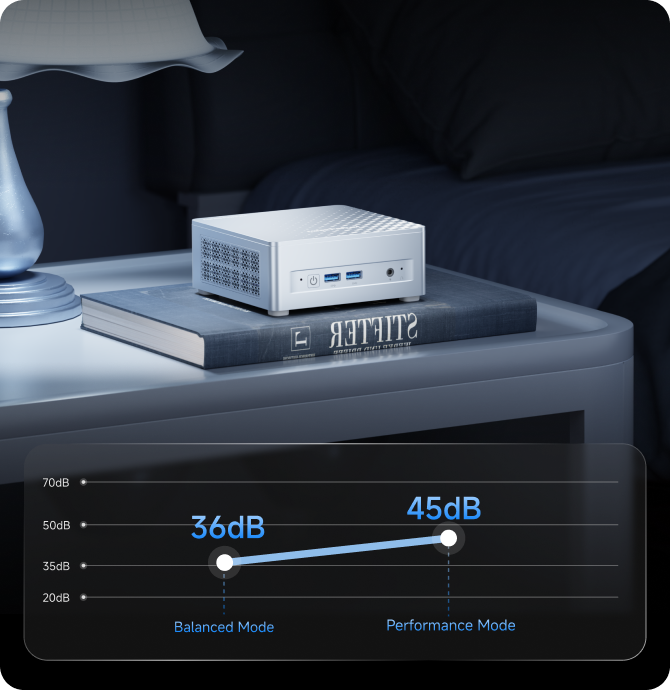

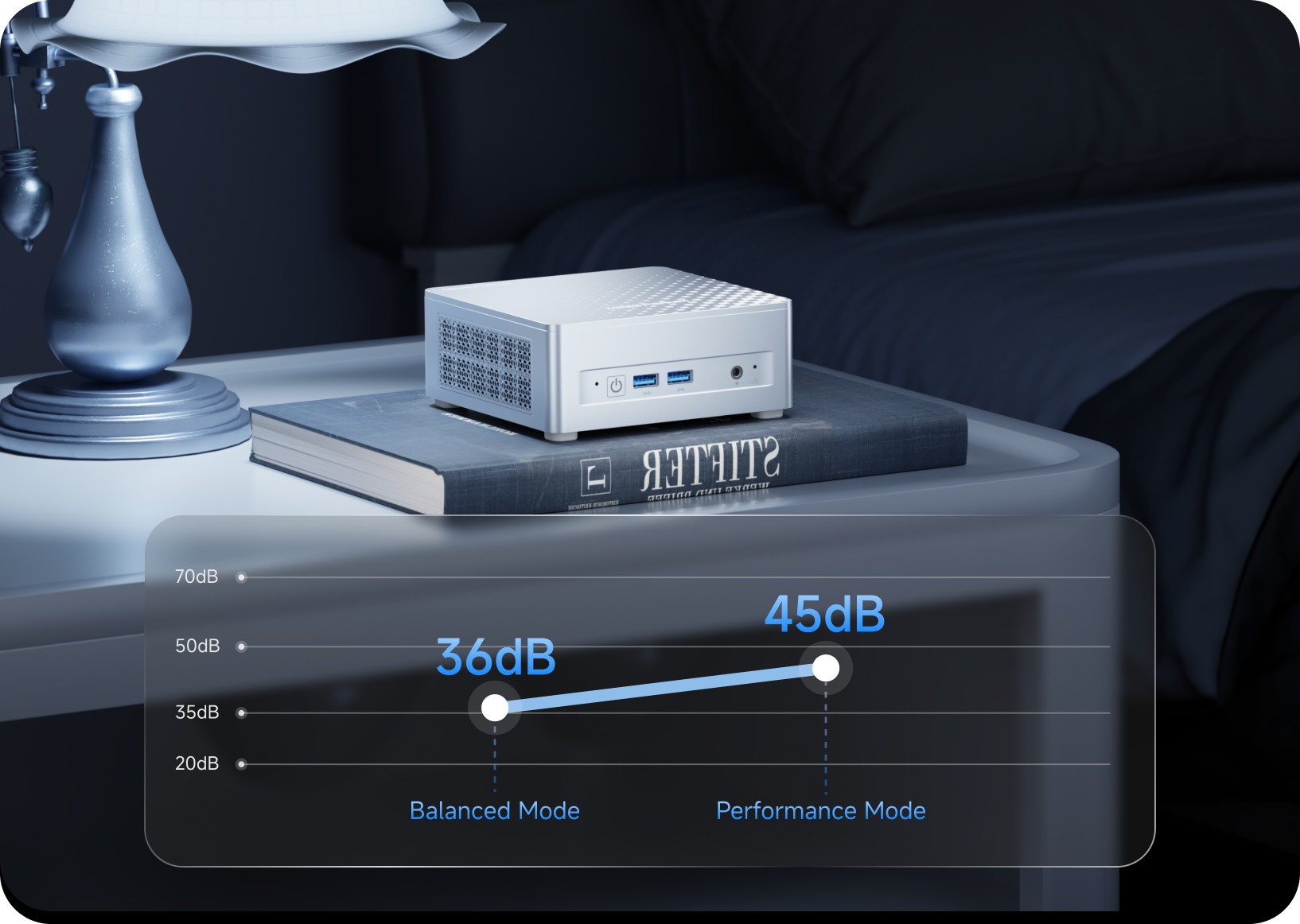

Whisper-quiet
It operates at a quiet 45 dB or less during typical use, ensuring a peaceful and undisturbed computing experience.

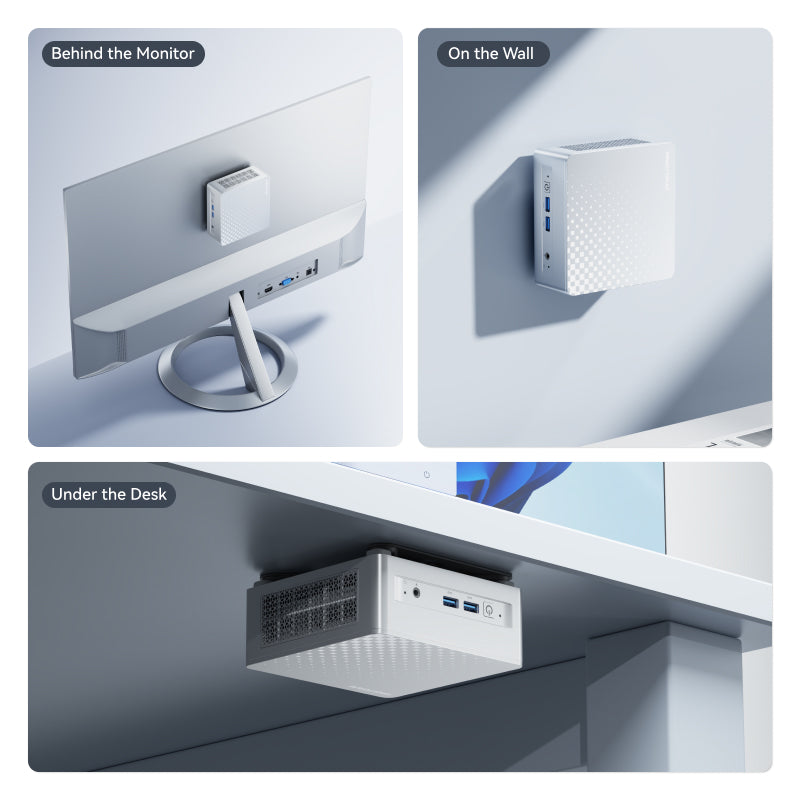

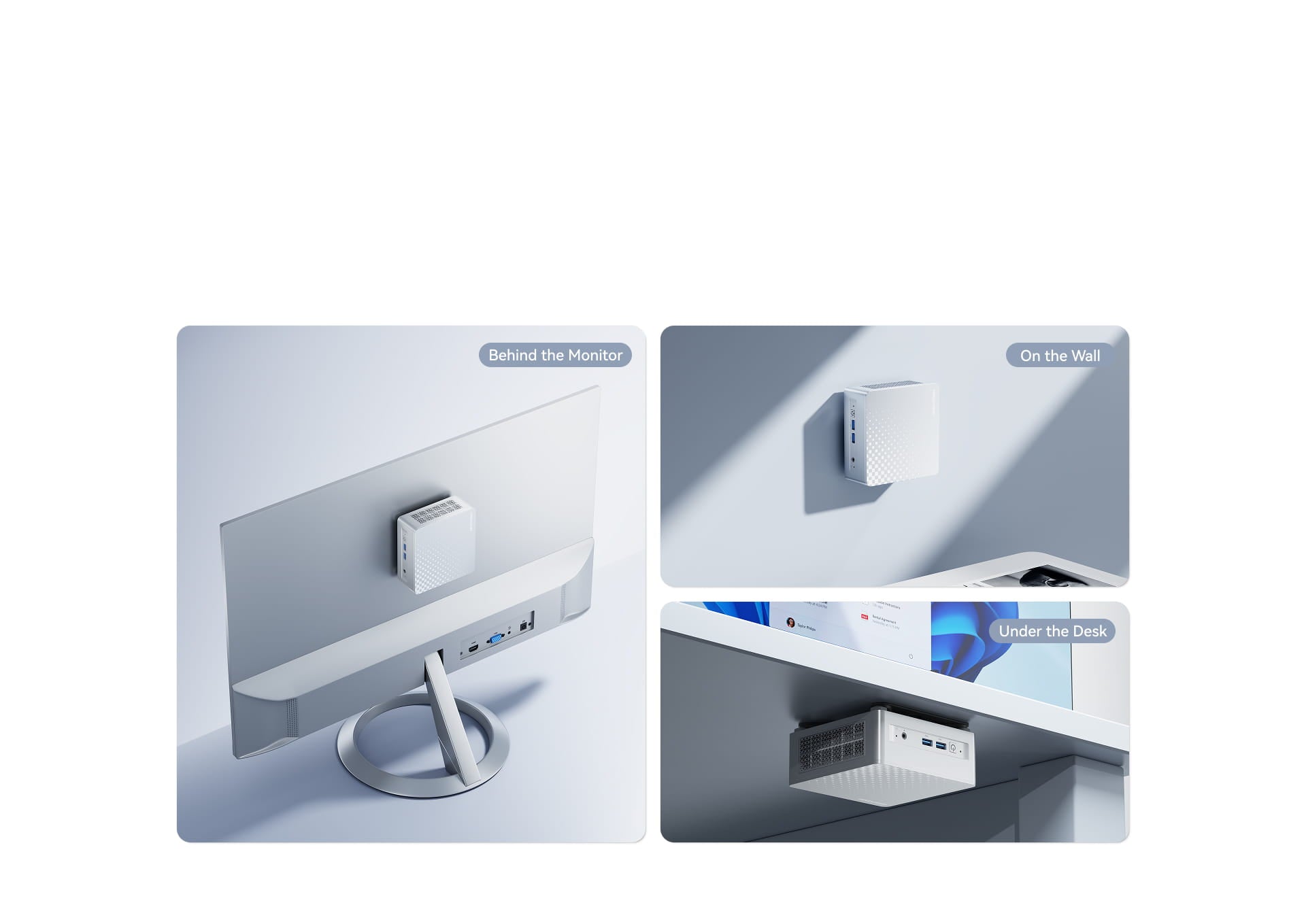

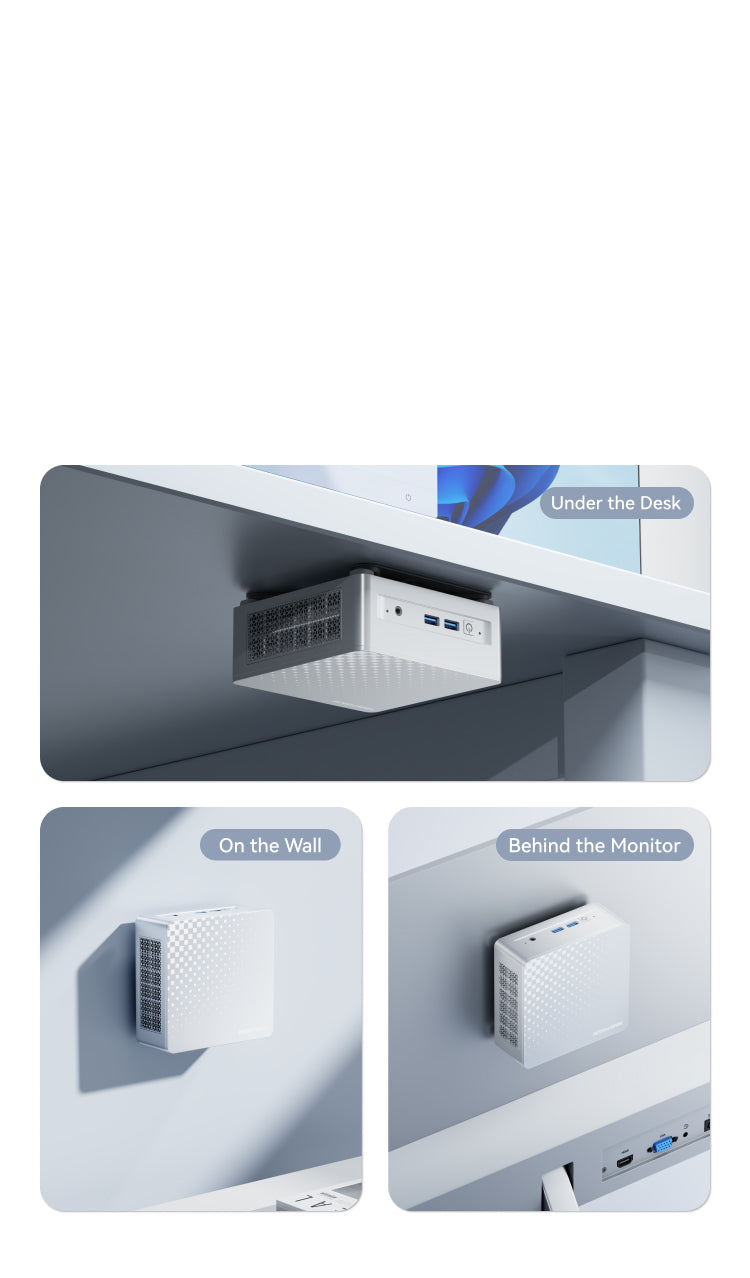

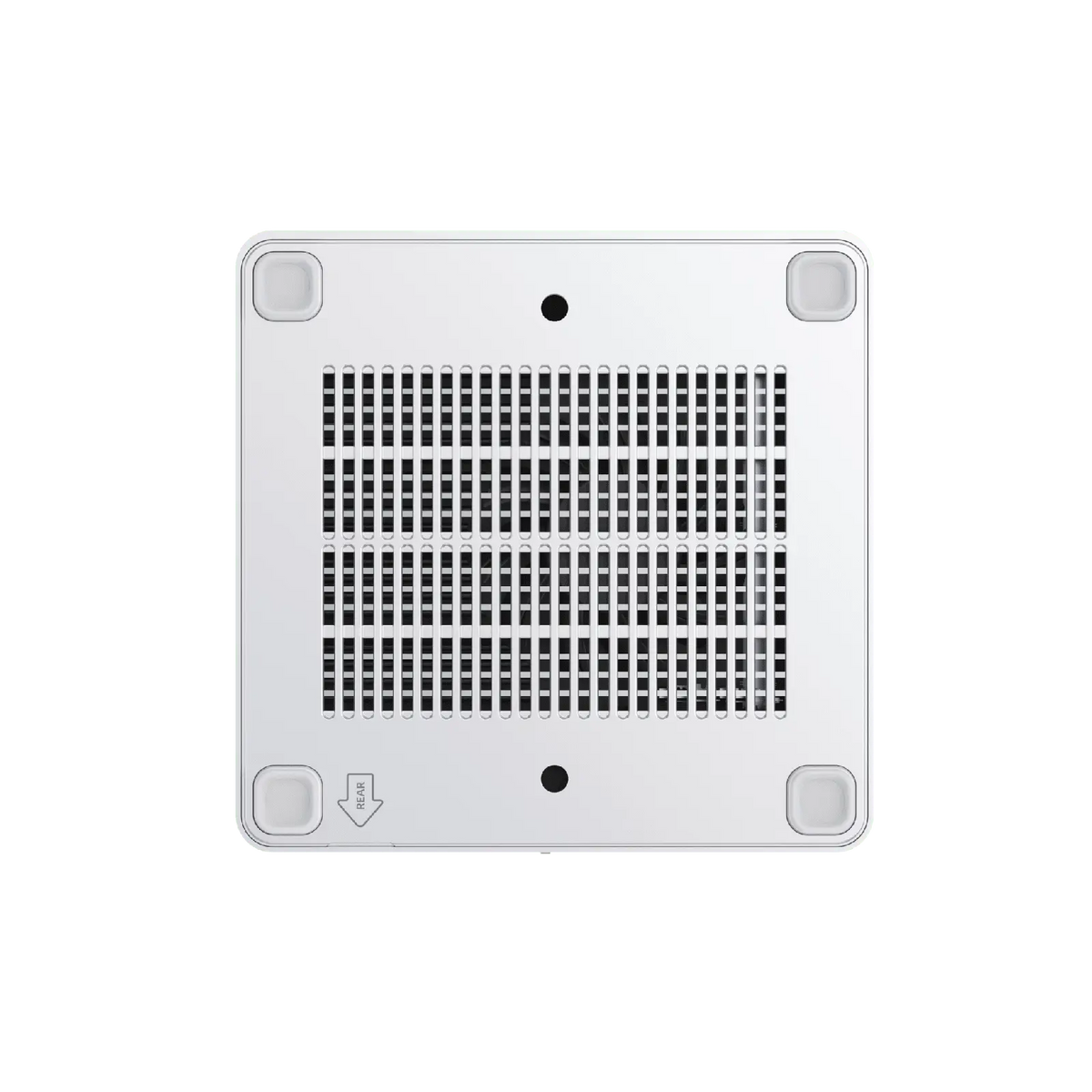

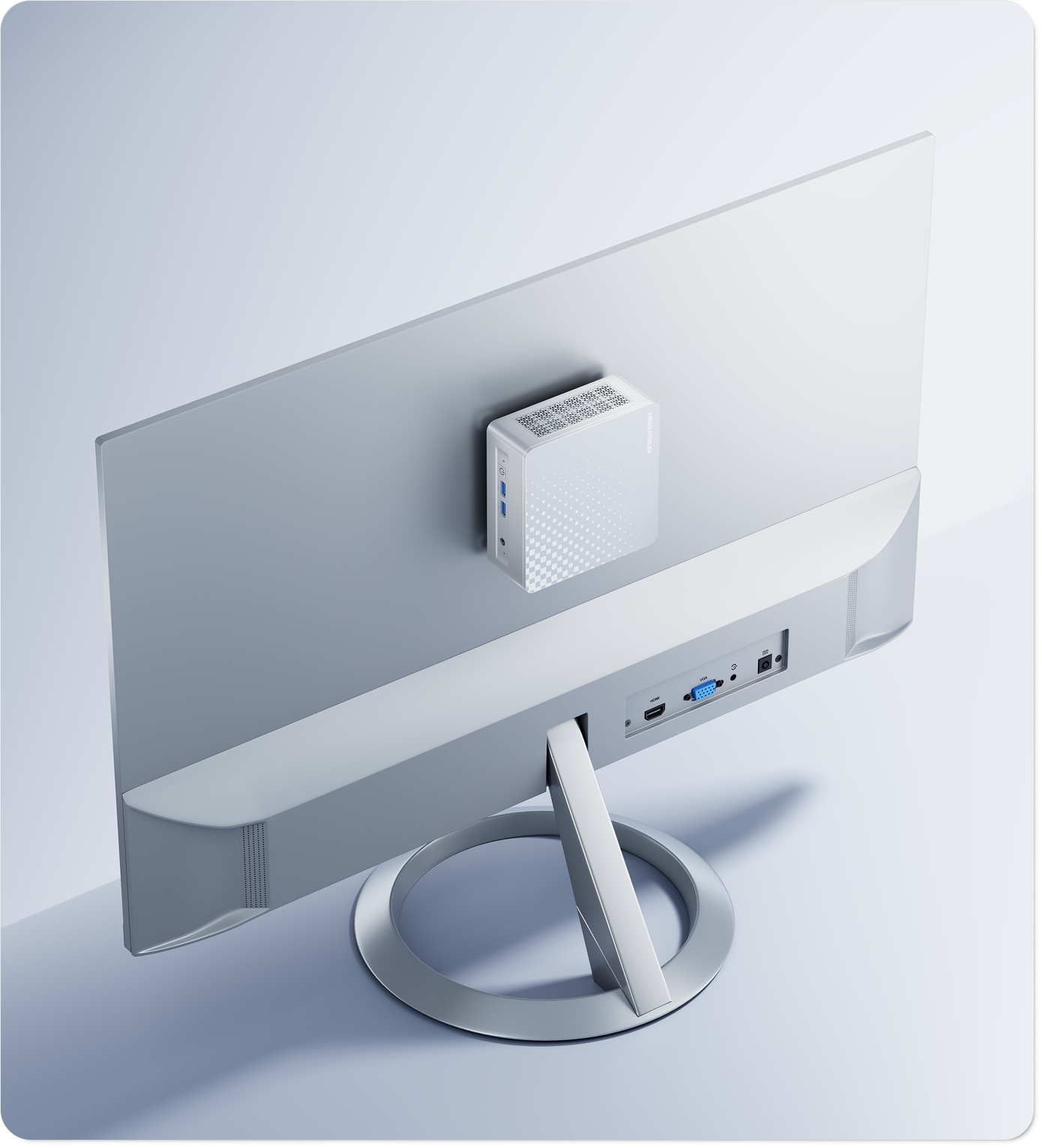

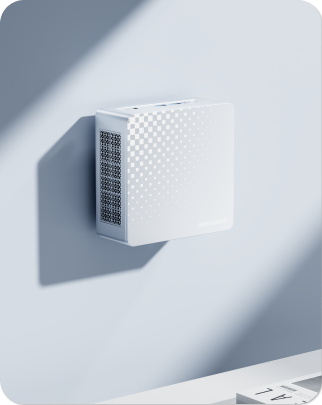

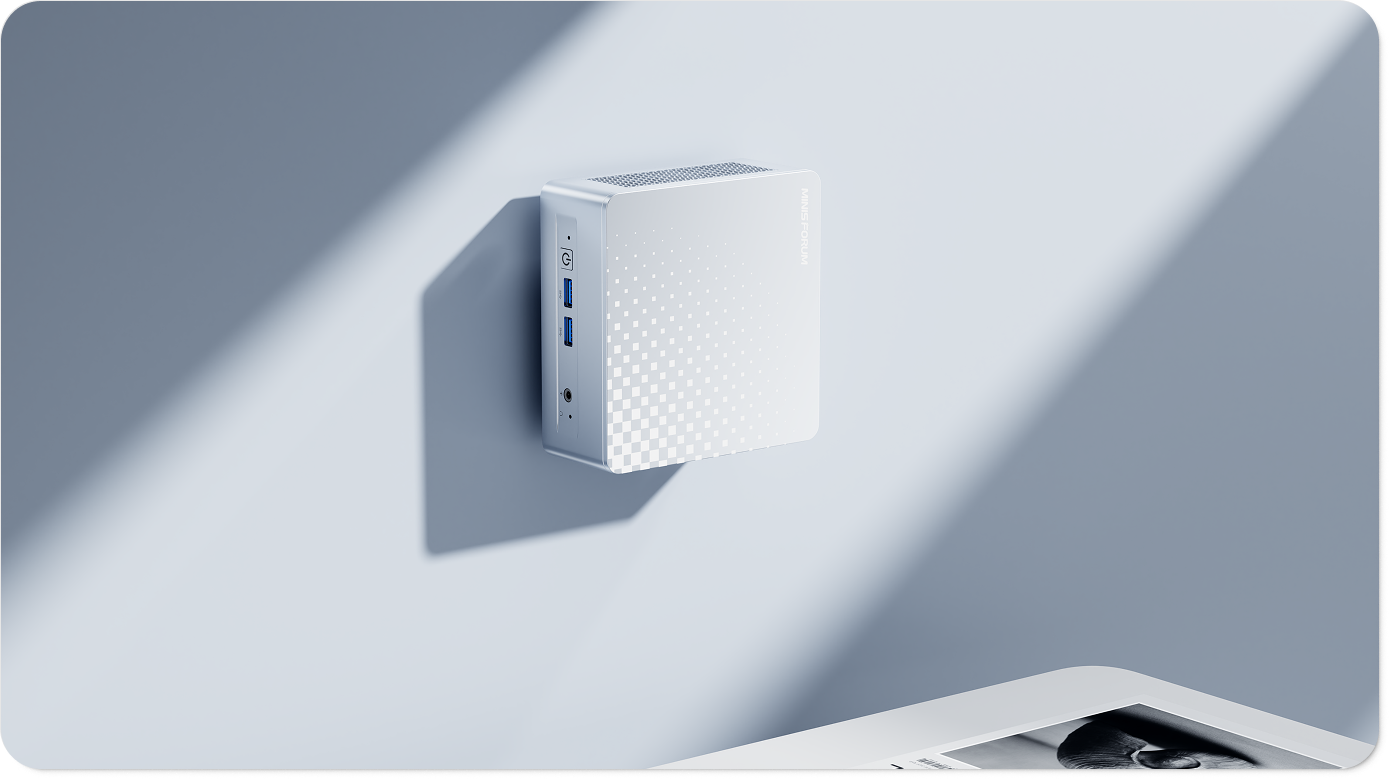

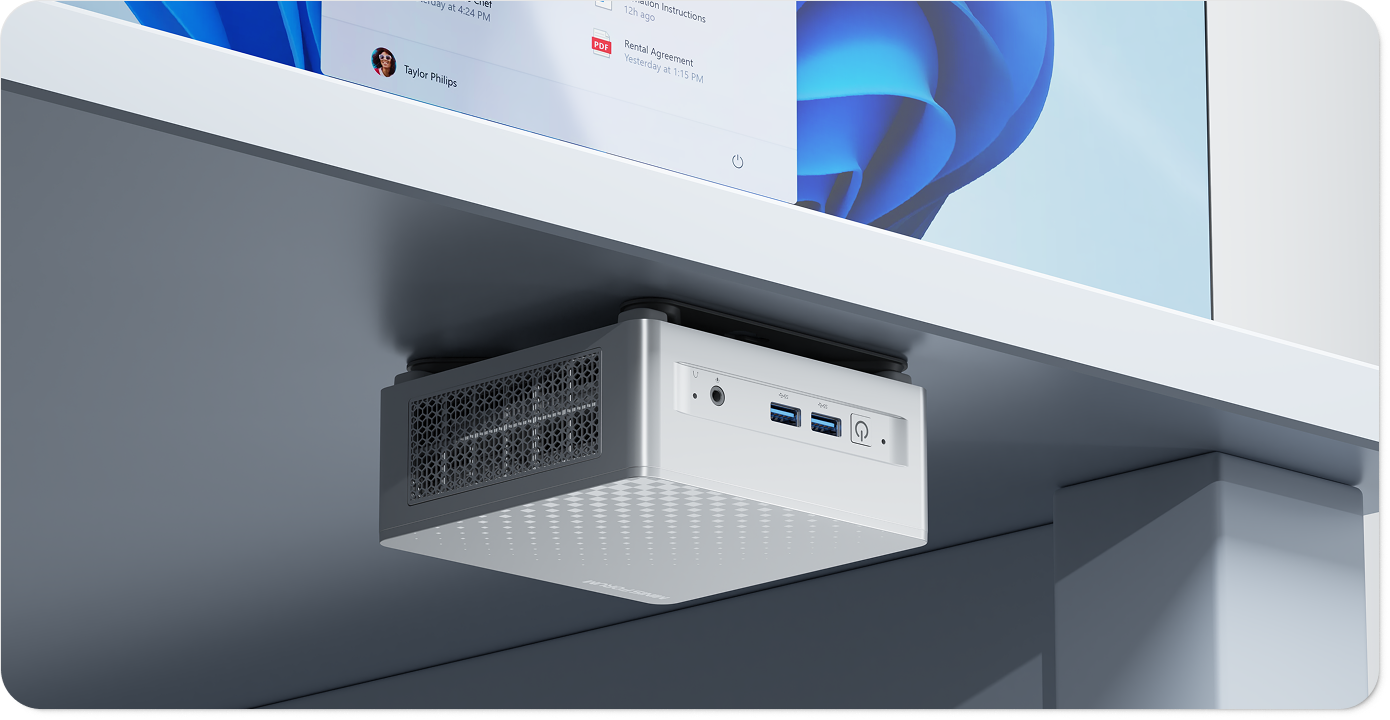

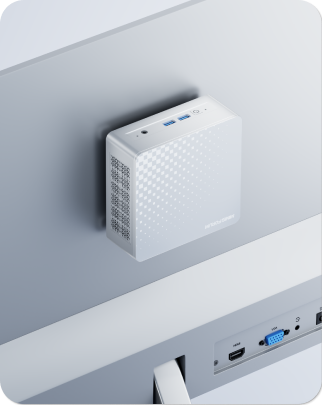

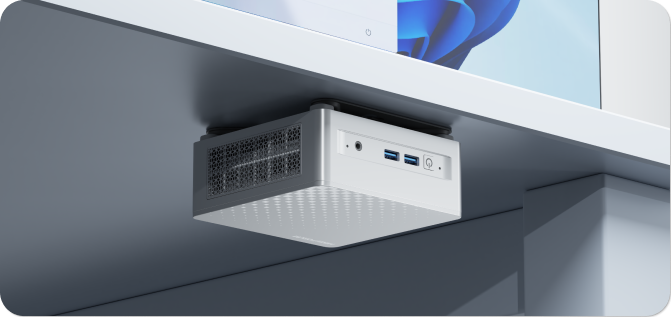

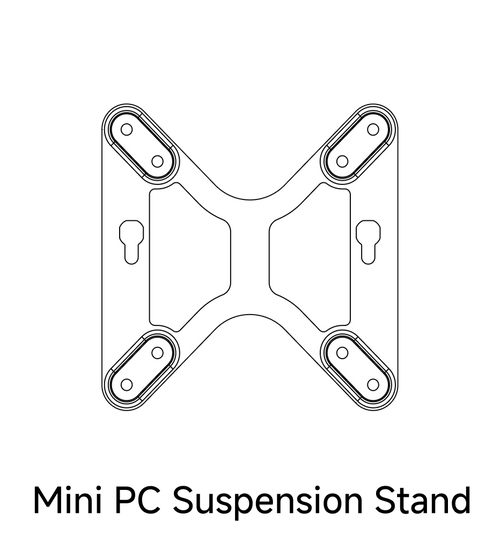

Compatible with a wall mount, the M1 Plus can be securely attached to the back of a monitor, wall, or under a desk to free up your desk space and maintain a clean, organized setup.
Use cases
Specification
Minisforum M1 Plus-126H
Intel Core i5-12600H (12C/16T)
Max Turbo Frequency 4.5Ghz
Intel® Iris® Xe Graphics
N/A
DDR5 SODIMM*2 - 4800MHz
Max Capacity Support 96GB
M.2 Key M 2280*1 (PCIe Gen4 x 4)
Optional SKU SSD Capacity: 512/ 1TB
Wi-Fi 6E & Bluetooth® 5.2
2.5 Gigabit LAN (RJ45)*2
(Module: i226-v)
- HDMI 2.1 TMDS x 1
- DP1.4 x 1
- USB4 х 1
- (Up to 4K@60Hz)
- (Up to 8K@60Hz/4K@144Hz)
- (Up to 8K@60Hz/4K@144Hz)
- HDMI х 1
- 3.5mm Combo Jack х 1
- DMIC х 2
- 3.5mm Combo Jack х 1

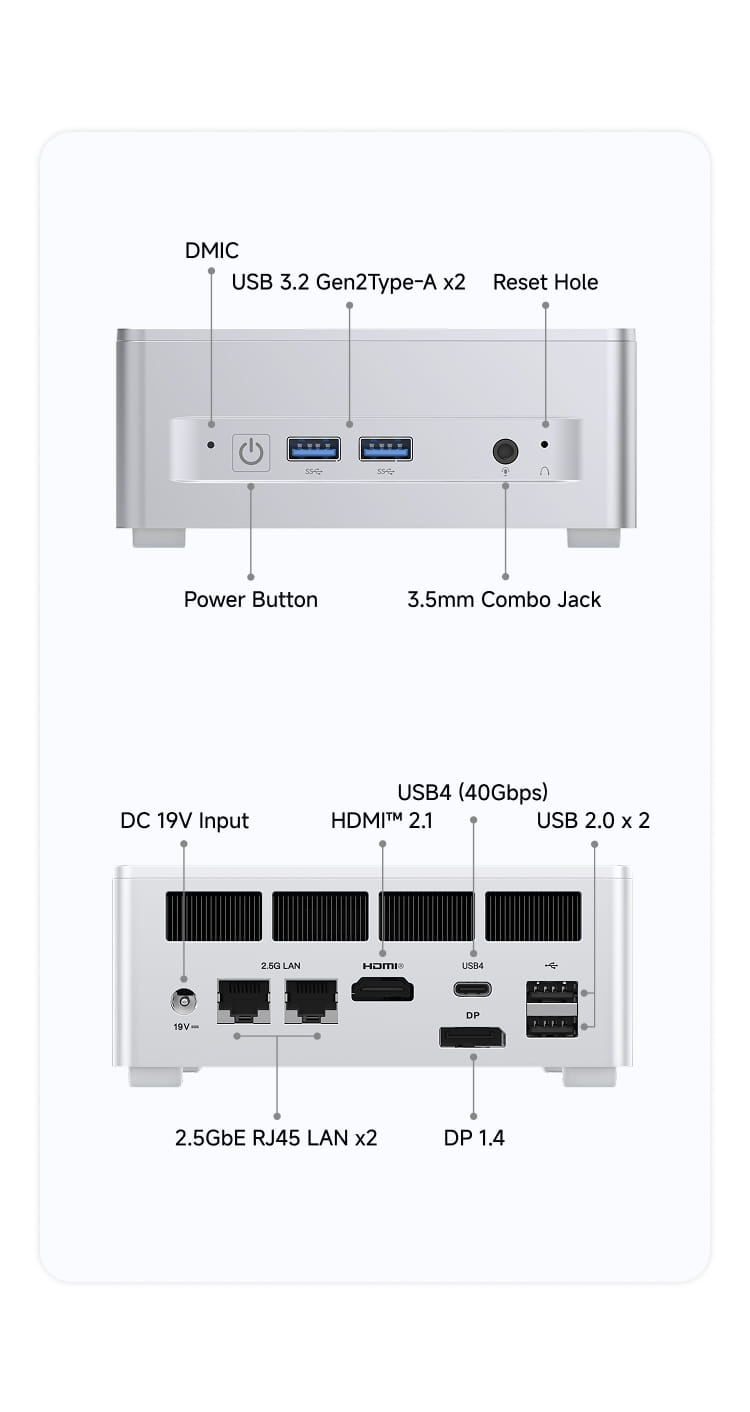

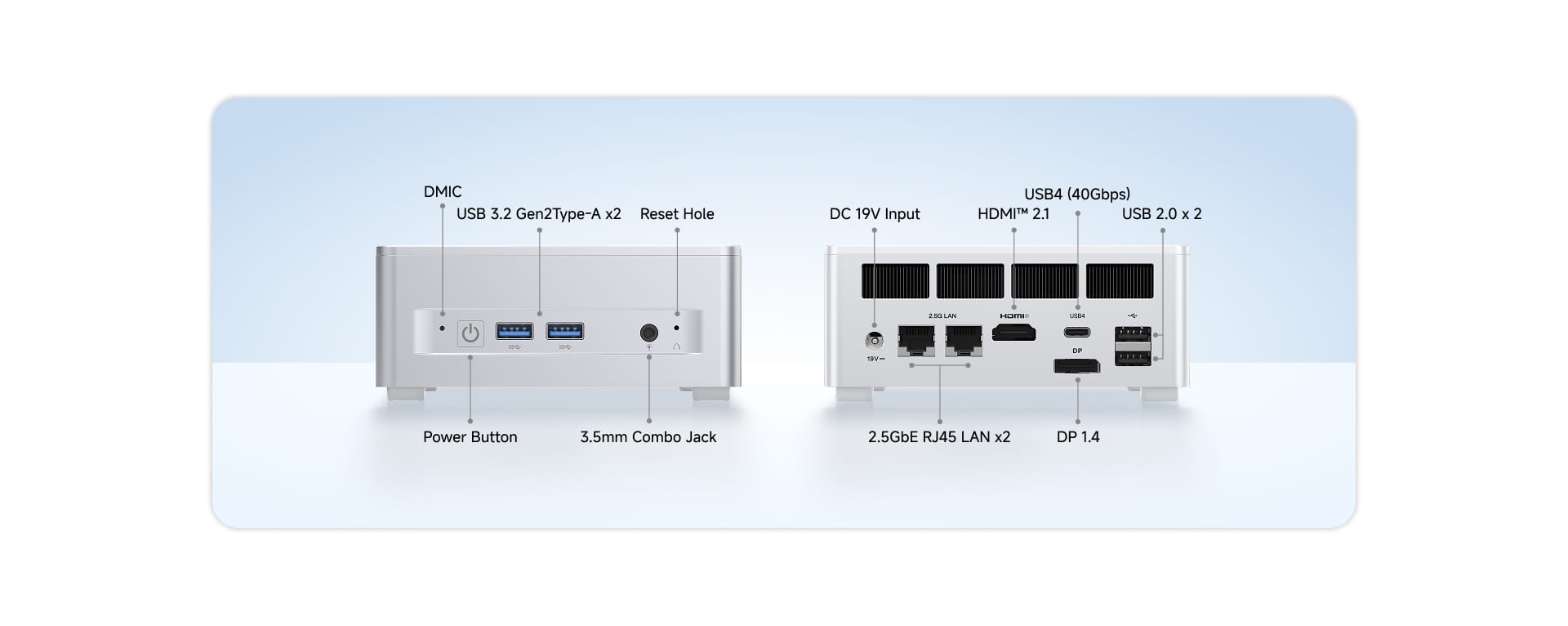

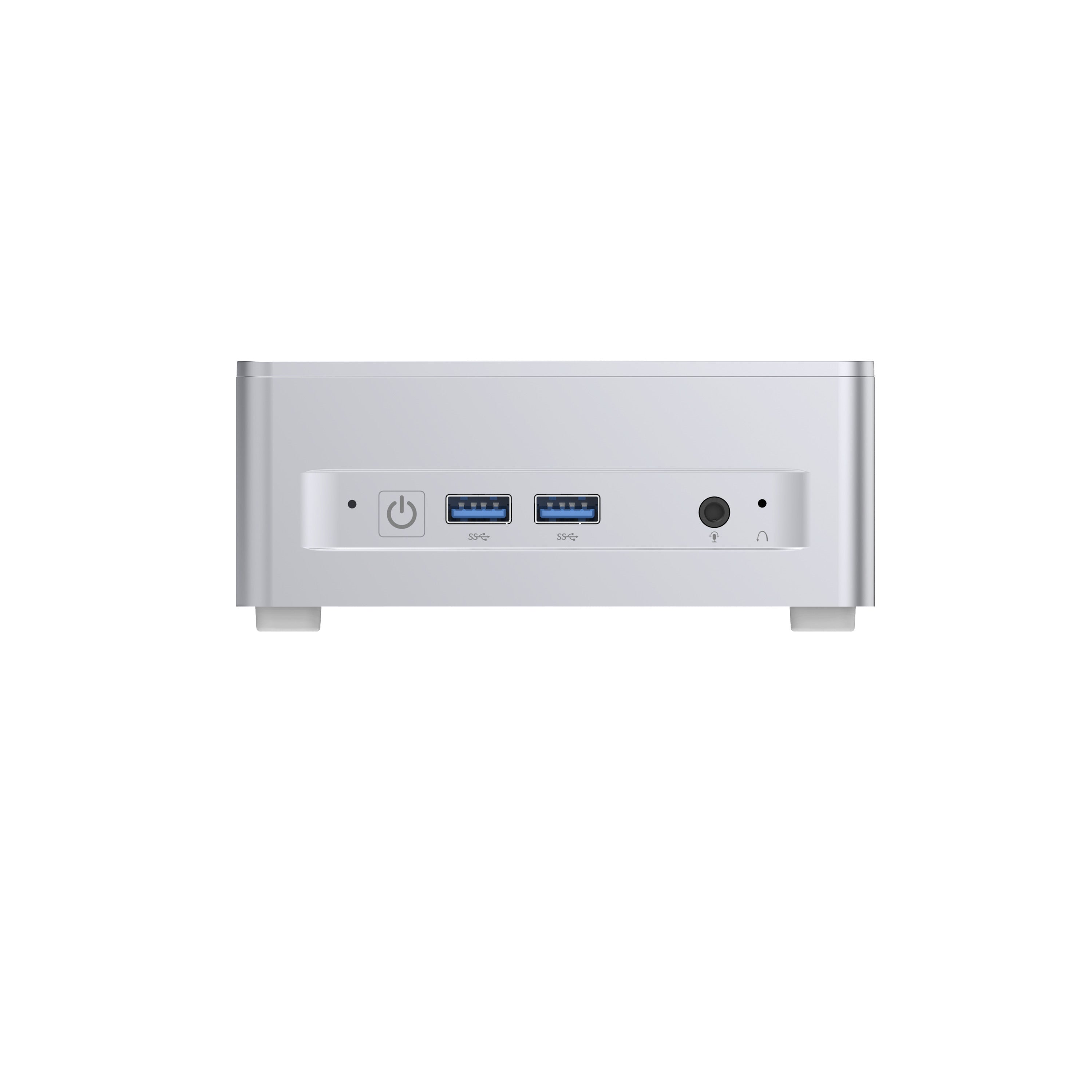

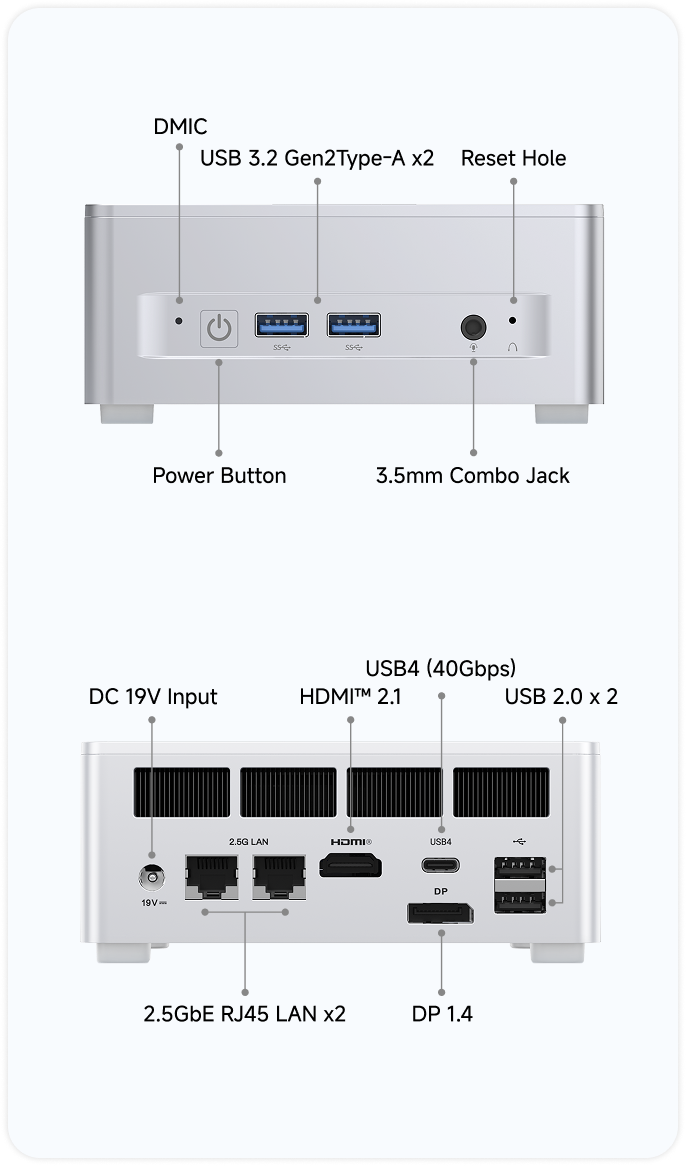

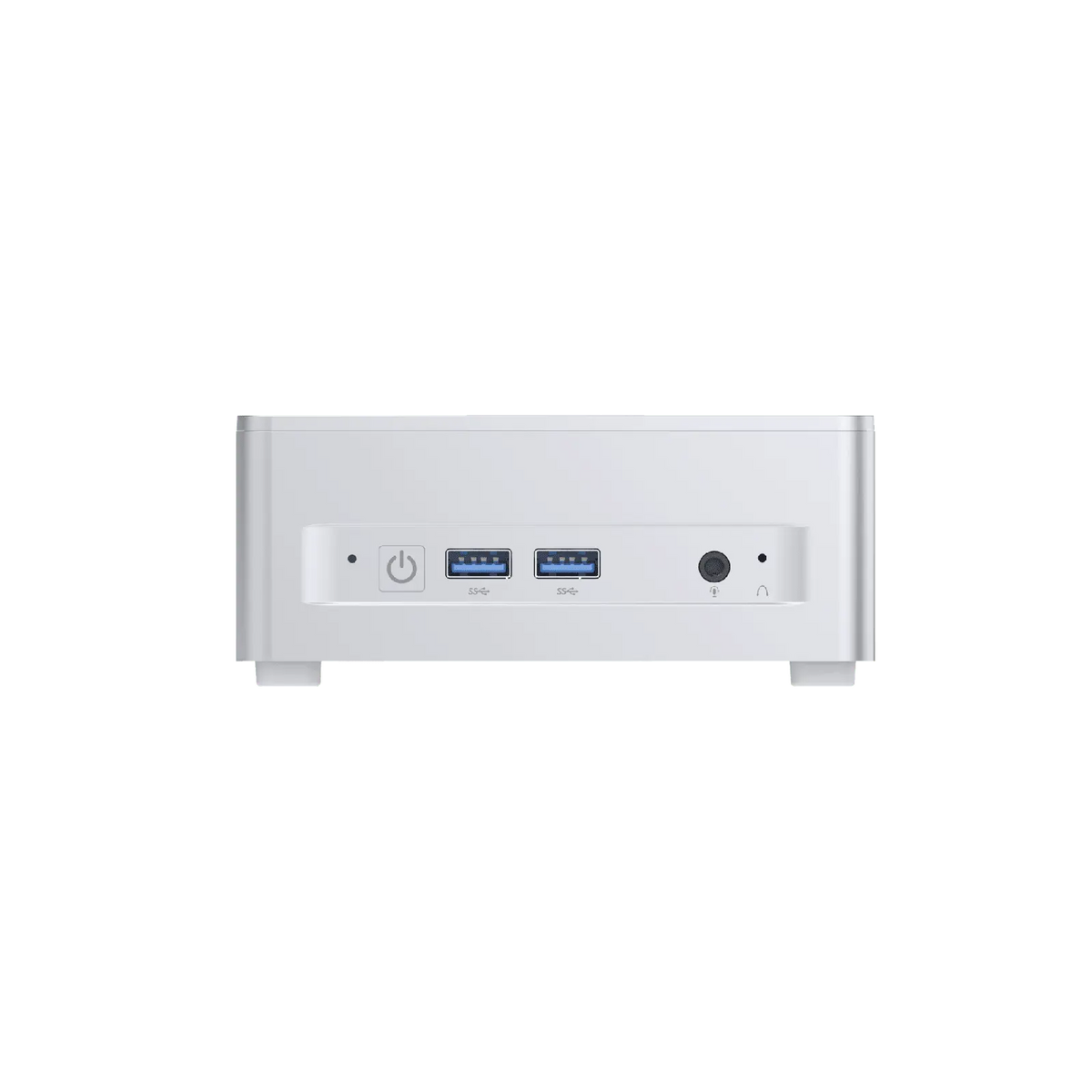

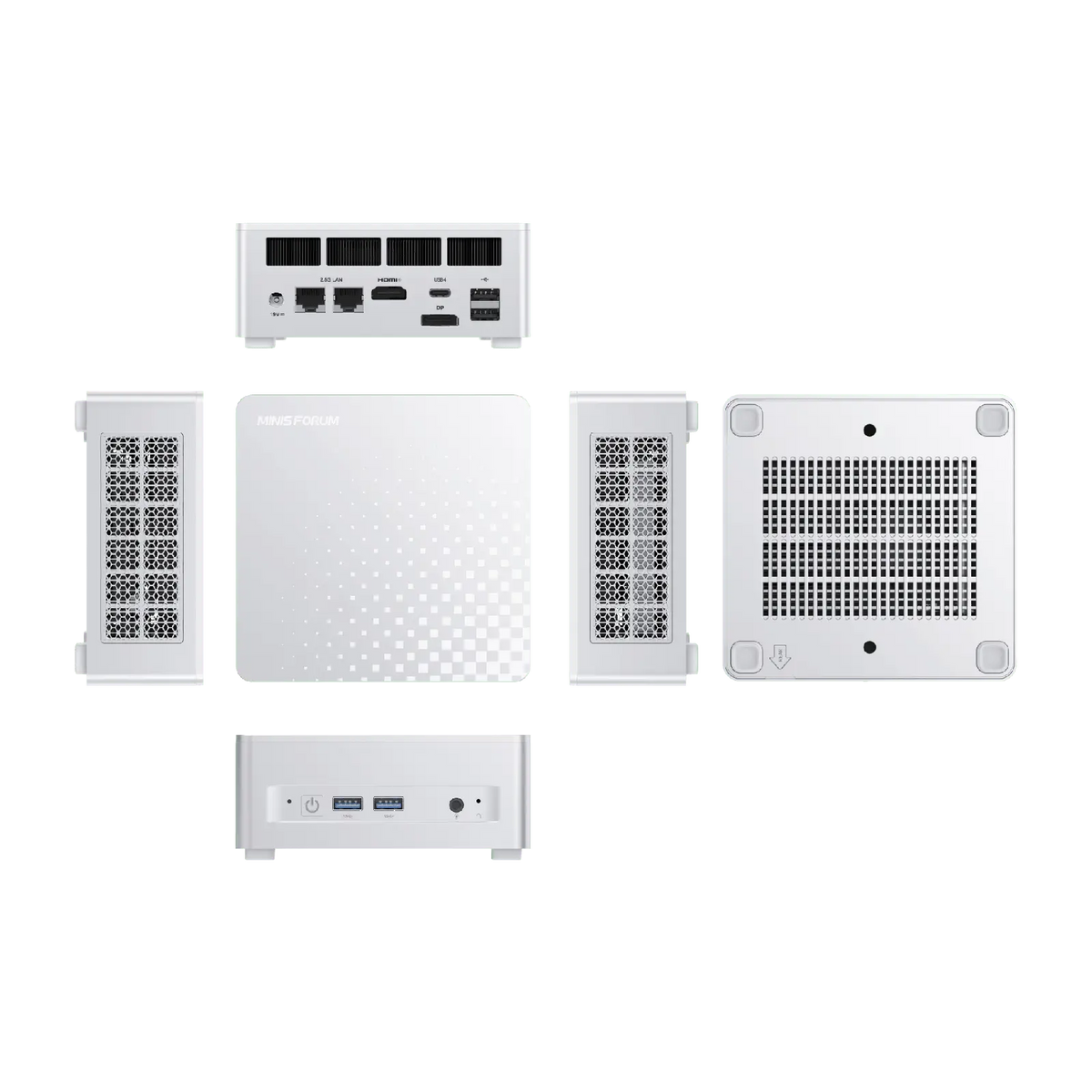

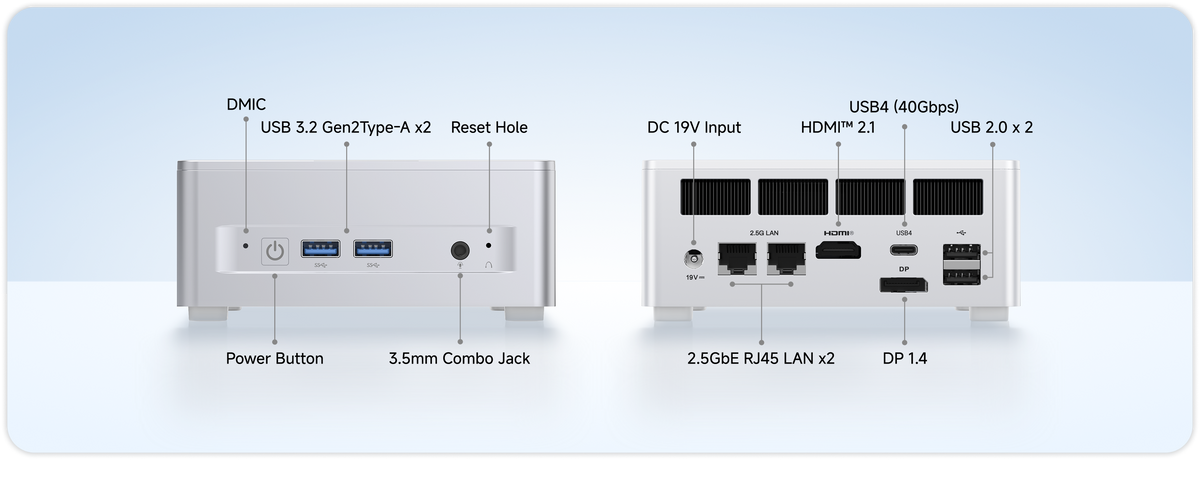

Front:
- USB_Type A x 2 (USB3.2 Gen2 )
- Audio Jack x 1(3.5mm combo jack)

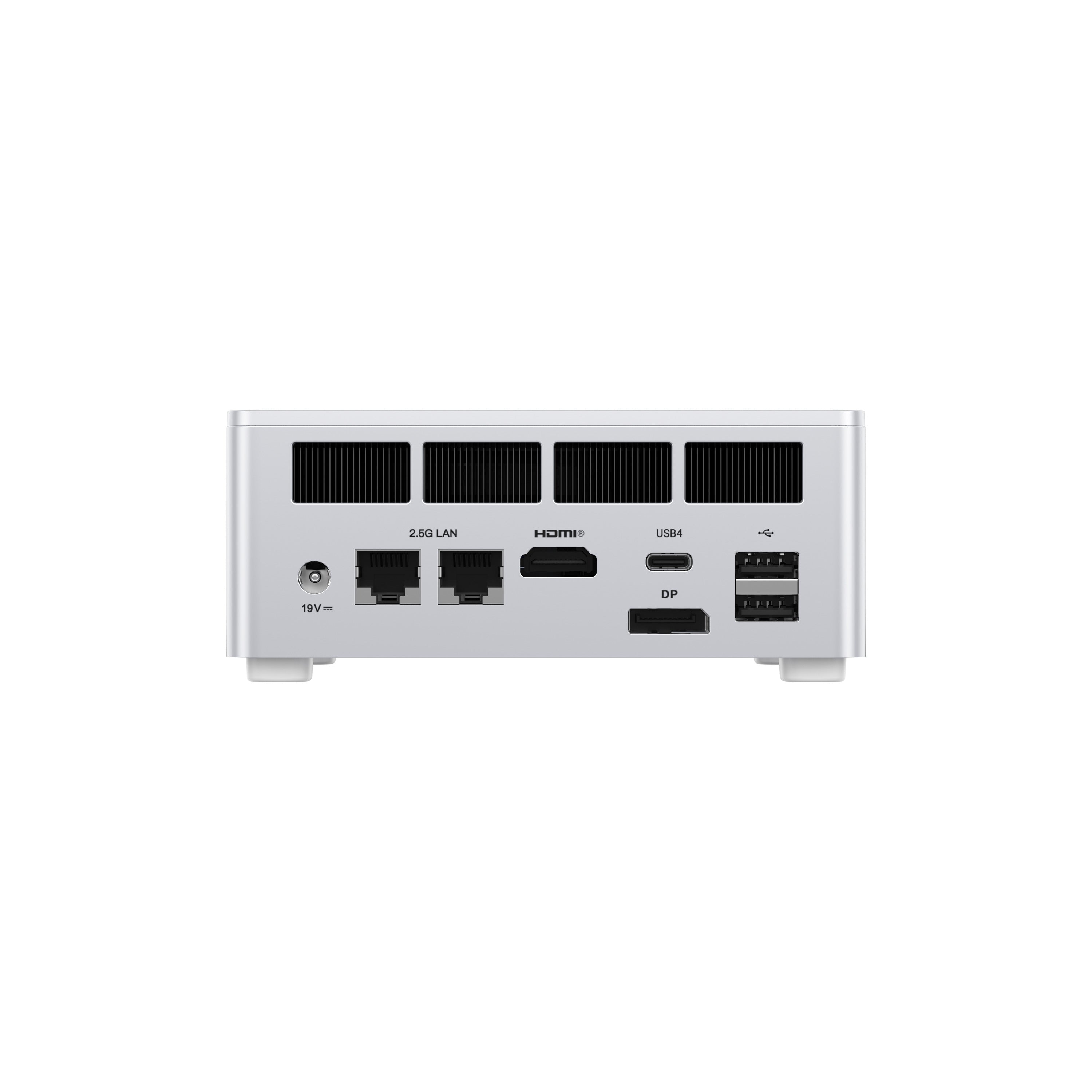

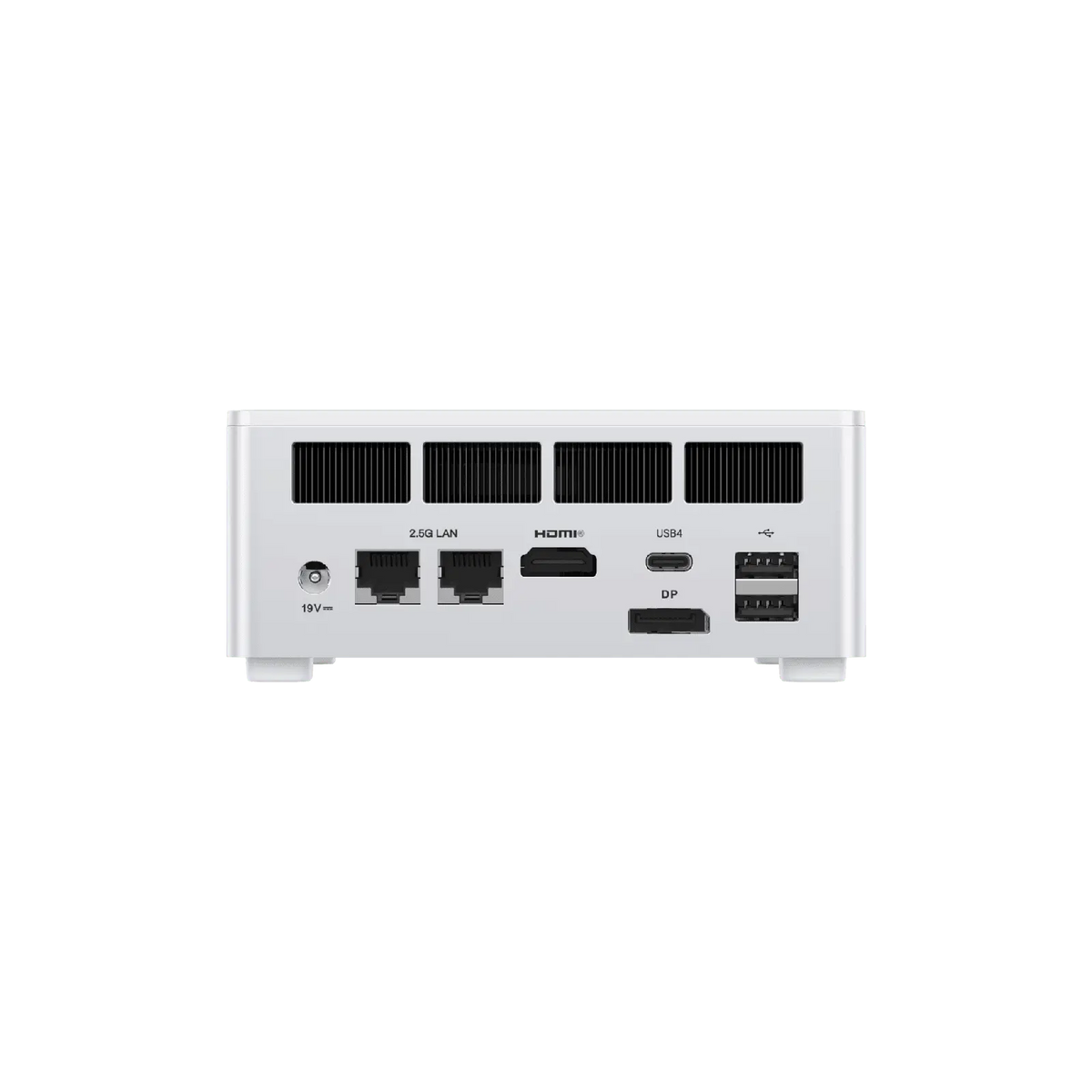

Rear:
- DC-IN Jack x 1 (DC 5.5*2.5 19V)
- Type C_USB4 x 1 (40Gbps+Alt DP+PD IN 65-100W+PD OUT 15W)
- USB_Type A x 2 (USB2.0)
- 2.5 Giga LAN(RJ45) x 2 (vPro supported as option )
- DP x 1 (DP1.4;4K/120Hz;DP++ supported)
- HDMI x 1 (HDMI2.1 TMDS;4K/60Hz,CEC supported)
- Power Button х 1
- Reset Hole х 1
- Other
Support

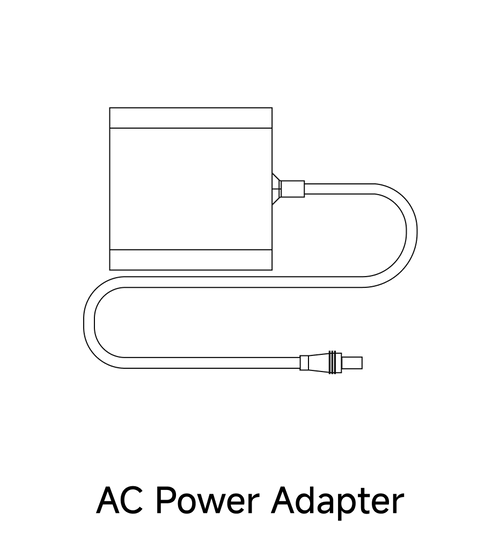

19V/6.32A 120W
Windows 11 Pro
130*126*54 mm
0.6 KG
