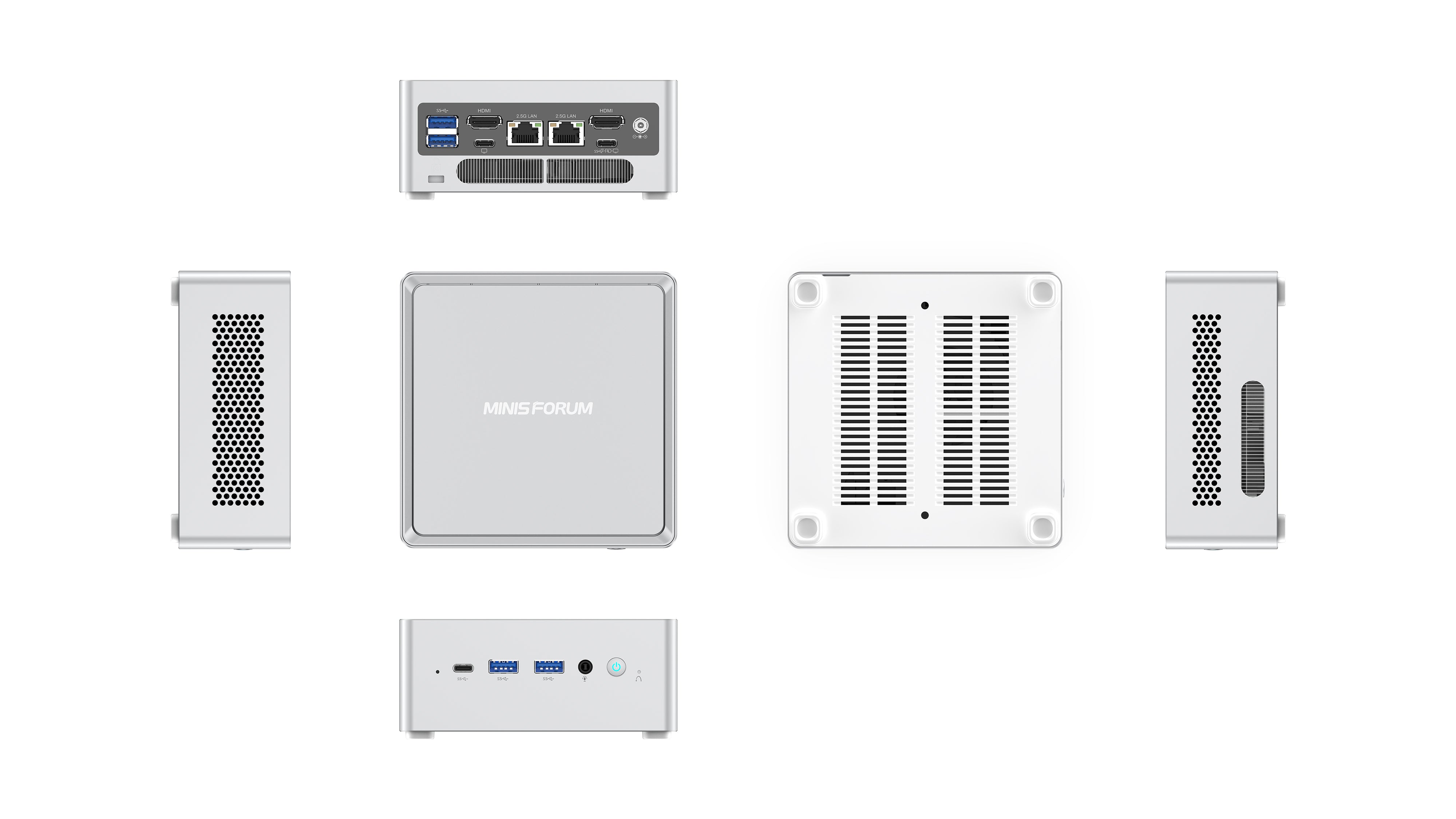

Venus Series NAB9
Intel® Core™ i9-12900HK / Intel® Core™ i9-12900H
Powered by Intel Iris® Xe Graphics eligible

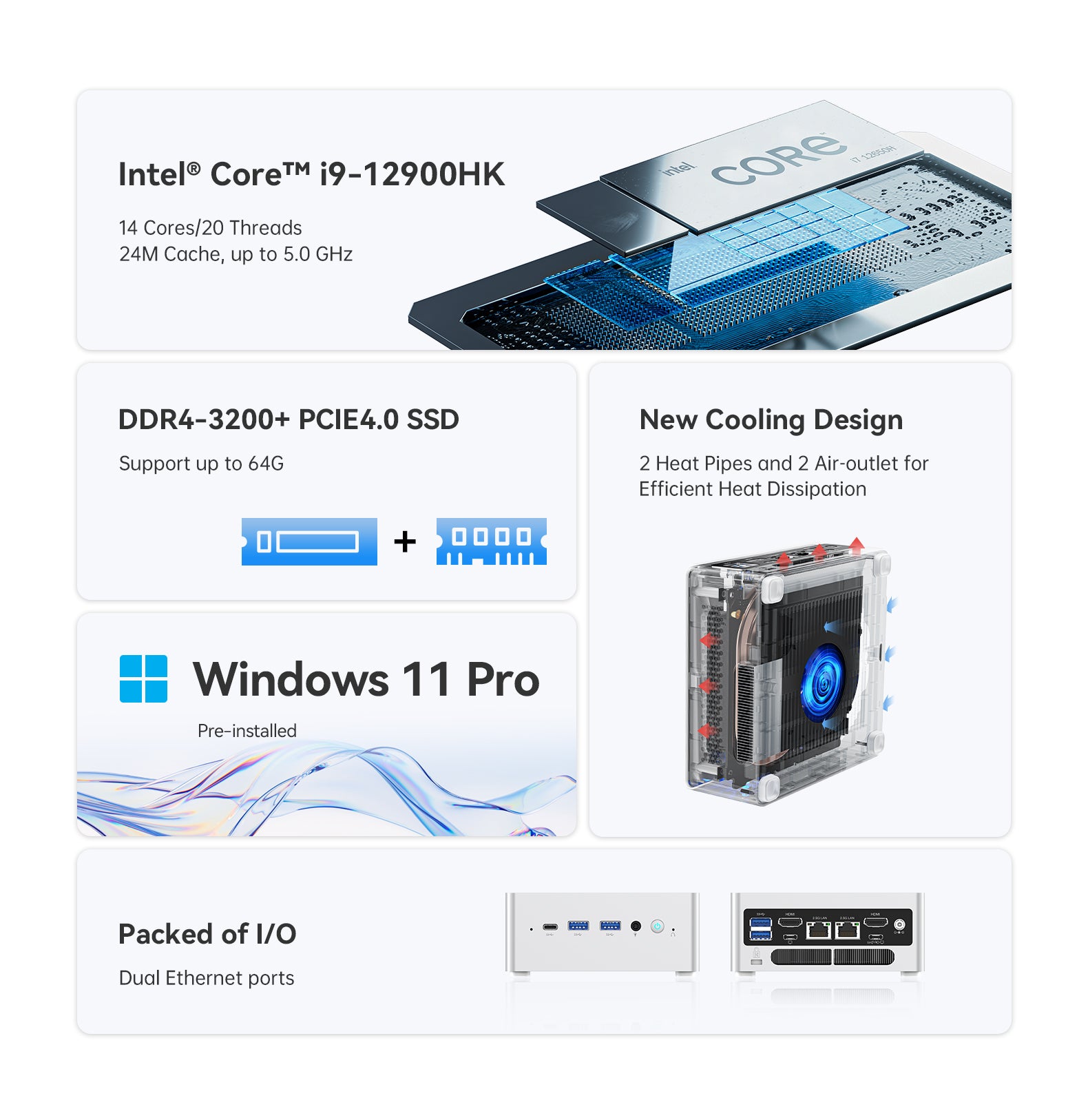

The NAB9 is equipped wth the Intel Core™ i9-12900HK Proceessor
This CPU features 14 cores / 20 threads, and has a max turbo frequency of 5.0GHz.

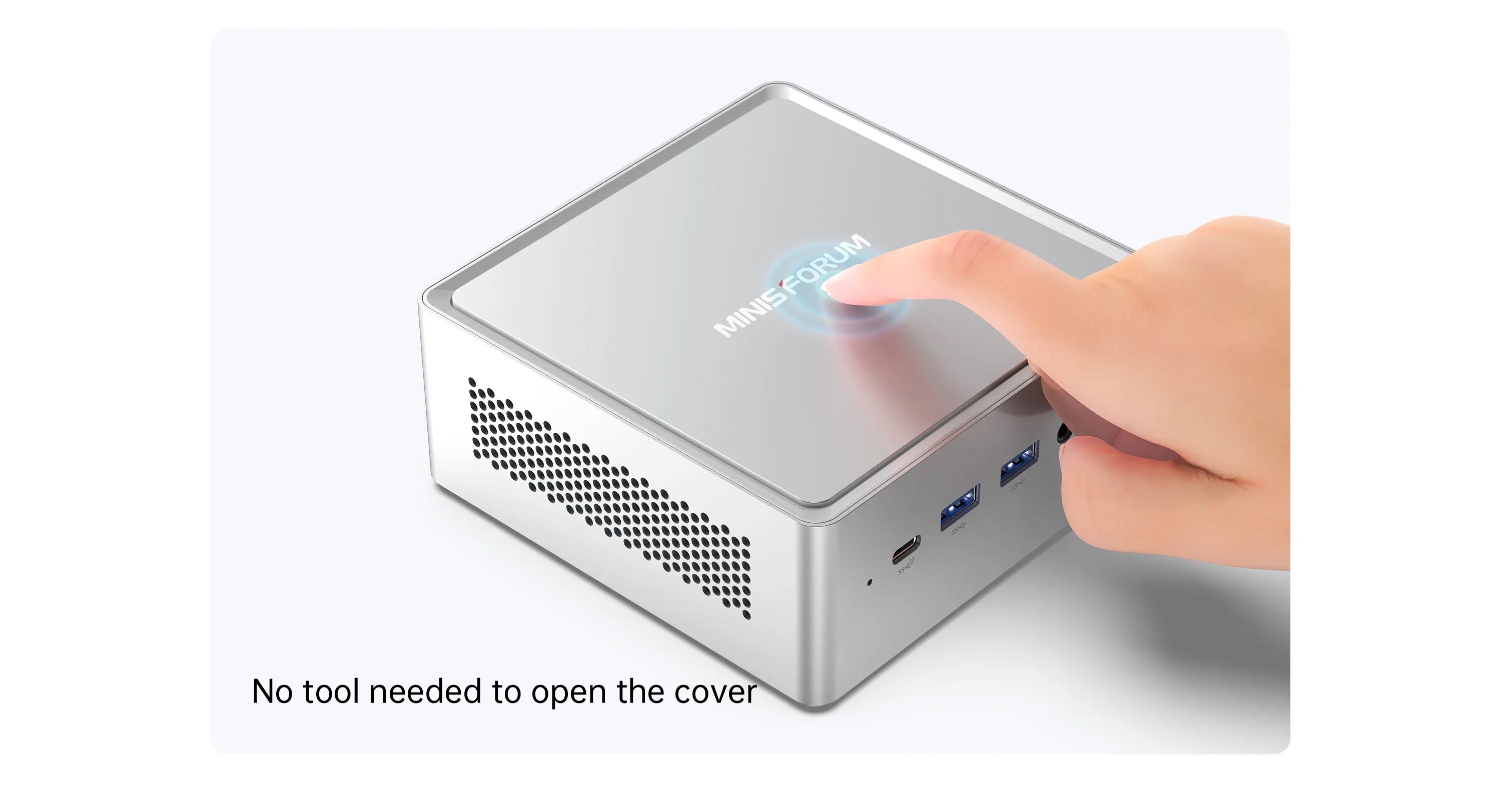

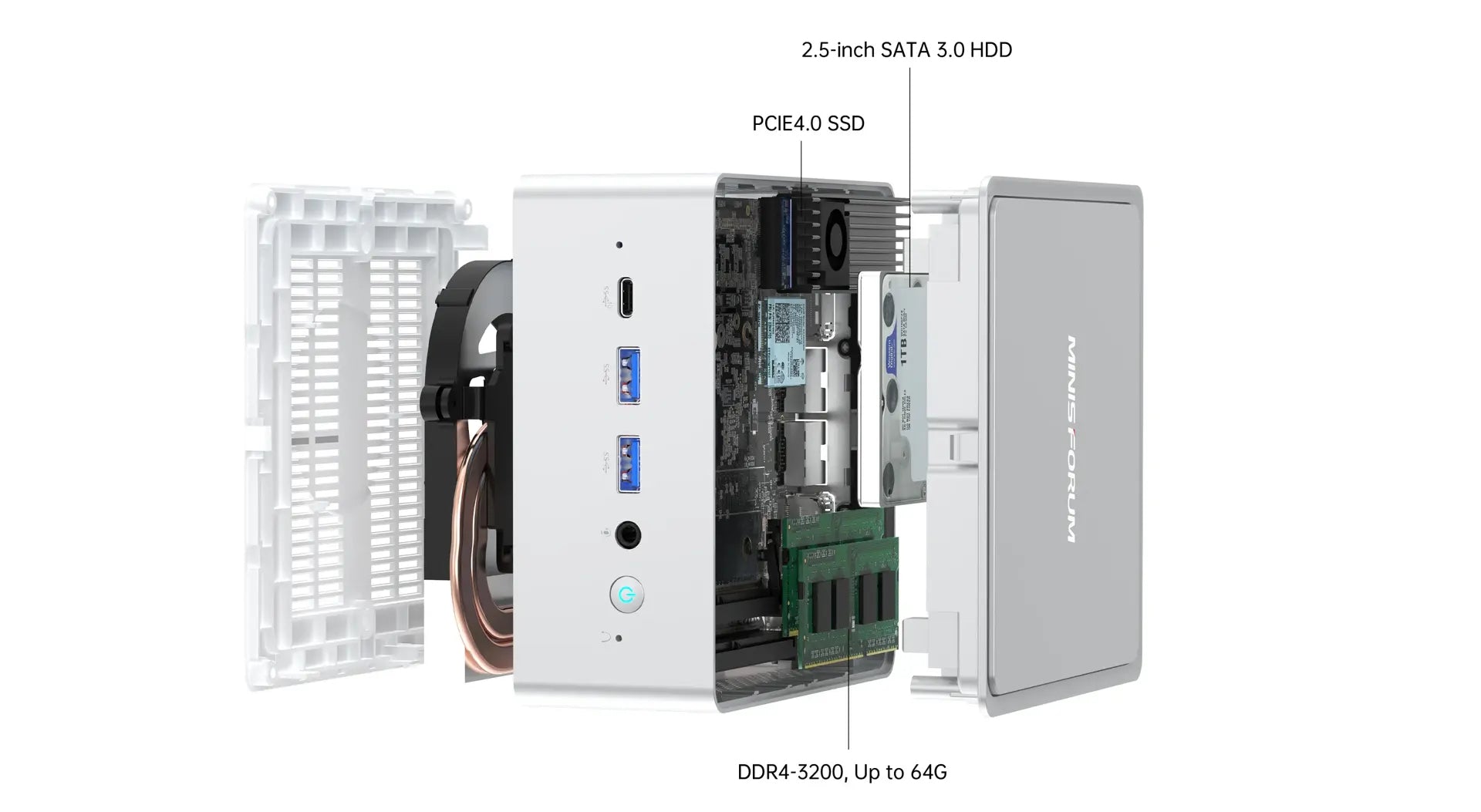

Easy to Upgrade
To upgrade the firmware, you only need to press and open the top cover.

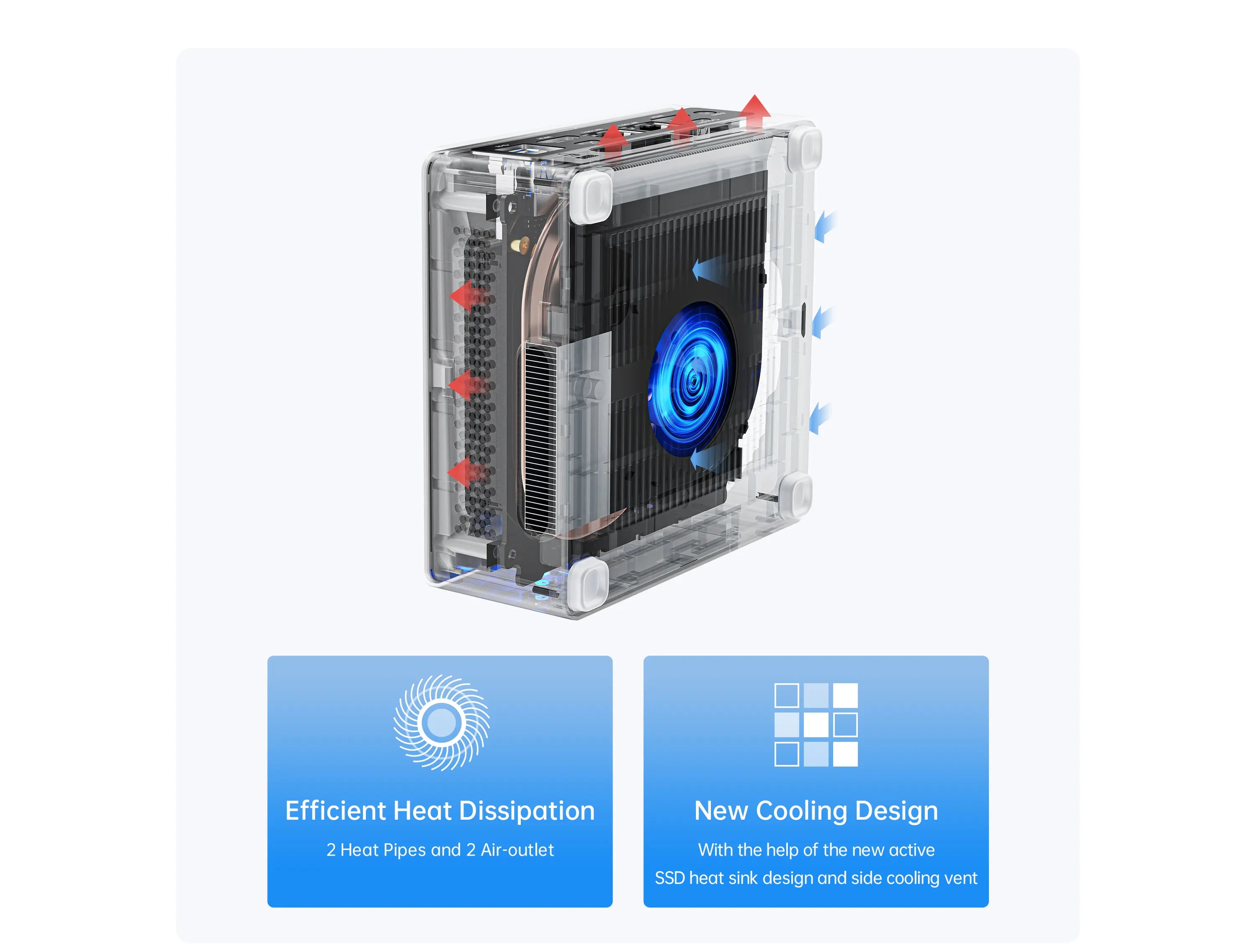

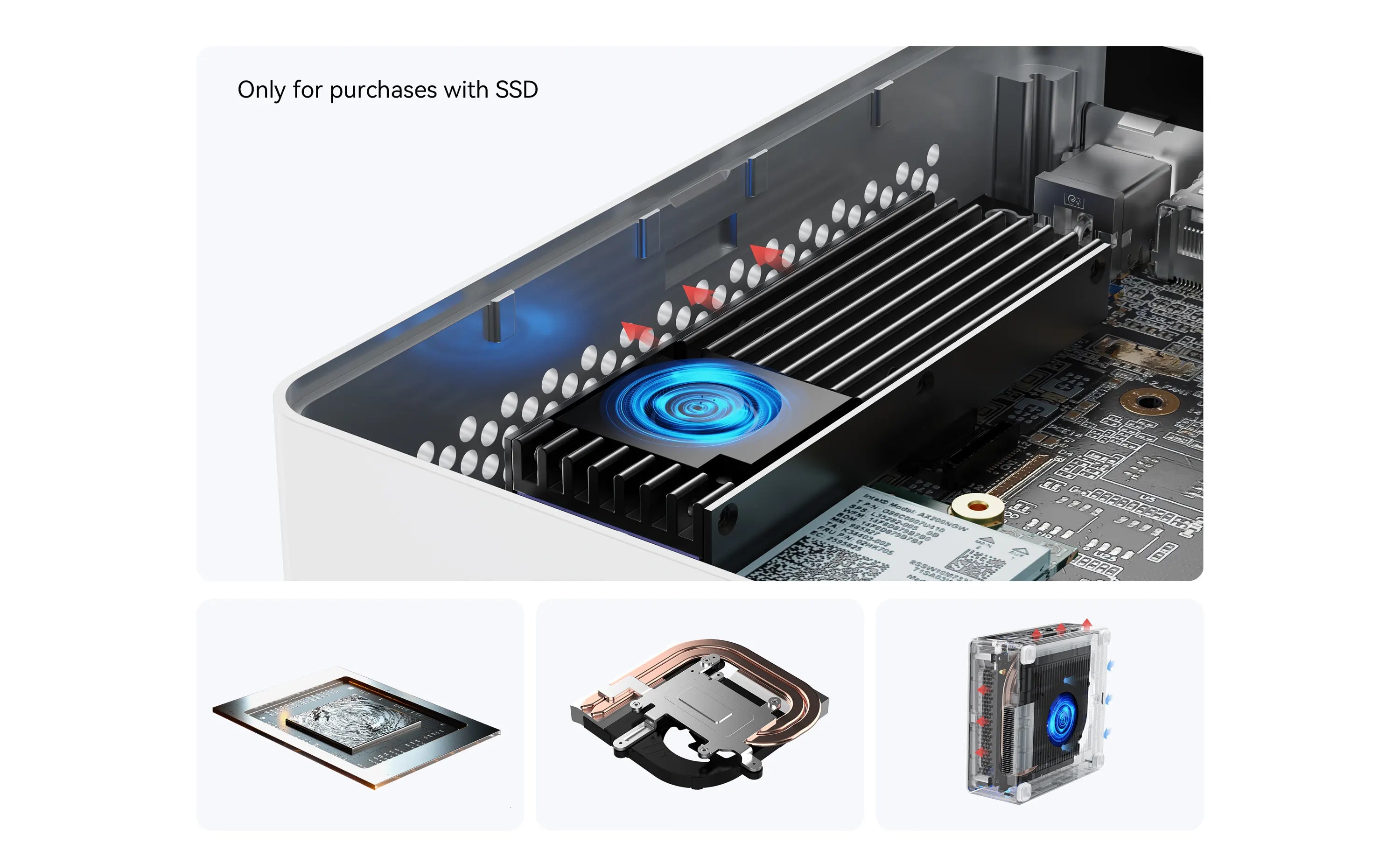

New Thermal System
The PCIe4.0 SSD is equipped with an efficient SSD cooler to improve the thermal performance.
The cooler quickly dissipate heat through the side panel and keep the temperature reasonable.

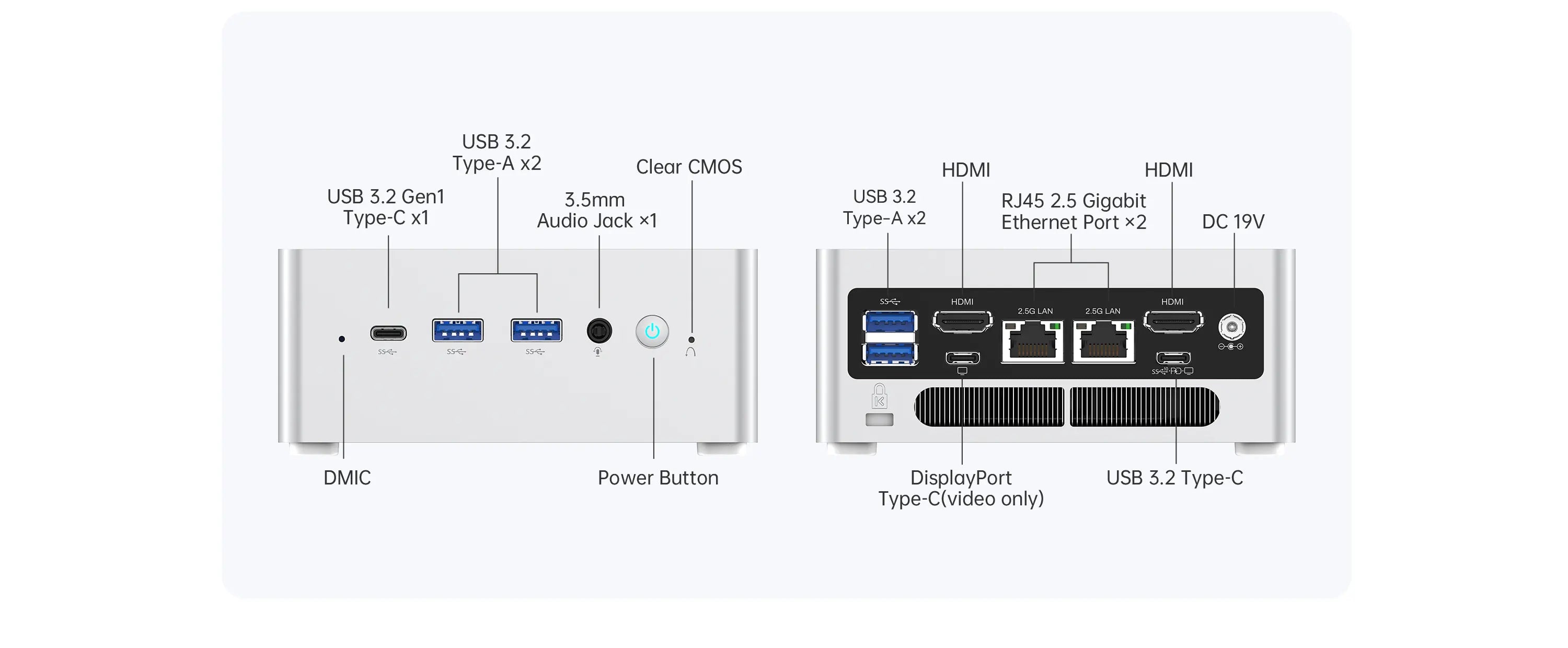

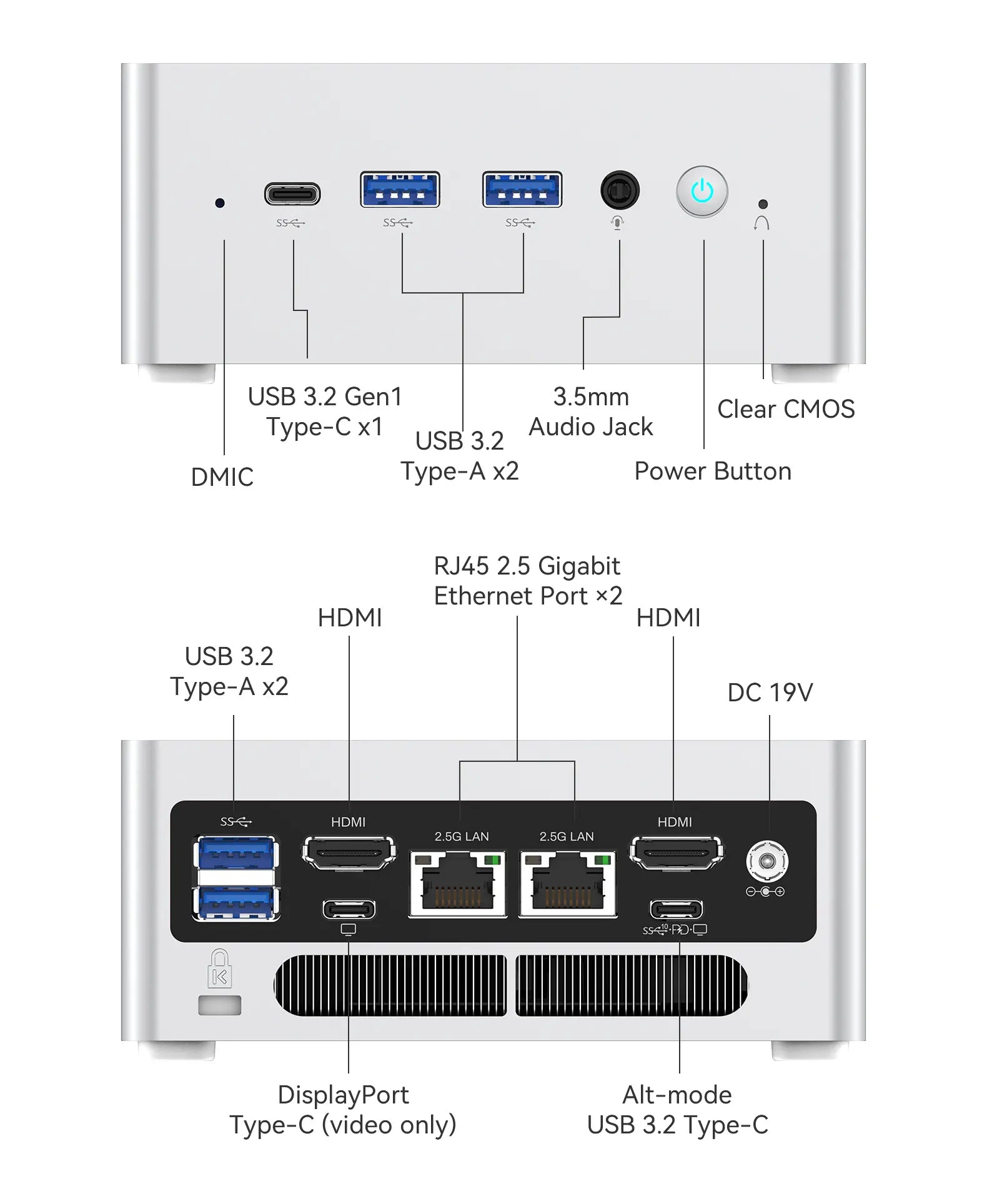

Packed of I/O

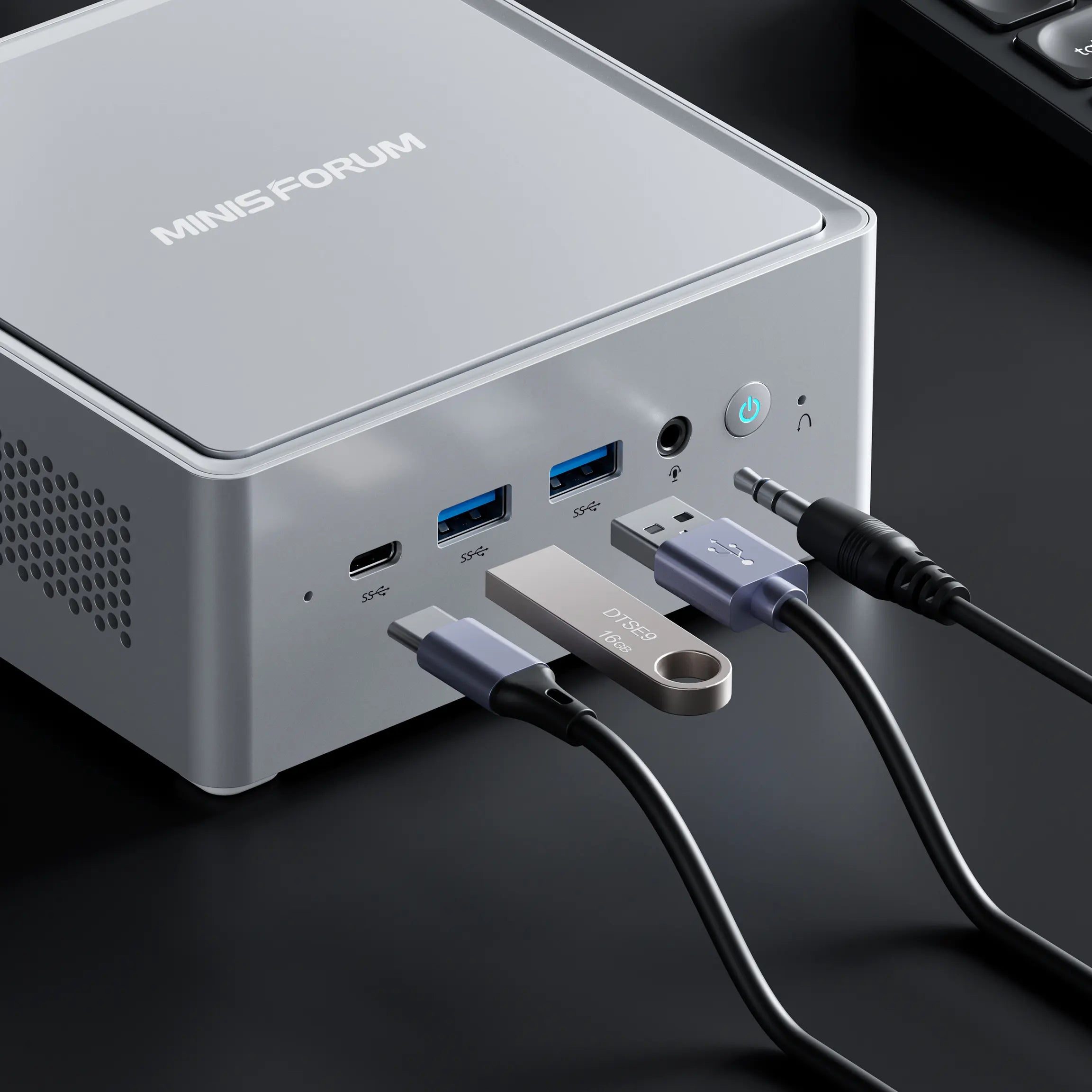

The NAB9 packs three USB3.2 ports, three USB-C ports, two HDMI ports and two 2.5Gbps ethernet ports into its tiny body.
The USB-C port supports 4K@60Hz displays, 5V3A power delivery and fast data transfer.
Packed of I/O

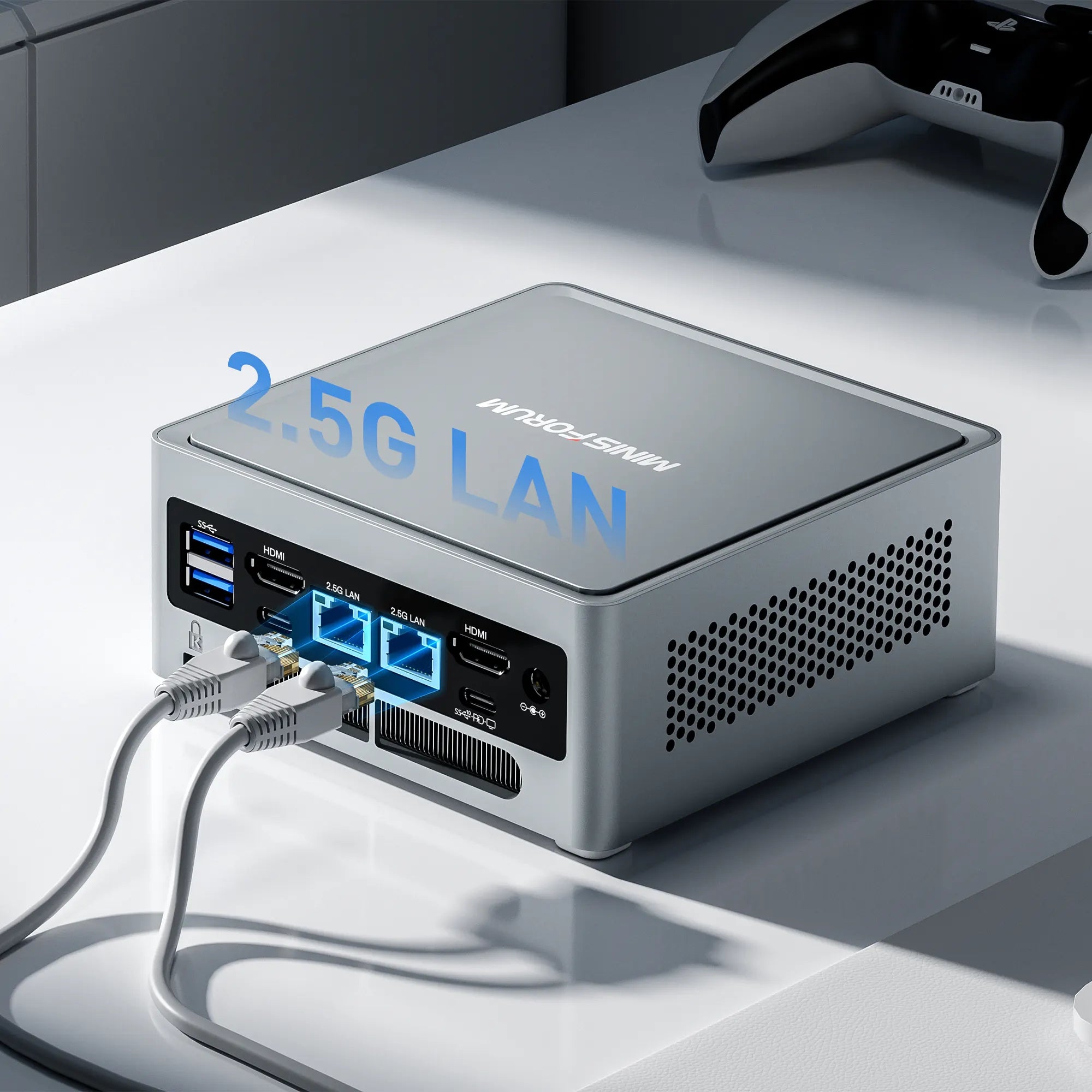

2.5 Gbps Ethernet Ports × 2
Quad 4K@60Hz Display
5V3A Power Delivery

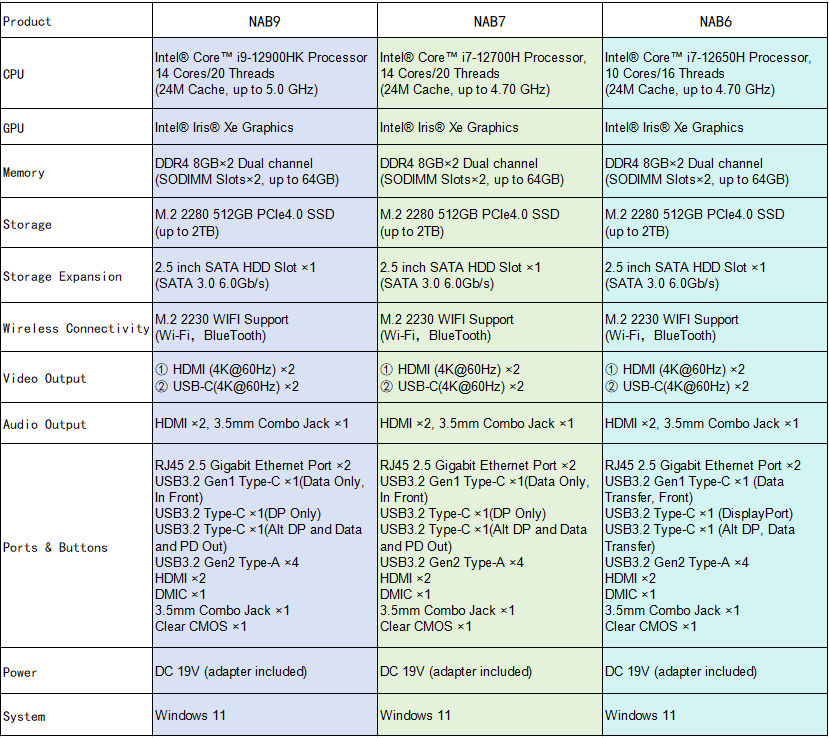

Product specification
NAB9
NAB7
NAB6
Intel® Core™ i9-12900HK or Intel® Core™ i9-12900H Processor
14 Cores/20 Threads (24M Cache, up to 5.0 GHz)
Intel® Core™ i7-12700H Processor
14 Cores/20 Threads(24M Cache, up to 4.70 GHz)
Intel® Core™ i7-12650H Processor
10 Cores/16 Threads
(24M Cache, up to 4.70 GHz)
Intel® Iris® Xe Graphics
Intel® Iris® Xe Graphics
Intel® UHD Graphics for 12th Gen Intel® Processors
(Graphics Frequency 1.40 GHz)
DDR4 8GB×2 Dual channel
(SODIMM Slots×2, up to 32GB)
DDR4 8GB×2 Dual channel
(SODIMM Slots×2, up to 64GB)
DDR4 8GB×2 Dual channel
(SODIMM Slots×2, up to 64GB)
M.2 2280 512GB PCIe4.0 SSD
(up to 2TB)
M.2 2280 512GB PCIe4.0 SSD
(up to 2TB)
M.2 2280 512GB PCIe4.0 SSD
(up to 2TB)
2.5 inch SATA HDD Slot ×1
(SATA 3.0 6.0Gb/s)
2.5 inch SATA HDD Slot ×1
(SATA 3.0 6.0Gb/s)
2.5 inch SATA HDD Slot ×1
(SATA 3.0 6.0Gb/s)
M.2 2230 WIFI Support
(Wi-Fi 6E,BlueTooth 5.2)
M.2 2230 WIFI Support
(Wi-Fi 6E,BlueTooth 5.2)
M.2 2230 WIFI Support
(Wi-Fi 6E,BlueTooth 5.2)
- HDMI (4K@60Hz) ×2
- USB-C(4K@60Hz) ×2
- HDMI (4K@60Hz) ×2
- USB-C(4K@60Hz) ×2
- HDMI (4K@60Hz) ×2
- USB-C(4K@60Hz) ×2
- HDMI ×2
- 3.5mm Combo Jack ×1
- HDMI ×2
- 3.5mm Combo Jack ×1
- HDMI ×2
- 3.5mm Combo Jack ×1
- RJ45 2.5 Gigabit Ethernet Port ×2
- USB3.2 Gen1 Type-C ×1(Data Only, In Front)
- USB3.2 Type-C ×1(DP Only)
- USB3.2 Type-C ×1(Alt DP and Data and PD Out)
- USB3.2 Gen2 Type-A ×4
- HDMI ×2
- DMIC ×1
- 3.5mm Combo Jack ×1
- Clear CMOS ×1
- RJ45 2.5 Gigabit Ethernet Port ×2
- USB3.2 Gen1 Type-C ×1(Data Only, In Front)
- USB3.2 Type-C ×1(DP Only)
- USB3.2 Type-C ×1(Alt DP and Data and PD Out)
- USB3.2 Gen2 Type-A ×4
- HDMI ×2
- DMIC ×1
- 3.5mm Combo Jack ×1
- Clear CMOS ×1
- RJ45 2.5 Gigabit Ethernet Port ×2
- USB3.2 Gen1 Type-C ×1 (Data Transfer, Front)
- USB3.2 Type-C ×1(DisplayPort)
- USB3.2 Type-C ×1(DisplayPort, Data Transfer)
- USB3.2 Gen2 Type-A ×4
- HDMI ×2
- DMIC ×1
- 3.5mm Combo Jack ×1
- Clear CMOS ×1
DC 19V (Adapter Included)
DC 19V (Adapter Included)
DC 19V (Adapter Included)
Windows 11
Windows 11
Windows 11
FAQ
Please feel free to contact us if you have any questions: uk@minisforum.com
1. Brand of SSD and RAM in the NAB7/NAB6/NAB9
We purchase essential hardware from different brands based on the same technical specifications, including SSDs, Wi-Fi cards, RAM, HDDs, power supplies, etc. Due to the limited resources and brands of RAM and SSD, we choose Samsung, Kingston, Crucial, Adata, Phison, etc. as our RAM and SSD suppliers.
Each piece of hardware has passed a strict quality inspection and met the factory's standards before it is delivered to Minisforum. In addition, there is no difference in the warranty policies of these hardware suppliers.
The hardware brands may vary from batch to batch. Please rest assured that they all meet Minisforum's standards and are all covered by the warranty.
2. Does NAB7/NAB6/NAB9 have a heatsink for SSD?
Please note that:
- NAB6: The barebones version (without RAM and SSD) offers a heatpad for the SSD. Versions with SSD offers an active heatsink (with a fan) for the SSD.
- NPB7: All versions offer an active heatsink (with a fan) for the SSD (including the barebones version).
3. Does it support eGPU?
The NAB6/NAB7/NAB9 does not support eGPU.
4. Does the NAB6/NAB7/NAB9 have pre-installed Windows?
Except for the barebones version, all versions come with Windows 11 pre-installed.
The barebones version does not include RAM and SSD; therefore, it does not have pre-installed Windows 11.
