Minisforum NAB6 Lite
Shipping calculated at checkout.
- Intel® Core™ i5-12600H,12C/16T
- Dual DDR4-3200Mhz | Up to 64GB
- 2.5 inch SATA HDD Slot*1
- Dual 2.5G Lan Ports | WIFI 6E & BT 5.2
- Supports 4K four-screen display
For Bulk Discount, please contact: uk@minisforum.com
Deliverable Areas
30-Day Free Return
Duty-Free for UK
2-years Warranty
Benefits enjoyed by MINISFORUM customers
Deliverable Areas
›
Can be delivered for free to: United Kingdom and Ireland.
30-Day Free Return
›
Return to UK local warehouse.
Duty-Free for UK
›
Tax/duty included for eligible regions.
2-years Warranty
›
Our products come with a two-year warranty from delivery.
*The warranty period for the V3 is one year only.
Pay With Ease
Trusted Delivery

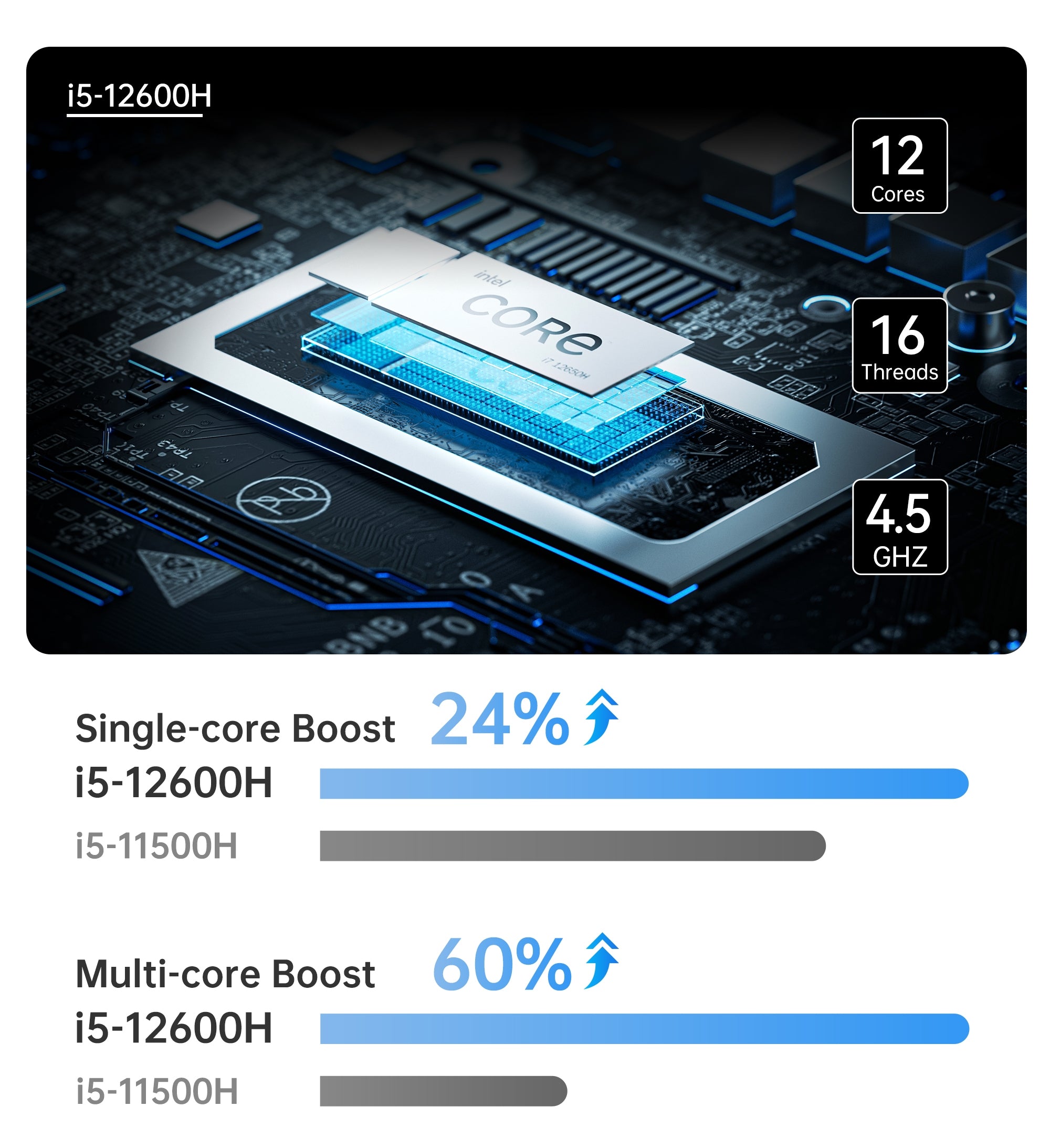

Powered by Intel 12th Gen Core
The NAB6 Lite is equipped with the Intel® Core™ i5-12600H Processor.
This CPU features 12 cores / 16 threads, and has a max turbo frequency of 4.5GHz.

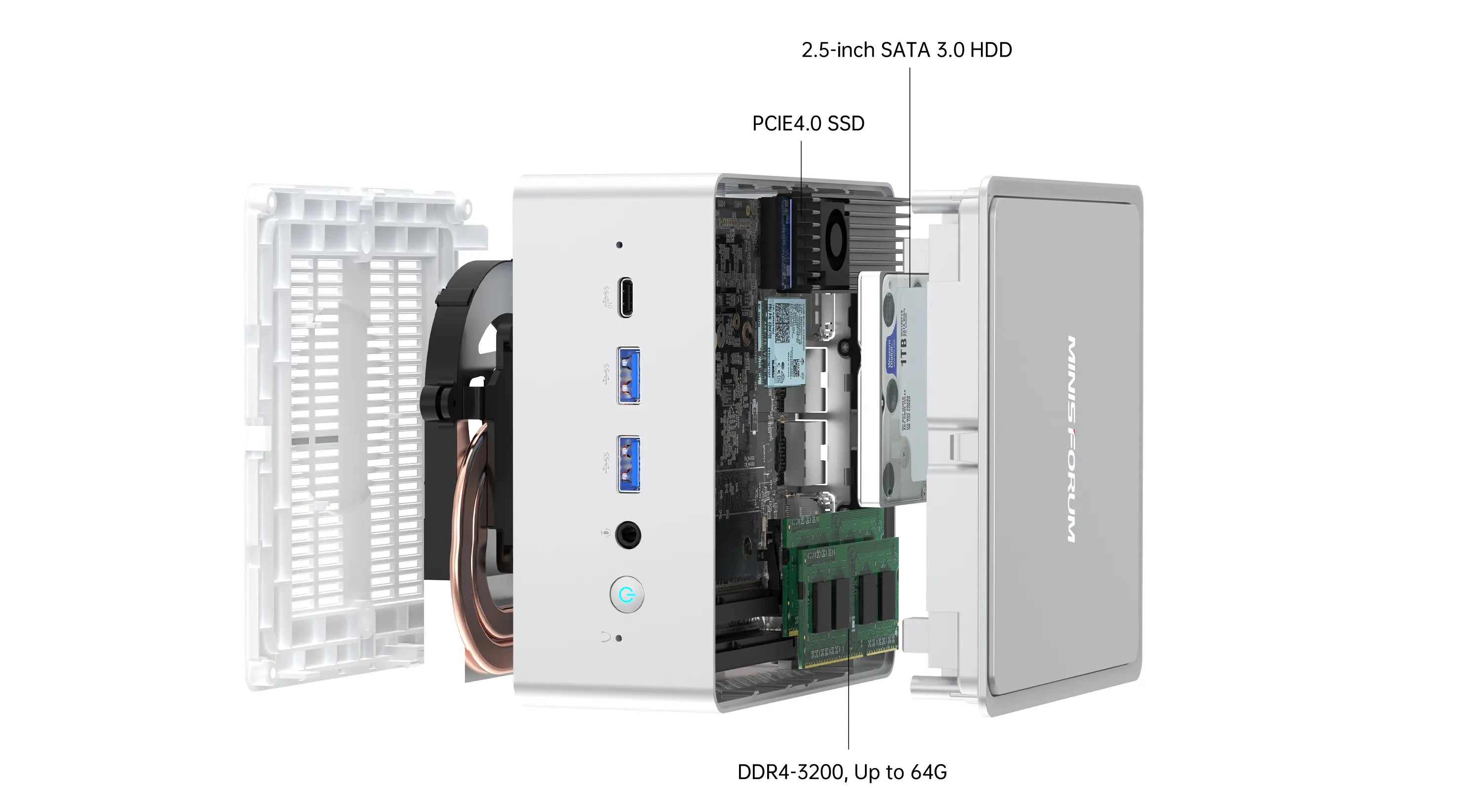

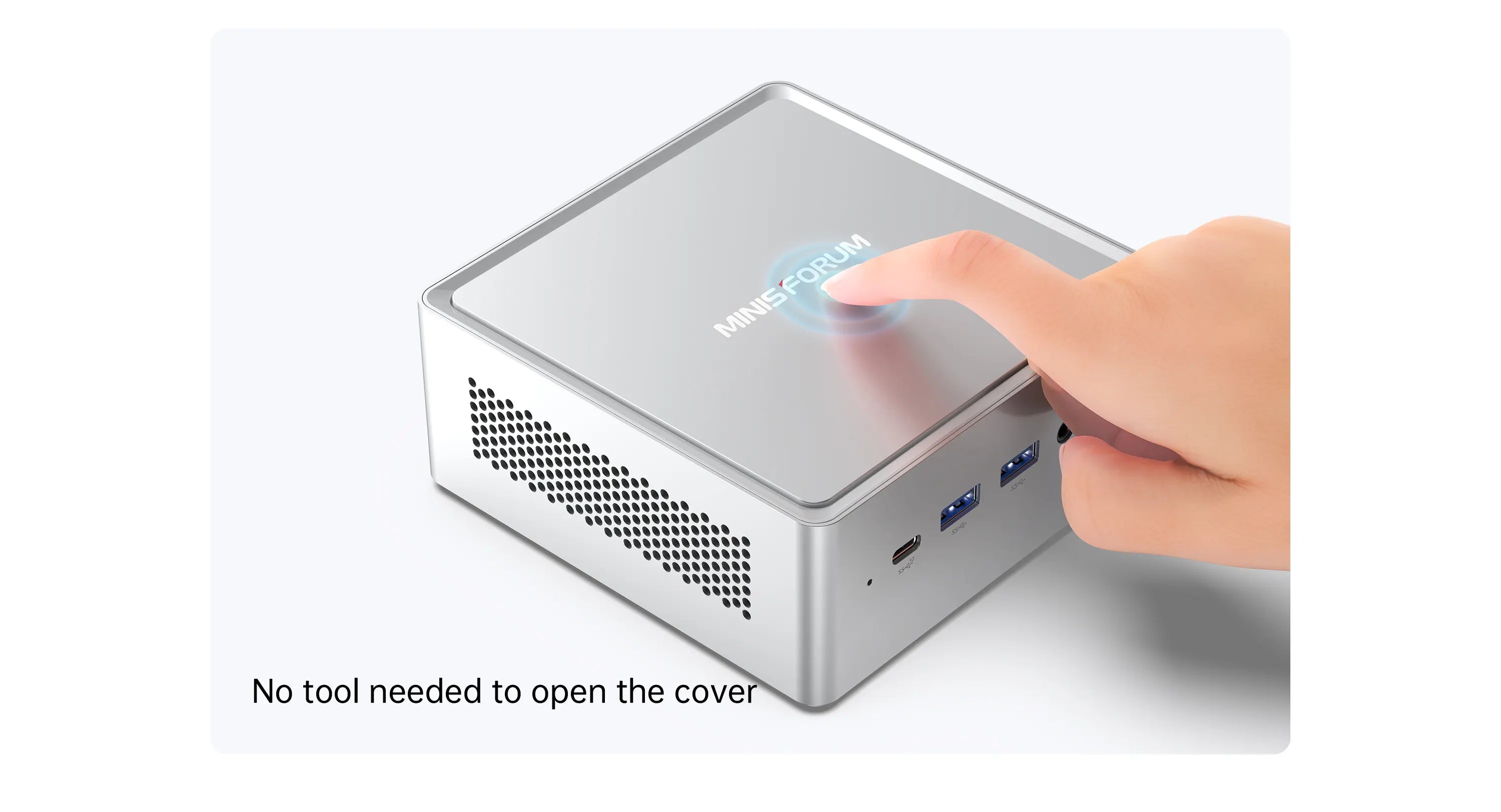

Easy to Upgrade
To upgrade the firmware, you only need to press and open the top cover.

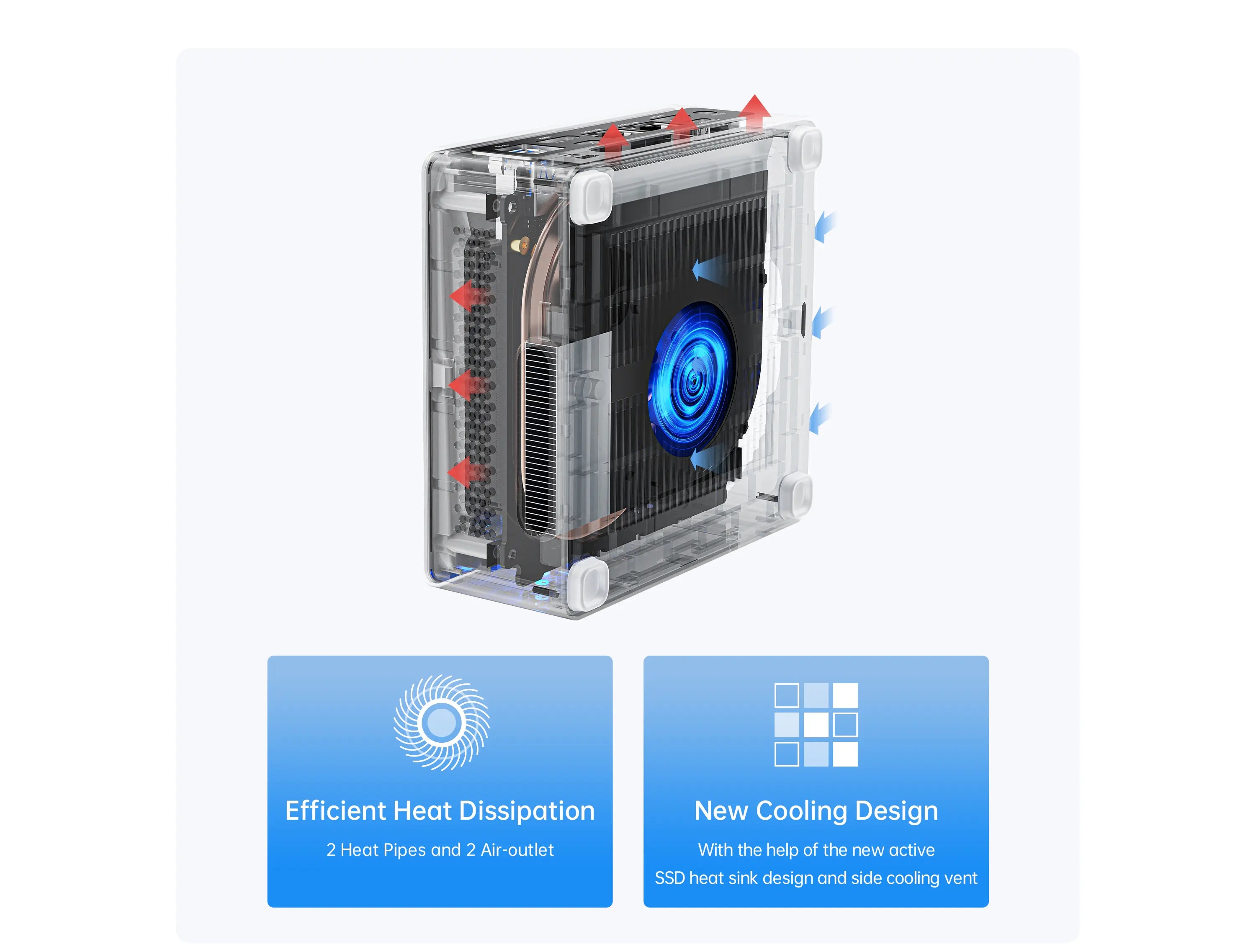

New Thermal System

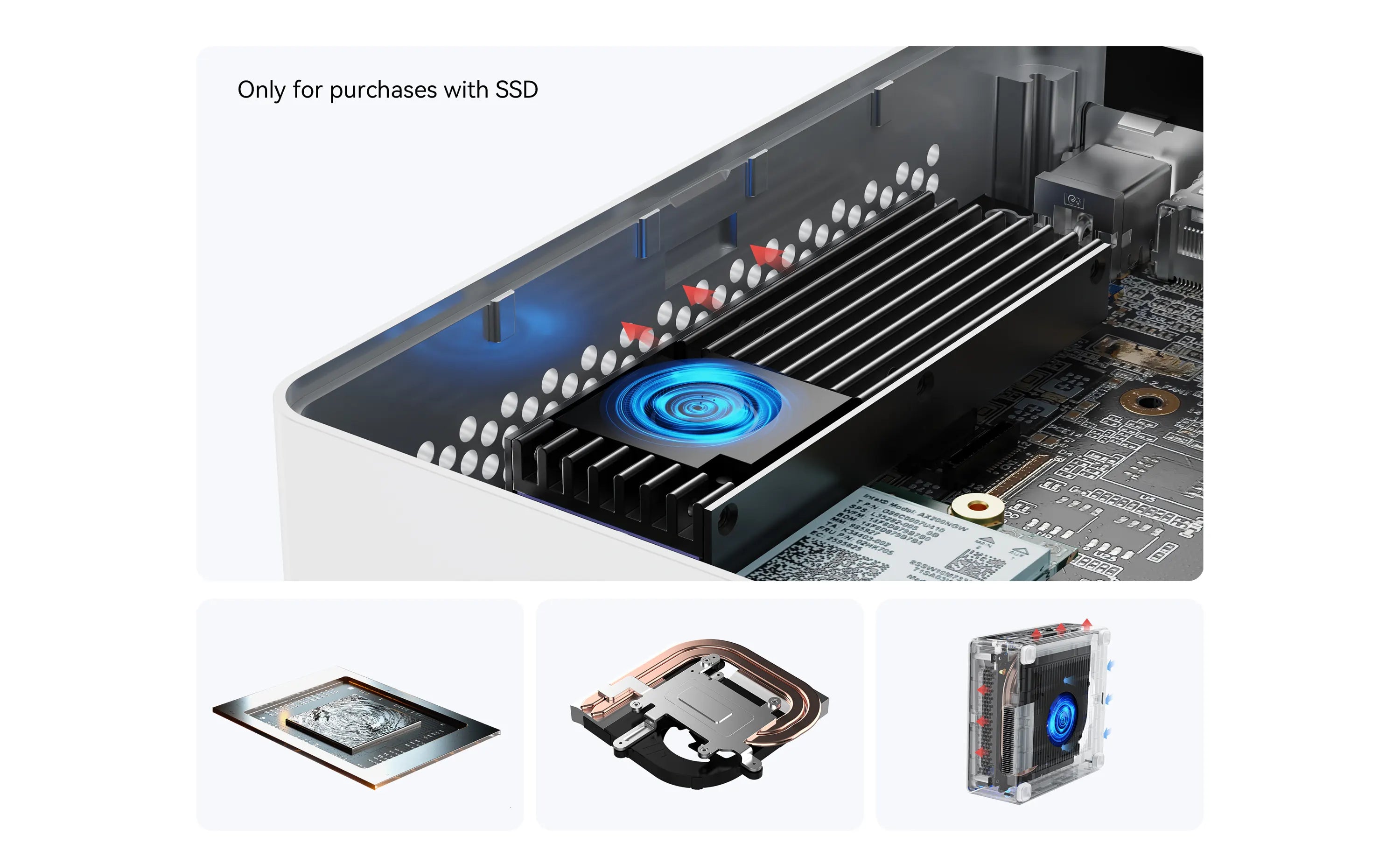

The PCIe4.0 SSD is equipped with an efficient SSD cooler to improve the thermal performance.
The cooler quickly dissipate heat through the side panel and keep the temperature reasonable.

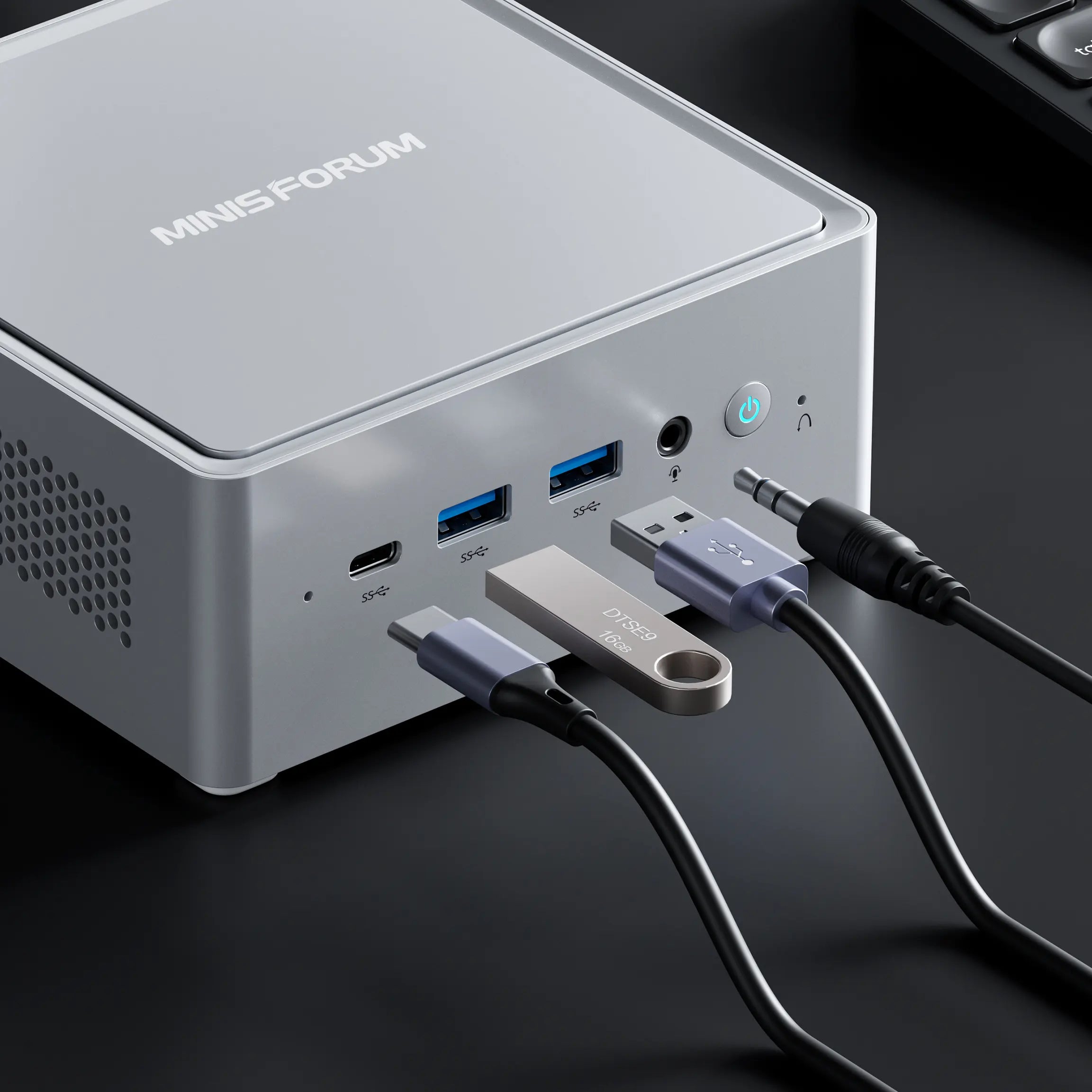

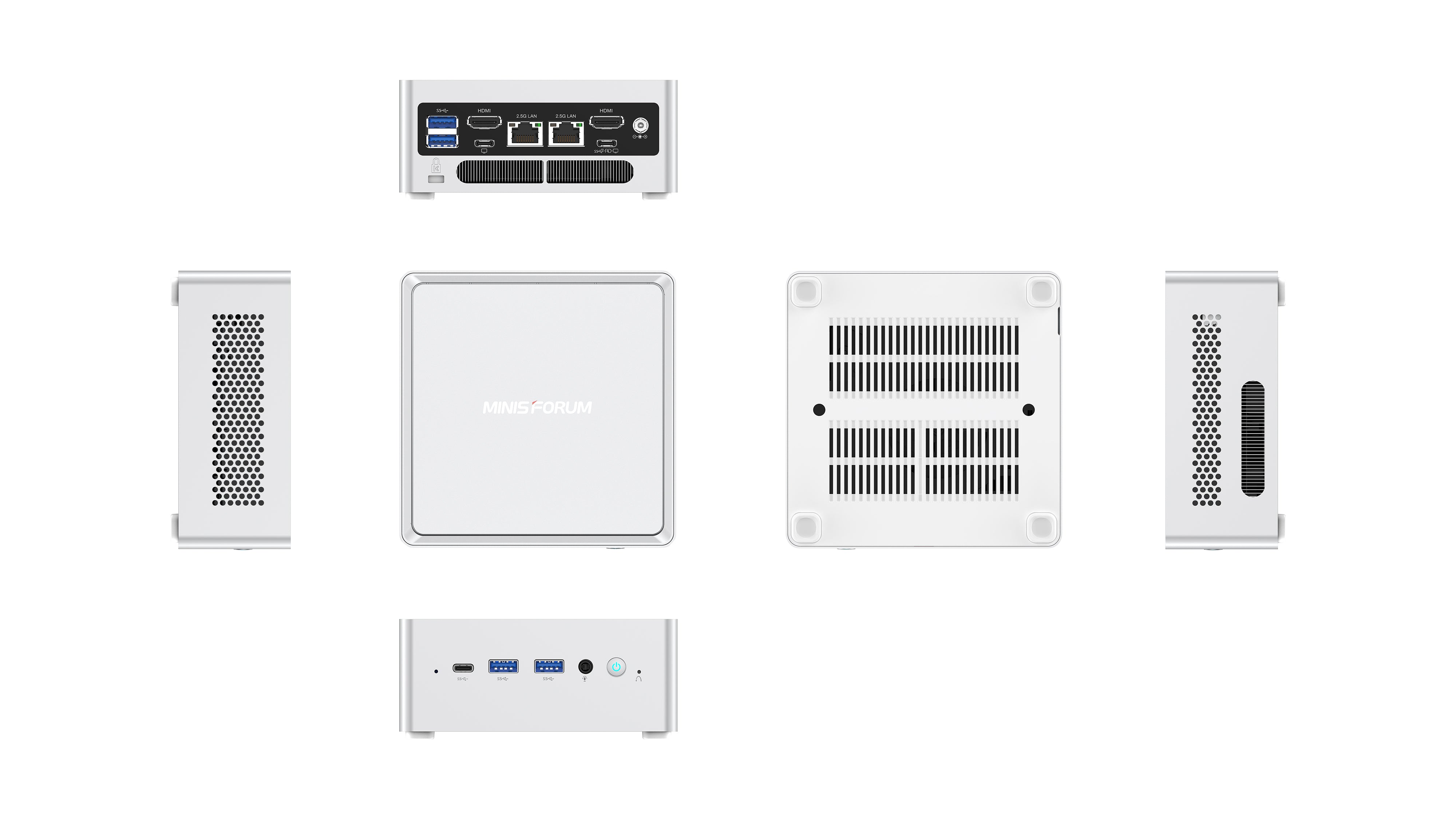

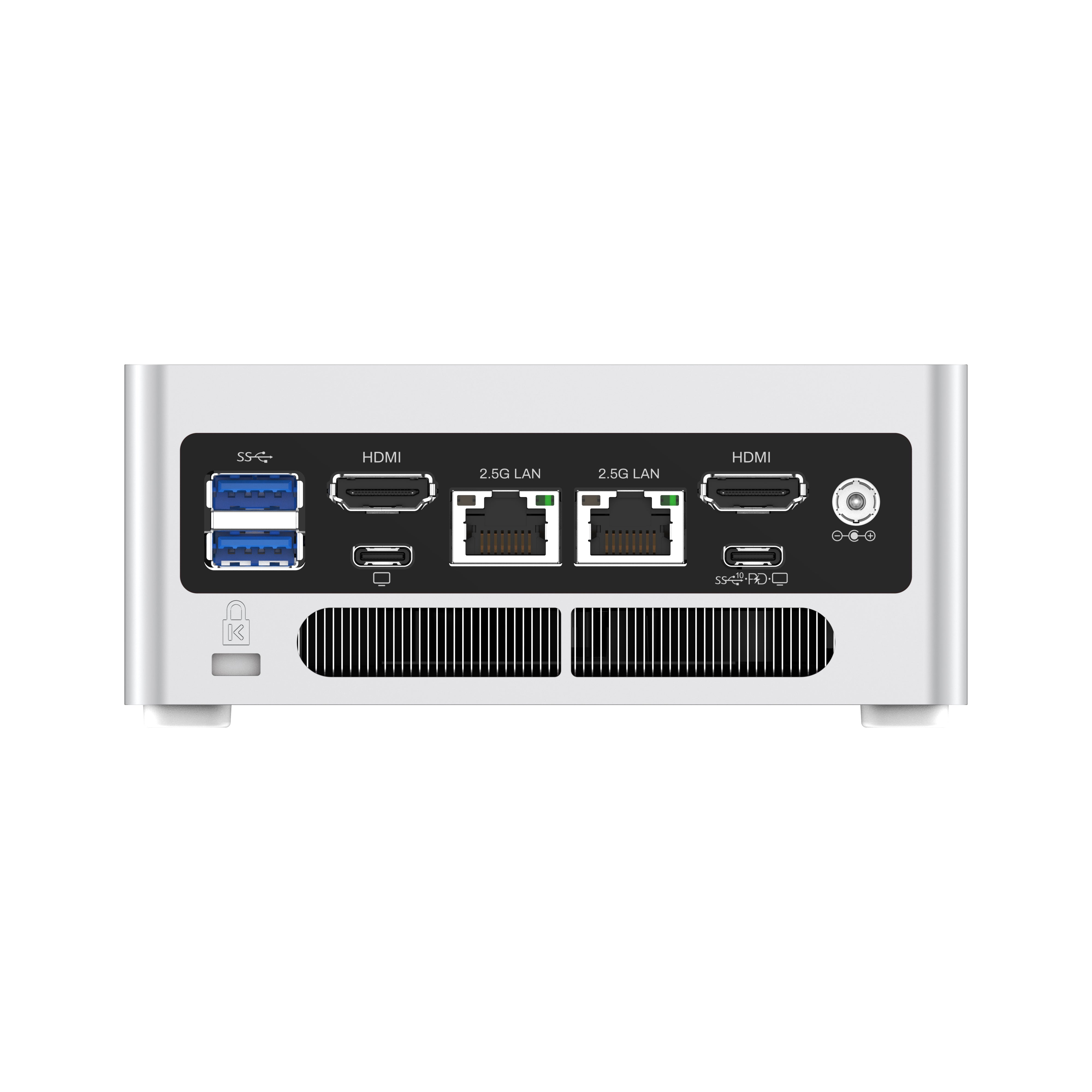

Packed of I/O
The NAB6 Lite packs three USB3.2 ports, three USB-C ports, two HDMI ports and two 2.5Gbps ethernet ports into its tiny body.
The USB-C port supports 4K@60Hz displays, 5V3A power delivery and fast data transfer.
Packed of I/O

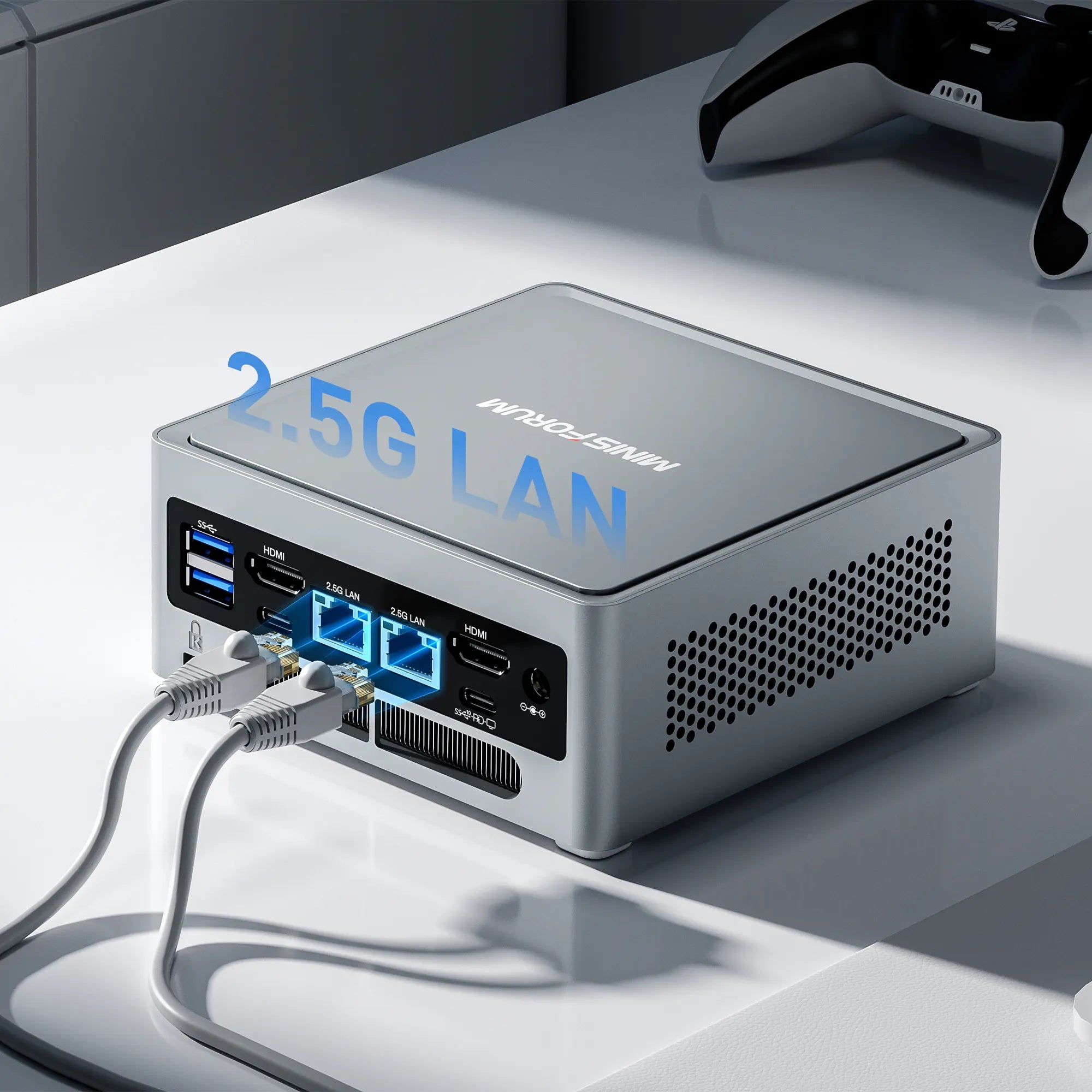

2.5 Gbps Ethernet Ports × 2
Quad 4K@60Hz Display
5V3A Power Delivery
Specification
Minisforum NAB6 LITE
Intel® Core™ i5-12600H Processor, 12 Cores / 16 Threads
(18M Cache, up to 4.50 GHz)
Intel® Iris® Xe Graphics
DDR4 8GB×2 Dual channel
(SODIMM Slots×2, up to 64GB)
M.2 2280 PCIe4.0 SSD
(Up to 2TB)
2.5 inch SATA HDD Slot ×1
(SATA 3.0 6.0Gb/s)
M.2 2230 WIFI Support
(Wi-Fi,BlueTooth 5.2)

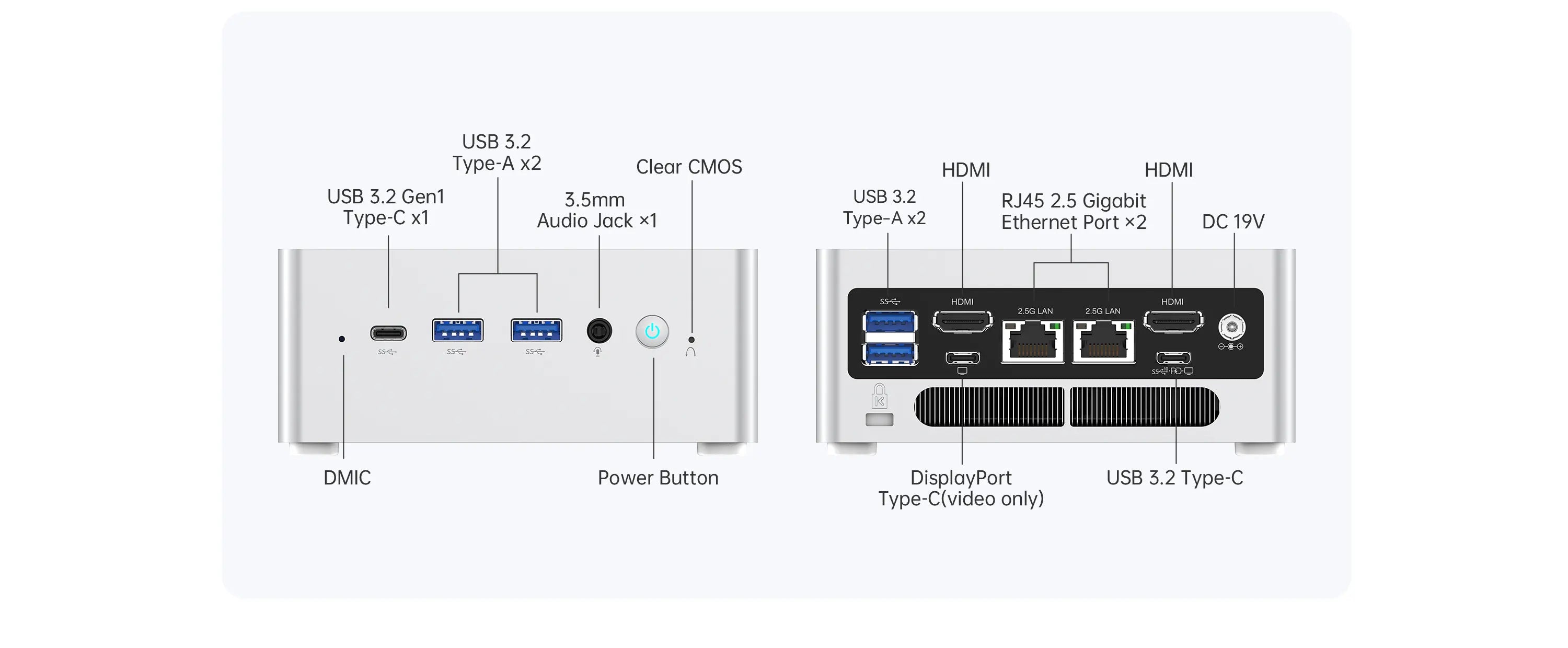

- HDMI ×2
- USB-C ×2
- (4K@60Hz)
- (4K@60Hz)
- HDMI ×2
- 3.5mm Combo Jack ×1
- RJ45 2.5 Gigabit Ethernet Port ×2
- USB3.2 Gen1 Type-C ×1(Data Only, In Front)
- USB3.2 Type-C ×1(DP Only)
- USB3.2 Type-C ×1(Alt DP and Data and PD Out)
- USB3.2 Gen2 Type-A ×4
- HDMI ×2
- DMIC ×1
- 3.5mm Combo Jack ×1
- Clear CMOS ×1
DC 19V (Adapter Included)
Windows 11
127*125*54.7 mm
1.65 KG
FAQ
Please feel free to contact us if you have any questions: uk@minisforum.com
1.Brand of SSD and RAM in the NAB6 LITE?
We purchase essential hardware from different brands based on the same technical specifications, including SSDs, Wi-Fi cards, RAM, HDDs, power supplies, etc. Due to the limited resources and brands of RAM and SSD, we choose Samsung, Kingston, Crucial, Adata, Phison, etc. as our RAM and SSD suppliers.
Each piece of hardware has passed a strict quality inspection and met the factory's standards before it is delivered to Minisforum. In addition, there is no difference in the warranty policies of these hardware suppliers.
The hardware brands may vary from batch to batch. Please rest assured that they all meet Minisforum's standards and are all covered by the warranty.
2.Does NAB6 LITE have a heatsink for SSD?
The barebones version (without RAM and SSD) offers a heatpad for the SSD. Versions with SSD offers an active heatsink (with a fan) for the SSD.
3.What's the maximum resolution? How many monitors can be connected at the same time?
Up to four monitors can be connected at the same time with a maximum resolution of 8K@60Hz.
4.Can I use the USB-C port to power up the NAB6 LITE?
The USB-C Port on the NAB6 Lite can not be used as a power supply port.
Please use the DC 19V power supply.
5.Does the NAB6 LITE have pre-installed Windows?
Except for the barebones version, all versions come with Windows 11 pre-installed.
The barebones version does not include RAM and SSD; therefore, it does not have pre-installed Windows 11.
6.Does NAB6 LITE support eGPU?
The NAB6 LITE does not support eGPU.
