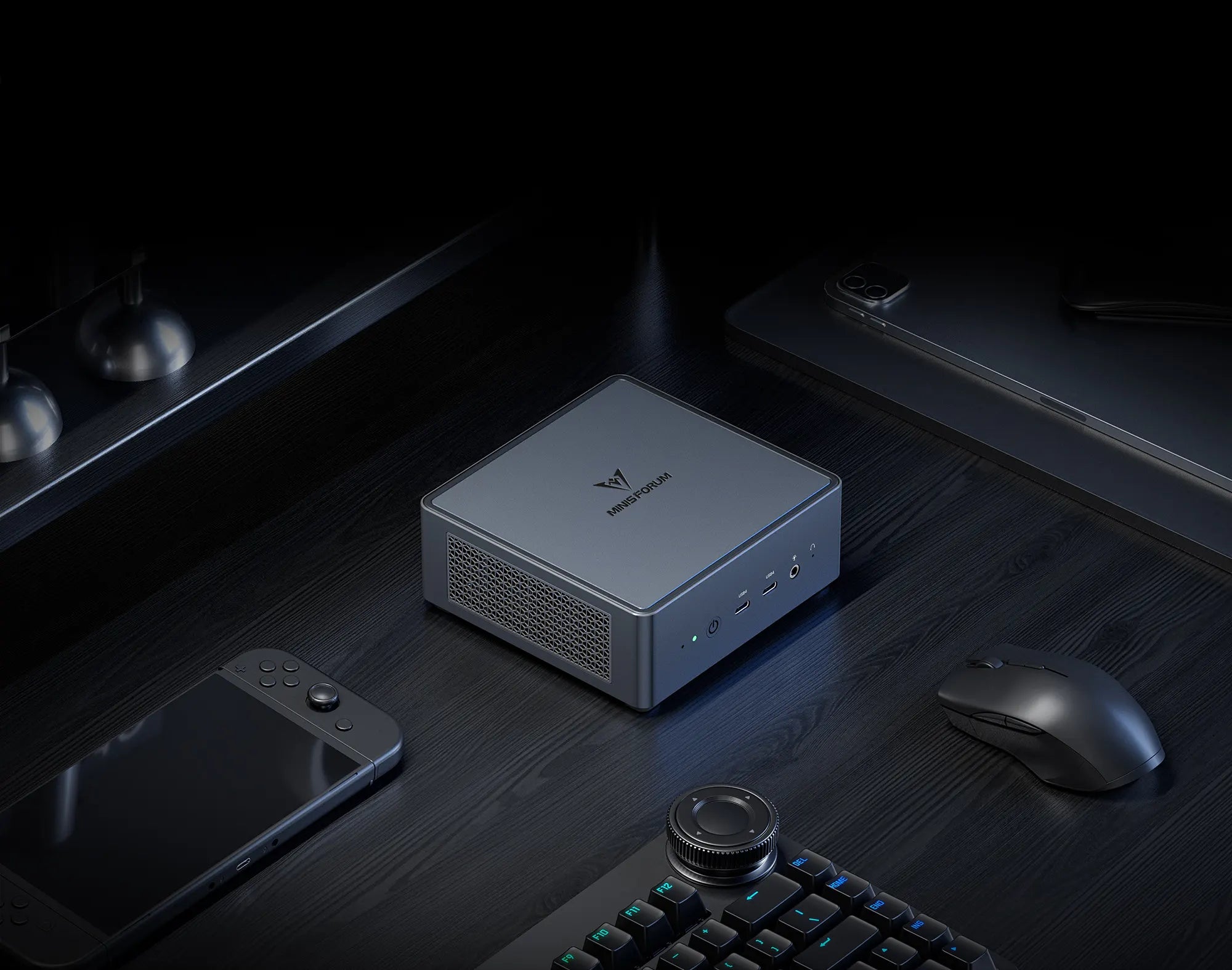

Minisforum UM790 Pro
Shipping calculated at checkout.
- AMD Ryzen™ 9 7940HS
- AMD Radeon™ 780M
- DDR5 Dual channel 5600Mhz
- Dual M.2 2280 PCIe4.0 SSD
- WIFI 6E & BT5.3 & 2.5G RJ45 Port
Deliverable Areas
30-Day Free Return
Duty-Free for UK
2-years Warranty
Benefits enjoyed by MINISFORUM customers
Deliverable Areas
›
Can be delivered for free to: United Kingdom and Ireland.
30-Day Free Return
›
Return to UK local warehouse.
Duty-Free for UK
›
Tax/duty included for eligible regions.
2-years Warranty
›
Our products come with a two-year warranty from delivery.
*The warranty period for the V3 is one year only.
Pay With Ease
Trusted Delivery

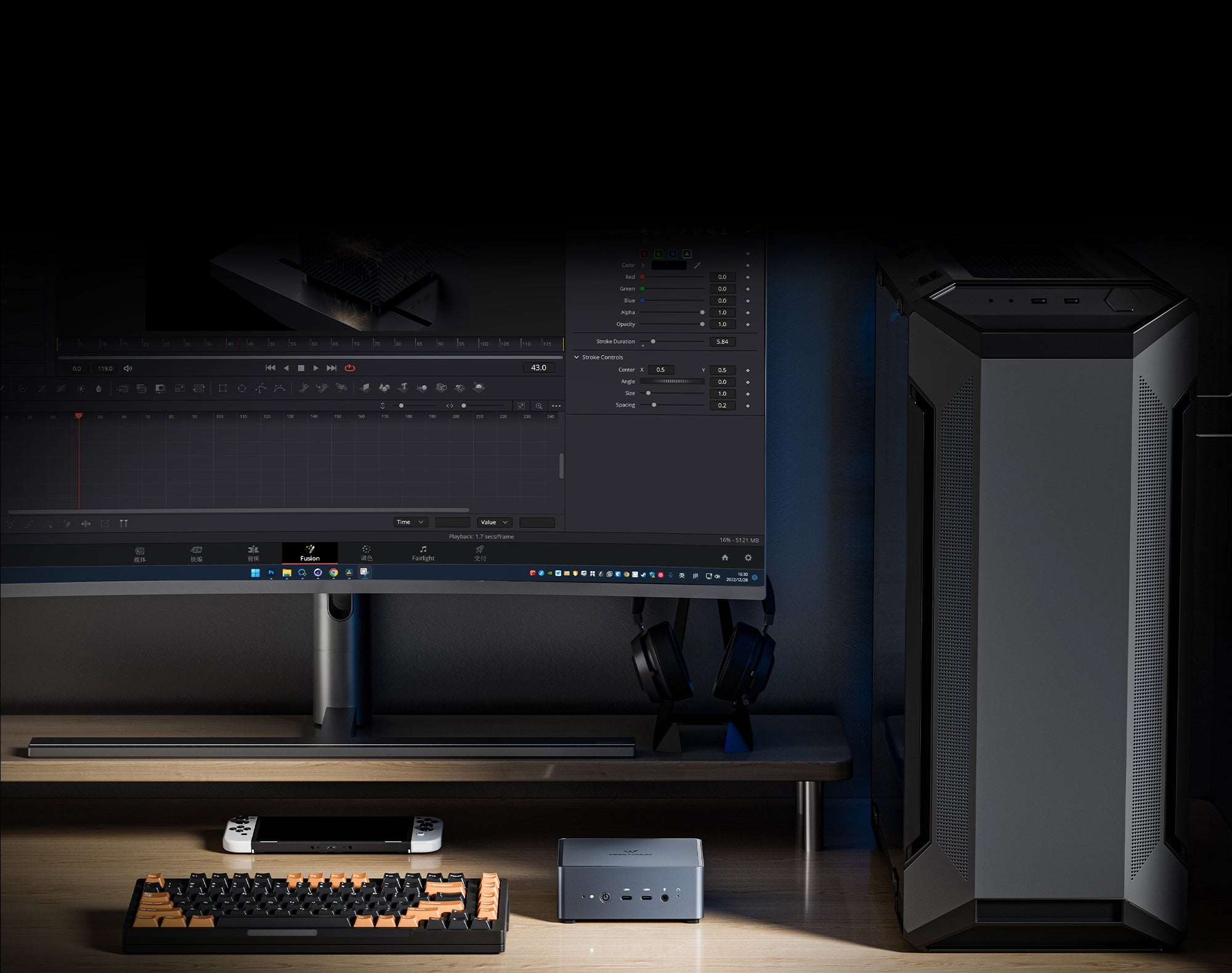

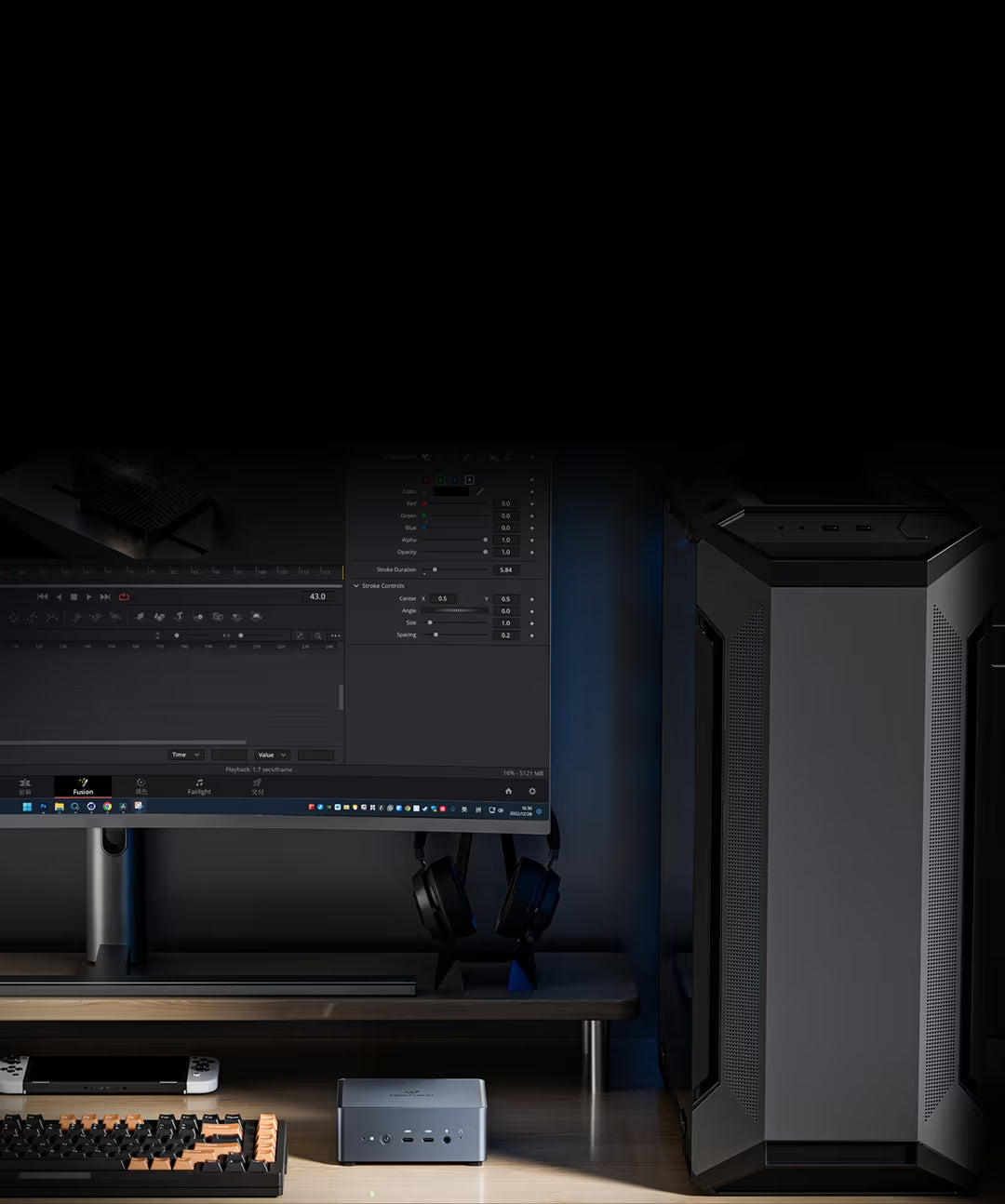

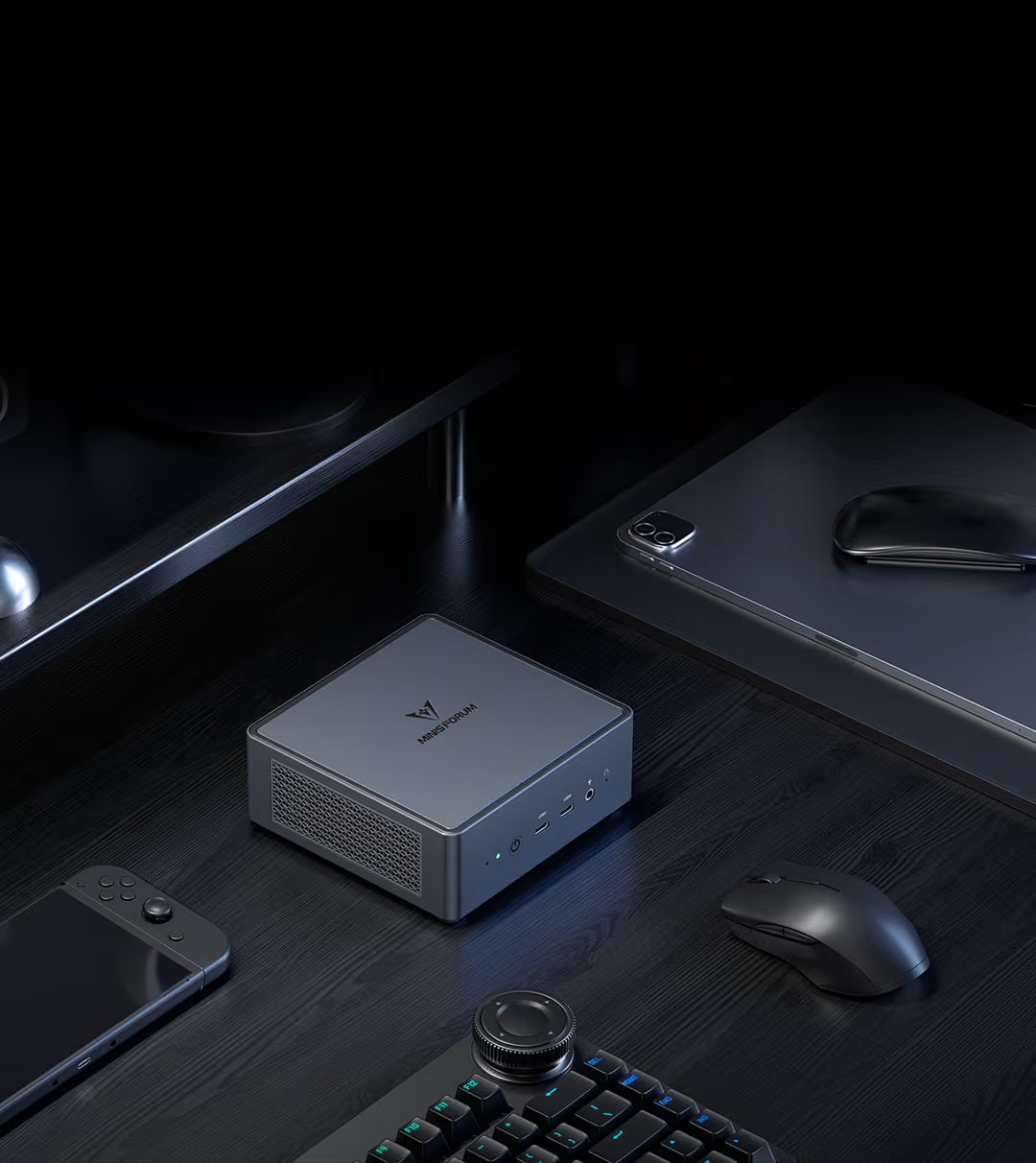

Free up Space
It frees up 40 times more space compared to a desktop computer.

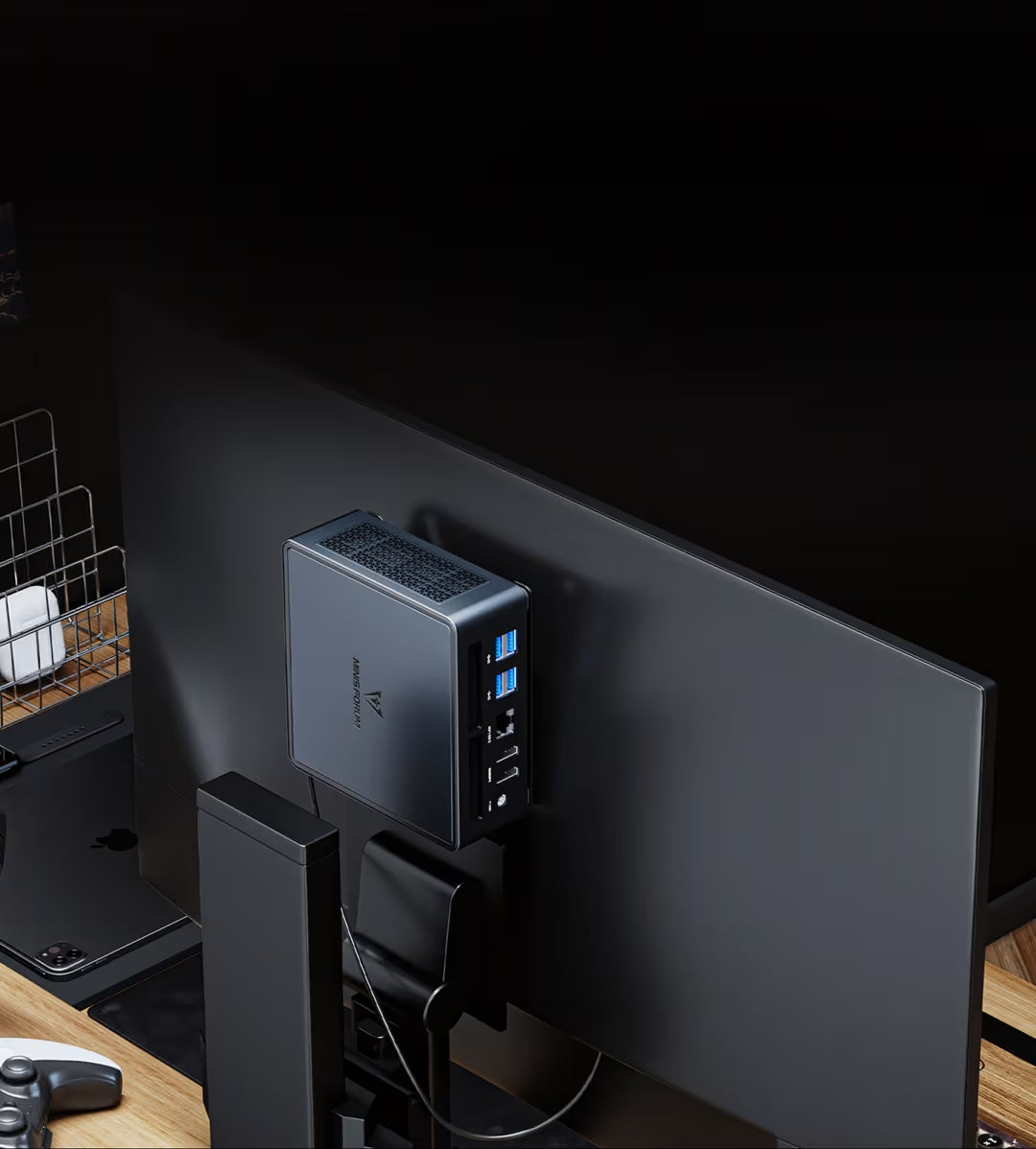

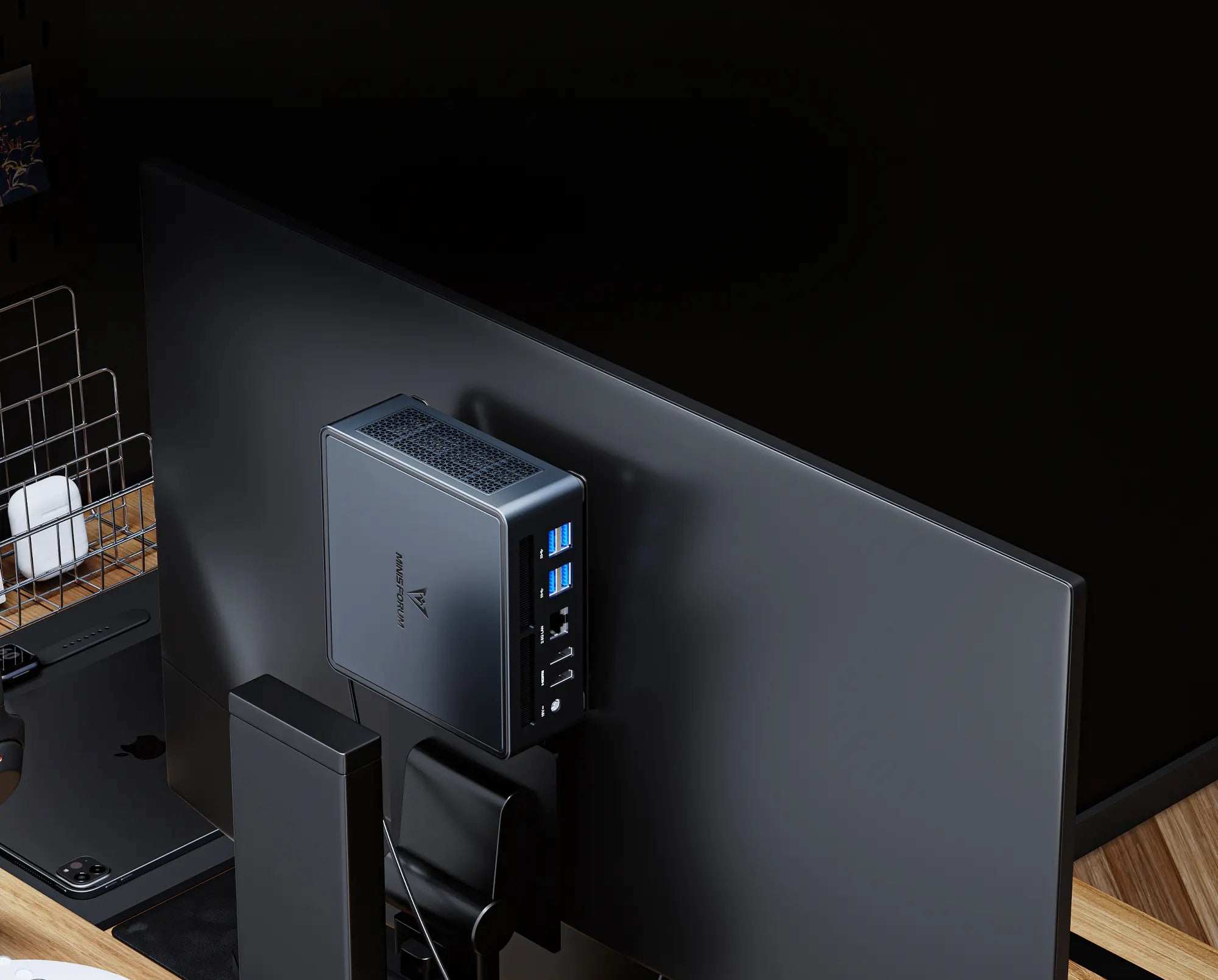

Support wall mounting and can be placed behind a monitor/TV to save desktop space.
Body enhances durability and provides better thermal performance.

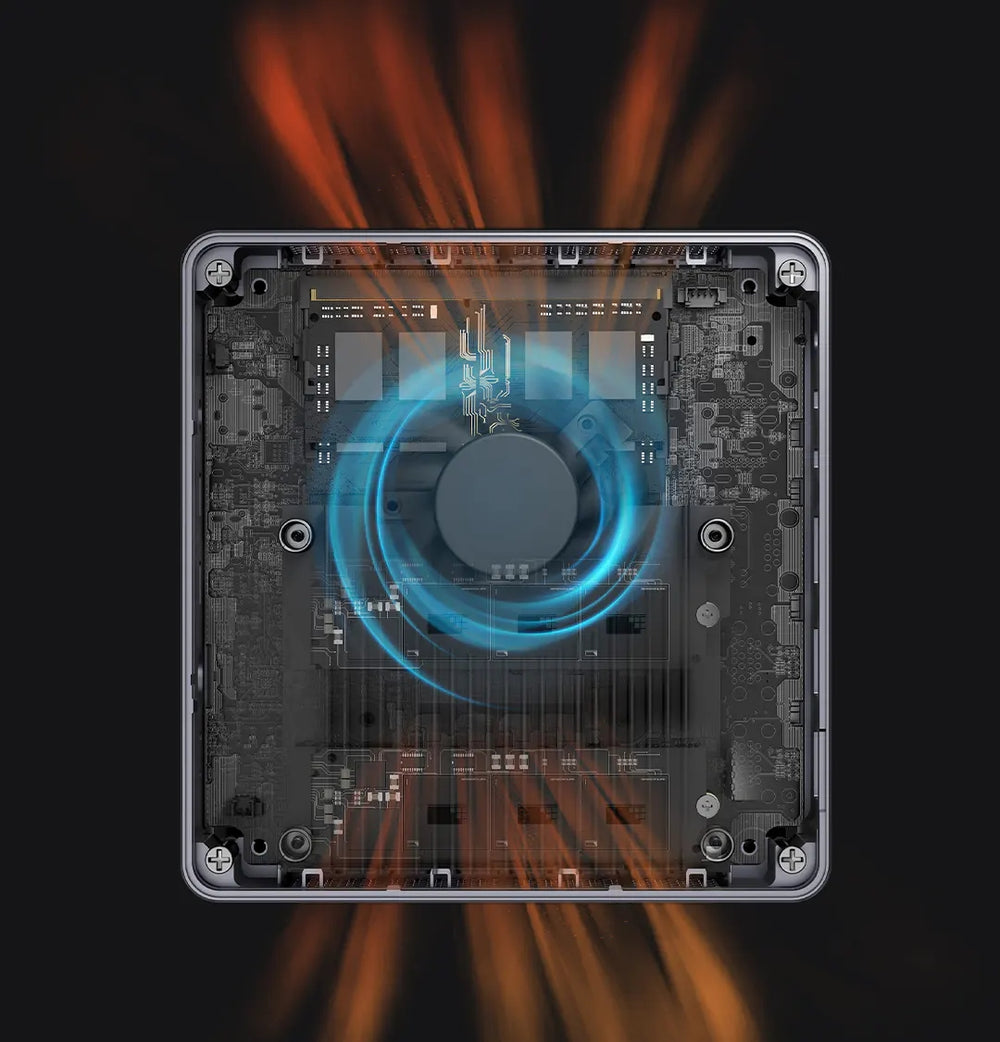

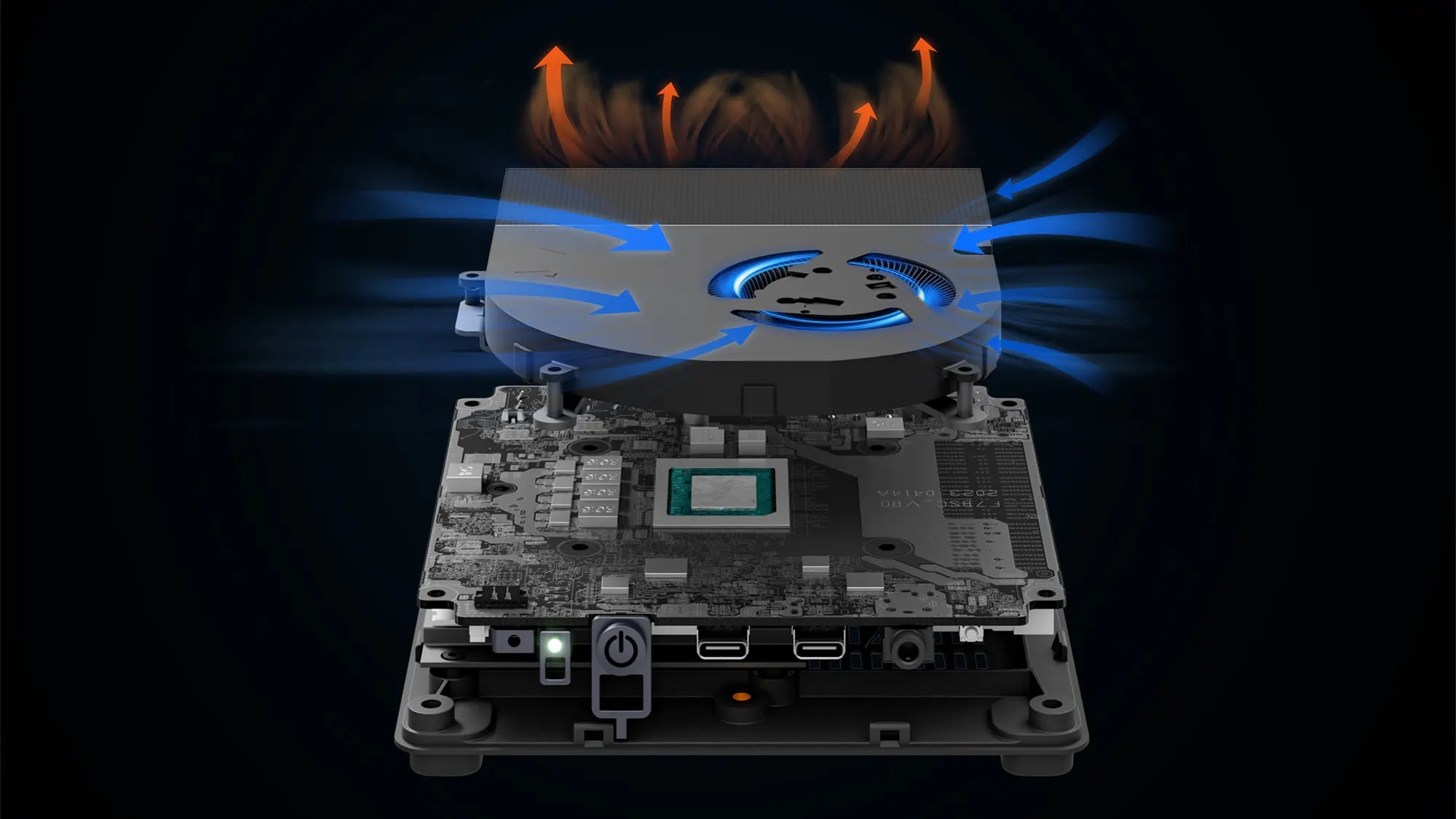

Cold Wave 2.0
The UM790 Pro adopts an innovative thermal system with liquid metal and active cooling for memory and SSD. The Cold Wave 2.0 offers better thermal performance under lower noise level; therefore, the UM790 Pro is able to leverage its processor, memory and SSD, and deliver amazing performance.
Active Memory and Hard Drive Cooling
Large heat sinks and slient fans provide long-lasting cooling and stable operation.
Unleash Space
One-cable Connection

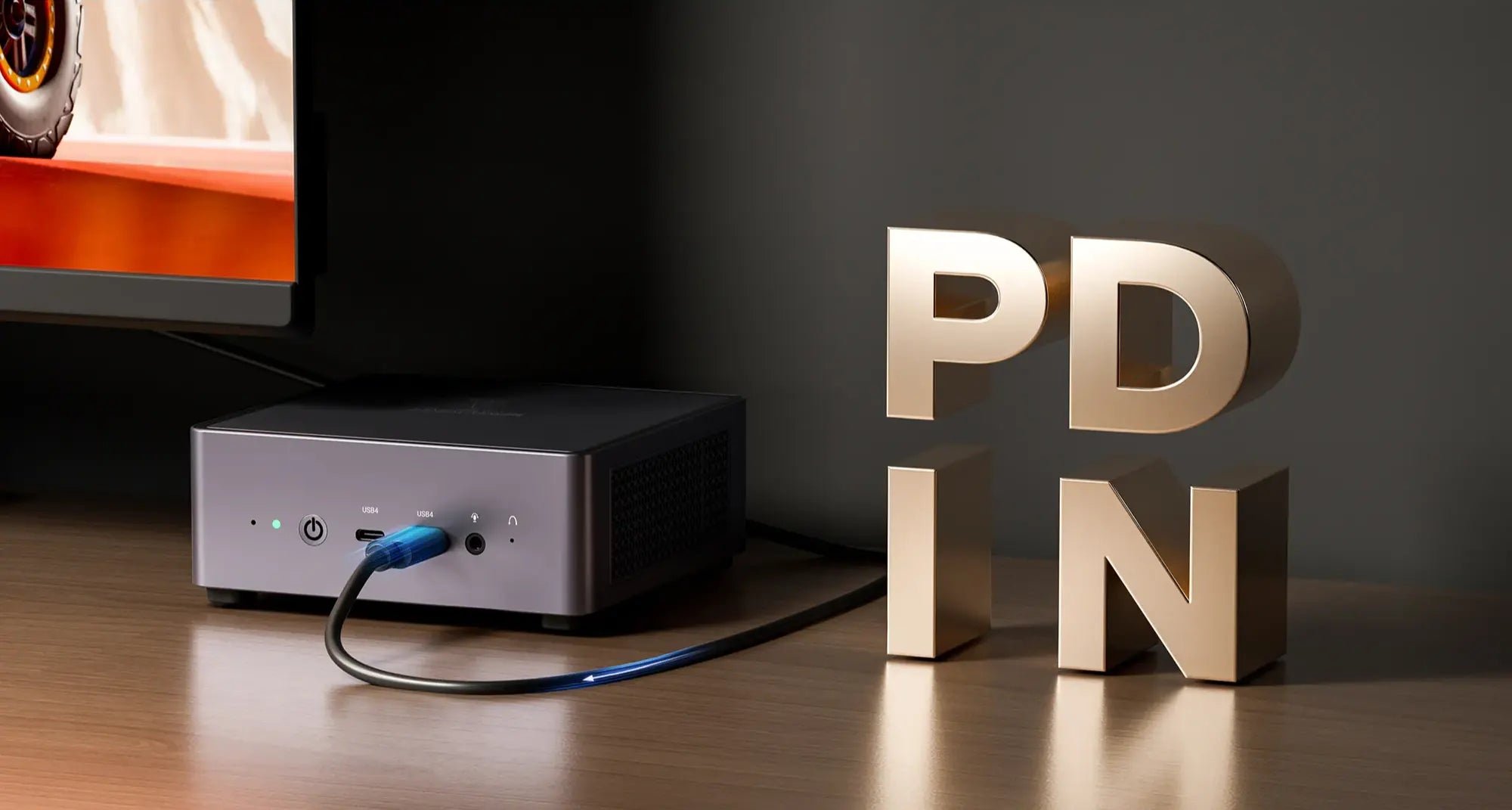

Support Power Delivery

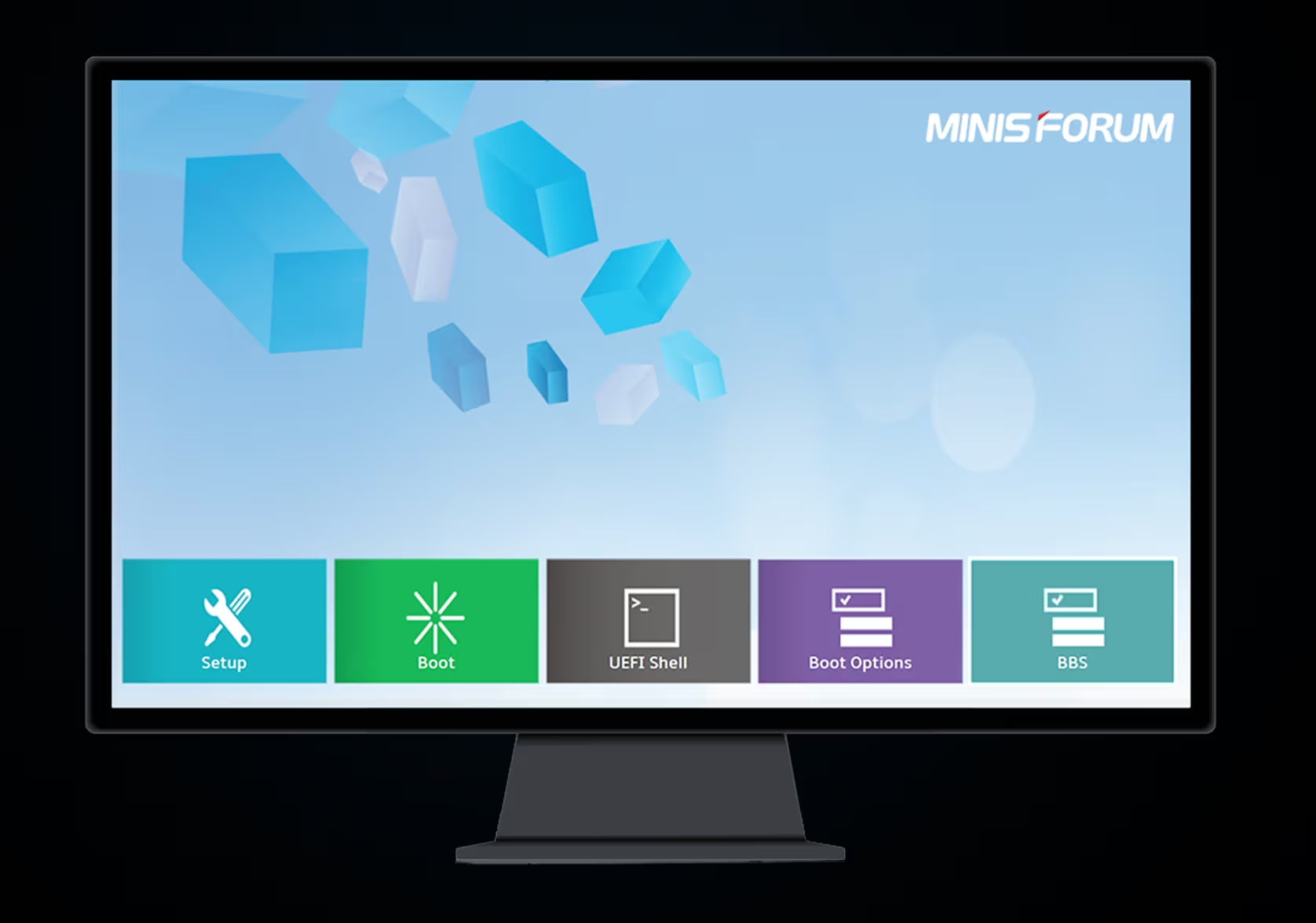

Graphical BIOS
Leading, Intuitive and User-friendly
Compared to the traditional BIOS, the graphical BIOS features a more user-friendly configuration interface. It also offers more comprehensive options, and more secure configuration management.

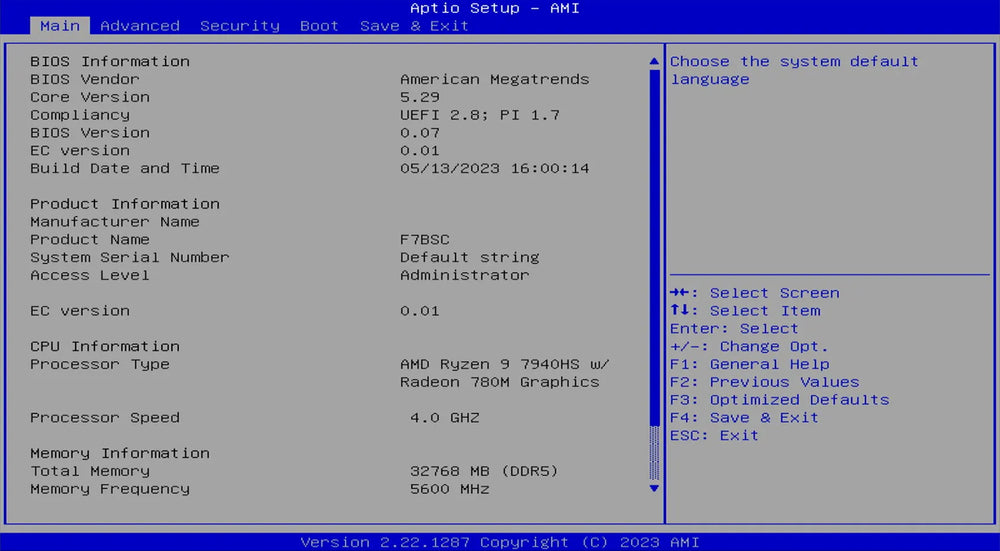

Traditional BIOS
Fast Internet Speeds - Intel® Killer™ AX1675 Wi-Fi 6E Network Card
Three Times Faster than Traditional Network Cards
It supports Wi-Fi 6E 2*2 160MHz with a maximum speed up to 2.4Gbps, and prevents lactency and dropouts.

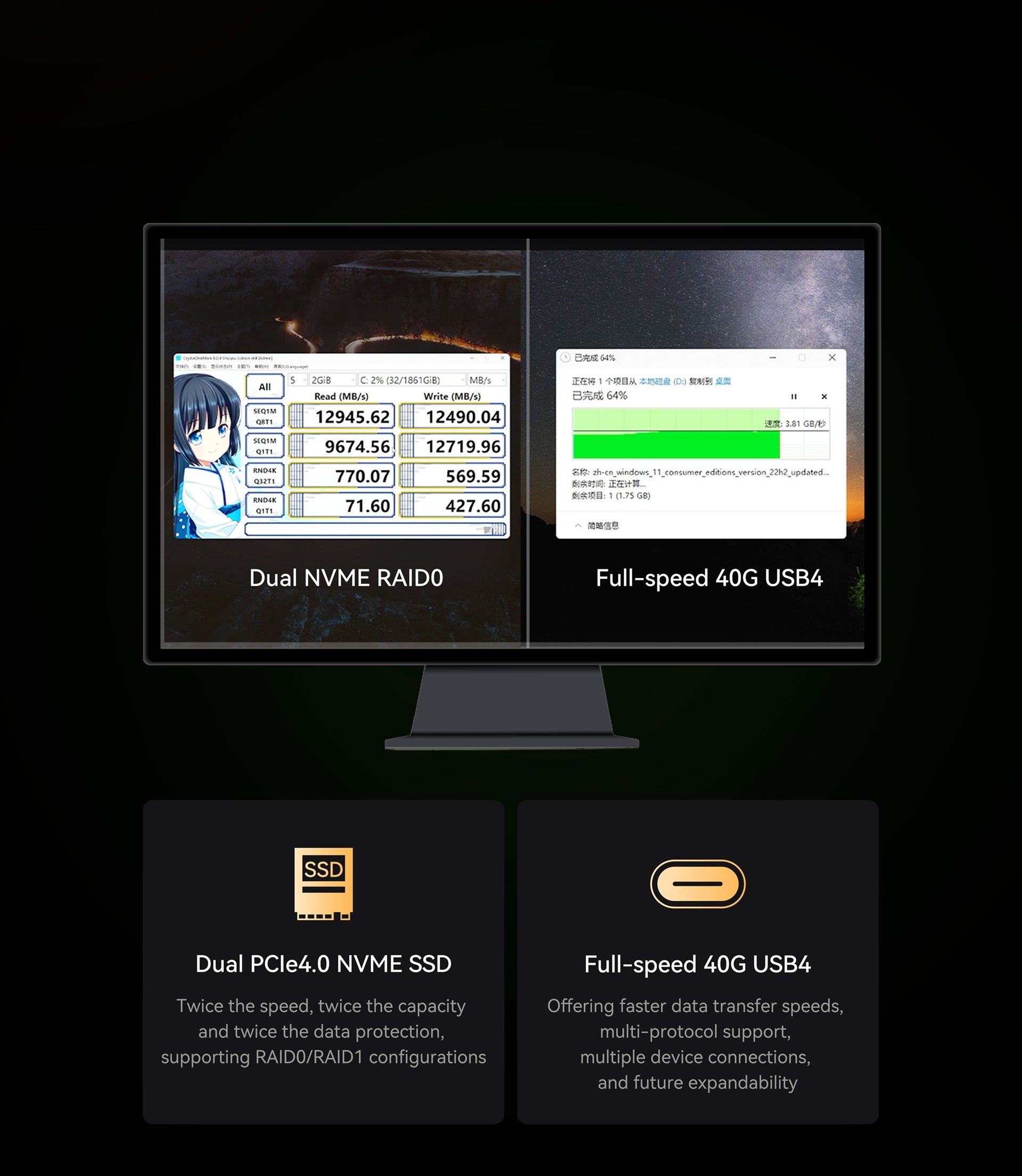

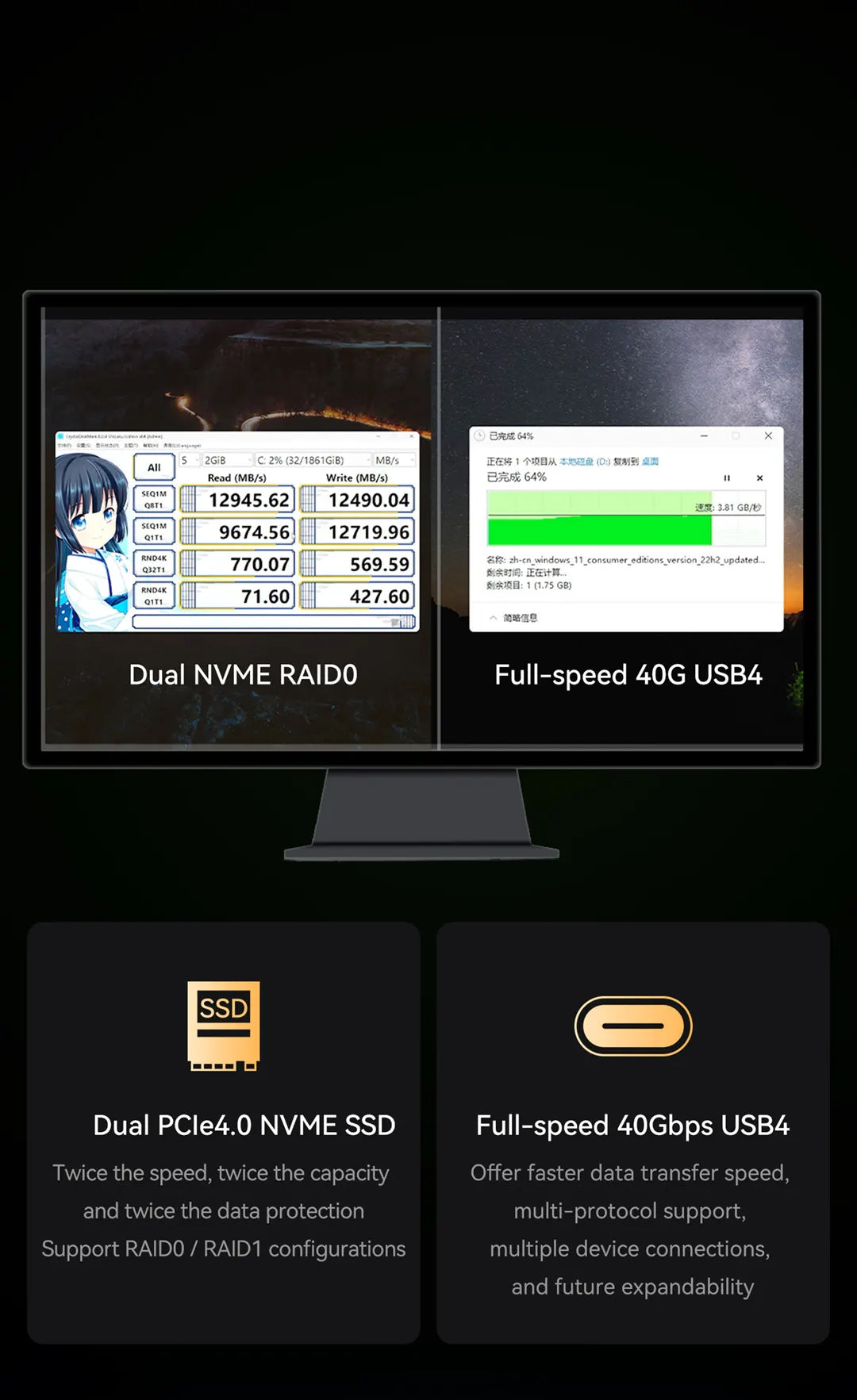

Dual PCIe4.0 SSD & Dual 40Gbps USB4

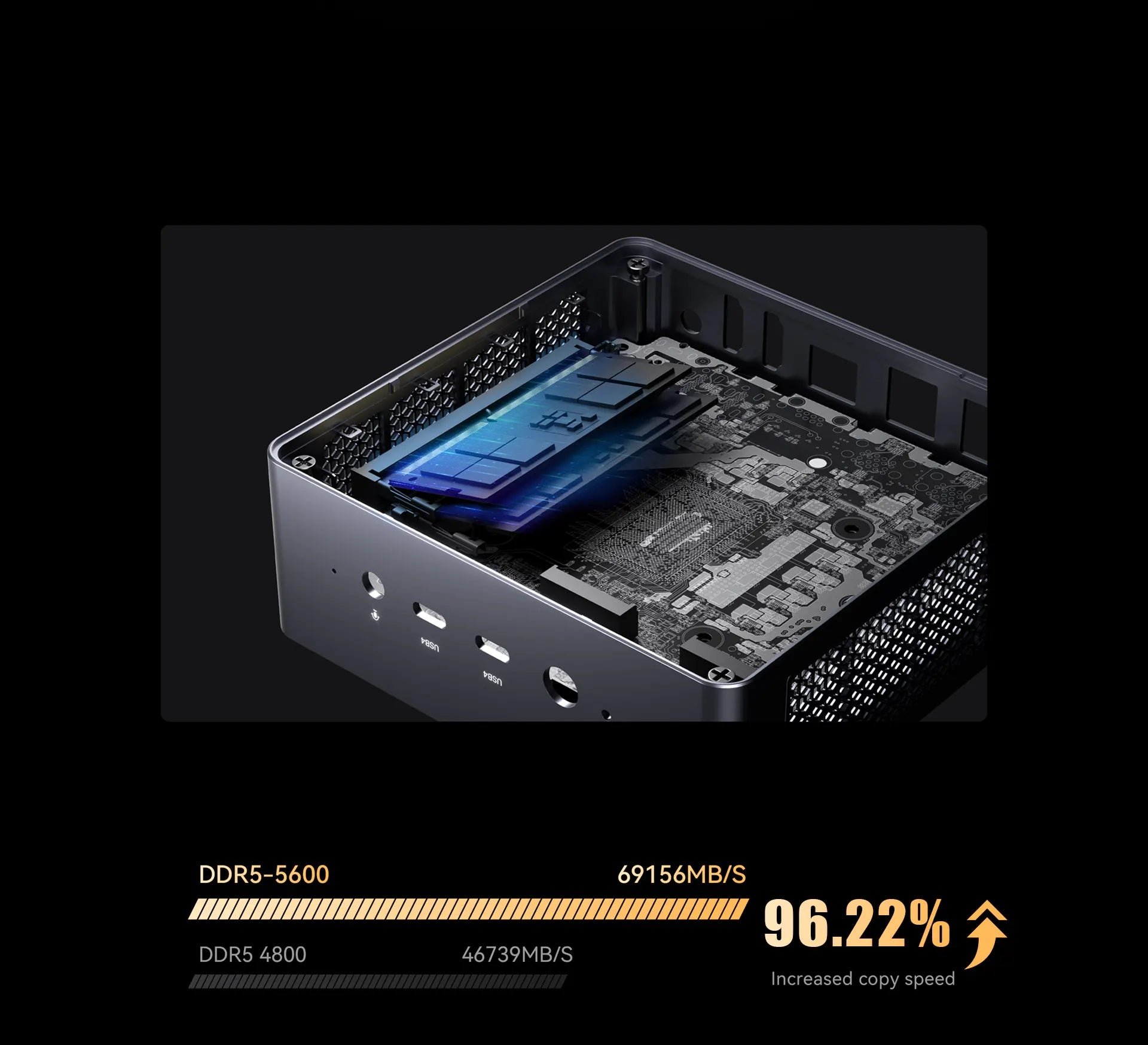

Supports up to 5600MHz

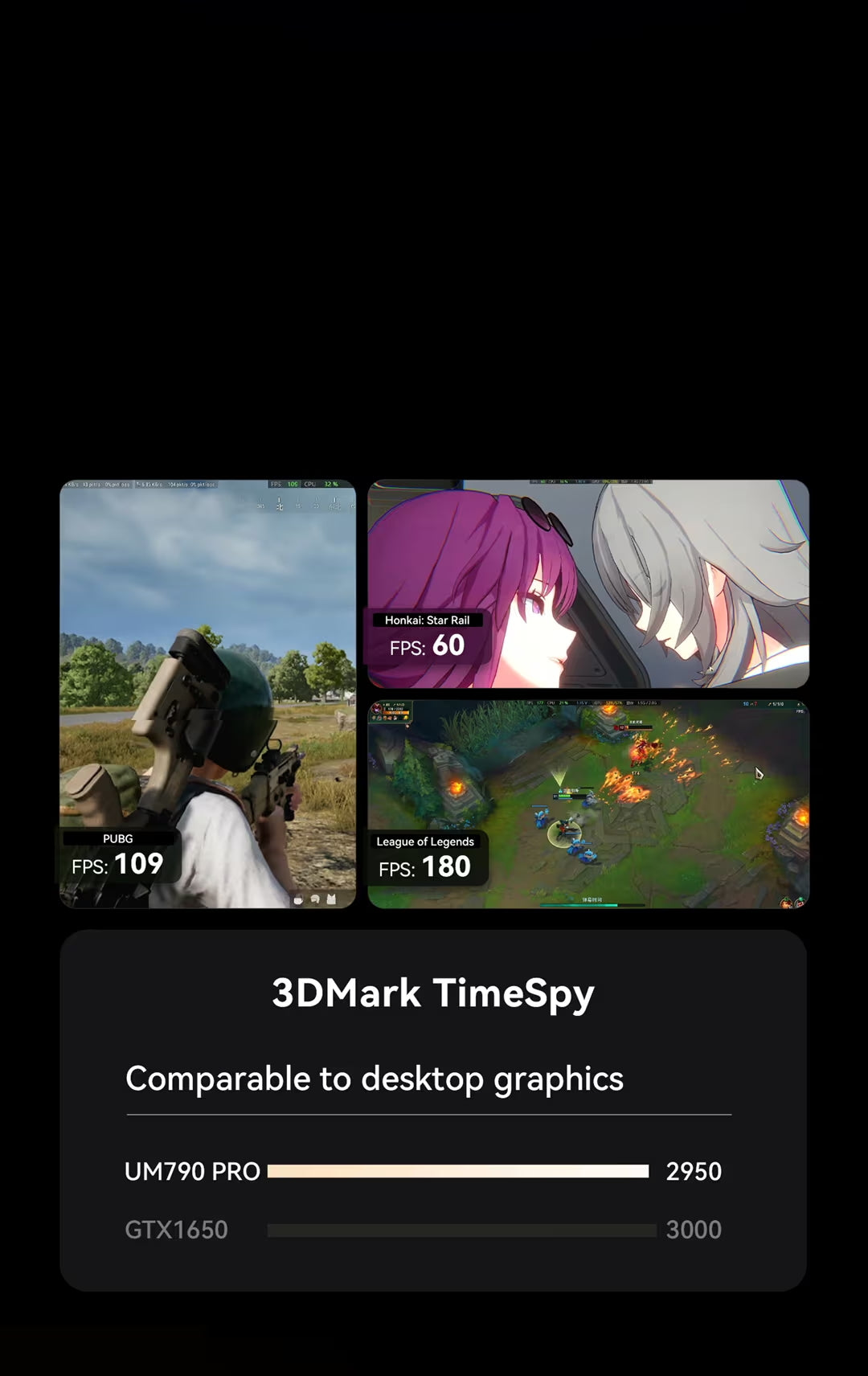

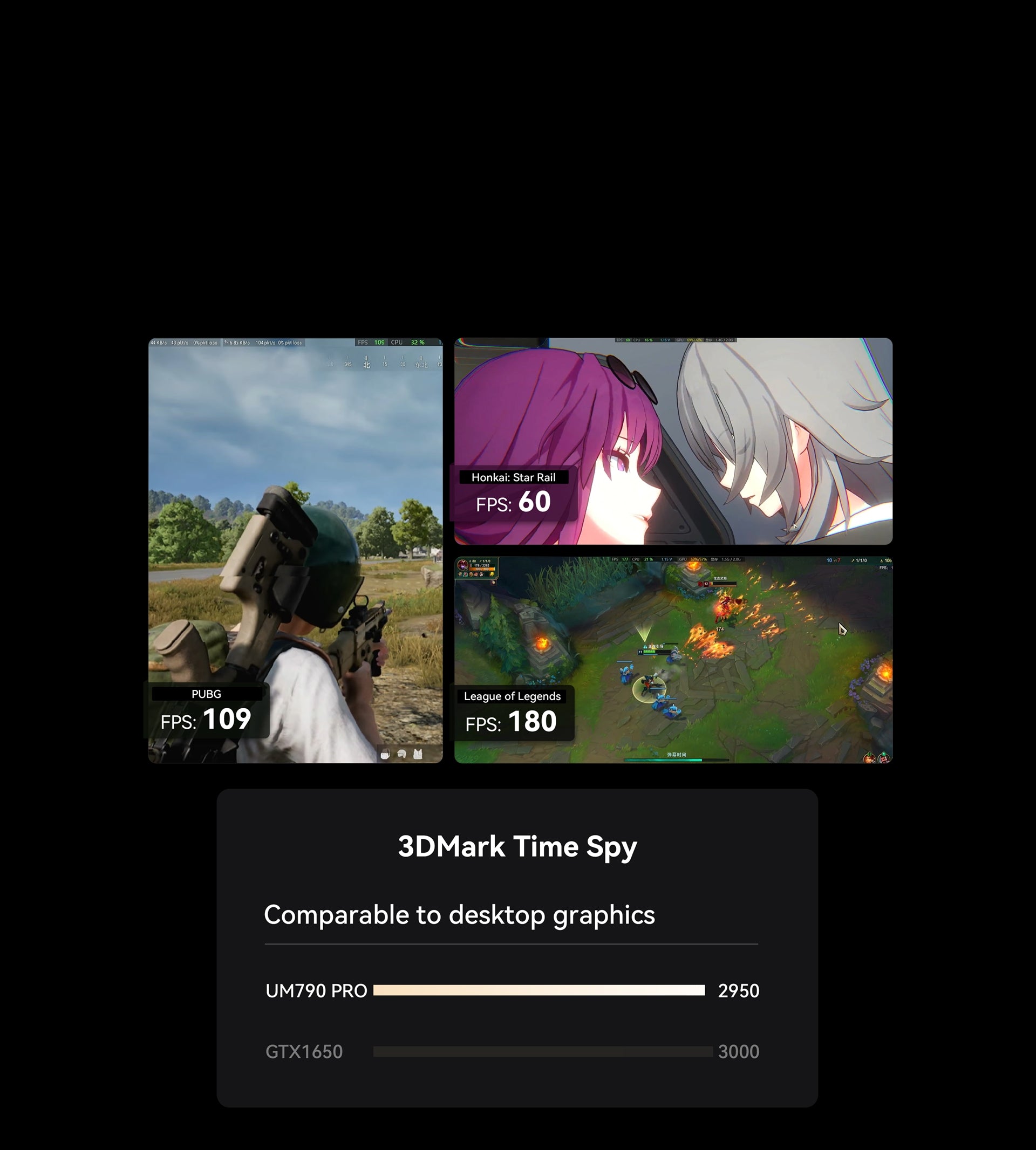

Shine Bright
The AMD Radeon™ 780M delivers competitive graphics performance even compared to desktop GPU.

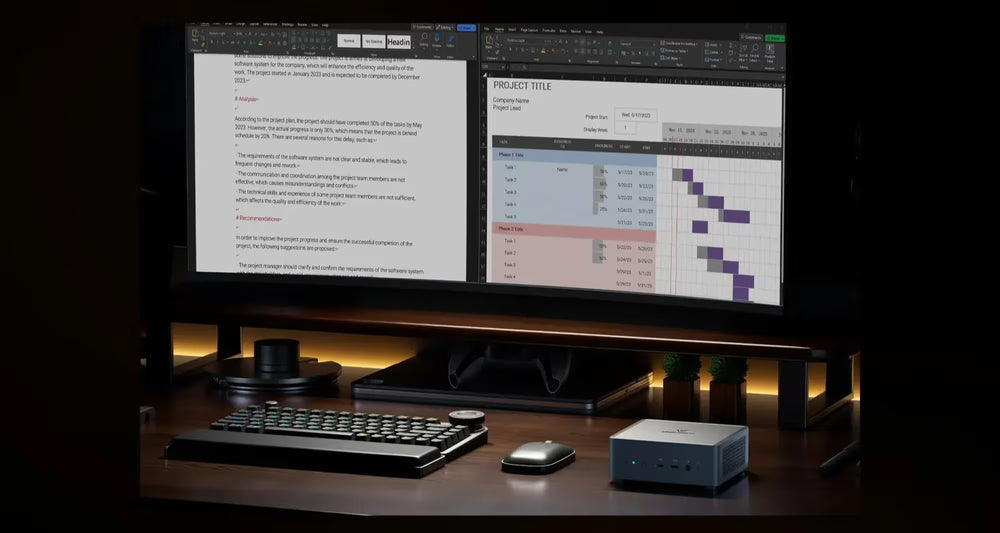

Boosted Productivity
The UM790 Pro guarantees a fast and stable operation of office software with its powerful CPU, high-speed memory and high-capacity SSD.

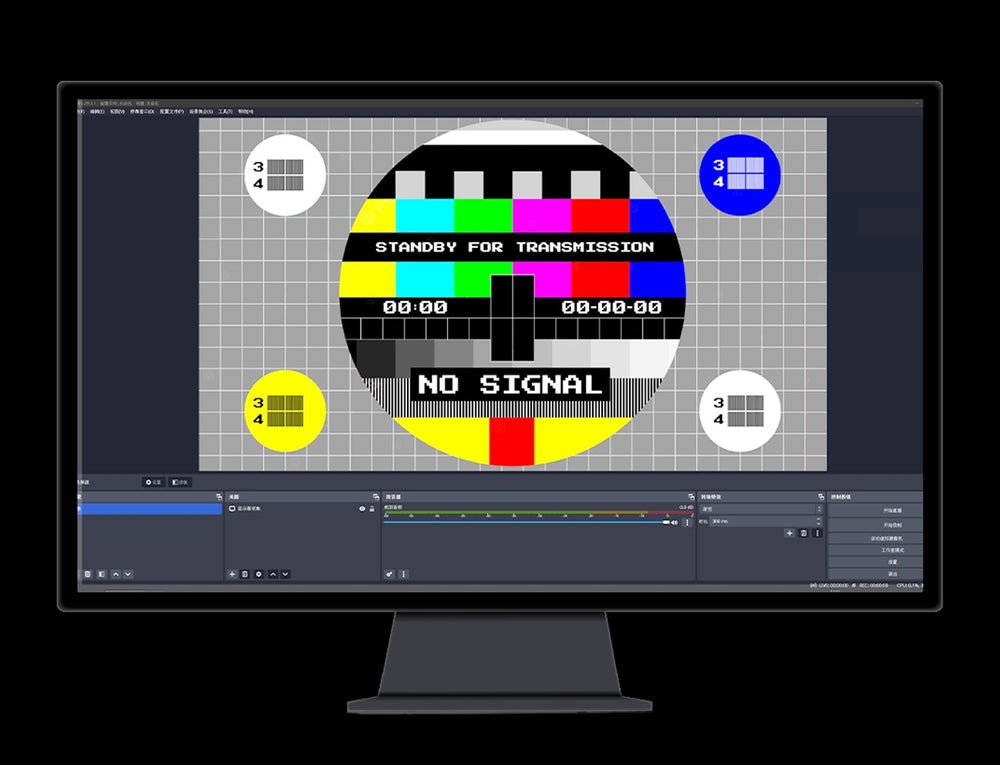

It also supports AV1 and H.265 video encoding/decoding, doubling video length in the same storage space.

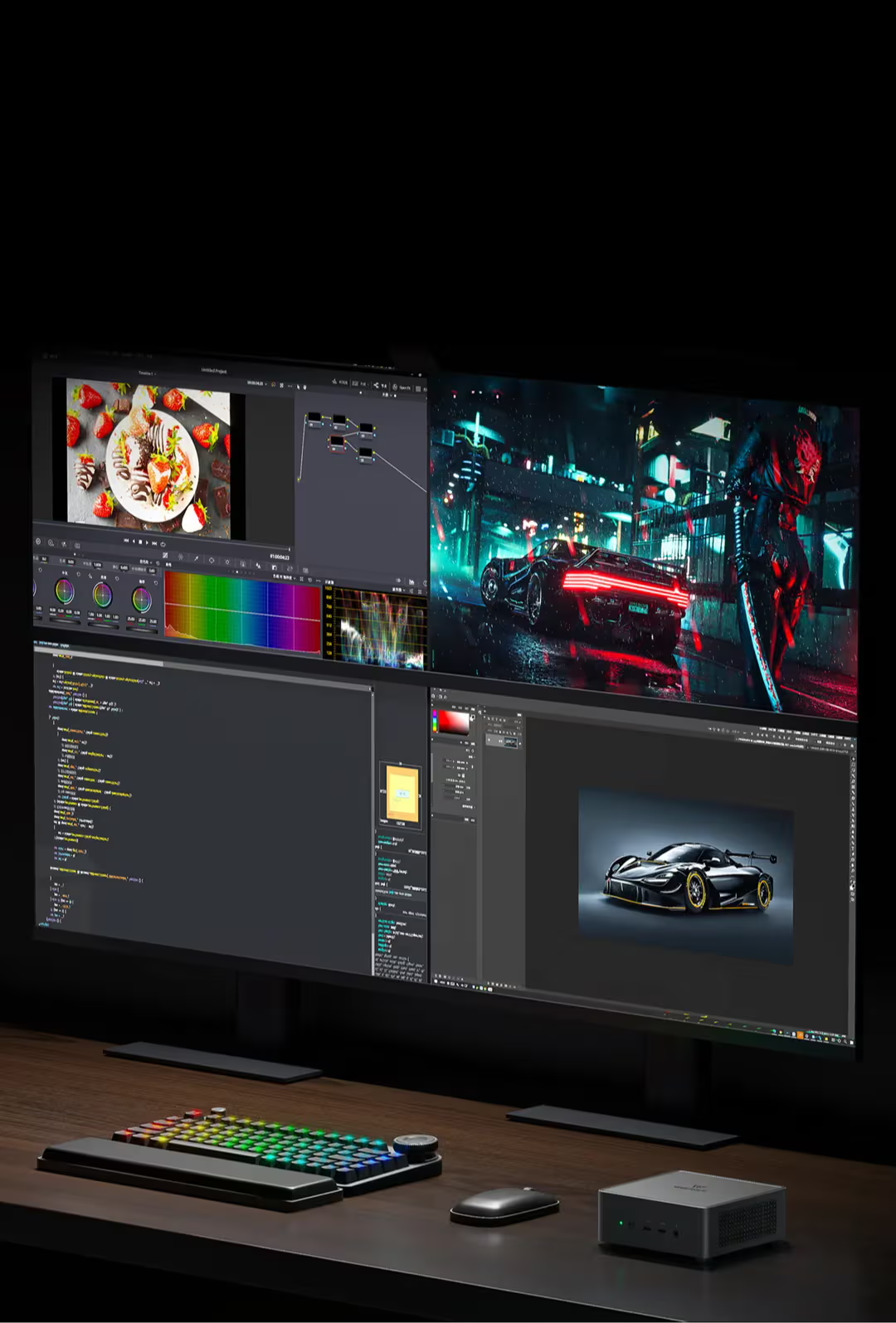

Four indenpendent displays with different contents provides a comfortable and relaxed experience.

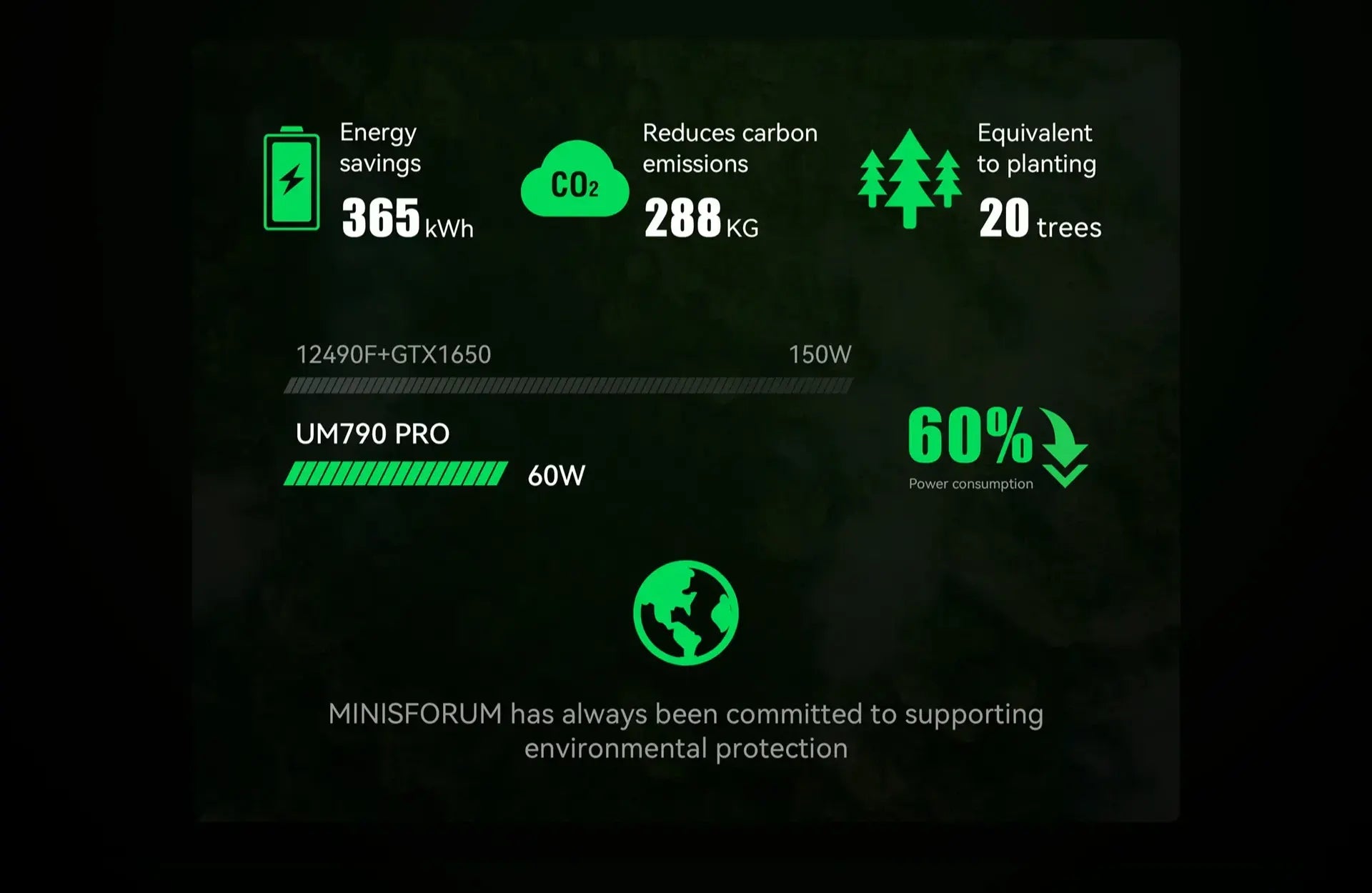

Power-saving and Energy-efficient
TSMC 4nm technology, power-saving and eco-friendly.
Specification
Minisforum UM790 Pro
AMD Ryzen™ 9 7940HS Processor, 8 Cores/16 Threads
(16M Cache, up to 5.2 GHz)
AMD Radeon™ 780M
DDR5 Dual channel
(SODIMM Slots×2, Up to 5600MHz, Max 64GB)
M.2 2280 PCIe4.0 SSD ×2
M.2 2230 WIFI Support
(Wi-Fi 6E, BlueTooth 5.3)
- HDMI 2.1 (4K@144Hz) ×2
- USB4 (8K@60Hz)×2
- HDMI 2.1 ×2
- Audio Jack ×1
- RJ45 2.5G Ethernet Port ×1
- USB3.2 Gen2 Type-A Port ×4
- USB4 Port ×2 (Alt PD)
- HDMI 2.1 ×2
- Audio Jack ×1
- DMIC ×1
- Clear CMOS ×1
DC 19V (Adapter Included)
Windows 11
130mm*126mm*52.3mm
- Mini PC ×1
- Power Adapter ×1
- Power Cord ×1
- HDMI Cable ×1
- VESA Bracket ×1
- Mounting Screw Set ×1
- User Manual ×1
FAQ
Please feel free to contact us if you have any questions: uk@minisforum.com
1. Brand of SSD and RAM in the UM790 Pro
We purchase essential hardware from different brands based on the same technical specifications, including SSDs, Wi-Fi cards, RAM, HDDs, power supplies, etc. Due to the limited resources and brands of RAM and SSD, we choose Samsung, Kingston, Crucial, Adata, Phison, etc. as our RAM and SSD suppliers.
Each piece of hardware has passed a strict quality inspection and met the factory's standards before it is delivered to Minisforum. In addition, there is no difference in the warranty policies of these hardware suppliers.
The hardware brands may vary from batch to batch. Please rest assured that they all meet Minisforum's standards and are all covered by the warranty.
2. What's the TDP of the UM790 Pro? Can it be manually adjusted?
The default TDP is 60W, and it can be manually adjusted to 65W.
3. Can I use the USB4 ports to power up the UM790 Pro?
The USB4 ports on the UM790 Pro support power delivery, and they can be used as a power supply port.
4. Can I use SSD with heat sink?
No. All versions of the UM790 come with Cold Wave 2.0 (provides an extra active thermal system for RAM and SSD). There is no space to install extra heat sink for the SSD.
5. Can I use double-sided SSD?
Yes, but we do not recommend purchasing double-sided SSD. If customers still prefer the double-sided SSD, please install it on the second M.2 slot so that this SSD and the Wi-Fi card will not overlap.
6. Does it support eGPU?
The UM790 Pro supports eGPU. Please contact the manufacturer of the eGPU docking station to learn more about the compatibility of the device.
